Fujifilm X-M1 vs Nikon D40
The Fujifilm X-M1 and the Nikon D40 are two digital cameras that were officially introduced, respectively, in June 2013 and November 2006. The X-M1 is a mirrorless interchangeable lens camera, while the D40 is a DSLR. Both cameras are equipped with an APS-C sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Nikon provides 6 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M1 and the Nikon D40? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

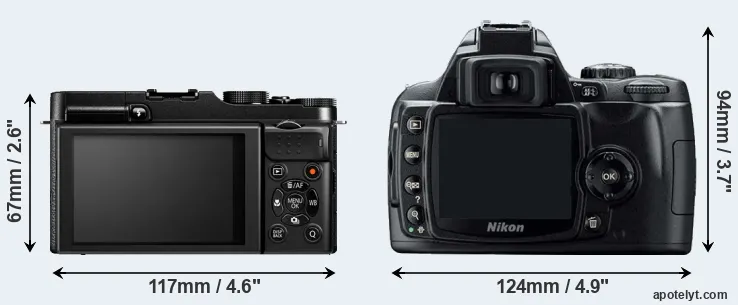

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-M1 and the Nikon D40. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The X-M1 can be obtained in three different colors (black, silver, brown), while the D40 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D40 is considerably larger (49 percent) than the Fujifilm X-M1. Moreover, the D40 is substantially heavier (58 percent) than the X-M1. In this context, it is worth noting that neither the X-M1 nor the D40 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-M1) and the Nikon Lens Catalog (D40). Mirrorless cameras, such as the Fujifilm X-M1, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Fujifilm X-M1||117 mm||67 mm||39 mm||330 g||350||n||Jun 2013||699||ebay.com|
|2.||Nikon D40||124 mm||94 mm||64 mm||522 g||470||n||Nov 2006||499||ebay.com|
|3.||Fujifilm X-A10||117 mm||67 mm||40 mm||331 g||410||n||Dec 2016||399||ebay.com|
|4.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699||ebay.com|
|5.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399||ebay.com|
|6.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799||ebay.com|
|7.||Fujifilm X-A1||117 mm||67 mm||39 mm||330 g||350||n||Sep 2013||399||ebay.com|
|8.||Fujifilm X-E2||129 mm||75 mm||37 mm||350 g||350||n||Oct 2013||999||ebay.com|
|9.||Fujifilm X-E1||129 mm||75 mm||38 mm||350 g||350||n||Sep 2012||999||ebay.com|
|10.||Fujifilm X-Pro1||140 mm||82 mm||43 mm||450 g||300||n||Jan 2012||1,699||ebay.com|
|11.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499||ebay.com|
|12.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499||ebay.com|
|13.||Nikon D3100||124 mm||96 mm||75 mm||505 g||550||n||Aug 2010||599||ebay.com|
|14.||Nikon D40X||124 mm||94 mm||64 mm||522 g||520||n||Mar 2007||729||ebay.com|
|15.||Nikon D50||133 mm||102 mm||76 mm||620 g||400||n||Apr 2005||749||ebay.com|
|16.||Sony NEX-5R||111 mm||59 mm||39 mm||276 g||330||n||Aug 2012||749||ebay.com|
|17.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D40 was launched at a markedly lower price (by 29 percent) than the X-M1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

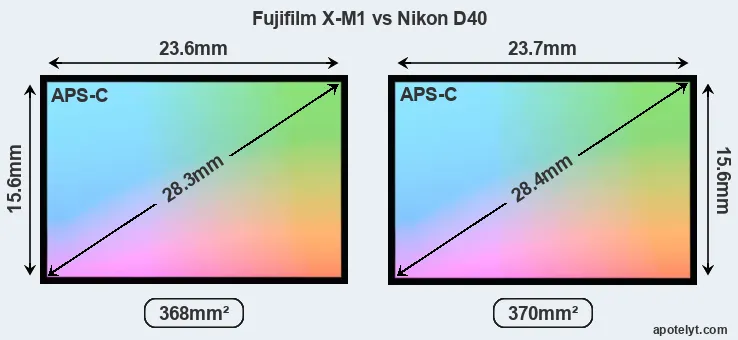

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D40 is 1 percent bigger. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a slightly smaller sensor, the Fujifilm X-M1 offers a higher resolution of 16 megapixels, compared with 6 MP of the Nikon D40. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.80μm versus 7.85μm for the D40). However, it should be noted that the X-M1 is much more recent (by 6 years and 7 months) than the D40, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the X-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-M1 for good quality output (200 dots per inch) amounts to 24.5 x 16.3 inches or 62.2 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.7 x 33.2 cm, and for excellent quality (300 dpi) 16.3 x 10.9 inches or 41.5 x 27.6 cm. The corresponding values for the Nikon D40 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.
The Fujifilm X-M1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D40 are ISO 200 to ISO 1600, with the possibility to increase the ISO range to 200-3200.
In terms of underlying technology, the X-M1 is build around a CMOS sensor, while the D40 uses a CCD imager. The X-M1 uses Fujifilm's X-Trans layout of photosites, while the D40 employs the more common Bayer array.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The X-M1 indeed provides movie recording capabilities, while the D40 does not. The highest resolution format that the X-M1 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D40 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-M1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Fujifilm X-M1, the Nikon D40, and comparable cameras.
|1.||Fujifilm X-M1||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|2.||Nikon D40||optical||n||2.5 / 230||fixed||n||1/4000s||2.5/s||Y||n|
|3.||Fujifilm X-A10||none||n||3.0 / 1040||tilting||n||1/4000s||6.0/s||Y||n|
|4.||Fujifilm X-E2S||2360||n||3.0 / 1040||fixed||n||1/4000s||7.0/s||Y||n|
|5.||Fujifilm X-A2||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|6.||Fujifilm X-T10||2360||n||3.0 / 920||tilting||n||1/4000s||8.0/s||Y||n|
|7.||Fujifilm X-A1||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|8.||Fujifilm X-E2||2360||n||3.0 / 1040||fixed||n||1/4000s||7.0/s||Y||n|
|9.||Fujifilm X-E1||2360||n||2.8 / 460||fixed||n||1/4000s||6.0/s||Y||n|
|10.||Fujifilm X-Pro1||1440||n||3.0 / 1230||fixed||n||1/4000s||6.0/s||n||n|
|11.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|12.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|13.||Nikon D3100||optical||n||3.0 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|14.||Nikon D40X||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|15.||Nikon D50||optical||n||2.0 / 130||fixed||n||1/4000s||2.5/s||Y||n|
|16.||Sony NEX-5R||optional||n||3.0 / 920||tilting||Y||1/4000s||10.0/s||n||n|
|17.||Sony NEX-F3||optional||n||3.0 / 920||tilting||n||1/4000s||5.5/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The X-M1 writes its imaging data to SDXC cards, while the D40 uses SDHC cards. The X-M1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D40 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M1 and Nikon D40 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Fujifilm X-M1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|2.||Nikon D40||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Fujifilm X-A10||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|4.||Fujifilm X-E2S||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|5.||Fujifilm X-A2||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|6.||Fujifilm X-T10||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|7.||Fujifilm X-A1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|8.||Fujifilm X-E2||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|9.||Fujifilm X-E1||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Fujifilm X-Pro1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|12.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|13.||Nikon D3100||Y||mono / mono||-||-||mini||2.0||-||-||-|
|14.||Nikon D40X||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Nikon D50||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Sony NEX-5R||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|17.||Sony NEX-F3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the X-M1 offers wifi support, while the D40 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the X-M1 and the D40 have been discontinued, but can regularly be found used on ebay. The D40 was replaced by the Nikon D40X, while the X-M1 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Nikon websites.
So what conclusions can be drawn? Is there a clear favorite between the Fujifilm X-M1 and the Nikon D40? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Fujifilm X-M1:
- More detail: Offers more megapixels (16 vs 6MP) with a 63% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster burst: Shoots at higher frequency (5.6 vs 2.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (117x67mm vs 124x94mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 192g or 37 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 6 years and 7 months of technical progress since the D40 launch.
Reasons to prefer the Nikon D40:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Gets more shots (470 versus 350) out of a single battery charge.
- More affordable: Was introduced into a lower priced category (29 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in November 2006).
If the count of relative strengths (bullet points above) is taken as a measure, the X-M1 is the clear winner of the match-up (13 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-M1 and the Nikon D40 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the X-M1 and the D40 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Fujifilm X-M1||3/5||+||..||77/100||4.5/5||4.5/5||Jun 2013||699||ebay.com|
|2.||Nikon D40||..||81/100||..||+ +||o||4.5/5||Nov 2006||499||ebay.com|
|3.||Fujifilm X-A10||..||..||..||..||4/5||4/5||Dec 2016||399||ebay.com|
|4.||Fujifilm X-E2S||4.5/5||..||..||77/100||4.5/5||4.5/5||Jan 2016||699||ebay.com|
|5.||Fujifilm X-A2||4/5||..||..||..||4.5/5||4.5/5||Jan 2015||399||ebay.com|
|6.||Fujifilm X-T10||4.5/5||+ +||..||80/100||5/5||5/5||May 2015||799||ebay.com|
|7.||Fujifilm X-A1||..||..||..||..||4.5/5||4.5/5||Sep 2013||399||ebay.com|
|8.||Fujifilm X-E2||4/5||..||..||80/100||4.5/5||5/5||Oct 2013||999||ebay.com|
|9.||Fujifilm X-E1||4/5||+ +||..||79/100||4.5/5||4.5/5||Sep 2012||999||ebay.com|
|10.||Fujifilm X-Pro1||5/5||+ +||..||79/100||4.5/5||4.5/5||Jan 2012||1,699||ebay.com|
|11.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499||ebay.com|
|12.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499||ebay.com|
|13.||Nikon D3100||5/5||+ +||..||72/100||4.5/5||4.5/5||Aug 2010||599||ebay.com|
|14.||Nikon D40X||..||79/100||..||+ +||4/5||4/5||Mar 2007||729||ebay.com|
|15.||Nikon D50||..||78/100||..||+ +||4/5||4.5/5||Apr 2005||749||ebay.com|
|16.||Sony NEX-5R||..||..||..||..||4.5/5||4.5/5||Aug 2012||749||ebay.com|
|17.||Sony NEX-F3||4/5||..||..||74/100||4.5/5||4.5/5||May 2012||599||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Epson R-D1 vs Nikon D40
- Fujifilm X-M1 vs Leica V-LUX 2
- Fujifilm X-M1 vs Nikon 1 J4
- Fujifilm X-M1 vs Nikon D600
- Fujifilm X-M1 vs Panasonic GM5
- Fujifilm X-M1 vs Sony A7R
- Fujifilm X-M1 vs Sony RX100 III
- Leica M-E Typ 240 vs Nikon D40
- Nikon D40 vs Nikon D40X
- Nikon D40 vs Nikon D810
- Nikon D40 vs Olympus TG-5
- Nikon D40 vs Samsung NX1
Specifications: Fujifilm X-M1 vs Nikon D40
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-M1||Nikon D40|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Fujifilm X mount lenses||Nikon F mount lenses|
|Launch Date||June 2013||November 2006|
|Launch Price||USD 699||USD 499|
|Sensor Specs||Fujifilm X-M1||Nikon D40|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||23.6 x 15.6 mm||23.7 x 15.6 mm|
|Sensor Area||368.16 mm2||369.72 mm2|
|Sensor Diagonal||28.3 mm||28.4 mm|
|Sensor Resolution||16 Megapixels||6 Megapixels|
|Image Resolution||4896 x 3264 pixels||3008 x 2000 pixels|
|Pixel Pitch||4.80 μm||7.85 μm|
|Pixel Density||4.34 MP/cm2||1.63 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||200 - 6,400 ISO||200 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||200 - 3,200 ISO|
|DXO Sensor Quality (score)||..||56|
|DXO Color Depth (bits)||..||21.0|
|DXO Dynamic Range (EV)||..||11.0|
|DXO Low Light (ISO)||..||561|
|Screen Specs||Fujifilm X-M1||Nikon D40|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||2.5inch|
|LCD Resolution||920k dots||230k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Shooting Specs||Fujifilm X-M1||Nikon D40|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||5.6 shutter flaps/s||2.5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Fujifilm X-M1||Nikon D40|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Fujifilm X-M1||Nikon D40|
|Battery Life (CIPA)||350 shots per charge||470 shots per charge|
117 x 67 x 39 mm
(4.6 x 2.6 x 1.5 in)
124 x 94 x 64 mm
(4.9 x 3.7 x 2.5 in)
|Camera Weight||330 g (11.6 oz)||522 g (18.4 oz)|
