Canon XTi vs Panasonic GH1
The Canon EOS Rebel XTi (called Canon 400D in some regions) and the Panasonic Lumix DMC-GH1 are two digital cameras that were revealed to the public, respectively, in August 2006 and March 2009. The XTi is a DSLR, while the GH1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (XTi) and a Four Thirds (GH1) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Panasonic provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XTi and the Panasonic Lumix DMC-GH1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

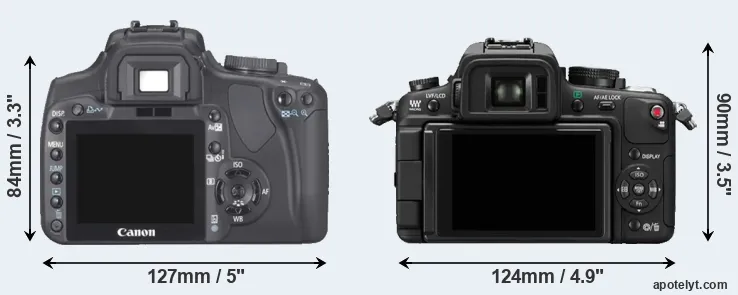

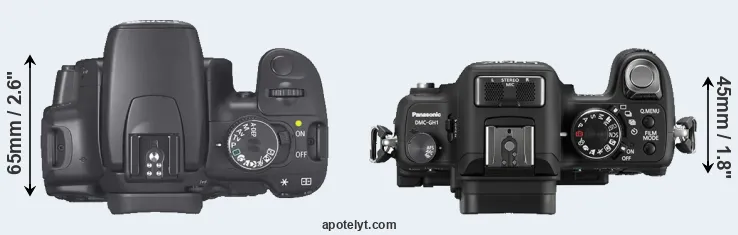

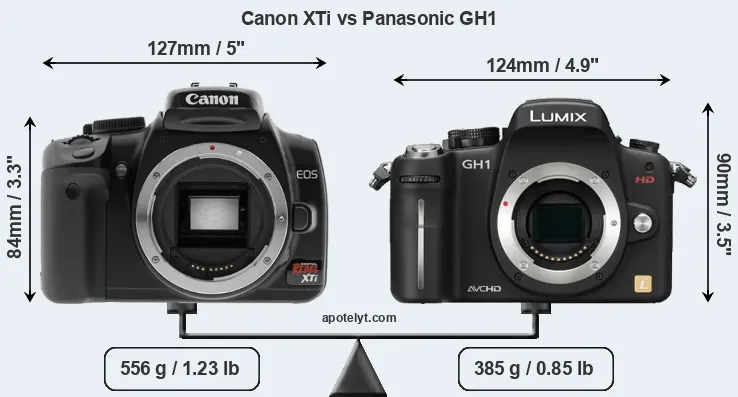

An illustration of the physical size and weight of the Canon XTi and the Panasonic GH1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The GH1 can be obtained in two different colors (black, red), while the XTi is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH1 is somewhat larger (5 percent) than the Canon XTi. However, the GH1 is markedly lighter (31 percent) than the XTi. In this context, it is worth noting that neither the XTi nor the GH1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XTi) and the Micro Four Thirds Lens Catalog (GH1). Mirrorless cameras, such as the GH1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|2.||Panasonic GH1||124 mm||90 mm||45 mm||385 g||300||n||Mar 2009||899|
|3.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|11.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|12.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|13.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499|
|14.||Panasonic G2||124 mm||84 mm||74 mm||428 g||360||n||Mar 2010||599|
|15.||Panasonic GH2||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899|
|16.||Panasonic GF1||119 mm||71 mm||36 mm||385 g||380||n||Sep 2009||749|
|17.||Panasonic G1||124 mm||84 mm||45 mm||360 g||410||n||Sep 2008||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XTi was launched at a somewhat lower price (by 11 percent) than the GH1, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon XTi features an APS-C sensor and the Panasonic GH1 a Four Thirds sensor. The sensor area in the GH1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the XTi has a native 3:2 aspect ratio, while the one in the GH1 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
Despite having a smaller sensor, the GH1 offers a higher resolution of 12 megapixels, compared with 10.1 MP of the XTi. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.33μm versus 5.71μm for the XTi). However, it should be noted that the GH1 is much more recent (by 2 years and 6 months) than the XTi, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Panasonic GH1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GH1 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS Rebel XTi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-GH1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Panasonic GH1||Four Thirds||12.0||4000||3000||1080/24p||21.6||11.6||772||64|
|13.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|14.||Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
|15.||Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60|
|16.||Panasonic GF1||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||513||54|
|17.||Panasonic G1||Four Thirds||12.0||4000||3000||none||21.1||10.3||463||53|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The GH1 indeed provides for movie recording, while the XTi does not. The highest resolution format that the GH1 can use is 1080/24p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the GH1 has an electronic viewfinder (1440k dots), while the XTi has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GH1 offers a wider field of view (100%) than the one in the XTi (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the GH1 has a higher magnification (0.70x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon XTi and Panasonic GH1 along with similar information for a selection of comparators.
The XTi writes its imaging data to Compact Flash cards, while the GH1 uses SDHC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XTi and Panasonic Lumix DMC-GH1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
Both the XTi and the GH1 have been discontinued, but can regularly be found used on eBay. The XTi was replaced by the Canon Xsi, while the GH1 was followed by the Panasonic GH2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Is the Canon XTi better than the Panasonic GH1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS Rebel XTi:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Longer lasting: Can take more shots (370 versus 300) on a single battery charge.
- More affordable: Was introduced into a lower priced segment (11 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2006).
Advantages of the Panasonic Lumix DMC-GH1:
- More detail: Has more megapixels (12 vs 10.1MP), which boosts linear resolution by 7%.
- More dynamic range: Captures a broader range of light and dark details (0.6 EV of extra DR).
- Broader imaging potential: Can capture not only stills but also 1080/24p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.49x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Less heavy: Has a lower weight (by 171g or 31 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More modern: Reflects 2 years and 6 months of technical progress since the XTi launch.
If the count of individual advantages (bullet points above) is taken as a guide, the GH1 is the clear winner of the contest (13 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XTi and the Panasonic GH1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XTi or the GH1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|2.||Panasonic GH1||..||+ +||72/100||4.5/5||4.5/5||Mar 2009||899|
|3.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|4.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon T3||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon T2i||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|10.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|11.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|12.||Canon Rebel||..||..||+ +||..||..||Aug 2003||899|
|13.||Panasonic G10||3/5||..||70/100||4/5||4/5||Mar 2010||499|
|14.||Panasonic G2||..||..||72/100||4/5||4.5/5||Mar 2010||599|
|15.||Panasonic GH2||5/5||+ +||79/100||4.5/5||5/5||Sep 2010||899|
|16.||Panasonic GF1||..||85/100||69/100||4.5/5||4.5/5||Sep 2009||749|
|17.||Panasonic G1||..||+ +||70/100||4/5||4.5/5||Sep 2008||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon XTi vs Panasonic GH1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XTi||Panasonic GH1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2006||March 2009|
|Launch Price||USD 799||USD 899|
|Sensor Specs||Canon XTi||Panasonic GH1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.2 x 14.8 mm||17.3 x 13.0 mm|
|Sensor Area||328.56 mm2||224.9 mm2|
|Sensor Diagonal||26.7 mm||21.6 mm|
|Sensor Resolution||10.1 Megapixels||12 Megapixels|
|Image Resolution||3888 x 2592 pixels||4000 x 3000 pixels|
|Pixel Pitch||5.71 μm||4.33 μm|
|Pixel Density||3.07 MP/cm2||5.34 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/24p Video|
|ISO Setting||100 - 1,600 ISO||100 - 1,600 ISO|
|ISO Boost||no Enhancement||100 - 3,200 ISO|
|Image Processor||DIGIC II||Venus HD|
|DXO Sensor Quality (score)||62||64|
|DXO Color Depth (bits)||22.1||21.6|
|DXO Dynamic Range (EV)||11.0||11.6|
|DXO Low Light (ISO)||664||772|
|Screen Specs||Canon XTi||Panasonic GH1|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||1440k dots|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||460k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon XTi||Panasonic GH1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XTi||Panasonic GH1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon XTi||Panasonic GH1|
|Battery Life (CIPA)||370 shots per charge||300 shots per charge|
127 x 84 x 65 mm
(5.0 x 3.3 x 2.6 in)
124 x 90 x 45 mm
(4.9 x 3.5 x 1.8 in)
|Camera Weight||556 g (19.6 oz)||385 g (13.6 oz)|
