Canon SL2 vs Panasonic GH1

The Canon EOS Rebel SL2 (called Canon 200D in some regions) and the Panasonic Lumix DMC-GH1 are two digital cameras that were revealed to the public, respectively, in June 2017 and March 2009. The SL2 is a DSLR, while the GH1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (SL2) and a Four Thirds (GH1) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SL2
versus
Panasonic GH1
Canon SL2   Panasonic GH1
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Micro Four Thirds lenses
24 MP – APS-C sensor 12 MP – Four Thirds sensor
1080/60p Video 1080/24p Video
ISO 100-25,600 (100 - 51,200) ISO 100-1,600 (100 - 3,200)
Optical viewfinder Electronic viewfinder (1440k dots)
3.0" LCD – 1040k dots 3.0" LCD – 460k dots
Swivel touchscreen Swivel screen (not touch-sensitive)
5 shutter flaps per second 3 shutter flaps per second
650 shots per battery charge300 shots per battery charge
122 x 93 x 70 mm, 453 g 124 x 90 x 45 mm, 385 g
logo
Check SL2 offers at
ebay.com
logo
Check GH1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL2 and the Panasonic Lumix DMC-GH1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon SL2 and the Panasonic GH1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The SL2 can be obtained in two different colors (black, white), while the GH1 is also available in two color-versions, but different ones (black, red).

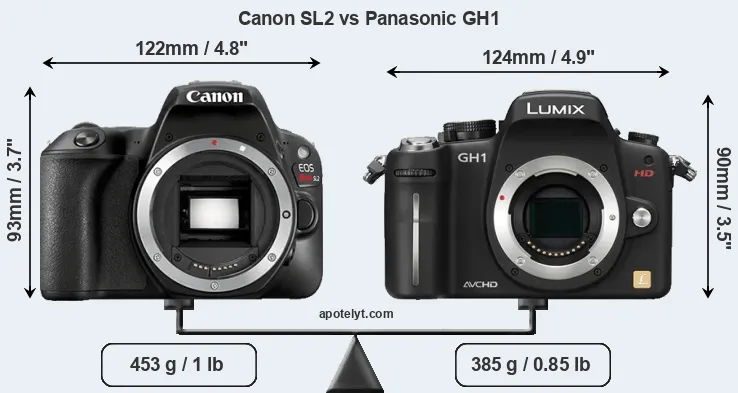

Size Canon SL2 vs Panasonic GH1

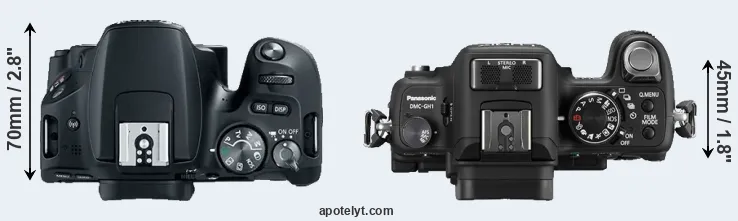

Compare SL2 versus GH1 top

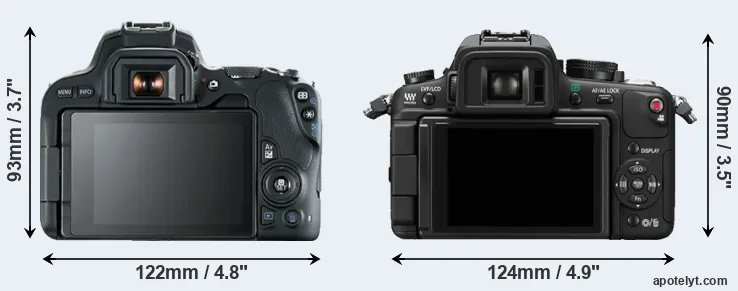

Comparison SL2 or GH1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH1 is somewhat smaller (2 percent) than the Canon SL2. Moreover, the GH1 is markedly lighter (15 percent) than the SL2. In this context, it is worth noting that neither the SL2 nor the GH1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (SL2) and the Micro Four Thirds Lens Catalog (GH1). Mirrorless cameras, such as the GH1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the SL2 gets 650 shots out of its LP-E17 battery, while the GH1 can take 300 images on a single charge of its DMW-BLB13 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
2.

Panasonic GH1 124 mm 90 mm 45 mm 385 g 300 n Mar 2009 899ebay.com
3.

Canon SL3 122 mm 93 mm 70 mm 449 g 1070 n Apr 2019 599 amazon.com
4.

Canon T7 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
5.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899ebay.com
6.

Canon G9 X Mark II 98 mm 58 mm 31 mm 206 g 235 n Jan 2017 529 amazon.com
7.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779ebay.com
8.

Canon M100 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499ebay.com
9.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
10.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979ebay.com
11.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
12.

Canon SL1 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 549ebay.com
13.

Panasonic G10 124 mm 84 mm 74 mm 388 g 380 n Mar 2010 499ebay.com
14.

Panasonic G2 124 mm 84 mm 74 mm 428 g 360 n Mar 2010 599ebay.com
15.

Panasonic GH2 124 mm 90 mm 76 mm 442 g 330 n Sep 2010 899ebay.com
16.

Panasonic GF1 119 mm 71 mm 36 mm 385 g 380 n Sep 2009 749ebay.com
17.

Panasonic G1 124 mm 84 mm 45 mm 360 g 410 n Sep 2008 599ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SL2 was launched at a markedly lower price (by 39 percent) than the GH1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SL2 features an APS-C sensor and the Panasonic GH1 a Four Thirds sensor. The sensor area in the GH1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the SL2 has a native 3:2 aspect ratio, while the one in the GH1 offers a 4:3 aspect.

Canon SL2 and Panasonic GH1 sensor measures

With 24MP, the SL2 offers a higher resolution than the GH1 (12MP), but the SL2 has smaller individual pixels (pixel pitch of 3.72μm versus 4.33μm for the GH1). However, the SL2 is a much more recent model (by 8 years and 3 months) than the GH1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon SL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL2 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GH1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The SL2 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS Rebel SL2 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Panasonic Lumix DMC-GH1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

SL2 versus GH1 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the SL2 provides substantially higher image quality than the GH1, with an overall score that is 15 points higher. This advantage is based on 2 bits higher color depth, 1.8 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
2.

Panasonic GH1 Four Thirds 12.0 4000 30001080/24p21.611.677264
3.

Canon SL3 APS-C 24.0 6000 40004K/25p23.913.4179182
4.

Canon T7 APS-C 24.0 6000 40001080/30p23.813.3168481
5.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
6.

Canon G9 X Mark II 1-inch 20.0 5472 36481080/60p21.912.552265
7.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
8.

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278
9.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
10.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
11.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
12.

Canon SL1 APS-C 17.9 5184 34561080/30p21.811.384363
13.

Panasonic G10 Four Thirds 12.0 4000 3000720/30p21.210.141152
14.

Panasonic G2 Four Thirds 12.0 4000 3000720/30p21.210.349353
15.

Panasonic GH2 Four Thirds 15.9 4608 34561080/60i21.211.365560
16.

Panasonic GF1 Four Thirds 12.0 4000 3000720/30p21.210.351354
17.

Panasonic G1 Four Thirds 12.0 4000 3000none21.110.346353
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SL2 provides a higher frame rate than the GH1. It can shoot video footage at 1080/60p, while the Panasonic is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the GH1 has an electronic viewfinder (1440k dots), while the SL2 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GH1 offers a wider field of view (100%) than the one in the SL2 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the GH1 has a higher magnification (0.70x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon SL2, the Panasonic GH1, and comparable cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
2.

Panasonic GH11440 n3.0 / 460 swivel n 1/4000s 3.0/s Y n
3.

Canon SL3optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
4.

Canon T7optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
5.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
6.

Canon G9 X Mark IInone n3.0 / 1040 fixed Y 1/2000s 8.2/s Y Y
7.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
8.

Canon M100none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
9.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
10.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
11.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
12.

Canon SL1optical n3.0 / 1040 fixed Y 1/4000s 4.9/s Y n
13.

Panasonic G10202 n3.0 / 460 fixed n 1/4000s 2.6/s Y n
14.

Panasonic G21440 n3.0 / 460 swivel Y 1/4000s 2.6/s Y n
15.

Panasonic GH21534 n3.0 / 460 swivel n 1/4000s 3.0/s Y n
16.

Panasonic GF1optional n3.0 / 460 fixed n 1/4000s 3.0/s Y n
17.

Panasonic G11440 n3.0 / 460 swivel n 1/4000s 3.0/s Y n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The SL2 has a touchscreen, while the GH1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The Canon SL2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The SL2 writes its imaging data to SDXC cards, while the GH1 uses SDHC cards. The SL2 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GH1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL2 and Panasonic Lumix DMC-GH1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon SL2Ystereo / monoY-mini2.0YYY
2.

Panasonic GH1Ystereo / -Y-mini2.0---
3.

Canon SL3Ystereo / monoY-mini2.0Y-Y
4.

Canon T7Ymono / mono--mini2.0YY-
5.

Canon 77DYstereo / monoY-mini2.0YYY
6.

Canon G9 X Mark II-stereo / mono--micro2.0YYY
7.

Canon M6Ystereo / monoY-mini2.0YYY
8.

Canon M100-stereo / mono--micro2.0YYY
9.

Canon T7iYstereo / monoY-mini2.0YYY
10.

Canon M5Ystereo / monoY-mini2.0YYY
11.

Canon T6sYstereo / monoY-mini2.0YY-
12.

Canon SL1Ymono / monoY-mini2.0---
13.

Panasonic G10Ymono / ---mini2.0---
14.

Panasonic G2Ystereo / mono--mini2.0---
15.

Panasonic GH2Ystereo / monoY-mini2.0---
16.

Panasonic GF1Ymono / mono--mini2.0---
17.

Panasonic G1Y- / ---mini2.0---

It is notable that the SL2 offers wifi support, while the GH1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SL2 and the GH1 have been discontinued, but can regularly be found used on ebay. The GH1 was replaced by the Panasonic GH2, while the SL2 was followed by the Canon SL2. Further information on the features and operation of the SL2 and GH1 can be found, respectively, in the Canon SL2 Manual (free pdf) or the online Panasonic GH1 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon SL2 or the Panasonic GH1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Canon EOS Rebel SL2:

  • More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
  • Better image quality: Scores substantially higher (15 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (1.8 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
  • Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Can take more shots (650 versus 300) on a single battery charge.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More affordable: Was introduced into a lower priced category (39 percent cheaper at launch).
  • More modern: Reflects 8 years and 3 months of technical progress since the GH1 launch.

ilogo

Reasons to prefer the Panasonic Lumix DMC-GH1:

  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.54x).
  • Less heavy: Has a lower weight (by 68g or 15 percent) and is thus easier to take along.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More heavily discounted: Has been around for much longer (launched in March 2009).

If the count of individual advantages (bullet points above) is taken as a guide, the SL2 is the clear winner of the match-up (19 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SL2 19:06 GH1

How about other alternatives? Do the specifications of the Canon SL2 and the Panasonic GH1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SL2 or the GH1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
2.

Panasonic GH1..+ +..72/1004.5/54.5/5 Mar 2009 899ebay.com
3.

Canon SL3..o4.5/579/1004/54/5 Apr 2019 599 amazon.com
4.

Canon T7..o3.5/5..3.5/53.5/5 Feb 2018 449 amazon.com
5.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 899ebay.com
6.

Canon G9 X Mark II4/5..4/575/1004.5/54.5/5 Jan 2017 529 amazon.com
7.

Canon M6......80/1004/54/5 Feb 2017 779ebay.com
8.

Canon M1003/5+....4/53.5/5 Aug 2017 499ebay.com
9.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
10.

Canon M54/5+4/582/1004/54/5 Sep 2016 979ebay.com
11.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
12.

Canon SL14/5+..78/1004/54/5 Mar 2013 549ebay.com
13.

Panasonic G103/5....70/1004/54/5 Mar 2010 499ebay.com
14.

Panasonic G2......72/1004/54.5/5 Mar 2010 599ebay.com
15.

Panasonic GH25/5+ +..79/1004.5/55/5 Sep 2010 899ebay.com
16.

Panasonic GF1..85/100..69/1004.5/54.5/5 Sep 2009 749ebay.com
17.

Panasonic G1..+ +..70/1004/54.5/5 Sep 2008 599ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check SL2 offers at
ebay.com
logo
Check GH1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Canon SL2 vs Panasonic GH1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SL2 Panasonic GH1
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Micro Four Thirds lenses
    Launch Date June 2017 March 2009
    Launch Price USD 549 USD 899
    Sensor Specs Canon SL2 Panasonic GH1
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.9 mm 17.3 x 13.0 mm
    Sensor Area 332.27 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 24 Megapixels 12 Megapixels
    Image Resolution 6000 x 4000 pixels 4000 x 3000 pixels
    Pixel Pitch 3.72 μm 4.33 μm
    Pixel Density 7.22 MP/cm2 5.34 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 1080/24p Video
    ISO Setting 100 - 25,600 ISO 100 - 1,600 ISO
    ISO Boost 100 - 51,200 ISO 100 - 3,200 ISO
    Image Processor DIGIC 7 Venus HD
    DXO Sensor Quality (score) 79 64
    DXO Color Depth (bits) 23.6 21.6
    DXO Dynamic Range (EV) 13.4 11.6
    DXO Low Light (ISO) 1041 772
    Screen Specs Canon SL2 Panasonic GH1
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.54x 0.70x
    Viewfinder Resolution 1440k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 460k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon SL2 Panasonic GH1
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 5 shutter flaps/s 3 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDHC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I no
    Connectivity Specs Canon SL2 Panasonic GH1
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon SL2 Panasonic GH1
    Battery Type LP-E17 DMW-BLB13
    Battery Life (CIPA)650 shots per charge300 shots per charge
    Body Dimensions 122 x 93 x 70 mm
    (4.8 x 3.7 x 2.8 in)
    124 x 90 x 45 mm
    (4.9 x 3.5 x 1.8 in)
    Camera Weight 453 g (16.0 oz) 385 g (13.6 oz)
    logo
    Check SL2 offers at
    ebay.com
    logo
    Check GH1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SL2 vs Panasonic GH1
