Canon XTi vs Fujifilm X-T20
The Canon EOS Rebel XTi (called Canon 400D in some regions) and the Fujifilm X-T20 are two digital cameras that were revealed to the public, respectively, in August 2006 and January 2017. The XTi is a DSLR, while the X-T20 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Fujifilm provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XTi and the Fujifilm X-T20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

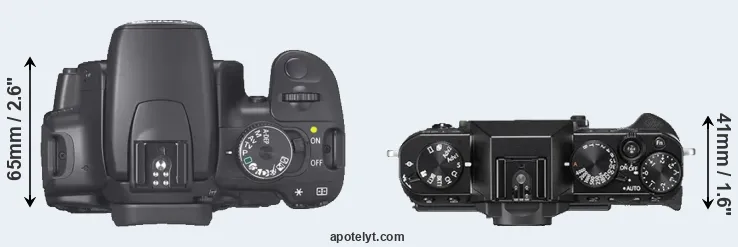

The physical size and weight of the Canon XTi and the Fujifilm X-T20 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The X-T20 can be obtained in two different colors (black, silver), while the XTi is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T20 is notably smaller (8 percent) than the Canon XTi. Moreover, the X-T20 is markedly lighter (31 percent) than the XTi. In this context, it is worth noting that neither the XTi nor the X-T20 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XTi) and the Fujinon X Lens Catalog (X-T20). Mirrorless cameras, such as the X-T20, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the XTi gets 370 shots out of its NB-2LH battery, while the X-T20 can take 350 images on a single charge of its NP-W126S power pack. The power pack in the X-T20 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|2.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|3.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|11.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|12.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|13.||Fujifilm X-A5||117 mm||68 mm||40 mm||361 g||450||n||Jan 2018||399|
|14.||Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599|
|15.||Fujifilm X-E3||121 mm||74 mm||43 mm||337 g||350||n||Sep 2017||899|
|16.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399|
|17.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XTi was launched at a somewhat lower price (by 11 percent) than the X-T20, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-T20 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XTi) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

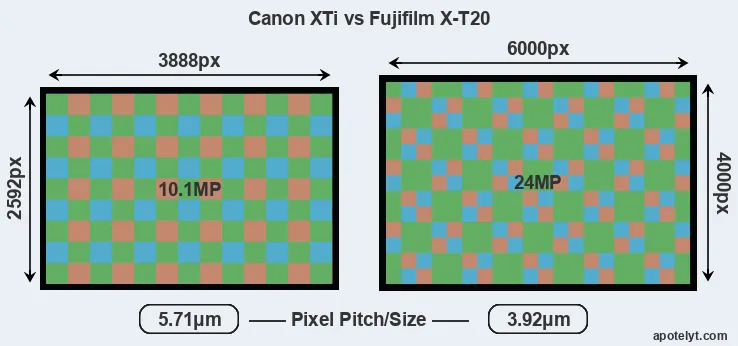

With 24MP, the X-T20 offers a higher resolution than the XTi (10.1MP), but the X-T20 has smaller individual pixels (pixel pitch of 3.92μm versus 5.71μm for the XTi). Yet, the X-T20 is a much more recent model (by 10 years and 4 months) than the XTi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-T20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-T20 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T20 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The X-T20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel XTi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Fujifilm X-T20 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-51200.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The X-T20 indeed provides for movie recording, while the XTi does not. The highest resolution format that the X-T20 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-T20 has an electronic viewfinder (2360k dots), while the XTi has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-T20 offers a wider field of view (100%) than the one in the XTi (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the X-T20 has a higher magnification (0.62x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon XTi and Fujifilm X-T20 in connection with corresponding information for a sample of similar cameras.
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The X-T20 has a touchscreen, while the XTi has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T20 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T20 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XTi writes its imaging data to Compact Flash cards, while the X-T20 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XTi and Fujifilm X-T20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the X-T20 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XTi does not provide wifi capability.
Both the XTi and the X-T20 have been discontinued, but can regularly be found used on eBay. The XTi was replaced by the Canon Xsi, while the X-T20 was followed by the Fujifilm X-T100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So how do things add up? Is there a clear favorite between the Canon XTi and the Fujifilm X-T20? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Rebel XTi:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More affordable: Was introduced into a lower priced segment (11 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2006).
Reasons to prefer the Fujifilm X-T20:
- More detail: Has more megapixels (24 vs 10.1MP), which boosts linear resolution by 54%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.49x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Less heavy: Has a lower weight (by 173g or 31 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Reflects 10 years and 4 months of technical progress since the XTi launch.
If the count of relative strengths (bullet points above) is taken as a measure, the X-T20 is the clear winner of the contest (19 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XTi and the Fujifilm X-T20 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the XTi and the X-T20 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|2.||Fujifilm X-T20||5/5||+ +||82/100||5/5||4.5/5||Jan 2017||899|
|3.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|4.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon T3||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon T2i||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|10.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|11.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|12.||Canon Rebel||..||..||+ +||..||..||Aug 2003||899|
|13.||Fujifilm X-A5||..||+||..||4/5||3.5/5||Jan 2018||399|
|14.||Fujifilm X-T100||4/5||+||79/100||4/5||4.5/5||May 2018||599|
|15.||Fujifilm X-E3||4.5/5||+||84/100||4.5/5||4.5/5||Sep 2017||899|
|16.||Fujifilm X-A3||..||..||74/100||4.5/5||4/5||Aug 2016||399|
|17.||Fujifilm X-T10||4.5/5||+ +||80/100||5/5||5/5||May 2015||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon XTi vs Fujifilm X-T20
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XTi||Fujifilm X-T20|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||August 2006||January 2017|
|Launch Price||USD 799||USD 899|
|Sensor Specs||Canon XTi||Fujifilm X-T20|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.2 x 14.8 mm||23.6 x 15.6 mm|
|Sensor Area||328.56 mm2||368.16 mm2|
|Sensor Diagonal||26.7 mm||28.3 mm|
|Sensor Resolution||10.1 Megapixels||24 Megapixels|
|Image Resolution||3888 x 2592 pixels||6000 x 4000 pixels|
|Pixel Pitch||5.71 μm||3.92 μm|
|Pixel Density||3.07 MP/cm2||6.52 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 12,800 ISO|
|ISO Boost||no Enhancement||100 - 51,200 ISO|
|Image Processor||DIGIC II||X-Processor Pro2|
|DXO Sensor Quality (score)||62||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||11.0||..|
|DXO Low Light (ISO)||664||..|
|Screen Specs||Canon XTi||Fujifilm X-T20|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon XTi||Fujifilm X-T20|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XTi||Fujifilm X-T20|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon XTi||Fujifilm X-T20|
|Battery Life (CIPA)||370 shots per charge||350 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
127 x 84 x 65 mm
(5.0 x 3.3 x 2.6 in)
118 x 83 x 41 mm
(4.6 x 3.3 x 1.6 in)
|Camera Weight||556 g (19.6 oz)||383 g (13.5 oz)|
