Canon XSi vs Olympus E-PL7
The Canon EOS Rebel XSi (called Canon 450D in some regions) and the Olympus PEN E-PL7 are two digital cameras that were revealed to the public, respectively, in January 2008 and August 2014. The XSi is a DSLR, while the E-PL7 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (XSi) and a Four Thirds (E-PL7) sensor. The Canon has a resolution of 12.2 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XSi and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

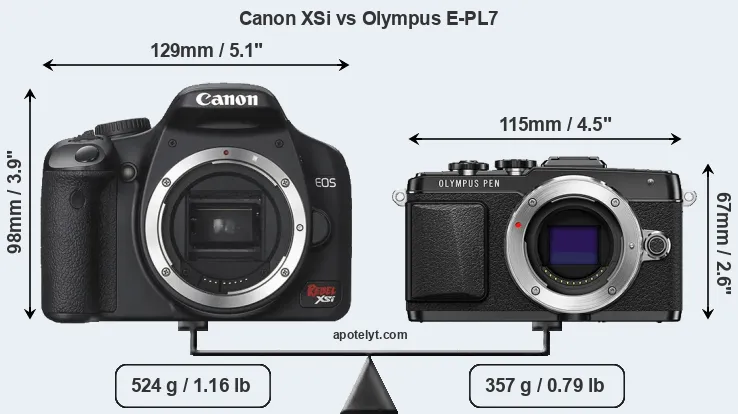

The side-by-side display below illustrates the physical size and weight of the Canon XSi and the Olympus E-PL7. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The E-PL7 can be obtained in two different colors (black, silver), while the XSi is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is considerably smaller (39 percent) than the Canon XSi. Moreover, the E-PL7 is markedly lighter (32 percent) than the XSi. In this context, it is worth noting that neither the XSi nor the E-PL7 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XSi) and the Micro Four Thirds Lens Catalog (E-PL7). Mirrorless cameras, such as the E-PL7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|2.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|3.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon XS||126 mm||98 mm||65 mm||502 g||500||n||Jun 2008||449|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|11.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|12.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|13.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|14.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|15.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|16.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|17.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL7 was launched at a somewhat lower price (by 25 percent) than the XSi, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

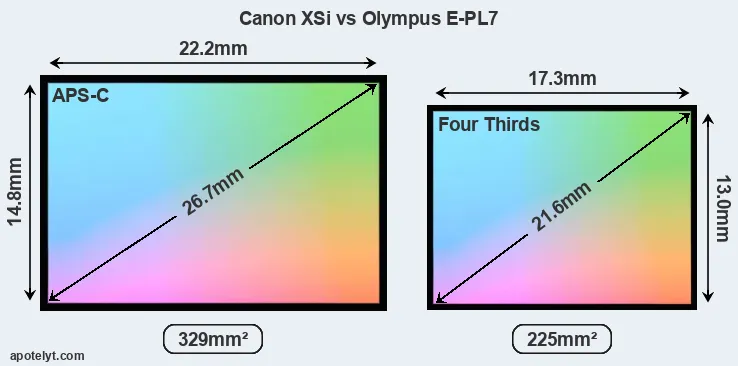

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon XSi features an APS-C sensor and the Olympus E-PL7 a Four Thirds sensor. The sensor area in the E-PL7 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the XSi has a native 3:2 aspect ratio, while the one in the E-PL7 offers a 4:3 aspect.
Despite having a smaller sensor, the E-PL7 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the XSi. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.19μm for the XSi). However, it should be noted that the E-PL7 is much more recent (by 6 years and 7 months) than the XSi, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-PL7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL7 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon XSi are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.
The Canon EOS Rebel XSi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the E-PL7 offers substantially better image quality than the XSi (overall score 11 points higher). The advantage is based on 0.8 bits higher color depth, 1.6 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|13.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|14.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|15.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|16.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|17.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. The E-PL7 indeed provides for movie recording, while the XSi does not. The highest resolution format that the E-PL7 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the XSi has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL7 relies on live view and the rear LCD for framing. That said, the E-PL7 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Canon XSi and Olympus E-PL7 in connection with corresponding information for a sample of similar cameras.
|14.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The XSi has one, while the E-PL7 does not. While the built-in flash of the XSi is not very powerful, it can at times be useful as a fill-in light.The E-PL7 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the XSi does not have a selfie-screen.
The Olympus E-PL7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XSi writes its imaging data to SDHC cards, while the E-PL7 uses SDXC cards. The E-PL7 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XSi cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XSi and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|14.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the E-PL7 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XSi does not provide wifi capability.
Both the XSi and the E-PL7 have been discontinued, but can regularly be found used on eBay. The XSi was replaced by the Canon T1i, while the E-PL7 was followed by the Olympus E-PL8. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon XSi or the Olympus E-PL7 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS Rebel XSi:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (500 versus 350) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More heavily discounted: Has been available for much longer (launched in January 2008).
Advantages of the Olympus PEN E-PL7:
- More detail: Has more megapixels (15.9 vs 12.2MP), which boosts linear resolution by 12%.
- Better image quality: Scores substantially higher (11 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1.6 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.3 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8 vs 3.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (115x67mm vs 129x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 167g or 32 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was released into a lower priced segment (25 percent cheaper at launch).
- More modern: Reflects 6 years and 7 months of technical progress since the XSi launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL7 is the clear winner of the contest (19 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XSi and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the XSi or the E-PL7 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|2.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|3.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|4.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon T3||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon T2i||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon XS||..||82/100||+ +||3.5/5||4.5/5||Jun 2008||449|
|10.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|11.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|12.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|13.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|14.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|15.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|16.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|17.||Olympus E-PL6||..||..||..||..||..||May 2013||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon XSi vs Olympus E-PL7
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XSi||Olympus E-PL7|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||January 2008||August 2014|
|Launch Price||USD 799||USD 599|
|Sensor Specs||Canon XSi||Olympus E-PL7|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.2 x 14.8 mm||17.3 x 13.0 mm|
|Sensor Area||328.56 mm2||224.9 mm2|
|Sensor Diagonal||26.7 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||15.9 Megapixels|
|Image Resolution||4272 x 2848 pixels||4608 x 3456 pixels|
|Pixel Pitch||5.19 μm||3.76 μm|
|Pixel Density||3.70 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 3||TruePic VII|
|DXO Sensor Quality (score)||61||72|
|DXO Color Depth (bits)||21.9||22.7|
|DXO Dynamic Range (EV)||10.8||12.4|
|DXO Low Light (ISO)||692||873|
|Screen Specs||Canon XSi||Olympus E-PL7|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon XSi||Olympus E-PL7|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3.5 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon XSi||Olympus E-PL7|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon XSi||Olympus E-PL7|
|Battery Life (CIPA)||500 shots per charge||350 shots per charge|
129 x 98 x 62 mm
(5.1 x 3.9 x 2.4 in)
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
|Camera Weight||524 g (18.5 oz)||357 g (12.6 oz)|
