Canon T1i vs Olympus E-PL1
The Canon EOS Rebel T1i (called Canon 500D in some regions) and the Olympus PEN E-PL1 are two digital cameras that were officially introduced, respectively, in March 2009 and February 2010. The T1i is a DSLR, while the E-PL1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (T1i) and a Four Thirds (E-PL1) sensor. The Canon has a resolution of 15.1 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T1i and the Olympus PEN E-PL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

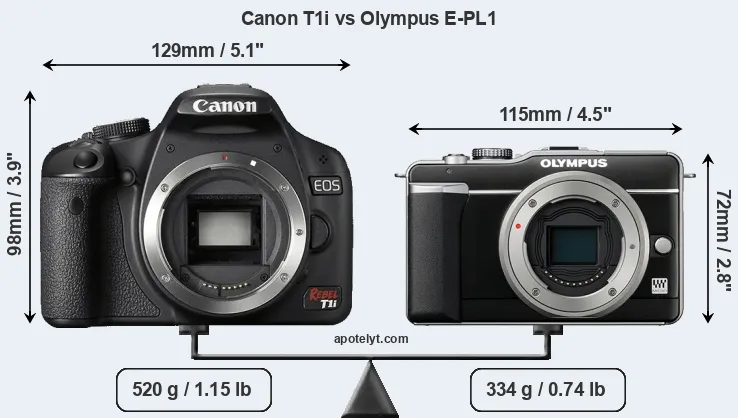

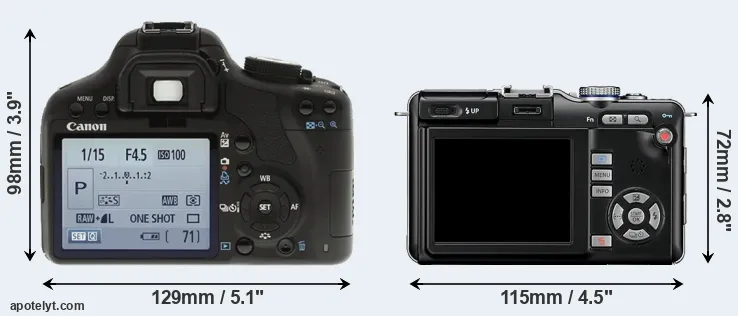

The side-by-side display below illustrates the physical size and weight of the Canon T1i and the Olympus E-PL1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the T1i is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL1 is considerably smaller (35 percent) than the Canon T1i. Moreover, the E-PL1 is substantially lighter (36 percent) than the T1i. In this context, it is worth noting that neither the T1i nor the E-PL1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T1i) and the Micro Four Thirds Lens Catalog (E-PL1). Mirrorless cameras, such as the E-PL1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|2.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|3.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|4.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|5.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|6.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|7.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|8.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|9.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|10.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|11.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|12.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|13.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|14.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|15.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|16.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799|
|17.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL1 was launched at a somewhat lower price (by 25 percent) than the T1i, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

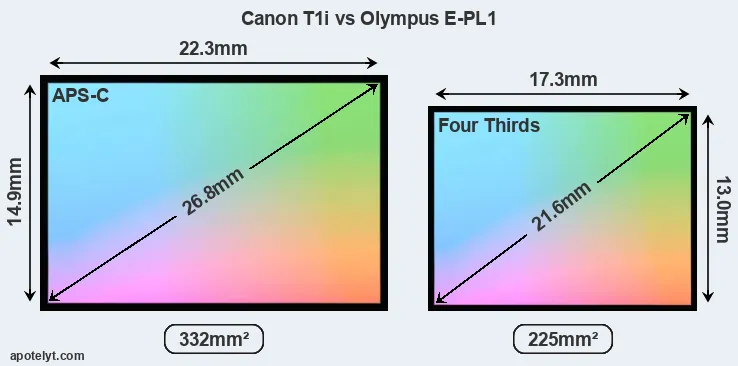

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon T1i features an APS-C sensor and the Olympus E-PL1 a Four Thirds sensor. The sensor area in the E-PL1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the T1i has a native 3:2 aspect ratio, while the one in the E-PL1 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 15.1MP, the T1i offers a higher resolution than the E-PL1 (12.2MP), but the T1i nevertheless has larger individual pixels (pixel pitch of 4.69μm versus 4.29μm for the E-PL1) due to its larger sensor. However, the E-PL1 is a somewhat more recent model (by 10 months) than the T1i, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon T1i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T1i for good quality output (200 dots per inch) amounts to 23.8 x 15.8 inches or 60.4 x 40.2 cm, for very good quality (250 dpi) 19 x 12.7 inches or 48.3 x 32.2 cm, and for excellent quality (300 dpi) 15.8 x 10.6 inches or 40.2 x 26.8 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Canon EOS Rebel T1i has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus PEN E-PL1 are ISO 200 to ISO 3200 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the T1i has a notably higher overall DXO score than the E-PL1 (overall score 9 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.2 bits higher color depth, 1.4 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|13.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|14.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|15.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|16.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|17.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the T1i provides a higher video resolution than the E-PL1. It can shoot video footage at 1080/20p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the T1i has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL1 relies on live view and the rear LCD for framing. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Canon T1i and Olympus E-PL1 along with similar information for a selection of comparators.
One feature that differentiates the E-PL1 and the T1i is in-body image stabilization (IBIS). The E-PL1 reduces the risk of handshake-induced blur with all attached lenses, while the T1i offers no blur reduction with lenses that themselves do not provide optical image stabilization.
Concerning the storage of imaging data, both the T1i and the E-PL1 write their files to SDHC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T1i and Olympus PEN E-PL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
Both the T1i and the E-PL1 have been discontinued, but can regularly be found used on eBay. The T1i was replaced by the Canon T2i, while the E-PL1 was followed by the Olympus E-PL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon T1i and the Olympus E-PL1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS Rebel T1i:
- More detail: Offers more megapixels (15.1 vs 12.2MP) with a 13% higher linear resolution.
- Better image quality: Scores markedly higher (9 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (1.4 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/20p vs 720/30p).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (3.4 vs 3 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (400 versus 290) on a single battery charge.
- More heavily discounted: Has been on the market for longer (launched in March 2009).
Advantages of the Olympus PEN E-PL1:
- More compact: Is smaller (115x72mm vs 129x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 186g or 36 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was released into a lower priced segment (25 percent cheaper at launch).
- More modern: Was introduced somewhat (10 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the T1i is the clear winner of the match-up (12 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T1i and the Olympus E-PL1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the T1i or the E-PL1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|2.||Olympus E-PL1||..||86/100||69/100||4/5||4.5/5||Feb 2010||599|
|3.||Canon T100||..||o||..||3.5/5||3.5/5||Feb 2018||399|
|4.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|5.||Canon T5||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|6.||Canon T5i||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|7.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|8.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|9.||Canon T2i||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|10.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|11.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|12.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|13.||Olympus E-P3||..||83/100||74/100||4.5/5||4.5/5||Jun 2011||799|
|14.||Olympus E-PL2||3/5||83/100||71/100||4.5/5||4.5/5||Jan 2011||599|
|15.||Olympus E-PL3||3/5||+ +||72/100||4.5/5||4/5||Jun 2011||599|
|16.||Olympus E-P1||..||+||66/100||4/5||4.5/5||Jun 2009||799|
|17.||Olympus E-P2||3/5||+||69/100||4/5||4.5/5||Nov 2009||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon T1i vs Olympus E-PL1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T1i||Olympus E-PL1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||March 2009||February 2010|
|Launch Price||USD 799||USD 599|
|Sensor Specs||Canon T1i||Olympus E-PL1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||15.1 Megapixels||12.2 Megapixels|
|Image Resolution||4752 x 3168 pixels||4032 x 3024 pixels|
|Pixel Pitch||4.69 μm||4.29 μm|
|Pixel Density||4.53 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/20p Video||720/30p Video|
|ISO Setting||100 - 6,400 ISO||200 - 3,200 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4||Truepic V|
|DXO Sensor Quality (score)||63||54|
|DXO Color Depth (bits)||21.7||21.5|
|DXO Dynamic Range (EV)||11.5||10.1|
|DXO Low Light (ISO)||663||487|
|Screen Specs||Canon T1i||Olympus E-PL1|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||920k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon T1i||Olympus E-PL1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3.4 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDHC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Canon T1i||Olympus E-PL1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon T1i||Olympus E-PL1|
|Battery Life (CIPA)||400 shots per charge||290 shots per charge|
129 x 98 x 62 mm
(5.1 x 3.9 x 2.4 in)
115 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||520 g (18.3 oz)||334 g (11.8 oz)|
