Canon SX740 vs Panasonic FZ1000 II

The Canon PowerShot SX740 HS and the Panasonic Lumix DC-FZ1000 II are two digital cameras that were revealed to the public, respectively, in July 2018 and February 2019. Both the SX740 and the FZ1000 II are fixed lens compact cameras that are based on a 1/2.3-inch (SX740) and an one-inch (FZ1000 II) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Panasonic provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX740		Panasonic FZ1000 II
Fixed lens compact camera		Fixed lens compact camera
24-960mm f/3.3-6.9		25-400mm f/2.8-4.0
20.2 MP – 1/2.3" sensor		20 MP – 1" sensor
4K/30p Video		4K/30p Video
ISO 100-3,200		ISO 125-12,800 (80 - 25,600)
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 922k dots		3.0" LCD – 1240k dots
Tilting screen (no touchscreen)		Swivel touchscreen
10 shutter flaps per second		12 shutter flaps per second
265 shots per battery charge		350 shots per battery charge
110 x 64 x 40 mm, 299 g		136 x 97 x 131 mm, 810 g

Check SX740 price at
amazon.com
Check FZ1000 II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX740 HS and the Panasonic Lumix DC-FZ1000 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

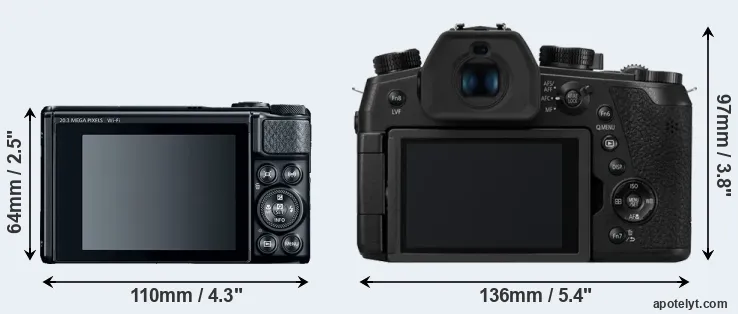

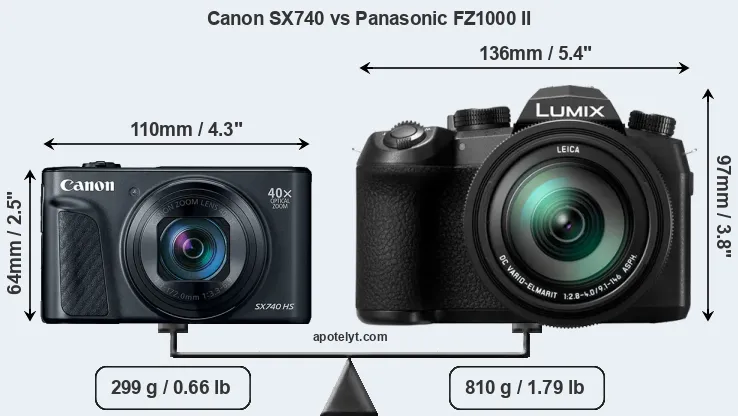

An illustration of the physical size and weight of the Canon SX740 and the Panasonic FZ1000 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The SX740 can be obtained in two different colors (black, silver), while the FZ1000 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic FZ1000 II is considerably larger (87 percent) than the Canon SX740. Moreover, the FZ1000 II is substantially heavier (171 percent) than the SX740. In this context, it is worth noting that neither the SX740 nor the FZ1000 II are weather-sealed.

Concerning battery life, the SX740 gets 265 shots out of its Canon NB-13L battery, while the FZ1000 II can take 350 images on a single charge of its Panasonic DMW-BLC12 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
2.		Panasonic FZ1000 II	136 mm	97 mm	131 mm	810 g	350	n	Feb 2019	US$ 899	amazon.com
3.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	US$ 549	amazon.com
4.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
5.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
6.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
7.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
8.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	US$ 1 049	ebay.com
9.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
10.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
11.		Panasonic LX100 II	115 mm	66 mm	65 mm	392 g	300	n	Aug 2018	US$ 999	ebay.com
12.		Panasonic TS7	117 mm	76 mm	37 mm	319 g	300	Y	May 2018	US$ 449	ebay.com
13.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
14.		Panasonic ZS80	112 mm	69 mm	42 mm	327 g	380	n	Feb 2019	US$ 449	ebay.com
15.		Panasonic ZS200	111 mm	65 mm	45 mm	340 g	370	n	Feb 2018	US$ 799	amazon.com
16.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	US$ 429	ebay.com
17.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX740 was launched at a markedly lower price (by 56 percent) than the FZ1000 II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX740 features a 1/2.3-inch sensor and the Panasonic FZ1000 II an one-inch sensor. The sensor area in the FZ1000 II is 314 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.7. The sensor in the SX740 has a native 4:3 aspect ratio, while the one in the FZ1000 II offers a 3:2 aspect.

Despite having a smaller sensor, the Canon SX740 offers a higher resolution of 20.2 megapixels, compared with 20 MP of the Panasonic FZ1000 II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 2.41μm for the FZ1000 II). Moreover, it should be noted that the FZ1000 II is a somewhat more recent model (by 6 months) than the SX740, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX740 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot SX740 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DC-FZ1000 II are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
2.		Panasonic FZ1000 II	1-inch	20.0	5472	3648	4K/30p	22.1	12.4	546	65
3.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
4.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
5.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
6.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
7.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
8.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
9.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
10.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
11.		Panasonic LX100 II	Four Thirds	16.8	4736	3552	4K/30p	22.8	12.7	979	72
12.		Panasonic TS7	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1028	51
13.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
14.		Panasonic ZS80	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1103	52
15.		Panasonic ZS200	1-inch	20.0	5472	3648	4K/30p	22.0	12.2	449	64
16.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
17.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the FZ1000 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX740 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX740, the Panasonic FZ1000 II, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
2.		Panasonic FZ1000 II	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
3.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
4.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
6.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
7.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
8.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
9.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
10.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
11.		Panasonic LX100 II	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
12.		Panasonic TS7	1170	n	3.0 / 1040	fixed	n	1/1300s	10.0/s	Y	Y
13.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
14.		Panasonic ZS80	2330	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Panasonic ZS200	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
16.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The FZ1000 II has a touchscreen, while the SX740 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the FZ1000 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon SX740 and the Panasonic FZ1000 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the SX740 and the FZ1000 II have zoom lenses built in. The SX740 has a 24-960mm f/3.3-6.9 optic and the FZ1000 II offers a 25-400mm f/2.8-4.0 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Panasonic. The FZ1000 II offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX740 and the FZ1000 II write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX740 HS and Panasonic Lumix DC-FZ1000 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Panasonic FZ1000 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
5.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
10.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
11.		Panasonic LX100 II	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Panasonic TS7	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic ZS80	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Panasonic ZS200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the FZ1000 II has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX740 does not feature such a mic input.

Both the SX740 and the FZ1000 II are recent models that are part of the current product line-up. The SX740 replaced the earlier Canon SX730 HS, while the FZ1000 II followed on from the Panasonic FZ1000. Further information on the features and operation of the SX740 and FZ1000 II can be found, respectively, in the Canon SX740 Manual (free pdf) or the online Panasonic FZ1000 II Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon SX740 or the Panasonic FZ1000 II – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot SX740 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More compact: Is smaller (110x64mm vs 136x97mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 511g or 63 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (56 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in July 2018).

Reasons to prefer the Panasonic Lumix DC-FZ1000 II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1240k vs 922k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 10 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.3).
• Longer lasting: Gets more shots (350 versus 265) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More modern: Was introduced somewhat (6 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the FZ1000 II is the clear winner of the contest (17 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX740 and the Panasonic FZ1000 II place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX740 or the FZ1000 II. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
2.		Panasonic FZ1000 II	..	..	..	83/100	4.5/5	4.5/5	Feb 2019	US$ 899	amazon.com
3.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	US$ 549	amazon.com
4.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
5.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
6.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
7.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
8.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	US$ 1 049	ebay.com
9.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
10.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
11.		Panasonic LX100 II	4.5/5	+	4.2/5	82/100	4.5/5	4.5/5	Aug 2018	US$ 999	ebay.com
12.		Panasonic TS7	..	+	..	..	..	3.5/5	May 2018	US$ 449	ebay.com
13.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
14.		Panasonic ZS80	..	+ +	..	..	4.5/5	..	Feb 2019	US$ 449	ebay.com
15.		Panasonic ZS200	..	+ +	4.5/5	81/100	4.5/5	4.5/5	Feb 2018	US$ 799	amazon.com
16.		Sony HX95	..	..	..	..	..	..	Aug 2018	US$ 429	ebay.com
17.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
