Canon SX540 vs Sony RX10 II
The Canon PowerShot SX540 HS and the Sony Cyber-shot DSC-RX10 II are two digital cameras that were revealed to the public, respectively, in January 2016 and June 2015. Both the SX540 and the RX10 II are fixed lens compact cameras that are based on a 1/2.3-inch (SX540) and an one-inch (RX10 II) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Sony provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Sony Cyber-shot DSC-RX10 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

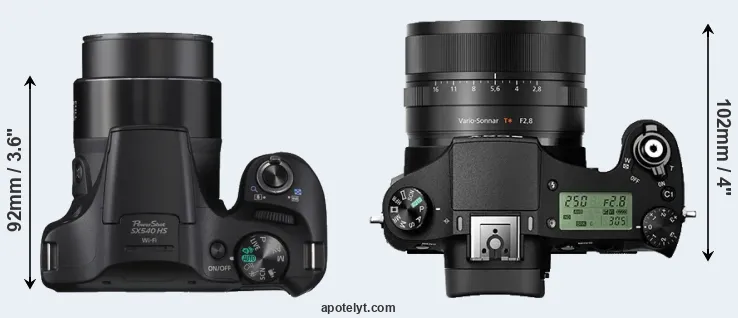

The side-by-side display below illustrates the physical size and weight of the Canon SX540 and the Sony RX10 II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX10 II is notably larger (15 percent) than the Canon SX540. Moreover, the RX10 II is substantially heavier (84 percent) than the SX540. It is noteworthy in this context that the RX10 II is splash and dust-proof, while the SX540 does not feature any corresponding weather-sealing.
Concerning battery life, the SX540 gets 205 shots out of its Canon NB-6LH battery, while the RX10 II can take 400 images on a single charge of its Sony NP-FW50 power pack. The power pack in the RX10 II can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX540 | 120 mm | 82 mm | 92 mm | 442 g | 205 | n | Jan 2016 | US$ 399 | ebay.com | |
2. | Sony RX10 II | 129 mm | 88 mm | 102 mm | 813 g | 400 | Y | Jun 2015 | US$ 1 299 | ebay.com | |
3. | Canon 80D | 139 mm | 105 mm | 79 mm | 730 g | 960 | Y | Feb 2016 | US$ 1 199 | ebay.com | |
4. | Canon G3 X | 123 mm | 77 mm | 105 mm | 733 g | 300 | Y | Jun 2015 | US$ 999 | ebay.com | |
5. | Canon SX410 | 104 mm | 69 mm | 85 mm | 325 g | 185 | n | Feb 2015 | US$ 279 | ebay.com | |
6. | Canon SX420 | 104 mm | 69 mm | 85 mm | 325 g | 195 | n | Jan 2016 | US$ 299 | ebay.com | |
7. | Canon SX530 | 120 mm | 82 mm | 92 mm | 442 g | 210 | n | Jan 2015 | US$ 429 | ebay.com | |
8. | Canon SX710 | 113 mm | 66 mm | 35 mm | 269 g | 230 | n | Jan 2015 | US$ 349 | ebay.com | |
9. | Canon SX720 | 110 mm | 64 mm | 36 mm | 270 g | 250 | n | Feb 2016 | US$ 379 | ebay.com | |
10. | Canon SX730 | 110 mm | 64 mm | 40 mm | 300 g | 250 | n | Apr 2017 | US$ 399 | ebay.com | |
11. | Canon SX740 | 110 mm | 64 mm | 40 mm | 299 g | 265 | n | Jul 2018 | US$ 399 | amazon.com | |
12. | Canon T6 | 129 mm | 101 mm | 78 mm | 485 g | 500 | n | Mar 2016 | US$ 449 | ebay.com | |
13. | Panasonic FZ80 | 130 mm | 94 mm | 119 mm | 616 g | 330 | n | Jan 2017 | US$ 399 | ebay.com | |
14. | Panasonic ZS70 | 112 mm | 67 mm | 41 mm | 322 g | 380 | n | Apr 2017 | US$ 449 | ebay.com | |
15. | Sony RX10 | 129 mm | 88 mm | 102 mm | 813 g | 420 | Y | Oct 2013 | US$ 1 299 | ebay.com | |
16. | Sony RX10 III | 133 mm | 94 mm | 127 mm | 1051 g | 420 | Y | Mar 2016 | US$ 1 499 | ebay.com | |
17. | Sony RX100 IV | 102 mm | 58 mm | 41 mm | 298 g | 280 | n | Jun 2015 | US$ 999 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX540 was launched at a markedly lower price (by 69 percent) than the RX10 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

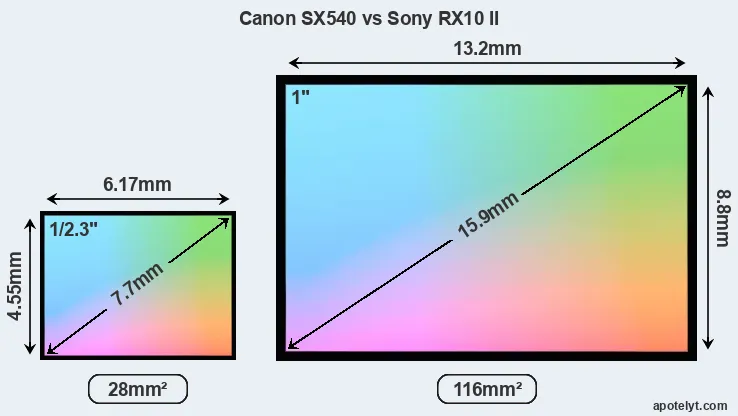

Of the two cameras under consideration, the Canon SX540 features a 1/2.3-inch sensor and the Sony RX10 II an one-inch sensor. The sensor area in the RX10 II is 314 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.7. The sensor in the SX540 has a native 4:3 aspect ratio, while the one in the RX10 II offers a 3:2 aspect.
Despite having a smaller sensor, the Canon SX540 offers a higher resolution of 20.2 megapixels, compared with 20 MP of the Sony RX10 II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 2.41μm for the RX10 II). However, it should be noted that the SX540 is a somewhat more recent model (by 6 months) than the RX10 II, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the SX540 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Sony Cyber-shot DSC-RX10 II are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 64-25600.
Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX540 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.7 | 806 | 48 | |
2. | Sony RX10 II | 1-inch | 20.0 | 5472 | 3648 | 4K/30p | 23.0 | 12.6 | 531 | 70 | |
3. | Canon 80D | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.6 | 13.2 | 1135 | 79 | |
4. | Canon G3 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.4 | 12.3 | 521 | 63 | |
5. | Canon SX410 | 1/2.3 | 19.9 | 5152 | 3864 | 720/30p | 20.2 | 11.6 | 720 | 47 | |
6. | Canon SX420 | 1/2.3 | 19.9 | 5152 | 3864 | 720/25p | 20.3 | 11.7 | 806 | 48 | |
7. | Canon SX530 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.2 | 11.6 | 712 | 47 | |
8. | Canon SX710 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.2 | 11.6 | 712 | 47 | |
9. | Canon SX720 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.8 | 817 | 48 | |
10. | Canon SX730 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.5 | 11.9 | 924 | 50 | |
11. | Canon SX740 | 1/2.3 | 20.2 | 5184 | 3888 | 4K/30p | 20.6 | 12.1 | 1050 | 51 | |
12. | Canon T6 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.0 | 11.7 | 781 | 66 | |
13. | Panasonic FZ80 | 1/2.3 | 18.0 | 4896 | 3672 | 4K/30p | 20.5 | 11.9 | 900 | 49 | |
14. | Panasonic ZS70 | 1/2.3 | 20.2 | 5184 | 3888 | 4K/30p | 19.1 | 10.6 | 106 | 36 | |
15. | Sony RX10 | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 22.9 | 12.6 | 474 | 69 | |
16. | Sony RX10 III | 1-inch | 20.0 | 5472 | 3648 | 4K/30p | 23.1 | 12.6 | 472 | 70 | |
17. | Sony RX100 IV | 1-inch | 20.0 | 5472 | 3648 | 4K/30p | 22.8 | 12.6 | 591 | 70 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the RX10 II provides a better video resolution than the SX540. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a range of features. For example, the RX10 II has an electronic viewfinder (2359k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX540, the Sony RX10 II, and comparable cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX540 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 5.9/s | Y | Y | |
2. | Sony RX10 II | 2359 | Y | 3.0 / 1229 | tilting | n | 1/3200s | 14.0/s | Y | Y | |
3. | Canon 80D | optical | Y | 3.0 / 1040 | swivel | Y | 1/8000s | 7.0/s | Y | n | |
4. | Canon G3 X | optional | n | 3.2 / 1620 | tilting | Y | 1/2000s | 5.9/s | Y | Y | |
5. | Canon SX410 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 0.5/s | Y | Y | |
6. | Canon SX420 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 0.5/s | Y | Y | |
7. | Canon SX530 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 1.6/s | Y | Y | |
8. | Canon SX710 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 6.0/s | Y | Y | |
9. | Canon SX720 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 5.9/s | Y | Y | |
10. | Canon SX730 | none | n | 3.0 / 922 | tilting | n | 1/3200s | 5.9/s | Y | Y | |
11. | Canon SX740 | none | n | 3.0 / 922 | tilting | n | 1/3200s | 10.0/s | Y | Y | |
12. | Canon T6 | optical | n | 3.0 / 920 | fixed | n | 1/4000s | 3.0/s | Y | n | |
13. | Panasonic FZ80 | 1166 | n | 3.0 / 1040 | fixed | Y | 1/2000s | 10.0/s | Y | Y | |
14. | Panasonic ZS70 | 1166 | n | 3.0 / 1040 | tilting | Y | 1/2000s | 10.0/s | Y | Y | |
15. | Sony RX10 | 1440 | Y | 3.0 / 1229 | tilting | n | 1/3200s | 10.0/s | Y | Y | |
16. | Sony RX10 III | 2359 | Y | 3.0 / 1229 | tilting | n | 1/2000s | 14.0/s | Y | Y | |
17. | Sony RX100 IV | 2359 | n | 3.0 / 1228 | tilting | n | 1/2000s | 16.0/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One feature that is present on the RX10 II, but is missing on the SX540 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the RX10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
Both the SX540 and the RX10 II have zoom lenses built in. The SX540 has a 24-1200mm f/3.4-6.5 optic and the RX10 II offers a 24-200mm f/2.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon and Sony provide the same view at the wide-angle end, but the Sony has less tele-photo reach at the long end. The RX10 II offers the faster maximum aperture.
The SX540 writes its imaging data to SDXC cards, while the RX10 II uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Sony Cyber-shot DSC-RX10 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX540 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
2. | Sony RX10 II | Y | stereo / mono | Y | Y | micro | 2.0 | Y | Y | - | |
3. | Canon 80D | Y | stereo / mono | Y | Y | mini | 2.0 | Y | Y | - | |
4. | Canon G3 X | Y | stereo / mono | Y | Y | mini | 2.0 | Y | Y | - | |
5. | Canon SX410 | - | stereo / mono | - | - | - | 2.0 | - | - | - | |
6. | Canon SX420 | - | mono / mono | - | - | - | 2.0 | Y | Y | - | |
7. | Canon SX530 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
8. | Canon SX710 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
9. | Canon SX720 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
10. | Canon SX730 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | Y | |
11. | Canon SX740 | - | stereo / mono | - | - | micro | 2.0 | Y | - | Y | |
12. | Canon T6 | Y | mono / mono | - | - | mini | 2.0 | Y | Y | - | |
13. | Panasonic FZ80 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
14. | Panasonic ZS70 | - | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
15. | Sony RX10 | Y | stereo / mono | Y | Y | micro | 2.0 | Y | Y | - | |
16. | Sony RX10 III | Y | stereo / mono | Y | Y | micro | 2.0 | Y | Y | - | |
17. | Sony RX100 IV | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - |
It is notable that the RX10 II has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX540 does not feature such a mic input.
Both the SX540 and the RX10 II have been discontinued, but can regularly be found used on ebay. The RX10 II was replaced by the Sony RX10 III, while the SX540 does not have a direct successor. Further information on the features and operation of the SX540 and RX10 II can be found, respectively, in the Canon SX540 Manual (free pdf) or the online Sony RX10 II Manual.
Review summary
So what conclusions can be drawn? Is there a clear favorite between the Canon SX540 and the Sony RX10 II? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon PowerShot SX540 HS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
- More compact: Is smaller (120x82mm vs 129x88mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 371g or 46 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (69 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 6 months after the RX10 II).
Advantages of the Sony Cyber-shot DSC-RX10 II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1229k vs 461k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (14 vs 5.9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
- Longer lasting: Gets more shots (400 versus 205) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been on the market for longer (launched in June 2015).
If the count of relative strengths (bullet points above) is taken as a measure, the RX10 II is the clear winner of the contest (21 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX540 and the Sony RX10 II place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX540 and the RX10 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX540 | .. | .. | .. | .. | .. | .. | Jan 2016 | US$ 399 | ebay.com | |
2. | Sony RX10 II | 5/5 | + + | .. | 82/100 | 4.5/5 | 4/5 | Jun 2015 | US$ 1 299 | ebay.com | |
3. | Canon 80D | 4/5 | + + | 4.5/5 | 84/100 | 4.5/5 | 4.5/5 | Feb 2016 | US$ 1 199 | ebay.com | |
4. | Canon G3 X | 3.5/5 | + | .. | .. | 4.5/5 | 4/5 | Jun 2015 | US$ 999 | ebay.com | |
5. | Canon SX410 | .. | o | .. | .. | .. | .. | Feb 2015 | US$ 279 | ebay.com | |
6. | Canon SX420 | .. | .. | .. | .. | .. | 3/5 | Jan 2016 | US$ 299 | ebay.com | |
7. | Canon SX530 | .. | + + | .. | .. | 4/5 | 4/5 | Jan 2015 | US$ 429 | ebay.com | |
8. | Canon SX710 | .. | + | .. | .. | 4/5 | 3.5/5 | Jan 2015 | US$ 349 | ebay.com | |
9. | Canon SX720 | .. | + | .. | .. | 4/5 | 4.5/5 | Feb 2016 | US$ 379 | ebay.com | |
10. | Canon SX730 | .. | + | .. | .. | 4/5 | 4/5 | Apr 2017 | US$ 399 | ebay.com | |
11. | Canon SX740 | .. | + | 3.5/5 | .. | 4/5 | 4/5 | Jul 2018 | US$ 399 | amazon.com | |
12. | Canon T6 | 4/5 | o | 4/5 | 73/100 | 4/5 | 4/5 | Mar 2016 | US$ 449 | ebay.com | |
13. | Panasonic FZ80 | .. | + + | .. | .. | 4.5/5 | 4.5/5 | Jan 2017 | US$ 399 | ebay.com | |
14. | Panasonic ZS70 | .. | + + | .. | .. | 4/5 | 4/5 | Apr 2017 | US$ 449 | ebay.com | |
15. | Sony RX10 | 5/5 | + | .. | 80/100 | 4.5/5 | 4.5/5 | Oct 2013 | US$ 1 299 | ebay.com | |
16. | Sony RX10 III | 5/5 | + | .. | 84/100 | 4.5/5 | 4.5/5 | Mar 2016 | US$ 1 499 | ebay.com | |
17. | Sony RX100 IV | 4.5/5 | + + | .. | 85/100 | 4/5 | 4.5/5 | Jun 2015 | US$ 999 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1Ds Mark II vs Canon SX540
- Canon 30D vs Sony RX10 II
- Canon G1 X Mark II vs Canon SX540
- Canon G1 X Mark III vs Canon SX540
- Canon SX540 vs Fujifilm X-T3
- Canon SX540 vs Nikon D700
- Canon SX540 vs Panasonic TZ200
- Leica D-LUX 7 vs Sony RX10 II
- Panasonic GX1 vs Sony RX10 II
- Panasonic L10 vs Sony RX10 II
- Sony A6600 vs Sony RX10 II
- Sony NEX-3N vs Sony RX10 II
Specifications: Canon SX540 vs Sony RX10 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon SX540 | Sony RX10 II |
---|---|---|
Camera Type | Fixed lens compact camera | Fixed lens compact camera |
Camera Lens | 24-1200mm f/3.4-6.5 | 24-200mm f/2.8 |
Launch Date | January 2016 | June 2015 |
Launch Price | USD 399 | USD 1,299 |
Sensor Specs | Canon SX540 | Sony RX10 II |
Sensor Technology | BSI-CMOS | BSI-CMOS |
Sensor Format | 1/2.3" Sensor | 1" Sensor |
Sensor Size | 6.17 x 4.55 mm | 13.2 x 8.8 mm |
Sensor Area | 28.0735 mm2 | 116.16 mm2 |
Sensor Diagonal | 7.7 mm | 15.9 mm |
Crop Factor | 5.6x | 2.7x |
Sensor Resolution | 20.2 Megapixels | 20 Megapixels |
Image Resolution | 5184 x 3888 pixels | 5472 x 3648 pixels |
Pixel Pitch | 1.18 μm | 2.41 μm |
Pixel Density | 71.80 MP/cm2 | 17.18 MP/cm2 |
Moiré control | no AA filter | Anti-Alias filter |
Movie Capability | 1080/60p Video | 4K/30p Video |
ISO Setting | 80 - 3,200 ISO | 100 - 12,800 ISO |
ISO Boost | no Enhancement | 64 - 25,600 ISO |
Image Processor | DIGIC 6 | BIONZ X |
DXO Sensor Quality (score) | .. | 70 |
DXO Color Depth (bits) | .. | 23.0 |
DXO Dynamic Range (EV) | .. | 12.6 |
DXO Low Light (ISO) | .. | 531 |
Screen Specs | Canon SX540 | Sony RX10 II |
Viewfinder Type | no viewfinder | Electronic viewfinder |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.70x | |
Viewfinder Resolution | 2359k dots | |
Top-Level Screen | no Top Display | Control Panel |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 461k dots | 1229k dots |
LCD Attachment | Fixed screen | Tilting screen |
Shooting Specs | Canon SX540 | Sony RX10 II |
Focus System | Contrast-detect AF | Contrast-detect AF |
Manual Focusing Aid | no Peaking Feature | Focus Peaking |
Max Shutter Speed (mechanical) | 1/2000s | 1/3200s |
Continuous Shooting | 5.9 shutter flaps/s | 14 shutter flaps/s |
Electronic Shutter | no E-Shutter | up to 1/32000s |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | MS or SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | UHS-I | UHS-I |
Connectivity Specs | Canon SX540 | Sony RX10 II |
External Flash | no Hotshoe | Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | micro HDMI |
Microphone Port | no MIC socket | External MIC port |
Headphone Socket | no Headphone port | Headphone port |
Wifi Support | Wifi built-in | Wifi built-in |
Near-Field Communication | NFC built-in | NFC built-in |
Body Specs | Canon SX540 | Sony RX10 II |
Environmental Sealing | not weather sealed | Weathersealed body |
Battery Type | Canon NB-6LH | Sony NP-FW50 |
Battery Life (CIPA) | 205 shots per charge | 400 shots per charge |
In-Camera Charging | no USB charging | USB charging |
Body Dimensions |
120 x 82 x 92 mm (4.7 x 3.2 x 3.6 in) |
129 x 88 x 102 mm (5.1 x 3.5 x 4.0 in) |
Camera Weight | 442 g (15.6 oz) | 813 g (28.7 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
