Canon SX540 vs Nikon D70

The Canon PowerShot SX540 HS and the Nikon D70 are two digital cameras that were revealed to the public, respectively, in January 2016 and January 2004. The SX540 is a fixed lens compact, while the D70 is a DSLR. The cameras are based on a 1/2.3-inch (SX540) and an APS-C (D70) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Nikon provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX540		Nikon D70
Fixed lens compact camera		Digital single lens reflex
24-1200mm f/3.4-6.5		Nikon F mount lenses
20.2 MP – 1/2.3" sensor		6 MP – APS-C sensor
1080/60p Video		no Video
ISO 80-3,200		ISO 200-1,600
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 461k dots		1.8" LCD – 130k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5.9 shutter flaps per second		3 shutter flaps per second
205 shots per battery charge		400 shots per battery charge
120 x 82 x 92 mm, 442 g		140 x 111 x 78 mm, 679 g

Check SX540 offers at
ebay.com
Check D70 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Nikon D70? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

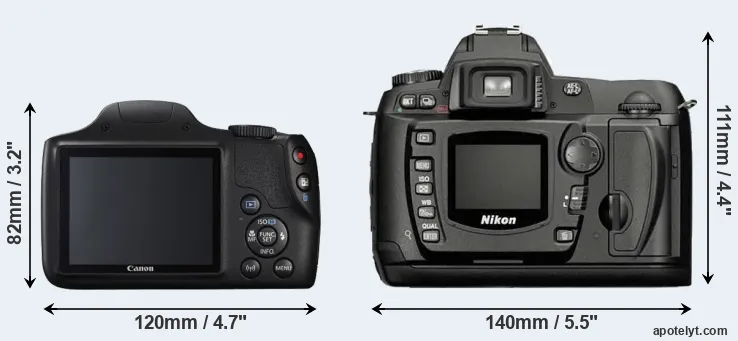

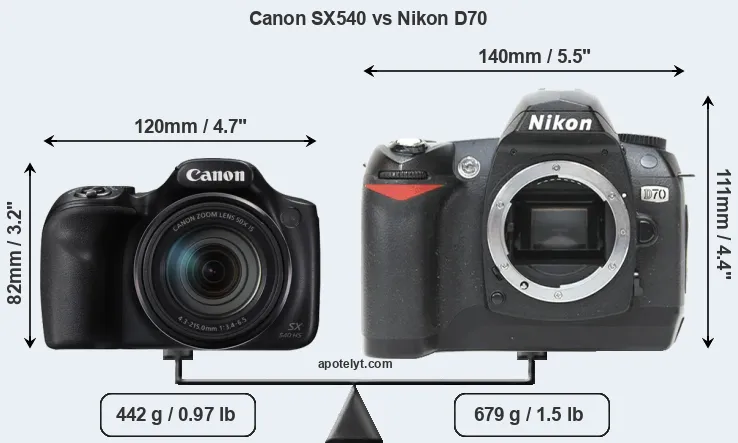

An illustration of the physical size and weight of the Canon SX540 and the Nikon D70 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D70 is considerably larger (58 percent) than the Canon SX540. In this context, it is worth noting that neither the SX540 nor the D70 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX540 has a lens built in, whereas the D70 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D70 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the SX540 gets 205 shots out of its Canon NB-6LH battery, while the D70 can take 400 images on a single charge of its Nikon EN-EL3 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	EUR 369	ebay.com
2.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	EUR 999	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	EUR 599	ebay.com
5.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	EUR 1 095	ebay.com
6.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	EUR 449	ebay.com
7.		Canon G1 X Mark III	115 mm	78 mm	51 mm	399 g	200	Y	Oct 2017	EUR 1 199	ebay.com
8.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	EUR 499	ebay.com
9.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	EUR 799	ebay.com
10.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	EUR 379	ebay.com
11.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	EUR 299	ebay.com
12.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	EUR 329	ebay.com
13.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	EUR 399	ebay.com
14.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	EUR 749	ebay.com
15.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	EUR 949	ebay.com
16.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	EUR 969	ebay.com
17.		Nikon D100	144 mm	116 mm	81 mm	780 g	370	n	Feb 2002	EUR 2 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX540 was launched at a lower price than the D70, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX540 features a 1/2.3-inch sensor and the Nikon D70 an APS-C sensor. The sensor area in the D70 is 1221 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX540 has a native 4:3 aspect ratio, while the one in the D70 offers a 3:2 aspect.

Despite having a smaller sensor, the Canon SX540 offers a higher resolution of 20.2 megapixels, compared with 6 MP of the Nikon D70. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 7.85μm for the D70). However, it should be noted that the SX540 is much more recent (by 11 years and 11 months) than the D70, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX540 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX540 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX540 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Nikon D70 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Nikon D70 are ISO 200 to ISO 1600 (no boost).

In terms of underlying technology, the SX540 is build around a BSI-CMOS sensor, while the D70 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
2.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
6.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
7.		Canon G1 X Mark III	APS-C	24.0	6000	4000	1080/60p	23.8	13.2	1649	81
8.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
9.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
10.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
11.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
12.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
13.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
14.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
15.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
16.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
17.		Nikon D100	APS-C	6.0	3008	2000	none	20.4	9.9	394	48
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The SX540 indeed provides movie recording capabilities, while the D70 does not. The highest resolution format that the SX540 can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D70 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX540, the Nikon D70, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
2.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
6.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon G1 X Mark III	2360	n	3.0 / 1040	swivel	Y	1/2000s	9.0/s	Y	Y
8.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
9.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
11.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
12.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
13.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
14.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
15.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
16.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
17.		Nikon D100	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The SX540 writes its imaging data to SDXC cards, while the D70 uses Compact Flash cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Nikon D70 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
6.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
7.		Canon G1 X Mark III	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
11.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
14.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
15.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
16.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
17.		Nikon D100	Y	- / -	-	-	-	1.1	-	-	-

It is notable that the SX540 offers wifi support, while the D70 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX540 and the D70 have been discontinued, but can regularly be found used on ebay. The D70 was replaced by the Nikon D70s, while the SX540 does not have a direct successor. Further information on the features and operation of the SX540 and D70 can be found, respectively, in the Canon SX540 Manual (free pdf) or the online Nikon D70 Manual.

Review summary

So how do things add up? Is the Canon SX540 better than the Nikon D70 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon PowerShot SX540 HS:

• More detail: Offers more megapixels (20.2 vs 6MP) with a 79% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can record not only still images but also 1080/60p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (461k vs 130k dots).
• Faster burst: Shoots at higher frequency (5.9 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the D70 requires a separate lens.
• More compact: Is smaller (120x82mm vs 140x111mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D70).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 11 years and 11 months of technical progress since the D70 launch.

Arguments in favor of the Nikon D70:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (400 versus 205) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in January 2004).

If the number of relative strengths (bullet points above) is taken as a guide, the SX540 is the clear winner of the match-up (15 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX540 and the Nikon D70 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX540 or the D70. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX540	..	..	..	..	..	..	Jan 2016	EUR 369	ebay.com
2.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	EUR 999	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	EUR 599	ebay.com
5.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	EUR 1 095	ebay.com
6.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	EUR 449	ebay.com
7.		Canon G1 X Mark III	5/5	+	4/5	79/100	4.5/5	4.5/5	Oct 2017	EUR 1 199	ebay.com
8.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	EUR 499	ebay.com
9.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	EUR 799	ebay.com
10.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	EUR 379	ebay.com
11.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	EUR 299	ebay.com
12.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	EUR 329	ebay.com
13.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	EUR 399	ebay.com
14.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	EUR 749	ebay.com
15.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	EUR 949	ebay.com
16.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	EUR 969	ebay.com
17.		Nikon D100	..	..	..	+ +	o	..	Feb 2002	EUR 2 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
