Canon SX530 vs Panasonic FT7
The Canon PowerShot SX530 HS and the Panasonic Lumix DC-FT7 (labelled Panasonic TS7 in some countries) are two digital cameras that were officially introduced, respectively, in January 2015 and May 2018. Both the SX530 and the FT7 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The Canon has a resolution of 15.9 megapixels, whereas the Panasonic provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX530 HS and the Panasonic Lumix DC-FT7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon SX530 and the Panasonic FT7 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The FT7 can be obtained in three different colors (black, blue, orange), while the SX530 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic FT7 is notably smaller (10 percent) than the Canon SX530. Moreover, the FT7 is markedly lighter (28 percent) than the SX530. It is noteworthy in this context that the FT7 is splash and dust-proof, while the SX530 does not feature any corresponding weather-sealing. More than that, the FT7 is water-proof up to 31m and can, thus, be used for underwater photography.
Concerning battery life, the SX530 gets 210 shots out of its NB-6LH battery, while the FT7 can take 300 images on a single charge of its DMW-BCM13 power pack. The power pack in the FT7 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon SX530||120 mm||82 mm||92 mm||442 g||210||n||Jan 2015||429|
|2.||Panasonic FT7||117 mm||76 mm||37 mm||319 g||300||Y||May 2018||449|
|3.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|4.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|5.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|6.||Canon SX540||120 mm||82 mm||92 mm||442 g||205||n||Jan 2016||399|
|7.||Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379|
|8.||Canon SX520||120 mm||82 mm||92 mm||441 g||210||n||Jul 2014||399|
|9.||Canon SX700||113 mm||66 mm||35 mm||269 g||250||n||Feb 2014||349|
|10.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549|
|11.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|12.||Fujifilm XF10||113 mm||64 mm||41 mm||279 g||330||n||Jul 2018||499|
|13.||Nikon L840||113 mm||78 mm||96 mm||538 g||590||n||Feb 2015||299|
|14.||Panasonic TZ95||112 mm||69 mm||42 mm||327 g||380||n||Feb 2019||449|
|15.||Panasonic TZ90||112 mm||67 mm||41 mm||322 g||380||n||Apr 2017||449|
|16.||Panasonic FZ100||124 mm||82 mm||92 mm||540 g||410||n||Jul 2010||499|
|17.||Sony HX90V||102 mm||58 mm||36 mm||245 g||360||n||Apr 2015||429|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX530 was somewhat cheaper (by 4 percent) than the FT7 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of underlying technology, both cameras are build around BSI-CMOS sensors.

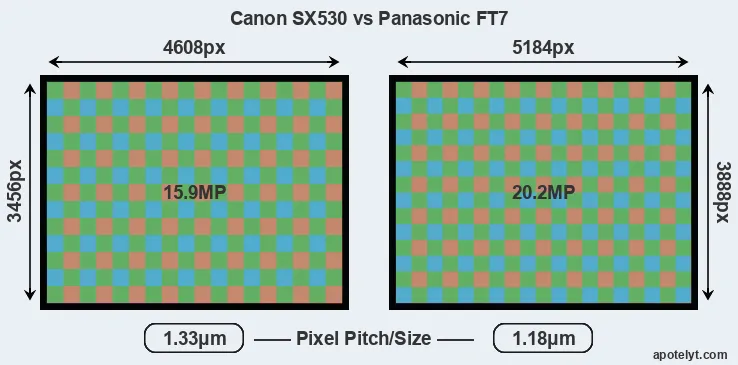

While the two cameras under review share the same sensor size, the FT7 offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the SX530. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the FT7 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.33μm for the SX530). However, it should be noted that the FT7 is much more recent (by 3 years and 4 months) than the SX530, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the SX530 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic FT7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the FT7 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon SX530 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon PowerShot SX530 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DC-FT7 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the FT7 provides a better video resolution than the SX530. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the FT7 has an electronic viewfinder (1170k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX530 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX530 and Panasonic FT7 in connection with corresponding information for a sample of similar cameras.
|1.||Canon SX530||none||n||3.0 / 461||fixed||n||1/2000s||1.6/s||Y||Y|
|2.||Panasonic FT7||1170||n||3.0 / 1040||fixed||n||1/1300s||10.0/s||Y||Y|
|3.||Canon SX740||none||n||3.0 / 922||tilting||n||1/3200s||10.0/s||Y||Y|
|4.||Canon SX730||none||n||3.0 / 922||tilting||n||1/3200s||5.9/s||Y||Y|
|5.||Canon T6||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Canon SX540||none||n||3.0 / 461||fixed||n||1/2000s||5.9/s||Y||Y|
|7.||Canon SX720||none||n||3.0 / 922||fixed||n||1/3200s||5.9/s||Y||Y|
|8.||Canon SX520||none||n||3.0 / 461||fixed||n||1/2000s||1.6/s||Y||Y|
|9.||Canon SX700||none||n||3.0 / 922||fixed||n||1/3200s||8.5/s||Y||Y|
|10.||Canon SX60||922||n||3.0 / 922||swivel||n||1/2000s||6.4/s||Y||Y|
|11.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|12.||Fujifilm XF10||none||n||3.0 / 1040||fixed||Y||1/4000s||6.0/s||Y||n|
|13.||Nikon L840||none||n||3.0 / 921||tilting||n||1/4000s||7.4/s||Y||Y|
|14.||Panasonic TZ95||2330||n||3.0 / 1040||tilting||Y||1/2000s||10.0/s||Y||Y|
|15.||Panasonic TZ90||1166||n||3.0 / 1040||tilting||Y||1/2000s||10.0/s||Y||Y|
|16.||Panasonic FZ100||202||n||3.0 / 460||swivel||n||1/2000s||11.0/s||Y||Y|
|17.||Sony HX90V||638||n||3.0 / 921||tilting||n||1/2000s||10.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the FT7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
Both the SX530 and the FT7 have zoom lenses built in. The SX530 has a 24-1200mm f/3.4-6.5 optic and the FT7 offers a 28-128mm f/3.3-5.9 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Panasonic. The FT7 offers the faster maximum aperture.
Concerning the storage of imaging data, both the SX530 and the FT7 write their files to SDXC cards. The FT7 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX530 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX530 HS and Panasonic Lumix DC-FT7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon SX530||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|2.||Panasonic FT7||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon SX740||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|4.||Canon SX730||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|5.||Canon T6||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|6.||Canon SX540||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|7.||Canon SX720||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|8.||Canon SX520||-||stereo / mono||-||-||mini||2.0||-||-||-|
|9.||Canon SX700||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|10.||Canon SX60||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|12.||Fujifilm XF10||-||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|13.||Nikon L840||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|14.||Panasonic TZ95||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|15.||Panasonic TZ90||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Panasonic FZ100||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Sony HX90V||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
The FT7 is a recent model that features in the current product line-up of Panasonic. In contrast, the SX530 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the SX530 was succeeded by the Canon SX540. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Canon SX530 or the Panasonic FT7 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon PowerShot SX530 HS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Faster shutter: Has higher mechanical shutter speed (1/2000s vs 1/1300s) to freeze action.
- Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
- More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been available for much longer (launched in January 2015).
Advantages of the Panasonic Lumix DC-FT7:
- More detail: Has more megapixels (20.2 vs 15.9MP), which boosts linear resolution by 13%.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
- Faster burst: Shoots at higher frequency (10 vs 1.6 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Better light gathering: Has a lens with a wider maximum aperture (f/3.3 vs f/3.4).
- Less heavy: Has a lower weight (by 123g or 28 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (300 versus 210) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 31m).
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 3 years and 4 months of technical progress since the SX530 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the FT7 is the clear winner of the contest (15 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX530 and the Panasonic FT7 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SX530 and the FT7 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX530||..||+ +||..||..||4/5||4/5||Jan 2015||429|
|2.||Panasonic FT7||..||+||..||..||3.5/5||3.5/5||May 2018||449|
|3.||Canon SX740||..||+||3.5/5||..||4/5||4/5||Jul 2018||399|
|4.||Canon SX730||..||+||..||..||4/5||4/5||Apr 2017||399|
|5.||Canon T6||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449|
|6.||Canon SX540||..||..||..||..||..||..||Jan 2016||399|
|7.||Canon SX720||..||+||..||..||4/5||4.5/5||Feb 2016||379|
|8.||Canon SX520||..||+||..||..||3.5/5||3.5/5||Jul 2014||399|
|9.||Canon SX700||..||+ +||..||..||4/5||4/5||Feb 2014||349|
|10.||Canon SX60||3/5||+ +||..||75/100||4/5||4.5/5||Sep 2014||549|
|11.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|12.||Fujifilm XF10||..||..||4/5||75/100||4/5||4.5/5||Jul 2018||499|
|13.||Nikon L840||..||+ +||..||..||3.5/5||4/5||Feb 2015||299|
|14.||Panasonic TZ95||..||+ +||..||..||4.5/5||..||Feb 2019||449|
|15.||Panasonic TZ90||..||+ +||..||..||4/5||4/5||Apr 2017||449|
|16.||Panasonic FZ100||..||+||..||..||4.5/5||4.5/5||Jul 2010||499|
|17.||Sony HX90V||4/5||+ +||..||..||4/5||4.5/5||Apr 2015||429|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon SX530 vs Fujifilm GFX 100
- Canon SX530 vs Leica M Typ 262
- Canon SX530 vs Panasonic FZ1000 II
- Canon SX530 vs Panasonic GX8
- Canon SX530 vs Pentax K-5
- Canon SX530 vs Sony RX100 VI
- Leica C-LUX vs Panasonic FT7
- Nikon D100 vs Panasonic FT7
- Nikon P7800 vs Panasonic FT7
- Olympus E-3 vs Panasonic FT7
- Olympus E-410 vs Panasonic FT7
- Panasonic FT7 vs Panasonic GH5
Specifications: Canon SX530 vs Panasonic FT7
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX530||Panasonic FT7|
|Camera Type||Fixed lens compact camera||Fixed lens compact camera|
|Camera Lens||24-1200mm f/3.4-6.5||28-128mm f/3.3-5.9|
|Launch Date||January 2015||May 2018|
|Launch Price||USD 429||USD 449|
|Sensor Specs||Canon SX530||Panasonic FT7|
|Sensor Format||1/2.3" Sensor||1/2.3" Sensor|
|Sensor Size||6.17 x 4.55 mm||6.17 x 4.55 mm|
|Sensor Area||28.0735 mm2||28.0735 mm2|
|Sensor Diagonal||7.7 mm||7.7 mm|
|Sensor Resolution||15.9 Megapixels||20.2 Megapixels|
|Image Resolution||4608 x 3456 pixels||5184 x 3888 pixels|
|Pixel Pitch||1.33 μm||1.18 μm|
|Pixel Density||56.73 MP/cm2||71.80 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 3,200 ISO||80 - 3,200 ISO|
|ISO Boost||no Enhancement||80 - 6,400 ISO|
|Image Processor||DIGIC 4+||Venus|
|Screen Specs||Canon SX530||Panasonic FT7|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||1170k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||461k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon SX530||Panasonic FT7|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Continuous Shooting||1.6 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon SX530||Panasonic FT7|
|External Flash||no Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX530||Panasonic FT7|
|Environmental Sealing||not weather sealed||Waterproof body (31m)|
|Battery Life (CIPA)||210 shots per charge||300 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
120 x 82 x 92 mm
(4.7 x 3.2 x 3.6 in)
117 x 76 x 37 mm
(4.6 x 3.0 x 1.5 in)
|Camera Weight||442 g (15.6 oz)||319 g (11.3 oz)|
