Panasonic FT7 PDF User Manual

Did you lose or misplace the instruction manual that came with your Panasonic Lumix DC-FT7? It happens all too easily, but fortunately Panasonic makes a soft copy available that you can browse through online, print out, or download (see the pdf file below). It is certainly good practice to carefully familiarize oneself with the many different functionalities and options that the FT7 offers, and the official user manual is without doubt an authoritative and comprehensive source of respective information.

That said, the instruction booklet can be a dry read, so that a dedicated camera guide book from a professional photographer that illustrates the camera's core functions in a real life photography context can be a very helpful complement. Yes, getting one of these camera guides (see here at amazon) would involve an additional expense, but if that book helps to exploit the camera's potential to the full, the (small) additional investment may well be worth it.

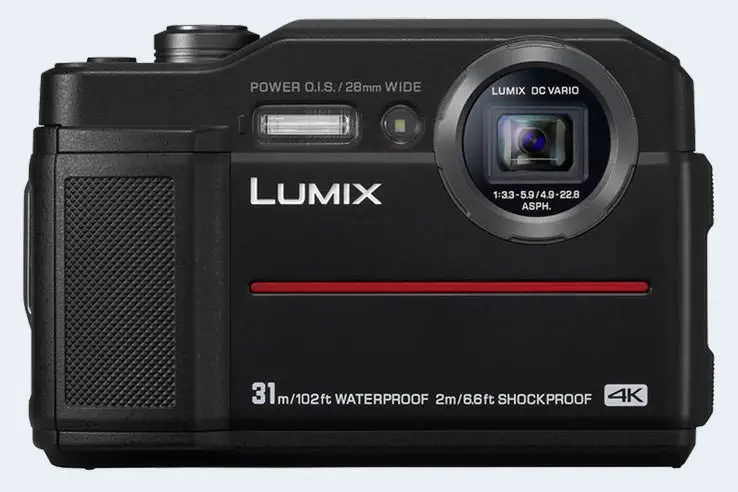

camera

In any case, the FT7 (called Panasonic TS7 in some regions) is an advanced imaging tool, whose many features merit serious attention. This fixed lens compact camera was officially introduced on May 11th, 2018, which means that, as of today, the camera is 2175 days old (young?). The camera has meanwhile been discontinued, but there has not been a direct replacement model for the FT7 from Panasonic.

ad

Panasonic's advanced owner manual for the FT7

The camera's advanced owner manual is 200 pages long. The pdf version is embedded below. As you browse through, you will hopefully find the information you are looking for. You can also print out a hard copy by right clicking on the manual and then choosing the respective menu option. For convenience, a summary of the key specs of the FT7 is included towards the bottom of this webpage.

Don't forget to bookmark this page for future reference (Ctrl-Shift-D on a Windows PC; Cmd-Shift-D on a Mac). Happy browsing!

Click on the button below to download the pdf version of the Panasonic Lumix DC-FT7 manual to your computer. The file will open in a new browser window.

Download the Manual

If you prefer to read the user guide in another language, please check the respective availability on Panasonic's support site. That site also provides complementary online resources, such as information on the compatibility of various camera accessories or the availability of firmware updates that are not necessarily comprehensively covered in the instruction manual.

Printed, hardcopy versions of the Panasonic FT7 manual can sometimes be found online. You can check the availability on amazon and ebay via the buttons below.

amazon.com ebay.com

ad

Panasonic FT7 FAQ

Below are some additional questions and answers concerning some particular features of the FT7.

What is the technology behind the imaging sensor in the Panasonic FT7?

The camera is build around a BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used in the Panasonic FT7 to convert the raw signal into an image file and perform noise reduction and image sharpening?

Panasonic equipped the FT7 with the Venus image processor.

What is the ISO sensitivity range of the Panasonic FT7?

The camera has a native sensitivity range from ISO 80 to ISO 3200.

Is completely silent shooting possible with the Panasonic FT7?

The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.

Does the Panasonic FT7 feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

Does the Panasonic FT7 support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the Panasonic FT7 use?

The camera gets its power from the Panasonic DMW-BCM13 (here at amazon), which is a rechargeable Lithium-Ion power pack.

ad

Further reading

How does the FT7 stack up against available alternatives? If you would like to see a side-by-side review with another camera, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Core camera specifications

    Here is a list of the main features and technical characteristics of the Panasonic Lumix DC-FT7.

    Specifications Summary
    Camera Model Panasonic FT7
    Camera Type Fixed lens compact camera
    Camera Lens 28-128mm f/3.3-5.9
    Launch Date May 2018
    Launch Price USD 449
    Sensor Specs
    Sensor Technology BSI-CMOS
    Sensor Format 1/2.3" Sensor
    Sensor Size 6.17 x 4.55 mm
    Sensor Area 28 mm2
    Sensor Diagonal 7.7 mm
    Crop Factor 5.6x
    Sensor Resolution 20.2 Megapixels
    Image Resolution 5 184 x 3 888 pixels
    Pixel Pitch 1.18 μm
    Pixel Density 71.80 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 4K/30p Video
    ISO Setting 80 - 3 200 ISO
    ISO Boost 80 - 6 400 ISO
    Image Processor Venus
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.45x
    Viewfinder Resolution 1170k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Fixed screen
    Touch Input No touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/1300s
    Continuous Shooting 10 shutter flaps/s
    Silent ShootingElectronic Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash no Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Wifi Support Wifi built-in
    Body Specs
    Environmental SealingWaterproof body (31m)
    Battery Type Panasonic DMW-BCM13 power pack
    Battery Life (CIPA)300 shots per charge
    In-Camera Charging USB charging
    Body Dimensions 117 x 76 x 37 mm
    (4.6 x 3.0 x 1.5 in)
    Camera Weight 319 g (11.3 oz)
