Canon SX510 vs Panasonic GX7
The Canon PowerShot SX510 HS and the Panasonic Lumix DMC-GX7 are two digital cameras that were revealed to the public in August 2013. The SX510 is a fixed lens compact, while the GX7 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX510) and a Four Thirds (GX7) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Panasonic Lumix DMC-GX7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

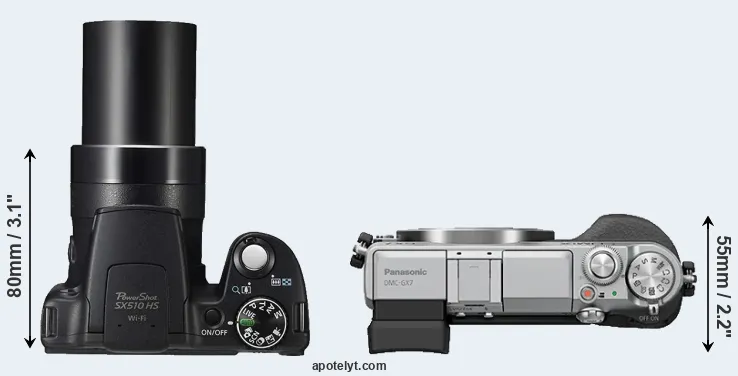

The side-by-side display below illustrates the physical size and weight of the Canon SX510 and the Panasonic GX7. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The GX7 can be obtained in two different colors (black, silver), while the SX510 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX7 is notably larger (20 percent) than the Canon SX510. In this context, it is worth noting that neither the SX510 nor the GX7 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX510 has a lens built in, whereas the GX7 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GX7 and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the SX510 gets 250 shots out of its Canon NB-6LH battery, while the GX7 can take 350 images on a single charge of its Panasonic DMW-BLG10 power pack.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | 104 mm | 70 mm | 80 mm | 349 g | 250 | n | Aug 2013 | US$ 249 | ebay.com | |
2. | Panasonic GX7 | 123 mm | 71 mm | 55 mm | 402 g | 350 | n | Aug 2013 | US$ 999 | ebay.com | |
3. | Canon SX60 | 128 mm | 93 mm | 114 mm | 650 g | 340 | n | Sep 2014 | US$ 549 | ebay.com | |
4. | Canon SX400 | 104 mm | 69 mm | 80 mm | 313 g | 190 | n | Jul 2014 | US$ 249 | ebay.com | |
5. | Canon SX410 | 104 mm | 69 mm | 85 mm | 325 g | 185 | n | Feb 2015 | US$ 279 | ebay.com | |
6. | Canon SX420 | 104 mm | 69 mm | 85 mm | 325 g | 195 | n | Jan 2016 | US$ 299 | ebay.com | |
7. | Canon SX430 | 104 mm | 69 mm | 85 mm | 323 g | 195 | n | Jan 2017 | US$ 299 | ebay.com | |
8. | Canon SX500 | 104 mm | 70 mm | 80 mm | 341 g | 195 | n | Aug 2012 | US$ 329 | ebay.com | |
9. | Canon SX520 | 120 mm | 82 mm | 92 mm | 441 g | 210 | n | Jul 2014 | US$ 399 | ebay.com | |
10. | Canon SX600 | 104 mm | 61 mm | 26 mm | 188 g | 290 | n | Jan 2014 | US$ 249 | ebay.com | |
11. | Canon SX700 | 113 mm | 66 mm | 35 mm | 269 g | 250 | n | Feb 2014 | US$ 349 | ebay.com | |
12. | Olympus E-P5 | 122 mm | 69 mm | 37 mm | 420 g | 330 | n | May 2013 | US$ 999 | ebay.com | |
13. | Olympus E-PL7 | 115 mm | 67 mm | 38 mm | 357 g | 350 | n | Aug 2014 | US$ 599 | ebay.com | |
14. | Panasonic G5 | 120 mm | 83 mm | 71 mm | 396 g | 320 | n | Jul 2012 | US$ 599 | ebay.com | |
15. | Panasonic GH2 | 124 mm | 90 mm | 76 mm | 442 g | 330 | n | Sep 2010 | US$ 899 | ebay.com | |
16. | Panasonic GX85 | 122 mm | 71 mm | 44 mm | 426 g | 290 | n | Apr 2016 | US$ 799 | amazon.com | |
17. | Sony H200 | 123 mm | 83 mm | 87 mm | 530 g | 240 | n | Jan 2013 | US$ 249 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX510 was launched at a lower price than the GX7, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

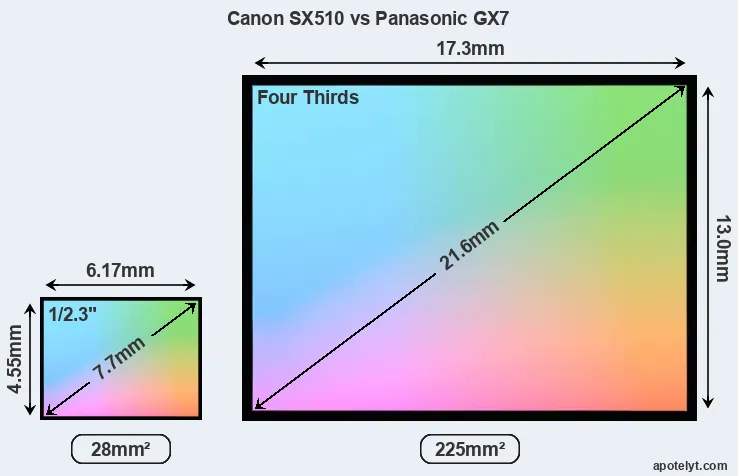

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Panasonic GX7 a Four Thirds sensor. The sensor area in the GX7 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Despite having a smaller sensor, the Canon SX510 offers a higher resolution of 15.9 megapixels, compared with 15.8 MP of the Panasonic GX7. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 3.77μm for the GX7). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the SX510 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-GX7 are ISO 125 to ISO 25600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/24p | 20.0 | 11.3 | 586 | 45 | |
2. | Panasonic GX7 | Four Thirds | 15.8 | 4592 | 3448 | 1080/60p | 22.6 | 12.2 | 718 | 70 | |
3. | Canon SX60 | 1/2.3 | 14.2 | 4608 | 3072 | 1080/60p | 19.2 | 10.8 | 127 | 39 | |
4. | Canon SX400 | 1/2.3 | 15.9 | 4608 | 3456 | 720/30p | 20.1 | 11.5 | 672 | 46 | |
5. | Canon SX410 | 1/2.3 | 19.9 | 5152 | 3864 | 720/30p | 20.2 | 11.6 | 720 | 47 | |
6. | Canon SX420 | 1/2.3 | 19.9 | 5152 | 3864 | 720/25p | 20.3 | 11.7 | 806 | 48 | |
7. | Canon SX430 | 1/2.3 | 19.9 | 5152 | 3864 | 720/25p | 20.5 | 11.9 | 900 | 49 | |
8. | Canon SX500 | 1/2.3 | 15.9 | 4608 | 3456 | 720/30p | 19.8 | 11.1 | 494 | 43 | |
9. | Canon SX520 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.1 | 11.5 | 672 | 46 | |
10. | Canon SX600 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.0 | 11.4 | 620 | 45 | |
11. | Canon SX700 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/60p | 20.1 | 11.4 | 629 | 45 | |
12. | Olympus E-P5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.4 | 895 | 72 | |
13. | Olympus E-PL7 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.7 | 12.4 | 873 | 72 | |
14. | Panasonic G5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 21.4 | 11.6 | 618 | 61 | |
15. | Panasonic GH2 | Four Thirds | 15.9 | 4608 | 3456 | 1080/60i | 21.2 | 11.3 | 655 | 60 | |
16. | Panasonic GX85 | Four Thirds | 15.8 | 4592 | 3448 | 4K/30p | 22.9 | 12.6 | 662 | 71 | |
17. | Sony H200 | 1/2.3 | 15.2 | 5184 | 2930 | 720/30p | 19.9 | 11.2 | 529 | 44 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GX7 provides a faster frame rate than the SX510. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/24p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a range of features. For example, the GX7 has an electronic viewfinder (2760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX510 and Panasonic GX7 in connection with corresponding information for a sample of similar cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | none | n | 3.0 / 461 | fixed | n | 1/1600s | 3.8/s | Y | Y | |
2. | Panasonic GX7 | 2760 | n | 3.0 / 1040 | tilting | Y | 1/8000s | 5.0/s | Y | Y | |
3. | Canon SX60 | 922 | n | 3.0 / 922 | swivel | n | 1/2000s | 6.4/s | Y | Y | |
4. | Canon SX400 | none | n | 3.0 / 230 | fixed | n | 1/1600s | 0.8/s | Y | Y | |
5. | Canon SX410 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 0.5/s | Y | Y | |
6. | Canon SX420 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 0.5/s | Y | Y | |
7. | Canon SX430 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 0.5/s | Y | Y | |
8. | Canon SX500 | none | n | 3.0 / 461 | fixed | n | 1/1600s | 0.8/s | Y | Y | |
9. | Canon SX520 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 1.6/s | Y | Y | |
10. | Canon SX600 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 3.9/s | Y | Y | |
11. | Canon SX700 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 8.5/s | Y | Y | |
12. | Olympus E-P5 | optional | n | 3.0 / 1037 | tilting | Y | 1/8000s | 9.0/s | Y | Y | |
13. | Olympus E-PL7 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
14. | Panasonic G5 | 1440 | n | 3.0 / 920 | swivel | Y | 1/4000s | 6.0/s | Y | n | |
15. | Panasonic GH2 | 1534 | n | 3.0 / 460 | swivel | n | 1/4000s | 3.0/s | Y | n | |
16. | Panasonic GX85 | 2765 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
17. | Sony H200 | none | n | 3.0 / 460 | fixed | n | 1/1500s | 0.8/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GX7 has a touchscreen, while the SX510 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GX7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX510 and the GX7 write their files to SDXC cards. The GX7 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX510 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Panasonic Lumix DMC-GX7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | - | stereo / mono | - | - | mini | 2.0 | Y | - | - | |
2. | Panasonic GX7 | Y | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
3. | Canon SX60 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
4. | Canon SX400 | - | stereo / mono | - | - | - | 2.0 | - | - | - | |
5. | Canon SX410 | - | stereo / mono | - | - | - | 2.0 | - | - | - | |
6. | Canon SX420 | - | mono / mono | - | - | - | 2.0 | Y | Y | - | |
7. | Canon SX430 | - | mono / mono | - | - | - | 2.0 | Y | Y | - | |
8. | Canon SX500 | - | stereo / mono | - | - | - | 2.0 | - | - | - | |
9. | Canon SX520 | - | stereo / mono | - | - | mini | 2.0 | - | - | - | |
10. | Canon SX600 | - | mono / mono | - | - | micro | 2.0 | Y | Y | - | |
11. | Canon SX700 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
12. | Olympus E-P5 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
13. | Olympus E-PL7 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
14. | Panasonic G5 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
15. | Panasonic GH2 | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
16. | Panasonic GX85 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
17. | Sony H200 | - | mono / mono | - | - | - | 2.0 | - | - | - |
It is notable that the GX7 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX510 does not feature such an accessory-socket.
Both the SX510 and the GX7 have been discontinued, but can regularly be found used on ebay. The GX7 was replaced by the Panasonic GX85, while the SX510 was followed by the Canon SX520. Further information on the features and operation of the SX510 and GX7 can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Panasonic GX7 Manual.
Review summary
So what conclusions can be drawn? Which of the two cameras – the Canon SX510 or the Panasonic GX7 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon PowerShot SX510 HS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has a lens built-in, whereas the GX7 requires a separate lens.
- More compact: Is smaller (104x70mm vs 123x71mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the GX7).
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
Reasons to prefer the Panasonic Lumix DMC-GX7:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/1600s) to freeze action.
- Faster burst: Shoots at higher frequency (5 vs 3.8 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (350 versus 250) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
If the number of relative strengths (bullet points above) is taken as a guide, the GX7 is the clear winner of the contest (19 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX510 and the Panasonic GX7 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SX510 and the GX7 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | .. | + + | .. | .. | 4.5/5 | 4/5 | Aug 2013 | US$ 249 | ebay.com | |
2. | Panasonic GX7 | 4/5 | + | .. | 79/100 | 5/5 | 5/5 | Aug 2013 | US$ 999 | ebay.com | |
3. | Canon SX60 | 3/5 | + + | .. | 75/100 | 4/5 | 4.5/5 | Sep 2014 | US$ 549 | ebay.com | |
4. | Canon SX400 | .. | + | .. | .. | .. | .. | Jul 2014 | US$ 249 | ebay.com | |
5. | Canon SX410 | .. | o | .. | .. | .. | .. | Feb 2015 | US$ 279 | ebay.com | |
6. | Canon SX420 | .. | .. | .. | .. | .. | 3/5 | Jan 2016 | US$ 299 | ebay.com | |
7. | Canon SX430 | .. | .. | .. | .. | 3.5/5 | 3.5/5 | Jan 2017 | US$ 299 | ebay.com | |
8. | Canon SX500 | .. | + + | .. | .. | 4/5 | 4/5 | Aug 2012 | US$ 329 | ebay.com | |
9. | Canon SX520 | .. | + | .. | .. | 3.5/5 | 3.5/5 | Jul 2014 | US$ 399 | ebay.com | |
10. | Canon SX600 | .. | + | .. | .. | 4/5 | 4/5 | Jan 2014 | US$ 249 | ebay.com | |
11. | Canon SX700 | .. | + + | .. | .. | 4/5 | 4/5 | Feb 2014 | US$ 349 | ebay.com | |
12. | Olympus E-P5 | 5/5 | + + | .. | 78/100 | 4.5/5 | 5/5 | May 2013 | US$ 999 | ebay.com | |
13. | Olympus E-PL7 | 4/5 | + | .. | .. | 5/5 | 4/5 | Aug 2014 | US$ 599 | ebay.com | |
14. | Panasonic G5 | 3/5 | + + | .. | .. | 4.5/5 | 4.5/5 | Jul 2012 | US$ 599 | ebay.com | |
15. | Panasonic GH2 | 5/5 | + + | .. | 79/100 | 4.5/5 | 5/5 | Sep 2010 | US$ 899 | ebay.com | |
16. | Panasonic GX85 | 4.5/5 | + + | .. | 82/100 | 5/5 | 5/5 | Apr 2016 | US$ 799 | amazon.com | |
17. | Sony H200 | .. | .. | .. | .. | 3.5/5 | 3.5/5 | Jan 2013 | US$ 249 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon G15 vs Canon SX510
- Canon G9 X vs Canon SX510
- Canon M50 vs Panasonic GX7
- Canon SX510 vs Canon SX620
- Canon SX510 vs Leica Digilux 3
- Canon SX510 vs Olympus E-M10 III
- Canon SX510 vs Sony A7S
- Canon T4i vs Panasonic GX7
- Fujifilm X100S vs Panasonic GX7
- Nikon Coolpix A vs Panasonic GX7
- Nikon D3200 vs Panasonic GX7
- Olympus E-PL1 vs Panasonic GX7
Specifications: Canon SX510 vs Panasonic GX7
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon SX510 | Panasonic GX7 |
---|---|---|
Camera Type | Fixed lens compact camera | Mirrorless system camera |
Camera Lens | 24-720mm f/3.4-5.8 | Micro Four Thirds lenses |
Launch Date | August 2013 | August 2013 |
Launch Price | USD 249 | USD 999 |
Sensor Specs | Canon SX510 | Panasonic GX7 |
Sensor Technology | CMOS | CMOS |
Sensor Format | 1/2.3" Sensor | Four Thirds Sensor |
Sensor Size | 6.17 x 4.55 mm | 17.3 x 13.0 mm |
Sensor Area | 28.0735 mm2 | 224.9 mm2 |
Sensor Diagonal | 7.7 mm | 21.6 mm |
Crop Factor | 5.6x | 2.0x |
Sensor Resolution | 15.9 Megapixels | 15.8 Megapixels |
Image Resolution | 4608 x 3456 pixels | 4592 x 3448 pixels |
Pixel Pitch | 1.33 μm | 3.77 μm |
Pixel Density | 56.73 MP/cm2 | 7.04 MP/cm2 |
Moiré control | no AA filter | Anti-Alias filter |
Movie Capability | 1080/24p Video | 1080/60p Video |
ISO Setting | 80 - 3,200 ISO | 125 - 25,600 ISO |
Image Processor | DIGIC 4 | Venus |
DXO Sensor Quality (score) | .. | 70 |
DXO Color Depth (bits) | .. | 22.6 |
DXO Dynamic Range (EV) | .. | 12.2 |
DXO Low Light (ISO) | .. | 718 |
Screen Specs | Canon SX510 | Panasonic GX7 |
Viewfinder Type | no viewfinder | Electronic viewfinder |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.70x | |
Viewfinder Resolution | 2760k dots | |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 461k dots | 1040k dots |
LCD Attachment | Fixed screen | Tilting screen |
Touch Input | no Touchscreen | Touchscreen |
Shooting Specs | Canon SX510 | Panasonic GX7 |
Focus System | Contrast-detect AF | Contrast-detect AF |
Manual Focusing Aid | no Peaking Feature | Focus Peaking |
Max Shutter Speed (mechanical) | 1/1600s | 1/8000s |
Continuous Shooting | 3.8 shutter flaps/s | 5 shutter flaps/s |
Electronic Shutter | no E-Shutter | up to 1/8000s |
Time-Lapse Photography | no Intervalometer | Intervalometer built-in |
Image Stabilization | Lens-based stabilization | In-body stabilization |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | no | UHS-I |
Connectivity Specs | Canon SX510 | Panasonic GX7 |
External Flash | no Hotshoe | Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Wifi Support | Wifi built-in | Wifi built-in |
Near-Field Communication | no NFC | NFC built-in |
Body Specs | Canon SX510 | Panasonic GX7 |
Battery Type | Canon NB-6LH | Panasonic DMW-BLG10 |
Battery Life (CIPA) | 250 shots per charge | 350 shots per charge |
Body Dimensions |
104 x 70 x 80 mm (4.1 x 2.8 x 3.1 in) |
123 x 71 x 55 mm (4.8 x 2.8 x 2.2 in) |
Camera Weight | 349 g (12.3 oz) | 402 g (14.2 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
