Canon RP vs Canon R

The Canon EOS RP and the Canon EOS R are two digital cameras that were officially introduced, respectively, in February 2019 and September 2018. Both the Canon RP and the Canon R are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The Canon RP has a resolution of 26.2 megapixels, whereas the Canon R provides 30.1 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.

Headline Specifications
Canon RP   Canon R
Canon RP Canon R
Mirrorless system camera Mirrorless system camera
Canon RF mount lenses Canon RF mount lenses
26.2 MP, Full Frame Sensor 30.1 MP, Full Frame Sensor
4K/30p Video 4K/30p Video
ISO 100-40000 (50-102400) ISO 100-40000 (50-102400)
Electronic viewfinder (2360k dots) Electronic viewfinder (3690k dots)
3.0" LCD, 1040k dots 3.2" LCD, 2100k dots
Swivel touchscreen Swivel touchscreen
5 shutter flaps per second 8 shutter flaps per second
Not weather sealedWeathersealed body
250 shots per battery charge370 shots per battery charge
133 x 85 x 70 mm, 485 g 139 x 98 x 84 mm, 660 g

Body comparison: Canon RP vs Canon R

The side-by-side display below illustrates the physical size and weight of the Canon RP and the Canon R. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

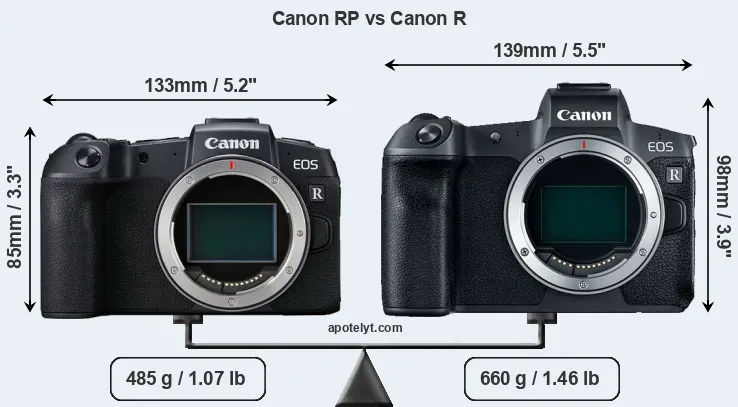

Compare Canon RP and Canon R

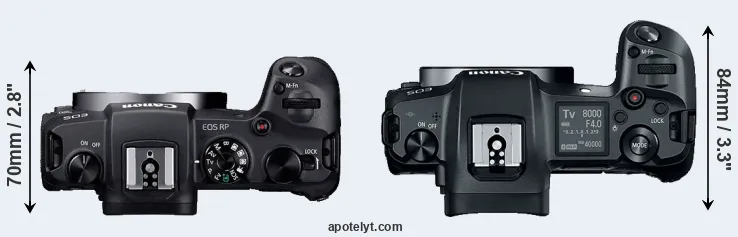

Compare Canon RP versus Canon R top

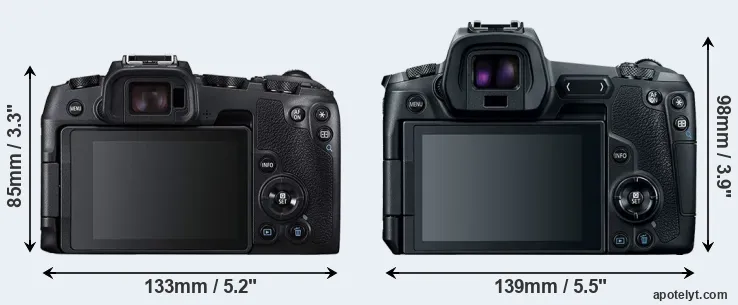

Compare Canon RP or Canon R rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R is notably larger (20 percent) than the Canon RP. Moreover, the Canon R is substantially heavier (36 percent) than the Canon RP. It is noteworthy in this context that the Canon R is splash and dust-proof, while the Canon RP does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the Canon RP gets 250 shots out of its LP-E17 battery, while the Canon R can take 370 images on a single charge of its LP-E6N power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon RP» 5.2 in 3.3 in 2.8 in 17.1 oz 250 n Feb 2019 1,299 i i Canon RP

Canon R« 5.5 in 3.9 in 3.3 in 23.3 oz 370 Y Sep 2018 2,299 i i Canon R

Canon SL3« » 4.8 in 3.7 in 2.8 in 15.8 oz 1070 n Apr 2019 599 i i Canon SL3

Canon T7« » 5.1 in 4.0 in 3.1 in 16.8 oz 500 n Feb 2018 449 i i Canon T7

Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II

Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D

Canon SL2« » 4.8 in 3.7 in 2.8 in 16.0 oz 650 n Jun 2017 549- i Canon SL2

Canon T7i« » 5.2 in 3.9 in 3.0 in 18.8 oz 600 n Feb 2017 749 i i Canon T7i

Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV

Canon M5« » 4.6 in 3.5 in 2.4 in 15.1 oz 295 n Sep 2016 979 i i Canon M5

Canon T6i« » 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749- i Canon T6i

Fujifilm X-T100« » 4.8 in 3.3 in 1.9 in 15.8 oz 430 n May 2018 599 i i Fujifilm X-T100

Leica TL2« » 5.3 in 2.7 in 1.3 in 14.1 oz 250 n Jul 2017 1,950 i i Leica TL2

Nikon Z6« » 5.3 in 4.0 in 2.6 in 23.8 oz 310 Y Aug 2018 1,999 i i Nikon Z6

Sony A7 III« » 5.0 in 3.8 in 2.9 in 22.9 oz 610 Y Feb 2018 1,999 i i Sony A7 III

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Canon RP was launched at a markedly lower price (by 43 percent) than the Canon R, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon RP vs Canon R

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

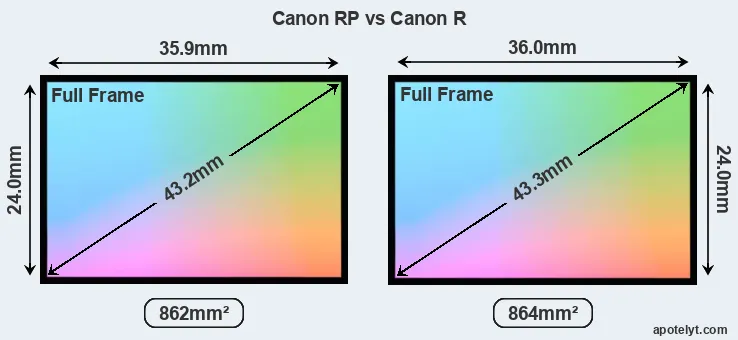

Canon RP and Canon R sensor measures

With 30.1MP, the Canon R offers a higher resolution than the Canon RP (26.2MP), but the Canon R has smaller individual pixels (pixel pitch of 5.36μm versus 5.74μm for the Canon RP). It is noteworthy in this context that the Canon RP is a somewhat more recent model (by 5 months) than the Canon R, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The Canon EOS RP has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400.. The Canon EOS R offers exactly the same ISO settings.

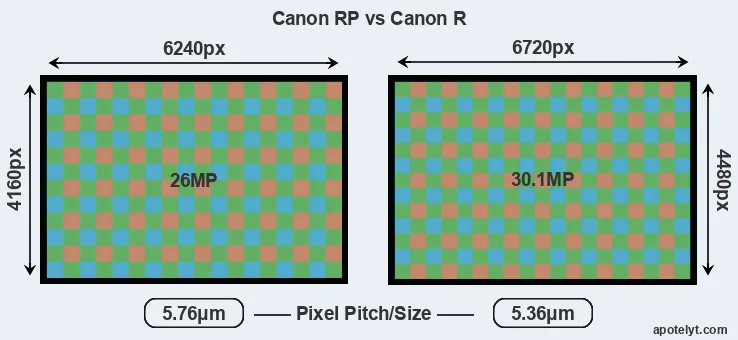

Canon RP versus Canon R MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon RP» Full Frame 26.2 6240 41604K/30p----Canon RP

Canon R« Full Frame 30.1 6720 44804K/30p24.513.5274289Canon R

Canon SL3« » APS-C 24.0 6000 40004K/25p----Canon SL3

Canon T7« » APS-C 24.0 6000 40001080/30p----Canon T7

Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II

Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D

Canon SL2« » APS-C 24.0 6000 40001080/60p23.613.4104179Canon SL2

Canon T7i« » APS-C 24.0 6000 40001080/60p----Canon T7i

Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV

Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5

Canon T6i« » APS-C 24.0 6000 40001080/60p22.712.091971Canon T6i

Fujifilm X-T100« » APS-C 24.0 6000 40004K/15p----Fujifilm X-T100

Leica TL2« » APS-C 24.1 6014 40144K/30p----Leica TL2

Nikon Z6« » Full Frame 24.3 6048 40244K/30p25.314.3329995Nikon Z6

Sony A7 III« » Full Frame 24.0 6000 40004K/30p25.014.7373096Sony A7 III

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).



Feature comparison: Canon RP vs Canon R

Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the Canon R offers a substantially higher resolution than the one in the Canon RP (3690k vs 2360k dots). The following table reports on some other key feature differences and similarities of the Canon RP, the Canon R, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon RP»2360 n 3.0 1040 swivel Y 1/4000s 5.0 n n Canon RP

Canon R«3690 Y 3.2 2100 swivel Y 1/8000s 8.0 n n Canon R

Canon SL3« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon SL3

Canon T7« »optical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon T7

Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 1/4000s 6.5 n n Canon 6D Mark II

Canon 77D« »optical Y 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon 77D

Canon SL2« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon SL2

Canon T7i« »optical n 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon T7i

Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 1/8000s 7.0 n n Canon 5D Mark IV

Canon M5« »2360 n 3.2 1620 tilting Y 1/4000s 9.0 Y n Canon M5

Canon T6i« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon T6i

Fujifilm X-T100« »2360 n 3.0 1040 full-flex Y 1/4000s 6.0 Y n Fujifilm X-T100

Leica TL2« »- n 3.7 1230 fixed Y 1/4000s 7.0 n n Leica TL2

Nikon Z6« »3690 Y 3.2 2100 tilting Y 1/8000s 12.0 n Y Nikon Z6

Sony A7 III« »2359 n 3.0 922 tilting Y 1/8000s 10.0 n Y Sony A7 III

One feature that is present on the Canon R, but is missing on the Canon RP is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Canon R is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon RP has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the Canon RP and the Canon R write their files to SDXC cards. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.



Connectivity comparison: Canon RP vs Canon R

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS RP and Canon EOS R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon RP»YstereomonoYYmicro2.0Y-YCanon RP

Canon R«YstereomonoY-mini3.1Y-YCanon R

Canon SL3« »YstereomonoY-mini2.0Y-YCanon SL3

Canon T7« »Ymonomono--mini2.0YY-Canon T7

Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II

Canon 77D« »YstereomonoY-mini2.0YYYCanon 77D

Canon SL2« »YstereomonoY-mini2.0YYYCanon SL2

Canon T7i« »YstereomonoY-mini2.0YYYCanon T7i

Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV

Canon M5« »YstereomonoY-mini2.0YYYCanon M5

Canon T6i« »YstereomonoY-mini2.0YY-Canon T6i

Fujifilm X-T100« »YstereomonoY-micro2.0Y-YFujifilm X-T100

Leica TL2« »Ystereomono--micro3.0Y--Leica TL2

Nikon Z6« »YstereomonoYYmicro3.1Y-YNikon Z6

Sony A7 III« »YstereomonoYYmicro3.1YYYSony A7 III

It is notable that the Canon RP has a headphone jack, which is not present on the Canon R This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Both the Canon RP and the Canon R are recent models that are part of the current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Canon. Further information on the two cameras, as well as related accessories, can be found on the official Canon website.


Review summary: Canon RP vs Canon R

So how do things add up? Is the Canon RP better than the Canon R or vice versa? Below is a summary of the relative strengths of each of the two contestants.


Arguments in favor of the Canon EOS RP:

  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (133x85mm vs 139x98mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 175g or 27 percent) and hence easier to carry around.
  • More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 5 months after the Canon R).


Reasons to prefer the Canon EOS R:

  • More detail: Has more megapixels (30.1 vs 26.2MP), which boosts linear resolution by 8%.
  • More detailed viewfinder: Has higher resolution electronic viewfinder (3690k vs 2360k dots).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.70x).
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Longer lasting: Gets more shots (370 versus 250) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
  • More heavily discounted: Has been on the market for longer (launched in September 2018).

If the count of relative strengths (bullet points above) is taken as a measure, the Canon R is the clear winner of the contest (13 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

Canon RP 06:13 Canon R

Do the specifications of the Canon RP and the Canon R place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Canon RP or the Canon R. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews: Canon RP vs Canon R

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon RP»+-4.5/5-4/5 Feb 2019 1,299 i i Canon RP

Canon R«o79/1004.5/54/54/5 Sep 2018 2,299 i i Canon R

Canon SL3« »----- Apr 2019 599 i i Canon SL3

Canon T7« »o-3.5/5-3.5/5 Feb 2018 449 i i Canon T7

Canon 6D Mark II« »+80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II

Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D

Canon SL2« »++78/1004.5/54.5/54.5/5 Jun 2017 549- i Canon SL2

Canon T7i« »-80/1004.5/54/54/5 Feb 2017 749 i i Canon T7i

Canon 5D Mark IV« »++87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV

Canon M5« »+82/1004/54.5/54/5 Sep 2016 979 i i Canon M5

Canon T6i« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon T6i

Fujifilm X-T100« »+79/1004/5-4.5/5 May 2018 599 i i Fujifilm X-T100

Leica TL2« »--4/5-4/5 Jul 2017 1,950 i i Leica TL2

Nikon Z6« »--4.5/5-5/5 Aug 2018 1,999 i i Nikon Z6

Sony A7 III« »++89/1005/55/55/5 Feb 2018 1,999 i i Sony A7 III
Notes: ++) highly recommended; +) recommended; o) reviewed; -) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Canon RP:
Check Amazon price
Canon R:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon RP vs Canon R

    Camera Specifications
    Camera Model Canon RP Canon R
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon RF mount lenses Canon RF mount lenses
    Launch Date February 2019 September 2018
    Launch Price USD 1299 USD 2299
    Sensor Specs Canon RP Canon R
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Full Frame Sensor
    Sensor Size 35.9 x 24.0 mm 36.0 x 24.0 mm
    Sensor Area 861.6 mm2 864 mm2
    Sensor Diagonal 43.2 mm 43.3 mm
    Crop Factor 1.0x 1.0x
    Sensor Resolution 26.2 Megapixels 30.1 Megapixels
    Image Resolution 6240 x 4160 pixels 6720 x 4480 pixels
    Pixel Pitch 5.74 μm 5.36 μm
    Pixel Density 3.01 MP/cm2 3.48 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/30p Video 4K/30p Video
    ISO Setting 100-40000 ISO 100-40000 ISO
    ISO Boost 50-102400 ISO 50-102400 ISO
    Image Processor DIGIC 8 DIGIC 8
    DXO Sensor Quality (score) .. 89
    DXO Color Depth (bits) .. 24.5
    DXO Dynamic Range (EV) .. 13.5
    DXO Low Light (ISO) .. 2742
    Screen Specs Canon RP Canon R
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.70x 0.76x
    Viewfinder Resolution 2360k dots 3690k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.2 inch
    LCD Resolution 1040k dots 2100k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon RP Canon R
    Autofocus System On-Sensor Phase-detect On-Sensor Phase-detect
    Manual Focusing AidNo Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000/s 1/8000/s
    Continuous Shooting 5 shutter flaps/s 8 shutter flaps/s
    Shutter Life Expectancy100 000 actuations200 000 actuations
    Electronic Shutterno E-ShutterYES
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-II UHS-II
    Connectivity Specs Canon RP Canon R
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 3.1
    HDMI Port micro HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon RP Canon R
    Environmental SealingNot weather sealedWeathersealed body
    Battery Type LP-E17 power pack LP-E6N power pack
    Battery Life (CIPA)250 shots per charge370 shots per charge
    In-Camera Charging USB charging USB charging
    Body Dimensions 133 x 85 x 70 mm
    (5.2 x 3.3 x 2.8 in)
    139 x 98 x 84 mm
    (5.5 x 3.9 x 3.3 in)
    Camera Weight 485 g (17.1 oz) 660 g (23.3 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
