Canon Rebel vs Olympus E-PL2
The Canon EOS Digital Rebel (called Canon 300D in some regions) and the Olympus PEN E-PL2 are two digital cameras that were announced, respectively, in August 2003 and January 2011. The Rebel is a DSLR, while the E-PL2 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (Rebel) and a Four Thirds (E-PL2) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Digital Rebel and the Olympus PEN E-PL2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

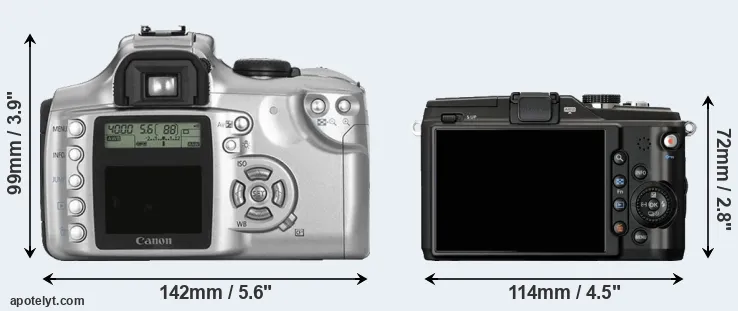

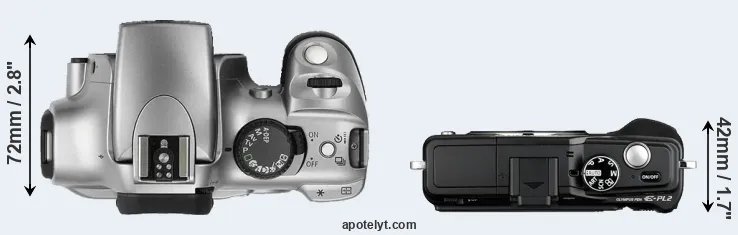

The side-by-side display below illustrates the physical size and weight of the Canon Rebel and the Olympus E-PL2. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL2 can be obtained in four different colors (black, silver, red, white), while the Rebel is only available in silver.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL2 is considerably smaller (42 percent) than the Canon Rebel. Moreover, the E-PL2 is substantially lighter (44 percent) than the Rebel. In this context, it is worth noting that neither the Rebel nor the E-PL2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (Rebel) and the Micro Four Thirds Lens Catalog (E-PL2). Mirrorless cameras, such as the E-PL2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|2.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|3.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|7.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|8.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|9.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|10.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|11.||Canon 10D||150 mm||107 mm||75 mm||850 g||500||n||Feb 2003||1,999|
|12.||Nikon D70||140 mm||111 mm||78 mm||679 g||400||n||Jan 2004||999|
|13.||Olympus XZ-2||113 mm||65 mm||48 mm||346 g||340||n||Sep 2012||599|
|14.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|15.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|16.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|17.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL2 was launched at a markedly lower price (by 33 percent) than the Rebel, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon Rebel features an APS-C sensor and the Olympus E-PL2 a Four Thirds sensor. The sensor area in the E-PL2 is 34 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the Rebel has a native 3:2 aspect ratio, while the one in the E-PL2 offers a 4:3 aspect.
Despite having a smaller sensor, the E-PL2 offers a higher resolution of 12.2 megapixels, compared with 6.3 MP of the Rebel. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.29μm versus 7.38μm for the Rebel). However, it should be noted that the E-PL2 is much more recent (by 7 years and 4 months) than the Rebel, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-PL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL2 for good quality output (200 dots per inch) amounts to 20.2 x 15.1 inches or 51.2 x 38.4 cm, for very good quality (250 dpi) 16.1 x 12.1 inches or 41 x 30.7 cm, and for excellent quality (300 dpi) 13.4 x 10.1 inches or 34.1 x 25.6 cm. The corresponding values for the Canon Rebel are 15.4 x 10.2 inches or 39 x 26 cm for good quality, 12.3 x 8.2 inches or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inches or 26 x 17.3 cm for excellent quality prints.
The Canon EOS Digital Rebel has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-PL2 are ISO 200 to ISO 6400 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|14.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|15.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|16.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|17.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
Many modern cameras are not only capable of taking still images, but can also record movies. The E-PL2 indeed provides for movie recording, while the Rebel does not. The highest resolution format that the E-PL2 can use is 720/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the Rebel has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL2 relies on live view and the rear LCD for framing. That said, the E-PL2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon Rebel and Olympus E-PL2 in connection with corresponding information for a sample of similar cameras.
|1.||Canon Rebel||optical||n||1.8 / 118||fixed||n||1/4000s||2.5||Y||n|
|2.||Olympus E-PL2||optional||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||Y|
|3.||Canon T7i||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|4.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|6.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7||Y||n|
|7.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4||Y||n|
|8.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|9.||Canon XT||optical||n||1.8 / 115||fixed||n||1/4000s||3.0||Y||n|
|10.||Canon 20D||optical||Y||1.8 / 118||fixed||n||1/8000s||5.0||Y||n|
|11.||Canon 10D||optical||Y||1.8 / 118||fixed||n||1/4000s||3.0||Y||n|
|12.||Nikon D70||optical||n||1.8 / 130||fixed||n||1/8000s||3.0||Y||n|
|13.||Olympus XZ-2||optional||n||3.0 / 920||tilting||Y||1/2000s||5.0||Y||Y|
|14.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0||Y||Y|
|15.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5||n||Y|
|16.||Olympus E-PM1||optional||n||3.0 / 460||fixed||n||1/4000s||5.5||n||Y|
|17.||Olympus E-PL1||optional||n||2.7 / 230||fixed||n||1/2000s||3.0||Y||Y|
One feature that differentiates the E-PL2 and the Rebel is in-body image stabilization (IBIS). The E-PL2 reduces the risk of handshake-induced blur with all attached lenses, while the Rebel offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The Rebel writes its imaging data to Compact Flash cards, while the E-PL2 uses SDHC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Digital Rebel and Olympus PEN E-PL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon Rebel||Y||- / -||-||-||-||1.1||-||-||-|
|2.||Olympus E-PL2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Canon T7i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|6.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|7.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|8.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|9.||Canon XT||Y||- / -||-||-||-||2.0||-||-||-|
|10.||Canon 20D||Y||- / -||-||-||-||1.1||-||-||-|
|11.||Canon 10D||Y||- / -||-||-||-||1.1||-||-||-|
|12.||Nikon D70||Y||- / -||-||-||-||1.0||-||-||-|
|13.||Olympus XZ-2||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|14.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|16.||Olympus E-PM1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Olympus E-PL1||Y||stereo / -||-||-||mini||2.0||-||-||-|
Both the Rebel and the E-PL2 have been discontinued, but can regularly be found used on eBay. The Rebel was replaced by the Canon XT, while the E-PL2 was followed by the Olympus E-PL3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is there a clear favorite between the Canon Rebel and the Olympus E-PL2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Digital Rebel:
- More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (400 versus 280) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in August 2003).
Reasons to prefer the Olympus PEN E-PL2:
- More detail: Has more megapixels (12.2 vs 6.3MP), which boosts linear resolution by 37%.
- Broader imaging potential: Can capture not only stills but also 720/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (460k vs 118k dots).
- Faster burst: Shoots at higher frequency (3 vs 2.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (114x72mm vs 142x99mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 287g or 44 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
- More modern: Reflects 7 years and 4 months of technical progress since the Rebel launch.
If the count of relative strengths (bullet points above) is taken as a measure, the E-PL2 is the clear winner of the contest (12 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon Rebel and the Olympus E-PL2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the Rebel or the E-PL2 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon Rebel||..||..||..||+ +||..||..||Aug 2003||899|
|2.||Olympus E-PL2||3/5||83/100||..||71/100||4.5/5||4.5/5||Jan 2011||599|
|3.||Canon T7i||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|4.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599|
|7.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|8.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|9.||Canon XT||..||80/100||..||+ +||o||..||Feb 2005||899|
|10.||Canon 20D||..||..||..||+ +||..||..||Aug 2004||1,499|
|11.||Canon 10D||..||..||..||+ +||..||..||Feb 2003||1,999|
|12.||Nikon D70||..||..||..||+ +||..||..||Jan 2004||999|
|13.||Olympus XZ-2||4/5||+||..||..||4.5/5||4.5/5||Sep 2012||599|
|14.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799|
|15.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599|
|16.||Olympus E-PM1||..||86/100||..||71/100||4.5/5||4.5/5||Jun 2011||499|
|17.||Olympus E-PL1||..||86/100||..||69/100||4/5||4.5/5||Feb 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 2000D vs Canon Rebel
- Canon Rebel vs Fujifilm X-T100
- Canon Rebel vs Leica S-E Typ 006
- Canon Rebel vs Nikon D3
- Canon Rebel vs Sony A99 II
- Canon Rebel vs Sony ZV-1
- Leica T vs Olympus E-PL2
- Nikon D1 vs Olympus E-PL2
- Nikon D3500 vs Olympus E-PL2
- Nikon D5600 vs Olympus E-PL2
- Olympus E-PL2 vs Panasonic GF1
- Olympus E-PL2 vs Samsung NX30
Specifications: Canon Rebel vs Olympus E-PL2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon Rebel||Olympus E-PL2|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2003||January 2011|
|Launch Price||USD 899||USD 599|
|Sensor Specs||Canon Rebel||Olympus E-PL2|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.7 x 15.1 mm||17.3 x 13.0 mm|
|Sensor Area||342.77 mm2||224.9 mm2|
|Sensor Diagonal||27.3 mm||21.6 mm|
|Sensor Resolution||6.3 Megapixels||12.2 Megapixels|
|Image Resolution||3072 x 2048 pixels||4032 x 3024 pixels|
|Pixel Pitch||7.38 μm||4.29 μm|
|Pixel Density||1.84 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||720/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 6,400 ISO|
|DXO Sensor Quality (score)||55||55|
|DXO Color Depth (bits)||21.0||21.4|
|DXO Dynamic Range (EV)||10.8||10.2|
|DXO Low Light (ISO)||544||573|
|Screen Specs||Canon Rebel||Olympus E-PL2|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.0inch|
|LCD Resolution||118k dots||460k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon Rebel||Olympus E-PL2|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||2.5 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon Rebel||Olympus E-PL2|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon Rebel||Olympus E-PL2|
|Battery Life (CIPA)||400 shots per charge||280 shots per charge|
142 x 99 x 72 mm
(5.6 x 3.9 x 2.8 in)
114 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||649 g (22.9 oz)||362 g (12.8 oz)|
