Canon R5 vs Ricoh WG-60
The Canon EOS R5 and the Ricoh WG-60 are two digital cameras that were revealed to the public, respectively, in July 2020 and October 2018. The Canon R5 is a mirrorless interchangeable lens camera, while the WG-60 is a fixed lens compact. The cameras are based on a full frame (Canon R5) and a 1/2.3-inch (WG-60) sensor. The Canon has a resolution of 44.8 megapixels, whereas the Ricoh provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 and the Ricoh WG-60? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon R5 and the Ricoh WG-60. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The WG-60 can be obtained in two different colors (black, red), while the Canon R5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh WG-60 is considerably smaller (44 percent) than the Canon R5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the WG-60 is water-proof up to 14m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the WG-60 has a lens built in, whereas the Canon R5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The power pack in the Canon R5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon R5||138 mm||98 mm||88 mm||738 g||320||Y||Jul 2020||3,899|
|2.||Ricoh WG-60||123 mm||62 mm||30 mm||193 g||300||Y||Oct 2018||279|
|3.||Canon R6||138 mm||98 mm||88 mm||680 g||360||Y||Jul 2020||2,499|
|4.||Fujifilm XP140||110 mm||71 mm||28 mm||207 g||240||Y||Feb 2019||229|
|5.||Fujifilm XP130||110 mm||71 mm||28 mm||207 g||240||n||Jan 2018||229|
|6.||Fujifilm XP120||110 mm||71 mm||28 mm||203 g||210||Y||Jan 2017||229|
|7.||Nikon Z7 II||134 mm||101 mm||70 mm||705 g||420||Y||Oct 2020||2,999|
|8.||Nikon Z7||134 mm||101 mm||67 mm||675 g||330||Y||Aug 2018||3,399|
|9.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|10.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|11.||Sony A7S III||127 mm||97 mm||81 mm||699 g||600||Y||Jul 2020||3,499|
|12.||Sony A9 II||129 mm||96 mm||76 mm||678 g||690||Y||Oct 2019||4,499|
|13.||Sony A7R IV||129 mm||96 mm||78 mm||665 g||670||Y||Jul 2019||3,499|
|14.||Sony WX800||102 mm||58 mm||36 mm||233 g||370||n||Oct 2018||399|
|15.||Sony A7R III||127 mm||96 mm||74 mm||650 g||650||Y||Oct 2017||3,199|
|16.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
|17.||Sony A7R II||127 mm||96 mm||60 mm||625 g||290||Y||Jun 2015||3,199|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The WG-60 was launched at a lower price than the Canon R5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon R5 features a full frame sensor and the Ricoh WG-60 a 1/2.3-inch sensor. The sensor area in the WG-60 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the Canon R5 has a native 3:2 aspect ratio, while the one in the WG-60 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.

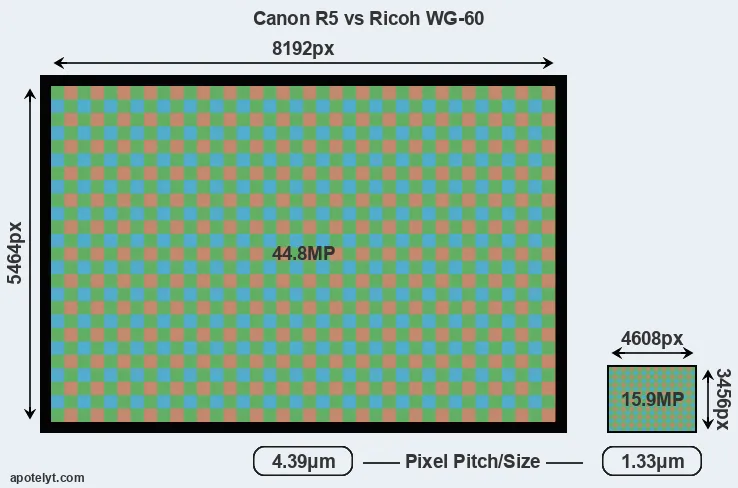

With 44.8MP, the Canon R5 offers a higher resolution than the WG-60 (15.9MP), but the Canon R5 nevertheless has larger individual pixels (pixel pitch of 4.39μm versus 1.33μm for the WG-60) due to its larger sensor. Moreover, the Canon R5 is a somewhat more recent model (by 1 year and 8 months) than the WG-60, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the WG-60 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon R5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon R5 for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Ricoh WG-60 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon R5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS R5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Ricoh WG-60 are ISO 125 to ISO 6400 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Canon R5||Full Frame||44.8||8192||5464||8k/30p||25.3||14.6||3042||95|
|3.||Canon R6||Full Frame||20.0||5472||3648||4k/60p||24.2||14.3||3394||90|
|7.||Nikon Z7 II||Full Frame||45.4||8256||5504||4K/60p||26.3||14.7||2841||100|
|8.||Nikon Z7||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99|
|10.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|11.||Sony A7S III||Full Frame||12.0||4240||2832||4K/120p||23.7||13.9||2520||86|
|12.||Sony A9 II||Full Frame||24.0||6000||4000||4K/30p||25.0||14.0||3434||93|
|13.||Sony A7R IV||Full Frame||60.2||9504||6336||4K/30p||26.0||14.8||3344||99|
|15.||Sony A7R III||Full Frame||42.2||7952||5304||4K/30p||26.0||14.7||3523||100|
|16.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|17.||Sony A7R II||Full Frame||42.2||7952||5304||4K/30p||26.0||13.9||3434||98|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the Canon R5 provides a higher video resolution than the WG-60. It can shoot video footage at 8k/30p, while the Ricoh is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Canon R5 has an electronic viewfinder (5760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the WG-60 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon R5 and Ricoh WG-60 in connection with corresponding information for a sample of similar cameras.
|7.||Nikon Z7 II||3690||Y||3.2||2100||tilting||Y||1/8000s||10.0||n||Y|
|11.||Sony A7S III||9440||n||3.0||1440||swivel||Y||1/8000s||10.0||n||Y|
|12.||Sony A9 II||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|13.||Sony A7R IV||5760||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|15.||Sony A7R III||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|16.||Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
|17.||Sony A7R II||2400||n||3.0||1229||tilting||n||1/8000s||5.0||n||Y|
One feature that is present on the Canon R5, but is missing on the WG-60 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The Canon R5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the WG-60 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Canon R5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon R5 and the Ricoh WG-60 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The Canon R5 writes its imaging data to CFexpress or SDXC cards, while the WG-60 uses SDXC cards. The Canon R5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the WG-60 only has one slot. The Canon R5 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the WG-60 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 and Ricoh WG-60 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|7.||Nikon Z7 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|11.||Sony A7S III||Y||stereo||mono||Y||Y||full||3.2||Y||-||Y|
|12.||Sony A9 II||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|13.||Sony A7R IV||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|15.||Sony A7R III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|16.||Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
|17.||Sony A7R II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the Canon R5 has a hotshoe, while the WG-60 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Both the Canon R5 and the WG-60 are recent models that are part of the current product line-up. The WG-60 replaced the earlier Ricoh WG-50, while the Canon R5 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Ricoh websites.
So what conclusions can be drawn? Which of the two cameras – the Canon R5 or the Ricoh WG-60 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS R5:
- More detail: Offers more megapixels (44.8 vs 15.9MP) with a 71% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (8k/30p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
- More modern: Is somewhat more recent (announced 1 year and 8 months after the WG-60).
Reasons to prefer the Ricoh WG-60:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has an integrated lens, whereas the Canon R5 necessitates an extra lens.
- More compact: Is smaller (123x62mm vs 138x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the Canon R5).
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 14m).
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been on the market for longer (launched in October 2018).
If the count of relative strengths (bullet points above) is taken as a measure, the Canon R5 is the clear winner of the match-up (30 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon R5 and the Ricoh WG-60 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the Canon R5 or the WG-60 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon R5||4.5/5||..||91/100||4.5/5||4.5/5||Jul 2020||3,899|
|2.||Ricoh WG-60||..||..||..||..||..||Oct 2018||279|
|3.||Canon R6||5/5||+ +||90/100||4.5/5||5/5||Jul 2020||2,499|
|4.||Fujifilm XP140||..||+||..||3.5/5||4/5||Feb 2019||229|
|5.||Fujifilm XP130||..||o||..||3.5/5||4/5||Jan 2018||229|
|6.||Fujifilm XP120||..||o||..||3.5/5||4/5||Jan 2017||229|
|7.||Nikon Z7 II||4.5/5||..||..||4.5/5||4.5/5||Oct 2020||2,999|
|8.||Nikon Z7||5/5||+||89/100||4.5/5||5/5||Aug 2018||3,399|
|9.||Nikon W300||..||+||..||4/5||4/5||May 2017||389|
|10.||Panasonic S1R||4.5/5||..||89/100||4.5/5||4.5/5||Feb 2019||3,699|
|11.||Sony A7S III||..||+ +||91/100||4.5/5||5/5||Jul 2020||3,499|
|12.||Sony A9 II||..||..||90/100||5/5||5/5||Oct 2019||4,499|
|13.||Sony A7R IV||5/5||+||91/100||4.5/5||5/5||Jul 2019||3,499|
|14.||Sony WX800||..||..||..||..||..||Oct 2018||399|
|15.||Sony A7R III||..||+ +||90/100||4.5/5||5/5||Oct 2017||3,199|
|16.||Sony A99 II||..||..||85/100||4.5/5||4.5/5||Sep 2016||3,199|
|17.||Sony A7R II||5/5||+ +||90/100||5/5||5/5||Jun 2015||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon R5 vs Ricoh WG-60
|Camera Model||Canon R5||Ricoh WG-60|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Canon RF mount lenses||28-140mm f/3.5-5.5|
|Launch Date||July 2020||October 2018|
|Launch Price||USD 3,899||USD 279|
|Sensor Specs||Canon R5||Ricoh WG-60|
|Sensor Format||Full Frame Sensor||1/2.3" Sensor|
|Sensor Size||36.0 x 24.0 mm||6.17 x 4.55 mm|
|Sensor Area||864 mm2||28.0735 mm2|
|Sensor Diagonal||43.3 mm||7.7 mm|
|Sensor Resolution||44.8 Megapixels||15.9 Megapixels|
|Image Resolution||8192 x 5464 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.39 μm||1.33 μm|
|Pixel Density||5.18 MP/cm2||56.73 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||8k/30p Video||1080/60p Video|
|ISO Setting||100 - 51,200 ISO||125 - 6,400 ISO|
|ISO Boost||50 - 102,400 ISO||no Enhancement|
|DXO Sensor Quality (score)||95||..|
|DXO Color Depth (bits)||25.3||..|
|DXO Dynamic Range (EV)||14.6||..|
|DXO Low Light (ISO)||3042||..|
|Screen Specs||Canon R5||Ricoh WG-60|
|Viewfinder Type||Electronic viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||5760k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||2.7inch|
|LCD Resolution||2100k dots||230k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon R5||Ricoh WG-60|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||10 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||up to 1/8000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||no handshake reduction|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CFexpress or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-II||no|
|Connectivity Specs||Canon R5||Ricoh WG-60|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 3.2||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon R5||Ricoh WG-60|
|Environmental Sealing||Weathersealed body||Waterproof body (14m)|
|Battery Life (CIPA)||320 shots per charge||300 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
138 x 98 x 88 mm
(5.4 x 3.9 x 3.5 in)
123 x 62 x 30 mm
(4.8 x 2.4 x 1.2 in)
|Camera Weight||738 g (26.0 oz)||193 g (6.8 oz)|
