Canon M6 vs Panasonic GH5s

The Canon EOS M6 and the Panasonic Lumix DC-GH5s are two digital cameras that were revealed to the public, respectively, in February 2017 and January 2018. Both the M6 and the GH5s are mirrorless interchangeable lens cameras that are based on an APS-C (M6) and a Four Thirds (GH5s) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 9.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon M6
versus
Panasonic GH5s
Canon M6   Panasonic GH5s
Mirrorless system camera Mirrorless system camera
Canon EF-M mount lenses Micro Four Thirds lenses
24 MP – APS-C sensor 9.9 MP – Four Thirds sensor
1080/60p Video 4K/60p Video
ISO 100-25,600 ISO 160-51,200 (80 - 204,800)
Viewfinder optional Electronic viewfinder (3680k dots)
3.0" LCD – 1040k dots 3.2" LCD – 1620k dots
Tilting touchscreen Swivel touchscreen
9 shutter flaps per second 12 shutter flaps per second
not weather sealedWeathersealed body
295 shots per battery charge440 shots per battery charge
112 x 68 x 45 mm, 390 g 139 x 98 x 87 mm, 660 g
logo
Check M6 offers at
ebay.com
logo
Check GH5s price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 and the Panasonic Lumix DC-GH5s? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon M6 and the Panasonic GH5s are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The M6 can be obtained in two different colors (black, silver), while the GH5s is only available in black.

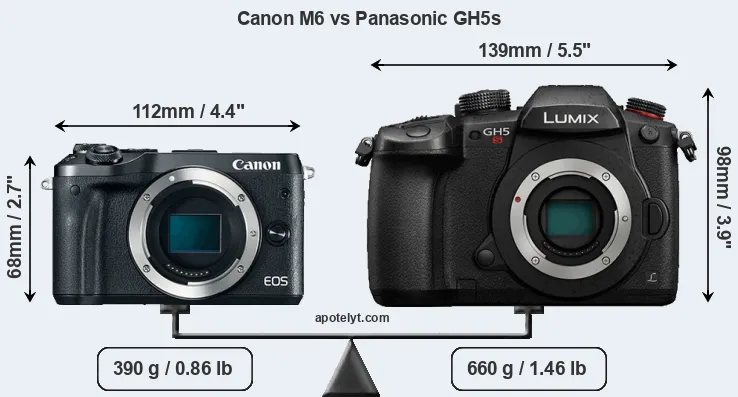

Size Canon M6 vs Panasonic GH5s
Compare M6 versus GH5s top
Comparison M6 or GH5s rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH5s is considerably larger (79 percent) than the Canon M6. Moreover, the GH5s is substantially heavier (69 percent) than the M6. It is noteworthy in this context that the GH5s is splash and dust-proof, while the M6 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M6 gets 295 shots out of its LP-E17 battery, while the GH5s can take 440 images on a single charge of its DMW-BLF19 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779ebay.com
2.

Panasonic GH5s 139 mm 98 mm 87 mm 660 g 440 Y Jan 2018 2,499 amazon.com
3.

Canon M50 Mark II 116 mm 88 mm 59 mm 387 g 305 n Oct 2020 599 amazon.com
4.

Canon M6 Mark II 120 mm 70 mm 49 mm 408 g 305 n Aug 2019 849 amazon.com
5.

Canon M50 116 mm 88 mm 59 mm 390 g 235 n Feb 2018 779ebay.com
6.

Canon T7 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
7.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899ebay.com
8.

Canon M100 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499ebay.com
9.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
10.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
11.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979ebay.com
12.

Canon M3 111 mm 68 mm 44 mm 366 g 250 n Feb 2015 679ebay.com
13.

Panasonic GH5 139 mm 98 mm 87 mm 725 g 410 Y Jan 2017 1,999ebay.com
14.

Panasonic FZ300 132 mm 92 mm 117 mm 691 g 380 Y Jul 2015 599 amazon.com
15.

Panasonic GH4 133 mm 93 mm 84 mm 560 g 500 Y Feb 2014 1,499ebay.com
16.

Panasonic GH3 133 mm 93 mm 82 mm 550 g 540 Y Sep 2012 1,299ebay.com
17.

Panasonic G2 124 mm 84 mm 74 mm 428 g 360 n Mar 2010 599ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M6 was launched at a markedly lower price (by 69 percent) than the GH5s, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M6 features an APS-C sensor and the Panasonic GH5s a Four Thirds sensor. The sensor area in the GH5s is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M6 has a native 3:2 aspect ratio, while the one in the GH5s offers a 4:3 aspect.

Canon M6 and Panasonic GH5s sensor measures

With 24MP, the M6 offers a higher resolution than the GH5s (9.9MP), but the M6 has smaller individual pixels (pixel pitch of 3.72μm versus 4.77μm for the GH5s). Moreover, the GH5s is a somewhat more recent model (by 10 months) than the M6, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the GH5s has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GH5s are 18.4 x 13.5 inches or 46.7 x 34.3 cm for good quality, 14.7 x 10.8 inches or 37.4 x 27.4 cm for very good quality, and 12.3 x 9 inches or 31.2 x 22.9 cm for excellent quality prints.

The M6 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M6 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DC-GH5s are ISO 160 to ISO 51200, with the possibility to increase the ISO range to 80-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

M6 versus GH5s MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon M6 APS-C 24.0 6000 40001080/60p23.713.1158680
2.

Panasonic GH5s Four Thirds 9.9 3680 27004K/60p23.112.8115474
3.

Canon M50 Mark II APS-C 24.0 6000 40004K/24p24.013.6193983
4.

Canon M6 Mark II APS-C 32.3 6960 46404K/30p24.013.5184883
5.

Canon M50 APS-C 24.0 6000 40004K/24p23.813.3168481
6.

Canon T7 APS-C 24.0 6000 40001080/30p23.813.3168481
7.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
8.

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278
9.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
10.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
11.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
12.

Canon M3 APS-C 24.0 6000 40001080/30p22.811.8116972
13.

Panasonic GH5 Four Thirds 20.2 5184 38884K/60p23.913.080777
14.

Panasonic FZ300 1/2.3 12.0 4000 30004K/30p19.311.09738
15.

Panasonic GH4 Four Thirds 15.9 4608 34564K/30p23.212.879174
16.

Panasonic GH3 Four Thirds 15.9 4608 34561080/60p22.712.481271
17.

Panasonic G2 Four Thirds 12.0 4000 3000720/30p21.210.349353
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the GH5s provides a better video resolution than the M6. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the GH5s has an electronic viewfinder (3680k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M6 relies on live view and the rear LCD for framing. That said, the M6 can be equipped with an optional viewfinder – the EVF-DC2. The adjacent table lists some of the other core features of the Canon M6 and Panasonic GH5s along with similar information for a selection of comparators.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
2.

Panasonic GH5s3680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n n
3.

Canon M50 Mark II2360 n3.0 / 1040 swivel Y 1/4000s 10.0/s Y n
4.

Canon M6 Mark IIoptional n3.0 / 1040 tilting Y 1/4000s 14.0/s Y n
5.

Canon M502360 n3.0 / 1040 swivel Y 1/4000s 10.0/s Y n
6.

Canon T7optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
7.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
8.

Canon M100none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
9.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
10.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
11.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
12.

Canon M3optional n3.0 / 1040 tilting Y 1/4000s 4.2/s Y n
13.

Panasonic GH53680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n Y
14.

Panasonic FZ3001440 n3.0 / 1040 swivel Y 1/4000s 12.0/s Y Y
15.

Panasonic GH42359 n3.0 / 1036 swivel Y 1/8000s 12.0/s Y n
16.

Panasonic GH31746 n3.0 / 614 swivel Y 1/4000s 6.0/s Y n
17.

Panasonic G21440 n3.0 / 460 swivel Y 1/4000s 2.6/s Y n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M6 has one, while the GH5s does not. While the built-in flash of the M6 is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH5s is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon M6 and the Panasonic GH5s both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M6 and the GH5s write their files to SDXC cards. The GH5s features dual card slots, which can be very useful in case a memory card fails. In contrast, the M6 only has one slot. The GH5s supports UHS-II cards (on both slots), while the M6 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 and Panasonic Lumix DC-GH5s and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon M6Ystereo / monoY-mini2.0YYY
2.

Panasonic GH5sYstereo / monoYYfull3.1Y-Y
3.

Canon M50 Mark IIYstereo / monoY-micro2.0Y-Y
4.

Canon M6 Mark IIYstereo / monoY-micro2.0Y-Y
5.

Canon M50Ystereo / monoY-micro2.0Y-Y
6.

Canon T7Ymono / mono--mini2.0YY-
7.

Canon 77DYstereo / monoY-mini2.0YYY
8.

Canon M100-stereo / mono--micro2.0YYY
9.

Canon SL2Ystereo / monoY-mini2.0YYY
10.

Canon T7iYstereo / monoY-mini2.0YYY
11.

Canon M5Ystereo / monoY-mini2.0YYY
12.

Canon M3Ystereo / monoY-mini2.0YY-
13.

Panasonic GH5Ystereo / monoYYfull3.1Y-Y
14.

Panasonic FZ300Ystereo / monoY-mini2.0Y--
15.

Panasonic GH4Ystereo / monoYYmicro2.0YY-
16.

Panasonic GH3Ystereo / monoYYmini2.0Y--
17.

Panasonic G2Ystereo / mono--mini2.0---

It is notable that the GH5s has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M6 lacks such a headphone port.

Studio photographers will appreciate that the Panasonic GH5s (unlike the M6) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The GH5s is a recent model that features in the current product line-up of Panasonic. In contrast, the M6 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M6 was succeeded by the Canon M6 Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.

Review summary

So what conclusions can be drawn? Is the Canon M6 better than the Panasonic GH5s or vice versa? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Canon EOS M6:

  • More detail: Offers more megapixels (24 vs 9.9MP) with a 58% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More compact: Is smaller (112x68mm vs 139x98mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 270g or 41 percent) and hence easier to carry around.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (69 percent cheaper at launch).
  • More heavily discounted: Has been on the market for longer (launched in February 2017).

ilogo

Arguments in favor of the Panasonic Lumix DC-GH5s:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (12 vs 9 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Longer lasting: Gets more shots (440 versus 295) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
  • More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Was introduced somewhat (10 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the GH5s is the clear winner of the contest (18 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

M6 09:18 GH5s

How about other alternatives? Do the specifications of the Canon M6 and the Panasonic GH5s place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M6 or the GH5s perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon M6......80/1004/54/5 Feb 2017 779ebay.com
2.

Panasonic GH5s....4.5/584/1004.5/54.5/5 Jan 2018 2,499 amazon.com
3.

Canon M50 Mark II4/5..4/5..4.5/53.5/5 Oct 2020 599 amazon.com
4.

Canon M6 Mark II..+4.5/585/1004/54/5 Aug 2019 849 amazon.com
5.

Canon M50..+4/579/100..3.5/5 Feb 2018 779ebay.com
6.

Canon T7..o....3.5/53.5/5 Feb 2018 449 amazon.com
7.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 899ebay.com
8.

Canon M1003/5+....4/53.5/5 Aug 2017 499ebay.com
9.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
10.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
11.

Canon M54/5+4/582/1004/54/5 Sep 2016 979ebay.com
12.

Canon M34/5o..75/1004.5/54/5 Feb 2015 679ebay.com
13.

Panasonic GH54.5/5+ +..85/1004.5/55/5 Jan 2017 1,999ebay.com
14.

Panasonic FZ300..+ +....4.5/54.5/5 Jul 2015 599 amazon.com
15.

Panasonic GH45/5+ +..85/1005/55/5 Feb 2014 1,499ebay.com
16.

Panasonic GH35/5+ +..79/1004.5/54.5/5 Sep 2012 1,299ebay.com
17.

Panasonic G2......72/1004/54.5/5 Mar 2010 599ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check M6 offers at
ebay.com
logo
Check GH5s price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Specifications: Canon M6 vs Panasonic GH5s

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon M6 Panasonic GH5s
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon EF-M mount lenses Micro Four Thirds lenses
    Launch Date February 2017 January 2018
    Launch Price USD 779 USD 2,499
    Sensor Specs Canon M6 Panasonic GH5s
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.9 mm 17.3 x 13.0 mm
    Sensor Area 332.27 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 24 Megapixels 9.9 Megapixels
    Image Resolution 6000 x 4000 pixels 3680 x 2700 pixels
    Pixel Pitch 3.72 μm 4.77 μm
    Pixel Density 7.22 MP/cm2 4.42 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 1080/60p Video 4K/60p Video
    ISO Setting 100 - 25,600 ISO 160 - 51,200 ISO
    ISO Boost no Enhancement 80 - 204,800 ISO
    Image Processor DIGIC 7 Venus 10
    Screen Specs Canon M6 Panasonic GH5s
    Viewfinder Type Viewfinder optional Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.76x
    Viewfinder Resolution 3680k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.2inch
    LCD Resolution 1040k dots 1620k dots
    LCD Attachment Tilting screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon M6 Panasonic GH5s
    Focus System On-Sensor Phase-detect Contrast-detect AF
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 9 shutter flaps/s 12 shutter flaps/s
    Shutter Life Expectancy100 000 actuations200 000 actuations
    Electronic Shutterno E-Shutterup to 1/16000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Dual card slots
    UHS card support UHS-I Dual UHS-II
    Connectivity Specs Canon M6 Panasonic GH5s
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 3.1
    HDMI Port mini HDMI full HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon M6 Panasonic GH5s
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type LP-E17 DMW-BLF19
    Battery Life (CIPA)295 shots per charge440 shots per charge
    Body Dimensions 112 x 68 x 45 mm
    (4.4 x 2.7 x 1.8 in)
    139 x 98 x 87 mm
    (5.5 x 3.9 x 3.4 in)
    Camera Weight 390 g (13.8 oz) 660 g (23.3 oz)
    logo
    Check M6 offers at
    ebay.com
    logo
    Check GH5s price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon M6 vs Panasonic GH5s
