Canon G7 X Mark II versus Olympus E-M5 II

The Canon PowerShot G7 X Mark II and the Olympus OM-D E-M5 Mark II are two digital cameras that were revealed to the public, respectively, in February 2016 and February 2015. The G7X Mark II is a fixed lens compact, while the E-M5 II is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G7X Mark II) and a Four Thirds (E-M5 II) sensor. The Canon has a resolution of 20 megapixel, whereas the Olympus provides 15.9 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon G7 X Mark II vs Olympus E-M5 II

The physical size and weight of the Canon G7 X Mark II and the Olympus E-M5 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the G7X Mark II – represents 100 percent across all the size and weight measures).

Compare Canon G7 X Mark II vs Olympus E-M5 II
Compare G7X Mark II versus E-M5 II top
Compare G7X Mark II and E-M5 II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 II is considerably larger (63 percent) than the Canon G7 X Mark II. It is noteworthy in this context that the E-M5 II is splash and dust-proof, while the G7X Mark II does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G7X Mark II has a lens build in, whereas the E-M5 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can find an overview of optics for the E-M5 II and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the G7X Mark II gets 265 shots out of its NB-13L battery, while the E-M5 II can take 310 images on a single charge of its BLN-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon G7 X Mark II» 4.2 in 2.4 in 1.7 in 11.3 oz 265 n Feb 2016 699 i i Canon G7 X Mark II
Olympus E-M5 II« 4.9 in 3.3 in 1.8 in 16.5 oz 310 Y Feb 2015 1,099 i i Olympus E-M5 II
Canon SX730« » 4.3 in 2.5 in 1.6 in 10.6 oz 250 n Apr 2017 399- i Canon SX730
Canon G5 X« » 4.4 in 3.0 in 1.7 in 12.5 oz 210 n Oct 2015 799 i i Canon G5 X
Canon G9 X« » 3.9 in 2.3 in 1.2 in 7.4 oz 220 n Oct 2015 529- i Canon G9 X
Canon M3« » 4.4 in 2.7 in 1.7 in 12.9 oz 250 n Feb 2015 679- i Canon M3
Canon G7 X« » 4.1 in 2.4 in 1.6 in 10.7 oz 210 n Sep 2014 699- i Canon G7 X
Olympus E-M10 II« » 4.7 in 3.3 in 1.9 in 13.8 oz 320 n Aug 2015 799- i Olympus E-M10 II
Olympus E-M10« » 4.7 in 3.2 in 1.8 in 14.0 oz 320 n Jan 2014 699- i Olympus E-M10
Olympus E-M1« » 5.1 in 3.7 in 2.5 in 17.5 oz 350 Y Sep 2013 1,399- i Olympus E-M1
Olympus E-P5« » 4.8 in 2.7 in 1.5 in 14.8 oz 330 n May 2013 999- i Olympus E-P5
Olympus E-M5« » 4.8 in 3.5 in 1.7 in 15.0 oz 360 Y Feb 2012 1,299- i Olympus E-M5
Panasonic LX10« » 4.2 in 2.4 in 1.7 in 10.9 oz 260 n Sep 2016 699 i i Panasonic LX10
Sony RX100 V« » 4.0 in 2.3 in 1.6 in 10.5 oz 220 n Oct 2016 999 i i Sony RX100 V
Sony RX100 IV« » 4.0 in 2.3 in 1.6 in 10.5 oz 280 n Jun 2015 999- i Sony RX100 IV
Sony RX100 III« » 4.0 in 2.3 in 1.6 in 10.2 oz 320 n May 2014 799- i Sony RX100 III
Sony RX100 II« » 4.0 in 2.3 in 1.5 in 9.9 oz 350 n Jun 2013 749- i Sony RX100 II

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G7X Mark II was launched at a lower price than the E-M5 II, despite having a lens build in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon G7 X Mark II vs Olympus E-M5 II

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G7 X Mark II features an one-inch sensor and the Olympus E-M5 II a Four Thirds sensor. The sensor area in the E-M5 II is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the G7X Mark II has a native 3:2 aspect ratio, while the one in the E-M5 II offers a 4:3 aspect.

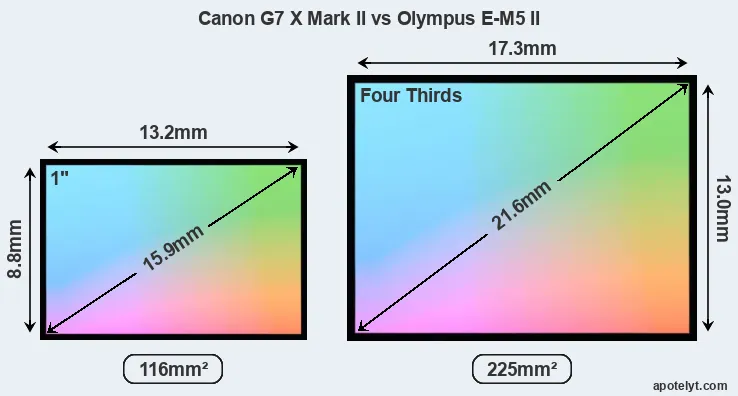

Canon G7 X Mark II and Olympus E-M5 II sensor measures

Despite having a smaller sensor, the Canon G7 X Mark II offers a higher resolution of 20 megapixel, compared with 15.9 MP of the Olympus E-M5 II. This megapixel advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 3.76μm for the E-M5 II). However, it should be noted that the G7X Mark II is a somewhat more recent model (by 1 year) than the E-M5 II, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.

Unlike the G7X Mark II, the E-M5 II has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

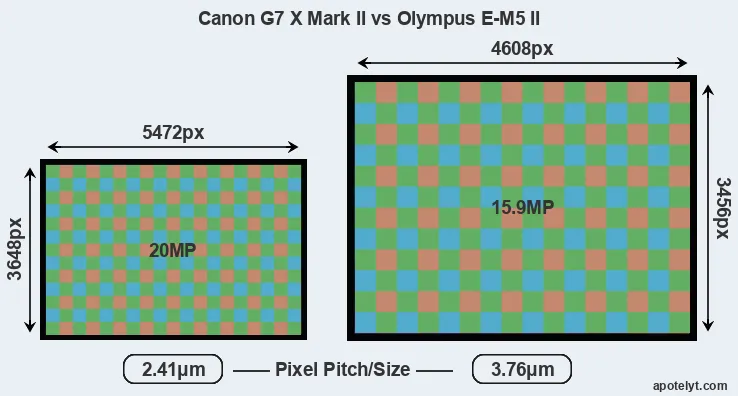

G7X Mark II versus E-M5 II MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon G7 X Mark II» 1-inch 20.0 5472 36481080/60p----Canon G7 X Mark II
Olympus E-M5 II« Four Thirds 15.9 4608 34561080/60p23.012.584273Olympus E-M5 II
Canon SX730« » 1/2.3 20.2 5184 38881080/60p----Canon SX730
Canon G5 X« » 1-inch 20.0 5472 36481080/60p----Canon G5 X
Canon G9 X« » 1-inch 20.0 5472 36481080/60p21.512.349563Canon G9 X
Canon M3« » APS-C 24.0 6000 40001080/30p22.811.8116972Canon M3
Canon G7 X« » 1-inch 20.0 5472 36481080/60p23.012.755671Canon G7 X
Olympus E-M10 II« » Four Thirds 15.9 4608 34561080/60p23.112.584273Olympus E-M10 II
Olympus E-M10« » Four Thirds 15.9 4608 34561080/30p22.812.388472Olympus E-M10
Olympus E-M1« » Four Thirds 15.9 4608 34561080/30p23.012.775773Olympus E-M1
Olympus E-P5« » Four Thirds 15.9 4608 34561080/30p22.812.489572Olympus E-P5
Olympus E-M5« » Four Thirds 15.9 4608 34561080/60i22.812.382671Olympus E-M5
Panasonic LX10« » 1-inch 20.0 5472 36484K/30p----Panasonic LX10
Sony RX100 V« » 1-inch 20.0 5472 36484K/30p22.812.458670Sony RX100 V
Sony RX100 IV« » 1-inch 20.0 5472 36484K/30p22.812.659170Sony RX100 IV
Sony RX100 III« » 1-inch 20.0 5472 36481080/60p22.412.349567Sony RX100 III
Sony RX100 II« » 1-inch 20.0 5472 36481080/60p22.512.448367Sony RX100 II

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).



Feature comparison: Canon G7 X Mark II vs Olympus E-M5 II

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M5 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the G7X Mark II relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon G7 X Mark II and Olympus E-M5 II along with similar information for a selection of comparators. If you need more detail on the specs, you can find comprehensive listings, for example, in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon G7 X Mark II»- n 3.0 1040 tilting Y 2000 8.0 Y Y Canon G7 X Mark II
Olympus E-M5 II«2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus E-M5 II
Canon SX730« »- n 3.0 922 tilting n 3200 5.9 Y Y Canon SX730
Canon G5 X« »2360 n 3.0 1040 swivel Y 2000 5.9 Y Y Canon G5 X
Canon G9 X« »- n 3.0 1040 fixed Y 2000 6.0 Y Y Canon G9 X
Canon M3« »- n 3.0 1040 tilting Y 4000 4.2 Y n Canon M3
Canon G7 X« »- n 3.0 1040 tilting Y 2000 6.5 Y Y Canon G7 X
Olympus E-M10 II« »2360 n 3.0 1040 tilting Y 4000 8.0 Y Y Olympus E-M10 II
Olympus E-M10« »1440 n 3.0 1037 tilting Y 4000 8.0 Y Y Olympus E-M10
Olympus E-M1« »2360 n 3.0 1037 tilting Y 8000 10.0 n Y Olympus E-M1
Olympus E-P5« »- n 3.0 1037 tilting Y 8000 9.0 Y Y Olympus E-P5
Olympus E-M5« »1440 n 3.0 610 tilting Y 4000 9.0 n Y Olympus E-M5
Panasonic LX10« »- n 3.0 1040 tilting Y 4000 10.0 Y Y Panasonic LX10
Sony RX100 V« »2359 n 3.0 1229 tilting n 2000 24.0 Y Y Sony RX100 V
Sony RX100 IV« »2359 n 3.0 1228 tilting n 2000 16.0 Y Y Sony RX100 IV
Sony RX100 III« »1440 n 3.0 1229 tilting n 2000 10.0 Y Y Sony RX100 III
Sony RX100 II« »- n 3.0 1229 tilting n 2000 10.0 Y Y Sony RX100 II

One difference between the cameras concerns the presence of an on-board flash. The G7X Mark II has one, while the E-M5 II does not. While the build-in flash of the G7X Mark II is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the E-M5 II features an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (rolling shutter) or shooting under artificial light sources (flickering).

Both the G7X Mark II and the E-M5 II write their imaging data to SDXC cards.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon G7 X Mark II»-stereomono--micro2.0YY-Canon G7 X Mark II
Olympus E-M5 II«YstereomonoY-micro2.0Y--Olympus E-M5 II
Canon SX730« »-stereomono--micro2.0YYYCanon SX730
Canon G5 X« »YstereomonoYYmini2.0YY-Canon G5 X
Canon G9 X« »-stereomono--micro2.0YY-Canon G9 X
Canon M3« »YstereomonoY-mini2.0YY-Canon M3
Canon G7 X« »-stereomono--micro2.0YY-Canon G7 X
Olympus E-M10 II« »Ystereomono--micro2.0Y--Olympus E-M10 II
Olympus E-M10« »Ystereomono--micro2.0Y--Olympus E-M10
Olympus E-M1« »YstereomonoY-micro2.0Y--Olympus E-M1
Olympus E-P5« »Ystereomono--micro2.0Y--Olympus E-P5
Olympus E-M5« »Ystereomono--mini2.0---Olympus E-M5
Panasonic LX10« »-stereomono--micro2.0Y--Panasonic LX10
Sony RX100 V« »-stereomono--micro2.0YY-Sony RX100 V
Sony RX100 IV« »-stereomono--micro2.0YY-Sony RX100 IV
Sony RX100 III« »-stereomono--micro2.0YY-Sony RX100 III
Sony RX100 II« »Ystereomono--micro2.0YY-Sony RX100 II

Both the G7X Mark II and the E-M5 II are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The E-M5 II replaced the earlier Olympus E-M5, while the G7X Mark II followed on from the Canon G7 X.

Review summary: Canon G7 X Mark II vs Olympus E-M5 II

So what conclusions can be drawn? Is there a clear favorite between the Canon G7 X Mark II and the Olympus E-M5 II? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Canon PowerShot G7 X Mark II:

  • More detail: Offers more megapixels (20 vs 15.9MP) with a 14% higher linear resolution.
  • Ready to shoot: Has a lens build-in, whereas the E-M5 II requires a separate lens.
  • More compact: Is smaller (106x61mm vs 124x85mm) and thus needs less room in the bag.
  • Less heavy: Is lighter even though it comes with a build-in lens (unlike the E-M5 II).
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced at a lower price, despite coming with a build-in lens.
  • More modern: Is somewhat more recent (announced 1 year after the E-M5 II).

ilogo

Advantages of the Olympus OM-D E-M5 Mark II:

  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better low-light imaging: Features bigger pixels on a larger sensor for better high-ISO images.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Easier framing: Has an electronic viewfinder for image framing and settings control.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 2000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
  • Longer lasting: Gets more shots (310 versus 265) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • More heavily discounted: Has been on the market for longer (launched in February 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 II is the clear winner of the contest (13 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

G7X Mark II 08:13 E-M5 II

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the G7X Mark II and the E-M5 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why hands-on reviews by experts are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The detailed reviews can be accessed by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon G7 X Mark II»HiRec81/1004.5/54/54.5/5 Feb 2016 699 i i Canon G7 X Mark II
Olympus E-M5 II«HiRec81/1005/54.5/55/5 Feb 2015 1,099 i i Olympus E-M5 II
Canon SX730« »Rec-4/5-4/5 Apr 2017 399- i Canon SX730
Canon G5 X« »HiRec78/1004.5/54/54.5/5 Oct 2015 799 i i Canon G5 X
Canon G9 X« »HiRec-4.5/54/54.5/5 Oct 2015 529- i Canon G9 X
Canon M3« »rev75/1004.5/54.5/54/5 Feb 2015 679- i Canon M3
Canon G7 X« »HiRec77/1004.5/53.5/54.5/5 Sep 2014 699- i Canon G7 X
Olympus E-M10 II« »HiRec80/1005/55/55/5 Aug 2015 799- i Olympus E-M10 II
Olympus E-M10« »-80/1005/54.5/55/5 Jan 2014 699- i Olympus E-M10
Olympus E-M1« »HiRec84/1004.5/54.5/54.5/5 Sep 2013 1,399- i Olympus E-M1
Olympus E-P5« »HiRec78/1004.5/54.5/55/5 May 2013 999- i Olympus E-P5
Olympus E-M5« »HiRec80/1004.5/55/55/5 Feb 2012 1,299- i Olympus E-M5
Panasonic LX10« »HiRec81/1004/54.5/54.5/5 Sep 2016 699 i i Panasonic LX10
Sony RX100 V« »HiRec83/1004/55/54.5/5 Oct 2016 999 i i Sony RX100 V
Sony RX100 IV« »HiRec85/1004/54.5/54.5/5 Jun 2015 999- i Sony RX100 IV
Sony RX100 III« »HiRec82/1004.5/54.5/55/5 May 2014 799- i Sony RX100 III
Sony RX100 II« »HiRec79/1004.5/55/54.5/5 Jun 2013 749- i Sony RX100 II

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
