Canon G5 X vs Olympus E-PL8
The Canon PowerShot G5 X and the Olympus PEN E-PL8 are two digital cameras that were revealed to the public, respectively, in October 2015 and September 2016. The G5X is a fixed lens compact, while the E-PL8 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G5X) and a Four Thirds (E-PL8) sensor. The Canon has a resolution of 20 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X and the Olympus PEN E-PL8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

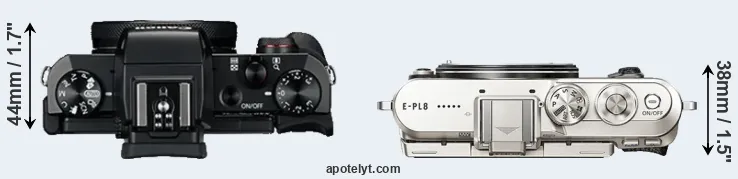

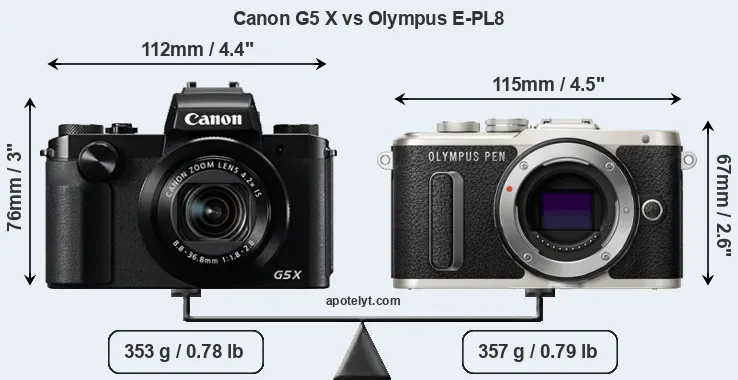

The side-by-side display below illustrates the physical size and weight of the Canon G5 X and the Olympus E-PL8. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The E-PL8 can be obtained in three different colors (black, brown, white), while the G5X is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL8 is notably smaller (9 percent) than the Canon G5 X. In this context, it is worth noting that neither the G5X nor the E-PL8 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G5X has a lens built in, whereas the E-PL8 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL8 and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the G5X gets 210 shots out of its NB-13L battery, while the E-PL8 can take 350 images on a single charge of its BLS-50 power pack. The power pack in the G5X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|2.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|3.||Canon G5 X Mark II||111 mm||61 mm||46 mm||340 g||230||n||Jul 2019||899|
|4.||Canon G7 X Mark III||105 mm||61 mm||41 mm||304 g||235||n||Jul 2019||749|
|5.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|6.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529|
|7.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|8.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|9.||Olympus E-PL10||117 mm||68 mm||39 mm||380 g||350||n||Oct 2019||599|
|10.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|11.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|12.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|13.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|14.||Panasonic LX10||106 mm||60 mm||42 mm||310 g||260||n||Sep 2016||699|
|15.||Panasonic FZ1000||137 mm||99 mm||131 mm||831 g||360||n||Jun 2014||899|
|16.||Sony RX100 IV||102 mm||58 mm||41 mm||298 g||280||n||Jun 2015||999|
|17.||Sony RX100 III||102 mm||58 mm||41 mm||290 g||320||n||May 2014||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

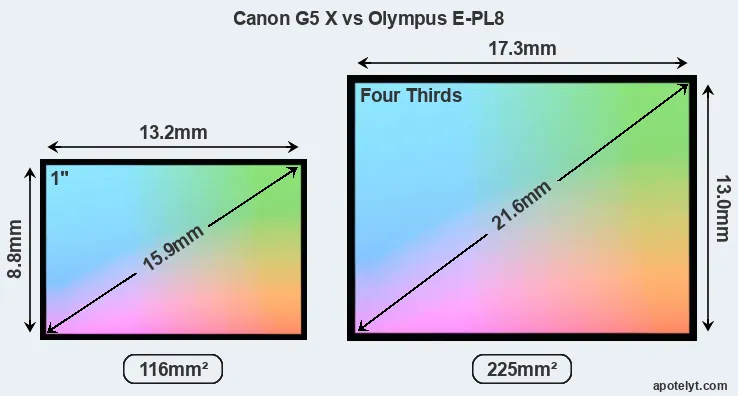

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon G5 X features an one-inch sensor and the Olympus E-PL8 a Four Thirds sensor. The sensor area in the E-PL8 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the G5X has a native 3:2 aspect ratio, while the one in the E-PL8 offers a 4:3 aspect.

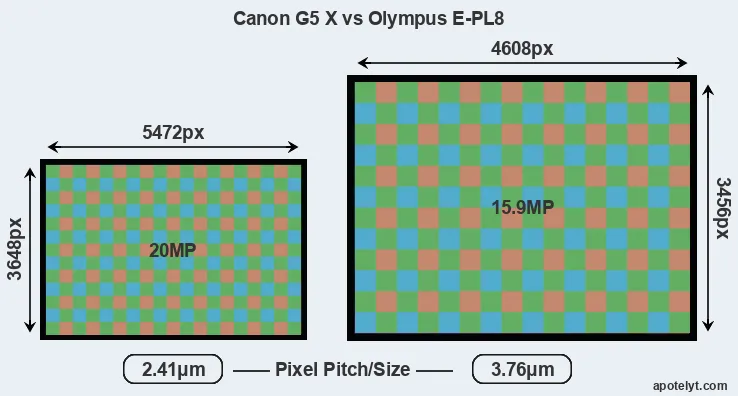

Despite having a smaller sensor, the Canon G5 X offers a higher resolution of 20 megapixels, compared with 15.9 MP of the Olympus E-PL8. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 3.76μm for the E-PL8). Moreover, it should be noted that the E-PL8 is a somewhat more recent model (by 11 months) than the G5X, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon G5 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-PL8 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon PowerShot G5 X has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Olympus PEN E-PL8 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|2.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|3.||Canon G5 X Mark II||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|4.||Canon G7 X Mark III||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|5.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|6.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|8.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|9.||Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|10.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|11.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|12.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|13.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|16.||Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70|
|17.||Sony RX100 III||1-inch||20.0||5472||3648||1080/60p||22.4||12.3||495||67|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the G5X provides a higher frame rate than the E-PL8. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the G5X has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL8 relies on live view and the rear LCD for framing. That said, the E-PL8 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Canon G5 X and Olympus E-PL8 in connection with corresponding information for a sample of similar cameras.
|1.||Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|3.||Canon G5 X Mark II||2360||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|4.||Canon G7 X Mark III||none||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|5.||Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|6.||Canon G9 X||none||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y|
|8.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|11.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|12.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|16.||Sony RX100 IV||2359||n||3.0||1228||tilting||n||1/2000s||16.0||Y||Y|
|17.||Sony RX100 III||1440||n||3.0||1229||tilting||n||1/2000s||10.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The G5X has one, while the E-PL8 does not. While the built-in flash of the G5X is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Canon G5 X and the Olympus E-PL8 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the G5X and the E-PL8 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X and Olympus PEN E-PL8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|3.||Canon G5 X Mark II||-||stereo||mono||-||-||micro||3.1||Y||-||Y|
|4.||Canon G7 X Mark III||-||stereo||mono||Y||-||micro||3.1||Y||-||Y|
|5.||Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon G9 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|8.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|11.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|12.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|16.||Sony RX100 IV||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|17.||Sony RX100 III||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
Both the G5X and the E-PL8 have been discontinued, but can regularly be found used on eBay. The G5X was replaced by the Canon G5 X Mark II, while the E-PL8 was followed by the Olympus E-PL9. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon G5 X or the Olympus E-PL8 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon PowerShot G5 X:
- More detail: Offers more megapixels (20 vs 15.9MP) with a 14% higher linear resolution.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Ready to shoot: Has a lens built-in, whereas the E-PL8 requires a separate lens.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-PL8).
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been on the market for longer (launched in October 2015).
Reasons to prefer the Olympus PEN E-PL8:
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 5.9 flaps/sec) to capture the decisive moment.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (350 versus 210) out of a single battery charge.
- More modern: Was introduced somewhat (11 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the G5X comes out slightly ahead of the E-PL8 (10 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G5 X and the Olympus E-PL8 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the G5X and the E-PL8 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon G5 X||5/5||+ +||78/100||4.5/5||4.5/5||Oct 2015||799|
|2.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|3.||Canon G5 X Mark II||4/5||+||82/100||..||4/5||Jul 2019||899|
|4.||Canon G7 X Mark III||..||+ +||81/100||4/5||..||Jul 2019||749|
|5.||Canon G7 X Mark II||4.5/5||+ +||81/100||4.5/5||4.5/5||Feb 2016||699|
|6.||Canon G9 X||3.5/5||+ +||..||4.5/5||4.5/5||Oct 2015||529|
|7.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|8.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|9.||Olympus E-PL10||..||..||77/100||..||4/5||Oct 2019||599|
|10.||Olympus E-PL9||..||+||..||4.5/5||4/5||Feb 2018||599|
|11.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|12.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|13.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|14.||Panasonic LX10||..||+ +||81/100||4/5||4.5/5||Sep 2016||699|
|15.||Panasonic FZ1000||4/5||+ +||82/100||4.5/5||4.5/5||Jun 2014||899|
|16.||Sony RX100 IV||4.5/5||+ +||85/100||4/5||4.5/5||Jun 2015||999|
|17.||Sony RX100 III||5/5||+ +||82/100||4.5/5||5/5||May 2014||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon G5 X vs Olympus E-PL8
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G5 X||Olympus E-PL8|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-100mm f/1.8-2.8||Micro Four Thirds lenses|
|Launch Date||October 2015||September 2016|
|Launch Price||USD 799||USD 549|
|Sensor Specs||Canon G5 X||Olympus E-PL8|
|Sensor Format||1" Sensor||Four Thirds Sensor|
|Sensor Size||13.2 x 8.8 mm||17.3 x 13.0 mm|
|Sensor Area||116.16 mm2||224.9 mm2|
|Sensor Diagonal||15.9 mm||21.6 mm|
|Sensor Resolution||20 Megapixels||15.9 Megapixels|
|Image Resolution||5472 x 3648 pixels||4608 x 3456 pixels|
|Pixel Pitch||2.41 μm||3.76 μm|
|Pixel Density||17.18 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||125 - 12,800 ISO||200 - 6,400 ISO|
|ISO Boost||125 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 6||TruePic VII|
|Screen Specs||Canon G5 X||Olympus E-PL8|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon G5 X||Olympus E-PL8|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/4000s|
|Continuous Shooting||5.9 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon G5 X||Olympus E-PL8|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon G5 X||Olympus E-PL8|
|Battery Life (CIPA)||210 shots per charge||350 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
112 x 76 x 44 mm
(4.4 x 3.0 x 1.7 in)
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
|Camera Weight||353 g (12.5 oz)||357 g (12.6 oz)|
