Canon D30 vs Pentax K-1
The Canon EOS-D30 and the Pentax K-1 are two digital cameras that were officially introduced, respectively, in May 2000 and February 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D30) and a full frame (K-1) sensor. The Canon has a resolution of 3.1 megapixels, whereas the Pentax provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-D30 and the Pentax K-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

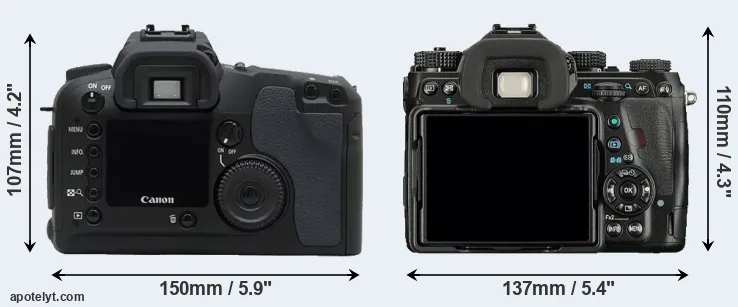

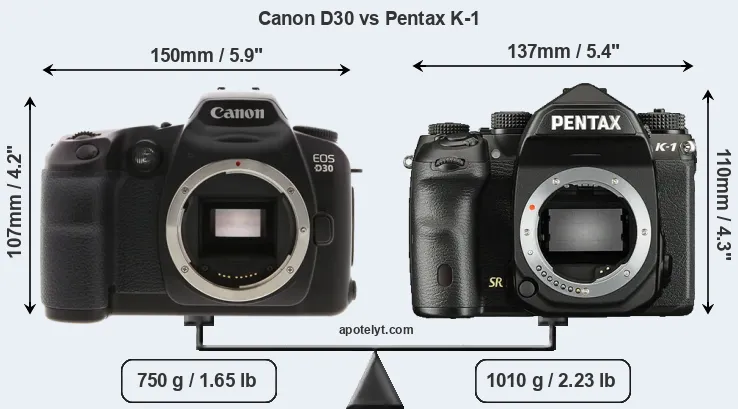

The physical size and weight of the Canon D30 and the Pentax K-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The K-1 can be obtained in two different colors (black, silver), while the D30 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-1 is notably smaller (6 percent) than the Canon D30. However, the K-1 is substantially heavier (35 percent) than the D30. It is noteworthy in this context that the K-1 is splash and dust-proof, while the D30 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon D30||150 mm||107 mm||75 mm||750 g||540||n||May 2000||2,999||ebay.com|
|2.||Pentax K-1||137 mm||110 mm||86 mm||1010 g||760||Y||Feb 2016||1,799||ebay.com|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|5.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499||amazon.com|
|6.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||ebay.com|
|7.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299||ebay.com|
|8.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399||ebay.com|
|9.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499||ebay.com|
|10.||Canon 10D||150 mm||107 mm||75 mm||850 g||500||n||Feb 2003||1,999||ebay.com|
|11.||Canon 300D||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899||ebay.com|
|12.||Canon D60||150 mm||107 mm||75 mm||855 g||620||n||Feb 2002||2,999||ebay.com|
|13.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999||amazon.com|
|14.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999||ebay.com|
|15.||Pentax K-1 II||137 mm||110 mm||86 mm||1010 g||670||Y||Feb 2018||1,999||amazon.com|
|16.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The K-1 was launched at a markedly lower price (by 40 percent) than the D30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

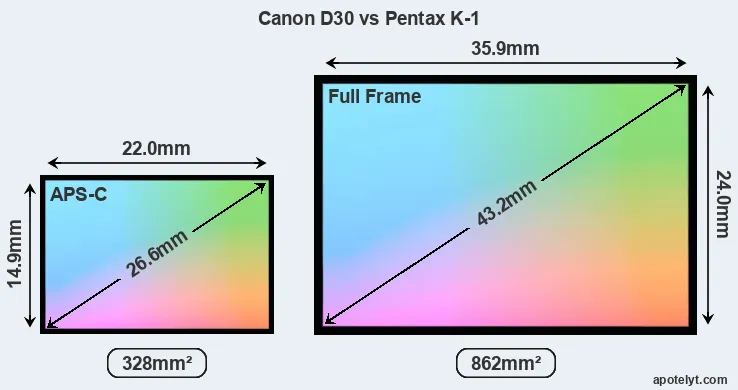

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon D30 features an APS-C sensor and the Pentax K-1 a full frame sensor. The sensor area in the K-1 is 163 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 36.2MP, the K-1 offers a higher resolution than the D30 (3.1MP), but the K-1 has smaller individual pixels (pixel pitch of 4.88μm versus 10.29μm for the D30). Yet, the K-1 is a much more recent model (by 15 years and 9 months) than the D30, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the K-1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax K-1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-1 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Canon D30 are 10.8 x 7.2 inches or 27.4 x 18.3 cm for good quality, 8.6 x 5.8 inches or 21.9 x 14.6 cm for very good quality, and 7.2 x 4.8 inches or 18.3 x 12.2 cm for excellent quality prints.
Unlike the D30, the K-1 has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS-D30 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Pentax K-1 are ISO 100 to ISO 204800 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Pentax K-1||Full Frame||36.2||7360||4912||1080/60i||25.4||14.6||3280||96|
|5.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|14.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|15.||Pentax K-1 II||Full Frame||36.2||7360||4912||1080/60i||25.1||14.0||2698||93|
|16.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The K-1 indeed provides for movie recording, while the D30 does not. The highest resolution format that the K-1 can use is 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. The D30 and the K-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the K-1 offers a wider field of view (100%) than the one in the D30 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the K-1 has a higher magnification (0.70x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon D30, the Pentax K-1, and comparable cameras.
|1.||Canon D30||optical||Y||1.8 / 114||fixed||n||1/4000s||3.0/s||Y||n|
|2.||Pentax K-1||optical||Y||3.2 / 1037||full-flex||n||1/8000s||4.4/s||n||Y|
|3.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|4.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0/s||n||n|
|6.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|7.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5/s||Y||n|
|8.||Canon 30D||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|9.||Canon 20D||optical||Y||1.8 / 118||fixed||n||1/8000s||5.0/s||Y||n|
|10.||Canon 10D||optical||Y||1.8 / 118||fixed||n||1/4000s||3.0/s||Y||n|
|11.||Canon 300D||optical||n||1.8 / 118||fixed||n||1/4000s||2.5/s||Y||n|
|12.||Canon D60||optical||Y||1.8 / 114||fixed||n||1/4000s||3.0/s||Y||n|
|13.||Nikon D500||optical||Y||3.2 / 2359||tilting||Y||1/8000s||10.0/s||n||n|
|14.||Olympus E-M1 II||2360||n||3.0 / 1037||swivel||Y||1/8000s||18.0/s||n||Y|
|15.||Pentax K-1 II||optical||Y||3.2 / 1037||full-flex||n||1/8000s||4.4/s||n||Y|
|16.||Sony A99 II||2400||Y||3.0 / 1229||full-flex||n||1/8000s||12.0/s||n||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The D30 has one, while the K-1 does not. While the built-in flash of the D30 is not very powerful, it can at times be useful as a fill-in light.
The Pentax K-1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D30 writes its imaging data to Compact Flash cards, while the K-1 uses SDXC cards. The K-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D30 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-D30 and Pentax K-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon D30||Y||- / -||-||-||-||1.0||-||-||-|
|2.||Pentax K-1||Y||stereo / mono||Y||Y||micro||2.0||Y||-||-|
|3.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|7.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|8.||Canon 30D||Y||- / -||-||-||-||2.0||-||-||-|
|9.||Canon 20D||Y||- / -||-||-||-||1.1||-||-||-|
|10.||Canon 10D||Y||- / -||-||-||-||1.1||-||-||-|
|11.||Canon 300D||Y||- / -||-||-||-||1.1||-||-||-|
|12.||Canon D60||Y||- / -||-||-||-||1.1||-||-||-|
|13.||Nikon D500||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|14.||Olympus E-M1 II||Y||stereo / mono||Y||Y||micro||3.0||Y||-||-|
|15.||Pentax K-1 II||Y||stereo / mono||Y||Y||micro||2.0||Y||-||-|
|16.||Sony A99 II||Y||stereo / mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the K-1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D30 does not provide wifi capability.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the K-1 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the D30 and the K-1 have been discontinued, but can regularly be found used on ebay. The D30 was replaced by the Canon D60, while the K-1 was followed by the Pentax K-1 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So how do things add up? Is the Canon D30 better than the Pentax K-1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS-D30:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Less heavy: Is lighter (by 260g or 26 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More heavily discounted: Has been available for much longer (launched in May 2000).
Arguments in favor of the Pentax K-1:
- More detail: Has more megapixels (36.2 vs 3.1MP), which boosts linear resolution by 241%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.54x).
- Larger screen: Has a bigger rear LCD (3.2" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 114k dots).
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (4.4 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (760 versus 540) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
- More modern: Reflects 15 years and 9 months of technical progress since the D30 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the K-1 is the clear winner of the contest (25 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon D30 and the Pentax K-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D30 or the K-1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon D30||..||..||..||+ +||..||..||May 2000||2,999||ebay.com|
|2.||Pentax K-1||5/5||..||..||84/100||5/5||5/5||Feb 2016||1,799||ebay.com|
|3.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|4.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|5.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499||amazon.com|
|6.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199||ebay.com|
|7.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299||ebay.com|
|8.||Canon 30D||..||+ +||..||+ +||o||..||Feb 2006||1,399||ebay.com|
|9.||Canon 20D||..||..||..||+ +||..||..||Aug 2004||1,499||ebay.com|
|10.||Canon 10D||..||..||..||+ +||..||..||Feb 2003||1,999||ebay.com|
|11.||Canon 300D||..||..||..||+ +||..||..||Aug 2003||899||ebay.com|
|12.||Canon D60||..||..||..||+ +||o||..||Feb 2002||2,999||ebay.com|
|13.||Nikon D500||5/5||+ +||4.7/5||91/100||4.5/5||5/5||Jan 2016||1,999||amazon.com|
|14.||Olympus E-M1 II||5/5||+ +||5/5||85/100||4.5/5||4.5/5||Sep 2016||1,999||ebay.com|
|15.||Pentax K-1 II||..||..||4.5/5||79/100||4.5/5||4.5/5||Feb 2018||1,999||amazon.com|
|16.||Sony A99 II||..||..||4.5/5||85/100||4.5/5||4.5/5||Sep 2016||3,199||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon D30 vs Pentax K-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon D30||Pentax K-1|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Pentax K mount lenses|
|Launch Date||May 2000||February 2016|
|Launch Price||USD 2,999||USD 1,799|
|Sensor Specs||Canon D30||Pentax K-1|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.0 x 14.9 mm||35.9 x 24.0 mm|
|Sensor Area||327.8 mm2||861.6 mm2|
|Sensor Diagonal||26.6 mm||43.2 mm|
|Sensor Resolution||3.1 Megapixels||36.2 Megapixels|
|Image Resolution||2160 x 1440 pixels||7360 x 4912 pixels|
|Pixel Pitch||10.29 μm||4.88 μm|
|Pixel Density||0.95 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100 - 1,600 ISO||100 - 204,800 ISO|
|DXO Sensor Quality (score)||..||96|
|DXO Color Depth (bits)||..||25.4|
|DXO Dynamic Range (EV)||..||14.6|
|DXO Low Light (ISO)||..||3280|
|Screen Specs||Canon D30||Pentax K-1|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.2inch|
|LCD Resolution||114k dots||1037k dots|
|LCD Attachment||Fixed screen||Fully flexible screen|
|Shooting Specs||Canon D30||Pentax K-1|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||3 shutter flaps/s||4.4 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon D30||Pentax K-1|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 1.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon D30||Pentax K-1|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||540 shots per charge||760 shots per charge|
150 x 107 x 75 mm
(5.9 x 4.2 x 3.0 in)
137 x 110 x 86 mm
(5.4 x 4.3 x 3.4 in)
|Camera Weight||750 g (26.5 oz)||1010 g (35.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
