Canon 90D vs Nikon D300S

The Canon EOS 90D and the Nikon D300S are two enthusiast cameras that were announced, respectively, in August 2019 and July 2009. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 32.3 megapixels, whereas the Nikon provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 90D		Nikon D300S
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Nikon F mount lenses
32.3 MP – APS-C sensor		12.2 MP – APS-C sensor
4K/30p Video		720/24p Video
ISO 100-25,600 (100 - 51,200)		ISO 200-3,200 (100 - 6,400)
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
11 shutter flaps per second		7 shutter flaps per second
Weathersealed body		Weathersealed body
1300 shots per battery charge		950 shots per battery charge
141 x 105 x 77 mm, 701 g		147 x 115 x 81 mm, 938 g

Check 90D price at
amazon.com
Check D300S offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 90D and the Nikon D300S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 90D and the Nikon D300S. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D300S is notably larger (14 percent) than the Canon 90D. Moreover, the D300S is markedly heavier (34 percent) than the 90D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (90D) and the Nikon Lens Catalog (D300S).

Concerning battery life, the 90D gets 1300 shots out of its Canon LP-E6N battery, while the D300S can take 950 images on a single charge of its Nikon EN-EL3e power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	1,199	amazon.com
2.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	1,799	ebay.com
3.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	1,799	ebay.com
4.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	1,399	ebay.com
5.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
6.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	1,299	ebay.com
7.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	1,399	ebay.com
8.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	1,199	ebay.com
9.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	1,199	ebay.com
10.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	999	ebay.com
11.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	2,299	ebay.com
12.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
13.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	1,699	ebay.com
14.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	1,799	ebay.com
15.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	1,999	ebay.com
16.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	2,999	ebay.com
17.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	1,499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 90D was launched at a markedly lower price (by 33 percent) than the D300S, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

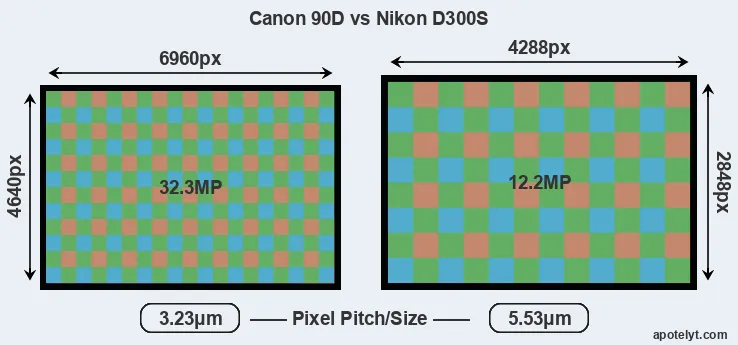

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D300S is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (90D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon 90D offers a higher resolution of 32.3 megapixels, compared with 12.2 MP of the Nikon D300S. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.23μm versus 5.53μm for the D300S). However, it should be noted that the 90D is much more recent (by 10 years and 1 month) than the D300S, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon 90D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 90D for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Nikon D300S are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.

The 90D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 90D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Nikon D300S are ISO 200 to ISO 3200, with the possibility to increase the ISO range to 100-6400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
2.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
3.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
4.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
5.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
6.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
7.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
8.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
9.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
10.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
11.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
12.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
13.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
14.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
15.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
16.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
17.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 90D provides a higher video resolution than the D300S. It can shoot video footage at 4K/30p, while the Nikon is limited to 720/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 90D and the D300S are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D300S has a higher magnification than the one of the 90D (0.63x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 90D and Nikon D300S in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
2.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
3.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
4.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
5.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
6.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
7.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
8.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
9.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
10.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
11.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
12.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
14.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
15.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
16.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
17.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 90D has a touchscreen, while the D300S has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the 90D is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 90D and the Nikon D300S both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 90D writes its imaging data to SDXC cards, while the D300S uses Compact Flash or SDXC cards. The D300S features dual card slots, which can be very useful in case a memory card fails. In contrast, the 90D only has one slot. The 90D supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D300S cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 90D and Nikon D300S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
2.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
7.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
9.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
11.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
12.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
15.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
16.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
17.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-

It is notable that the 90D has a headphone jack, which is not present on the D300S This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Studio photographers will appreciate that the Nikon D300S (unlike the 90D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The 90D is a recent model that features in the current product line-up of Canon. In contrast, the D300S has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the D300S was succeeded by the Nikon D500. Further information on the features and operation of the 90D and D300S can be found, respectively, in the Canon 90D Manual (free pdf) or the online Nikon D300S Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon 90D and the Nikon D300S? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS 90D:

• More detail: Offers more megapixels (32.3 vs 12.2MP) with a 62% higher linear resolution.
• Better video: Provides higher definition movie capture (4K/30p vs 720/24p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (11 vs 7 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (141x105mm vs 147x115mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 237g or 25 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (1300 versus 950) on a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
• More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
• More modern: Reflects 10 years and 1 month of technical progress since the D300S launch.

Advantages of the Nikon D300S:

• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.59x).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in July 2009).

If the count of relative strengths (bullet points above) is taken as a measure, the 90D is the clear winner of the match-up (18 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 90D and the Nikon D300S place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 90D or the D300S. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	1,199	amazon.com
2.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	1,799	ebay.com
3.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	1,799	ebay.com
4.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	1,399	ebay.com
5.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
6.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	1,299	ebay.com
7.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	1,399	ebay.com
8.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	1,199	ebay.com
9.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	1,199	ebay.com
10.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	999	ebay.com
11.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	2,299	ebay.com
12.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
13.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	1,699	ebay.com
14.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	1,799	ebay.com
15.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	1,999	ebay.com
16.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	2,999	ebay.com
17.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	1,499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
