Canon 90D vs Leica X1

The Canon EOS 90D and the Leica X1 are two digital cameras that were revealed to the public, respectively, in August 2019 and September 2009. The 90D is a DSLR, while the X1 is a fixed lens compact. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 32.3 megapixels, whereas the Leica provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 90D		Leica X1
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		36mm f/2.8
32.3 MP – APS-C sensor		12.2 MP – APS-C sensor
4K/30p Video		no Video
ISO 100-25,600 (100 - 51,200)		ISO 100-3,200
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		2.7" LCD – 230k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
11 shutter flaps per second		3 shutter flaps per second
Weathersealed body		not weather sealed
1300 shots per battery charge		260 shots per battery charge
141 x 105 x 77 mm, 701 g		124 x 60 x 32 mm, 306 g

Check 90D price at
amazon.com
Check X1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 90D and the Leica X1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

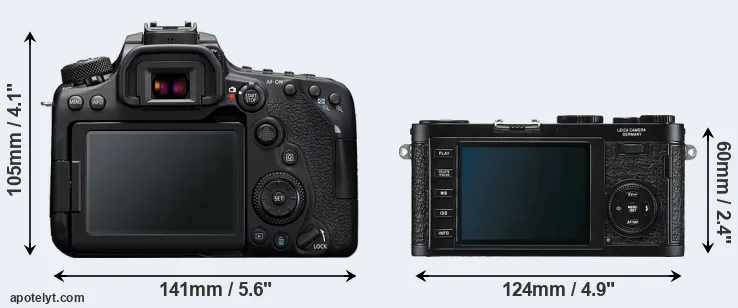

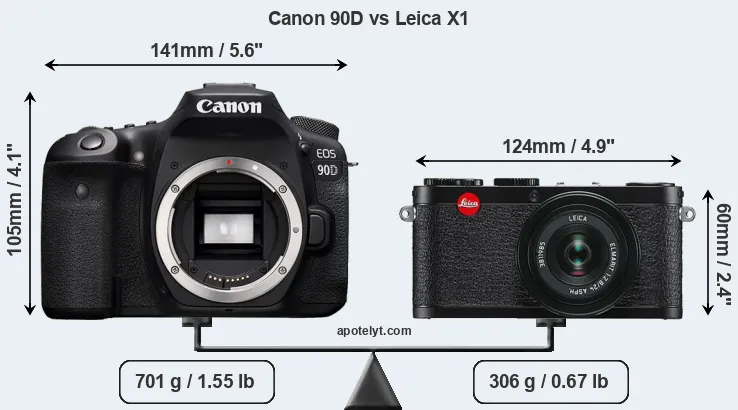

Body comparison

The physical size and weight of the Canon 90D and the Leica X1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The X1 can be obtained in two different colors (black, silver), while the 90D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica X1 is considerably smaller (50 percent) than the Canon 90D. It is worth mentioning in this context that the 90D is splash and dust resistant, while the X1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X1 has a lens built in, whereas the 90D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 90D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 90D gets 1300 shots out of its Canon LP-E6N battery, while the X1 can take 260 images on a single charge of its Leica BP-DC8 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	US$ 1 199	amazon.com
2.		Leica X1	124 mm	60 mm	32 mm	306 g	260	n	Sep 2009	US$ 1 999	ebay.com
3.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
4.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
5.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
6.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
7.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
8.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
9.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
10.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
11.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	US$ 2 299	ebay.com
12.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
13.		Fujifilm X100	126 mm	75 mm	54 mm	445 g	300	n	Sep 2010	US$ 1 199	ebay.com
14.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	US$ 699	ebay.com
15.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
16.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
17.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

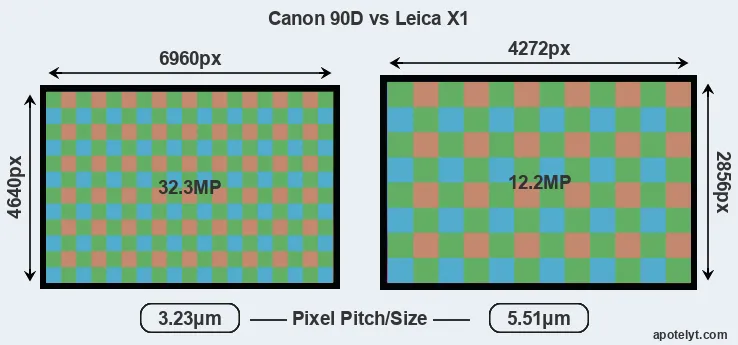

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X1 is 9 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (90D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon 90D offers a higher resolution of 32.3 megapixels, compared with 12.2 MP of the Leica X1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.23μm versus 5.51μm for the X1). However, it should be noted that the 90D is much more recent (by 9 years and 11 months) than the X1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon 90D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 90D for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Leica X1 are 21.4 x 14.3 inches or 54.3 x 36.3 cm for good quality, 17.1 x 11.4 inches or 43.4 x 29 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.2 cm for excellent quality prints.

The 90D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 90D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Leica X1 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
2.		Leica X1	APS-C	12.2	4272	2856	none	22.6	11.8	1037	69
3.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
4.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
5.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
6.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
7.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
8.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
9.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
10.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
11.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
12.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
13.		Fujifilm X100	APS-C	12.2	4288	2848	720/30p	22.9	12.4	1001	73
14.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
15.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
16.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
17.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 90D indeed provides movie recording capabilities, while the X1 does not. The highest resolution format that the 90D can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 90D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X1 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 90D and Leica X1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
2.		Leica X1	none	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	n
3.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
4.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
5.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
6.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
7.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
8.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
9.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
10.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
11.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
12.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Fujifilm X100	1440	n	2.8 / 460	fixed	n	1/4000s	5.0/s	Y	n
14.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
15.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
16.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
17.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 90D, but is missing on the X1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the 90D is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 90D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 90D writes its imaging data to SDXC cards, while the X1 uses SDHC cards. The 90D supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 90D and Leica X1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
2.		Leica X1	Y	- / -	-	-	mini	2.0	-	-	-
3.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
7.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
9.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
11.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
12.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Fujifilm X100	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
17.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-

It is notable that the 90D offers wifi support, while the X1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The 90D is a recent model that features in the current product line-up of Canon. In contrast, the X1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the X1 was succeeded by the Leica X2. Further information on the features and operation of the 90D and X1 can be found, respectively, in the Canon 90D Manual (free pdf) or the online Leica X1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon 90D and the Leica X1? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS 90D:

• More detail: Offers more megapixels (32.3 vs 12.2MP) with a 63% higher linear resolution.
• Broader imaging potential: Can record not only still images but also 4K/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (11 vs 3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (1300 versus 260) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
• More modern: Reflects 9 years and 11 months of technical progress since the X1 launch.

Advantages of the Leica X1:

• Ready to shoot: Comes with an integrated lens, while the 90D requires a separate lens.
• More compact: Is smaller (124x60mm vs 141x105mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 90D).
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in September 2009).

If the count of relative strengths (bullet points above) is taken as a measure, the 90D is the clear winner of the match-up (21 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 90D and the Leica X1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 90D and the X1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	US$ 1 199	amazon.com
2.		Leica X1	3/5	..	..	+	..	4/5	Sep 2009	US$ 1 999	ebay.com
3.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
4.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
5.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
6.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
7.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
8.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
9.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
10.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
11.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	US$ 2 299	ebay.com
12.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
13.		Fujifilm X100	3/5	..	..	75/100	4/5	5/5	Sep 2010	US$ 1 199	ebay.com
14.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	US$ 699	ebay.com
15.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
16.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
17.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
