Leica X1 vs Nikon D5

The Leica X1 and the Nikon D5 are two digital cameras that were revealed to the public, respectively, in September 2009 and January 2016. The X1 is a fixed lens compact, while the D5 is a DSLR. The cameras are based on an APS-C (X1) and a full frame (D5) sensor. The Leica has a resolution of 12.2 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica X1		Nikon D5
Fixed lens compact camera		Digital single lens reflex
36mm f/2.8		Nikon F mount lenses
12.2 MP – APS-C sensor		20.7 MP – Full Frame sensor
no Video		4K/30p Video
ISO 100-3,200		ISO 100-102,400 (50 - 3,280,000)
No viewfinder, LCD framing		Optical viewfinder
2.7" LCD – 230k dots		3.2" LCD – 2359k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
3 shutter flaps per second		14 shutter flaps per second
not weather sealed		Weathersealed body
260 shots per battery charge		3780 shots per battery charge
124 x 60 x 32 mm, 306 g		160 x 159 x 92 mm, 1415 g

Check X1 offers at
ebay.com
Check D5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica X1 and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

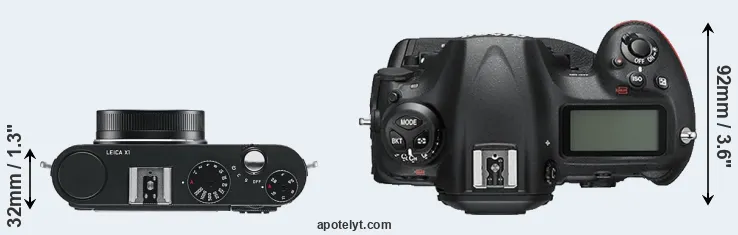

The side-by-side display below illustrates the physical size and weight of the Leica X1 and the Nikon D5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The X1 can be obtained in two different colors (black, silver), while the D5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (242 percent) than the Leica X1. It is noteworthy in this context that the D5 is splash and dust-proof, while the X1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X1 has a lens built in, whereas the D5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the X1 gets 260 shots out of its Leica BP-DC8 battery, while the D5 can take 3780 images on a single charge of its Nikon EN-EL18a power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica X1	124 mm	60 mm	32 mm	306 g	260	n	Sep 2009	US$ 1 999	ebay.com
2.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
3.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Fujifilm X100	126 mm	75 mm	54 mm	445 g	300	n	Sep 2010	US$ 1 199	ebay.com
6.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	US$ 699	ebay.com
7.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
8.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	US$ 849	ebay.com
9.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
10.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	US$ 2 299	ebay.com
11.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	US$ 6 499	ebay.com
12.		Nikon D6	160 mm	163 mm	92 mm	1270 g	3580	Y	Feb 2020	US$ 6 499	amazon.com
13.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
14.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	US$ 2 299	ebay.com
15.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
16.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	US$ 599	ebay.com
17.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X1 was launched at a lower price than the D5, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica X1 features an APS-C sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 132 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 20.7MP, the D5 offers a higher resolution than the X1 (12.2MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 5.51μm for the X1) due to its larger sensor. Moreover, the D5 is a much more recent model (by 6 years and 3 months) than the X1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Leica X1 are 21.4 x 14.3 inches or 54.3 x 36.3 cm for good quality, 17.1 x 11.4 inches or 43.4 x 29 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.2 cm for excellent quality prints.

The Leica X1 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica X1	APS-C	12.2	4272	2856	none	22.6	11.8	1037	69
2.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
3.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Fujifilm X100	APS-C	12.2	4288	2848	720/30p	22.9	12.4	1001	73
6.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
7.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
8.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
9.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
10.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
11.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
12.		Nikon D6	Full Frame	20.7	5568	3712	4K/30p	25.3	14.3	2886	95
13.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
14.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
15.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
16.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
17.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The D5 indeed provides for movie recording, while the X1 does not. The highest resolution format that the D5 can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X1 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Leica X1 and Nikon D5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica X1	none	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	n
2.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
3.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Fujifilm X100	1440	n	2.8 / 460	fixed	n	1/4000s	5.0/s	Y	n
6.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
7.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
8.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
9.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
10.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
11.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
12.		Nikon D6	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
13.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
14.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
15.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
16.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
17.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X1 has one, while the D5 does not. While the built-in flash of the X1 is not very powerful, it can at times be useful as a fill-in light.

The Nikon D5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The X1 writes its imaging data to SDHC cards, while the D5 uses Compact Flash or XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the X1 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica X1 and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica X1	Y	- / -	-	-	mini	2.0	-	-	-
2.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
3.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Fujifilm X100	Y	stereo / -	-	-	mini	2.0	-	-	-
6.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
7.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
10.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
12.		Nikon D6	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
13.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
14.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
15.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Nikon D5 (unlike the X1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the X1 and the D5 have been discontinued, but can regularly be found used on ebay. The X1 was replaced by the Leica X2, while the D5 was followed by the Nikon D6. Further information on the features and operation of the X1 and D5 can be found, respectively, in the Leica X1 Manual (free pdf) or the online Nikon D5 Manual.

Review summary

So what conclusions can be drawn? Is the Leica X1 better than the Nikon D5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Leica X1:

• Ready to shoot: Comes with a built-in lens, while the D5 requires a separate lens.
• More compact: Is smaller (124x60mm vs 160x159mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D5).
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in September 2009).

Arguments in favor of the Nikon D5:

• More detail: Has more megapixels (20.7 vs 12.2MP), which boosts linear resolution by 31%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (14 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (3780 versus 260) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 6 years and 3 months of technical progress since the X1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the D5 is the clear winner of the contest (22 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica X1 and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best Prime Lens Compact Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X1 or the D5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica X1	3/5	..	..	+	..	4/5	Sep 2009	US$ 1 999	ebay.com
2.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
3.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Fujifilm X100	3/5	..	..	75/100	4/5	5/5	Sep 2010	US$ 1 199	ebay.com
6.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	US$ 699	ebay.com
7.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
8.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	US$ 849	ebay.com
9.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
10.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	US$ 2 299	ebay.com
11.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	US$ 6 499	ebay.com
12.		Nikon D6	..	..	4/5	..	4.5/5	4.5/5	Feb 2020	US$ 6 499	amazon.com
13.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
14.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	US$ 2 299	ebay.com
15.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
16.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	US$ 599	ebay.com
17.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check X1 offers at
ebay.com
Check D5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check X1 offers at
ebay.com
Check D5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
