Canon 80D vs Samsung NX500

The Canon EOS 80D and the Samsung NX500 are two digital cameras that were officially introduced, respectively, in February 2016 and February 2015. The 80D is a DSLR, while the NX500 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 80D		Samsung NX500
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Samsung NX mount lenses
24 MP – APS-C sensor		28 MP – APS-C sensor
1080/60p Video		4K/30p Video
ISO 100-16,000 (100 - 25,600)		ISO 100-25,600 (100 - 51,200)
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1036k dots
Swivel touchscreen		Tilting touchscreen
7 shutter flaps per second		9 shutter flaps per second
Weathersealed body		not weather sealed
960 shots per battery charge		370 shots per battery charge
139 x 105 x 79 mm, 730 g		120 x 64 x 43 mm, 287 g

Check 80D offers at
ebay.com
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

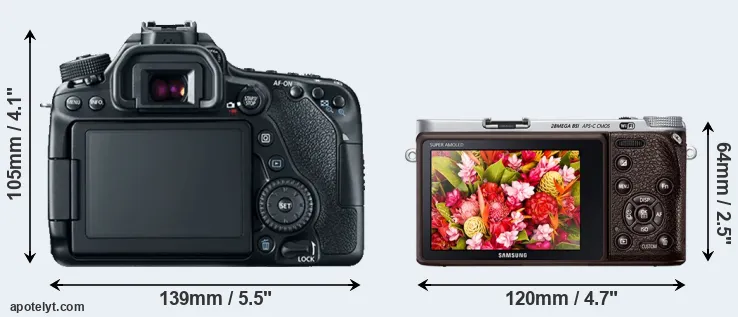

The side-by-side display below illustrates the physical size and weight of the Canon 80D and the Samsung NX500. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is considerably smaller (47 percent) than the Canon 80D. Moreover, the NX500 is substantially lighter (61 percent) than the 80D. It is worth mentioning in this context that the 80D is splash and dust resistant, while the NX500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the NX500 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
2.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	US$ 799	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
4.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
5.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
6.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
7.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	US$ 1 199	amazon.com
8.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
9.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
10.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
11.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
12.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
13.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
14.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
15.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
16.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	US$ 549	ebay.com
17.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NX500 was launched at a markedly lower price (by 33 percent) than the 80D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

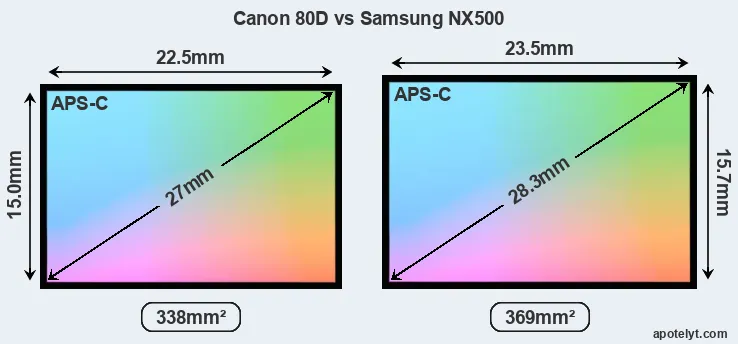

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NX500 is 9 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (80D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 28MP, the NX500 offers a higher resolution than the 80D (24MP), but the NX500 has smaller individual pixels (pixel pitch of 3.63μm versus 3.75μm for the 80D). It is noteworthy in this context that the 80D is a somewhat more recent model (by 1 year) than the NX500, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Canon 80D are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the 80D is build around a CMOS sensor, while the NX500 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the NX500 has a markedly higher DXO score than the 80D (overall score 8 points higher), which will translate into better image quality. The advantage is based on 1.2 bits higher color depth, 0.7 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
2.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
5.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
6.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
7.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
8.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
9.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
10.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
11.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
12.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
13.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
14.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
15.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
16.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
17.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the NX500 provides a better video resolution than the 80D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 80D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 80D, the Samsung NX500, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
2.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
5.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
6.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
7.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
8.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
9.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
14.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
15.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
16.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
17.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 80D, but is missing on the NX500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 80D and the Samsung NX500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 80D and the NX500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
7.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
8.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
9.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
12.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
14.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
15.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the 80D has a microphone port, which is missing on the NX500. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the 80D and the NX500 have been discontinued, but can regularly be found used on ebay. The 80D was replaced by the Canon 90D, while the NX500 does not have a direct successor. Further information on the features and operation of the 80D and NX500 can be found, respectively, in the Canon 80D Manual (free pdf) or the online Samsung NX500 Manual.

Review summary

So how do things add up? Is the Canon 80D better than the Samsung NX500 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 80D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
• Longer lasting: Can take more shots (960 versus 370) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• More modern: Is somewhat more recent (announced 1 year after the NX500).

Reasons to prefer the Samsung NX500:

• More detail: Has more megapixels (28 vs 24MP), which boosts linear resolution by 8%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores markedly higher (8 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.2 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (0.7 EV of extra DR).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Faster burst: Shoots at higher frequency (9 vs 7 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (120x64mm vs 139x105mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 443g or 61 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in February 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the NX500 is the clear winner of the contest (14 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 80D and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 80D or the NX500. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
2.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	US$ 799	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
4.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
5.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
6.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
7.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	US$ 1 199	amazon.com
8.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
9.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
10.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
11.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
12.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
13.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
14.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
15.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
16.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	US$ 549	ebay.com
17.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
