Canon 80D vs Leica D-LUX 5
The Canon EOS 80D and the Leica D-LUX 5 are two enthusiast cameras that were revealed to the public, respectively, in February 2016 and September 2010. The 80D is a DSLR, while the D-LUX 5 is a fixed lens compact. The cameras are based on an APS-C (80D) and a 1/1.7-inch (D-LUX 5) sensor. The Canon has a resolution of 24 megapixels, whereas the Leica provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Leica D-LUX 5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

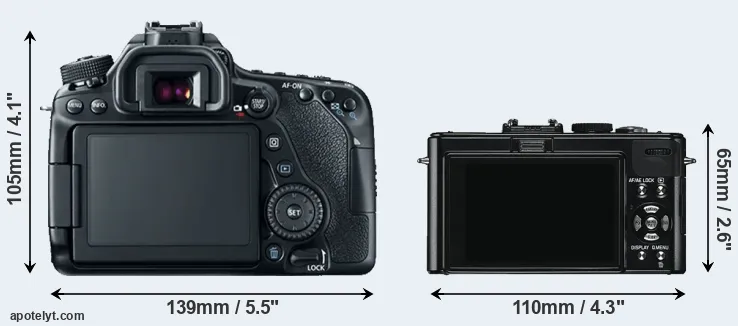

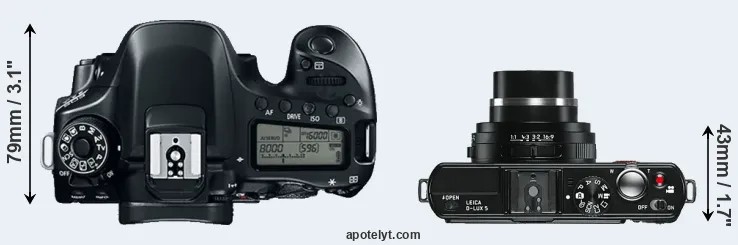

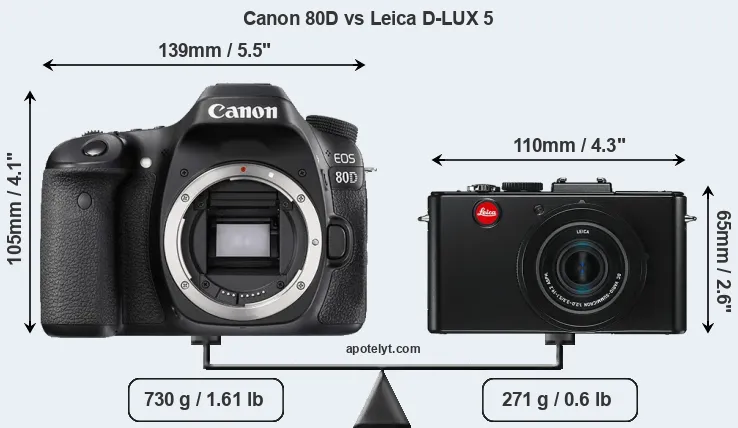

The physical size and weight of the Canon 80D and the Leica D-LUX 5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica D-LUX 5 is considerably smaller (51 percent) than the Canon 80D. It is worth mentioning in this context that the 80D is splash and dust resistant, while the D-LUX 5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX 5 has a lens built in, whereas the 80D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 80D and their specifications in the Canon EF Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 80D||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199|
|Leica D-LUX 5||4.3 in||2.6 in||1.7 in||9.6 oz||400||n||Sep 2010||699|
|Canon 90D||5.6 in||4.1 in||3.0 in||24.7 oz||1300||Y||Aug 2019||1,199|
|Canon 6D Mark II||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999|
|Canon G3 X||4.8 in||3.0 in||4.1 in||25.9 oz||300||Y||Jun 2015||999|
|Canon T6i||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749|
|Canon T6s||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649|
|Canon 7D II||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799|
|Canon 70D||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199|
|Canon 60D||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399|
|Fujifilm X10||4.6 in||2.8 in||2.2 in||12.3 oz||270||n||Sep 2011||599|
|Leica D-LUX 6||4.4 in||2.7 in||1.8 in||10.5 oz||330||n||Sep 2012||699|
|Leica V-LUX 3||4.9 in||3.2 in||3.7 in||19.0 oz||410||n||Dec 2011||949|
|Leica X1||4.9 in||2.4 in||1.3 in||10.8 oz||260||n||Sep 2009||1,995|
|Nikon D7500||5.4 in||4.1 in||2.9 in||25.4 oz||950||Y||Apr 2017||1,299|
|Nikon D7200||5.4 in||4.2 in||3.0 in||27.0 oz||1110||Y||Mar 2015||1,199|
|Panasonic LX5||4.3 in||2.6 in||1.7 in||9.6 oz||400||n||Jul 2010||499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D-LUX 5 was launched at a lower price than the 80D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

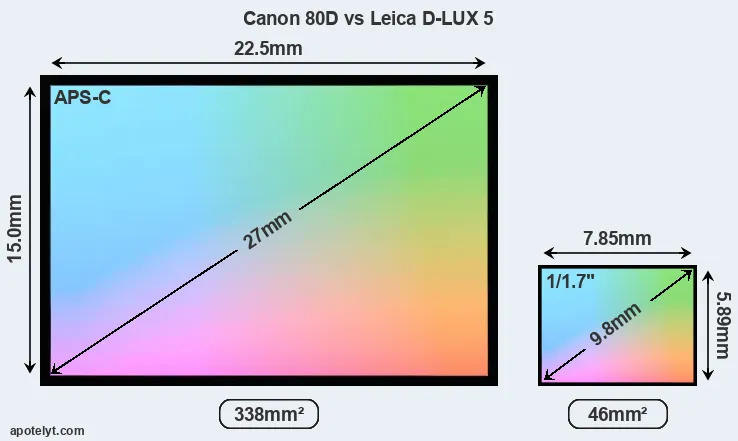

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 80D features an APS-C sensor and the Leica D-LUX 5 a 1/1.7-inch sensor. The sensor area in the D-LUX 5 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the 80D has a native 3:2 aspect ratio, while the one in the D-LUX 5 offers a 4:3 aspect. The D-LUX 5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.
With 24MP, the 80D offers a higher resolution than the D-LUX 5 (10MP), but the 80D nevertheless has larger individual pixels (pixel pitch of 3.75μm versus 2.14μm for the D-LUX 5) due to its larger sensor. Moreover, the 80D is a much more recent model (by 5 years and 4 months) than the D-LUX 5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 80D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 80D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Leica D-LUX 5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The 80D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica D-LUX 5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Leica D-LUX 5||1/1.7||10.0||3648||2736||720/60p||..||..||..||..|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|Leica D-LUX 6||1/1.7||10.0||3648||2736||1080/60p||..||..||..||..|
|Leica V-LUX 3||1/2.3||12.0||4000||3000||1080/60p||..||..||..||..|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 80D provides a higher video resolution than the D-LUX 5. It can shoot video footage at 1080/60p, while the Leica is limited to 720/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 80D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the D-LUX 5 relies on live view and the rear LCD for framing. That said, the D-LUX 5 can be equipped with an optional viewfinder – the EVF1. The following table reports on some other key feature differences and similarities of the Canon 80D, the Leica D-LUX 5, and comparable cameras.
|Leica D-LUX 5||optional||n||3.0||460||fixed||n||1/4000s||2.5||Y||Y|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|Leica D-LUX 6||optional||n||3.0||920||fixed||n||1/4000s||11.0||Y||Y|
|Leica V-LUX 3||202||n||3.0||460||swivel||n||1/2000s||12.0||Y||Y|
One feature that is present on the 80D, but is missing on the D-LUX 5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 80D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D-LUX 5 does not have a selfie-screen.
The Canon 80D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 80D and the D-LUX 5 write their files to SDXC cards. The 80D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D-LUX 5 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Leica D-LUX 5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Leica D-LUX 5||Y||mono||mono||-||-||mini||2.0||-||-||-|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|Leica D-LUX 6||Y||stereo||mono||-||-||mini||2.0||-||-||-|
|Leica V-LUX 3||Y||stereo||-||-||-||mini||2.0||-||-||-|
It is notable that the 80D has a microphone port, which is missing on the D-LUX 5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 80D and the D-LUX 5 have been discontinued, but can regularly be found used on eBay. The D-LUX 5 was replaced by the Leica D-LUX 6, while the 80D was followed by the Canon 90D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So how do things add up? Which of the two cameras – the Canon 80D or the Leica D-LUX 5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 80D:
- More detail: Offers more megapixels (24 vs 10MP) with a 58% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (1080/60p vs 720/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 2.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (960 versus 400) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 5 years and 4 months of technical progress since the D-LUX 5 launch.
Reasons to prefer the Leica D-LUX 5:
- Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
- Ready to shoot: Comes with an integrated lens, while the 80D requires a separate lens.
- More compact: Is smaller (110x65mm vs 139x105mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 80D).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in September 2010).
If the count of individual advantages (bullet points above) is taken as a guide, the 80D is the clear winner of the match-up (25 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 80D and the Leica D-LUX 5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 80D or the D-LUX 5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Leica D-LUX 5||..||..||4.5/5||..||4/5||Sep 2010||699|
|Canon 90D||+||85/100||4.5/5||4.5/5||4.5/5||Aug 2019||1,199|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon G3 X||+||..||4.5/5||3.5/5||4/5||Jun 2015||999|
|Canon T6i||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Canon T6s||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Canon 7D II||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Fujifilm X10||..||76/100||4/5||3.5/5||4.5/5||Sep 2011||599|
|Leica D-LUX 6||..||..||4/5||..||4/5||Sep 2012||699|
|Leica V-LUX 3||..||..||..||..||..||Dec 2011||949|
|Leica X1||..||+||..||..||4/5||Sep 2009||1,995|
|Nikon D7500||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299|
|Nikon D7200||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199|
|Panasonic LX5||+||73/100||4.5/5||5/5||4.5/5||Jul 2010||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 200D vs Leica D-LUX 5
- Canon 70D vs Canon 80D
- Canon 80D vs Canon G7 X Mark III
- Canon 80D vs Leica D-LUX 6
- Canon 80D vs Nikon D200
- Canon 80D vs Panasonic LX10
- Canon 80D vs Sony NEX-7
- Canon SX740 vs Leica D-LUX 5
- Fujifilm GFX 100 vs Leica D-LUX 5
- Fujifilm X-A1 vs Leica D-LUX 5
- Fujifilm X-A10 vs Leica D-LUX 5
- Leica D-LUX 5 vs Sony RX100 II
Specifications: Canon 80D vs Leica D-LUX 5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 80D||Leica D-LUX 5|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-90mm f/2.0-3.3|
|Launch Date||February 2016||September 2010|
|Launch Price||USD 1,199||USD 699|
|Sensor Specs||Canon 80D||Leica D-LUX 5|
|Sensor Format||APS-C Sensor||1/1.7" Sensor|
|Sensor Size||22.5 x 15.0 mm||7.85 x 5.89 mm|
|Sensor Area||337.5 mm2||46.2365 mm2|
|Sensor Diagonal||27 mm||9.8 mm|
|Sensor Resolution||24 Megapixels||10 Megapixels|
|Image Resolution||6000 x 4000 pixels||3648 x 2736 pixels|
|Pixel Pitch||3.75 μm||2.14 μm|
|Pixel Density||7.11 MP/cm2||21.59 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||720/60p Video|
|ISO Setting||100 - 16,000 ISO||80 - 3,200 ISO|
|ISO Boost||100 - 25,600 ISO||80 - 12,800 ISO|
|DXO Sensor Quality (score)||79||..|
|DXO Color Depth (bits)||23.6||..|
|DXO Dynamic Range (EV)||13.2||..|
|DXO Low Light (ISO)||1135||..|
|Screen Specs||Canon 80D||Leica D-LUX 5|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 80D||Leica D-LUX 5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||7 shutter flaps/s||2.5 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 80D||Leica D-LUX 5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 80D||Leica D-LUX 5|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||960 shots per charge||400 shots per charge|
139 x 105 x 79 mm
(5.5 x 4.1 x 3.1 in)
110 x 65 x 43 mm
(4.3 x 2.6 x 1.7 in)
|Camera Weight||730 g (25.8 oz)||271 g (9.6 oz)|
