Canon 80D vs Panasonic G80
The Canon EOS 80D and the Panasonic Lumix DMC-G80 (labelled Panasonic G85 in some countries) are two digital cameras that were officially introduced, respectively, in February 2016 and September 2016. The 80D is a DSLR, while the G80 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (80D) and a Four Thirds (G80) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 80D||Panasonic G80|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|24 MP, APS-C Sensor||15.8 MP, Four Thirds Sensor|
|1080/60p Video||4K/30p Video|
|ISO 100-16,000 (100 - 25,600)||ISO 200-25,600|
|Optical viewfinder||Electronic viewfinder (2360k dots)|
|3.0 LCD, 1040k dots||3.0 LCD, 1040k dots|
|Swivel touchscreen||Swivel touchscreen|
|7 shutter flaps per second||9 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Weathersealed body|
|960 shots per battery charge||330 shots per battery charge|
|139 x 105 x 79 mm, 730 g||128 x 89 x 74 mm, 505 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Panasonic Lumix DMC-G80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

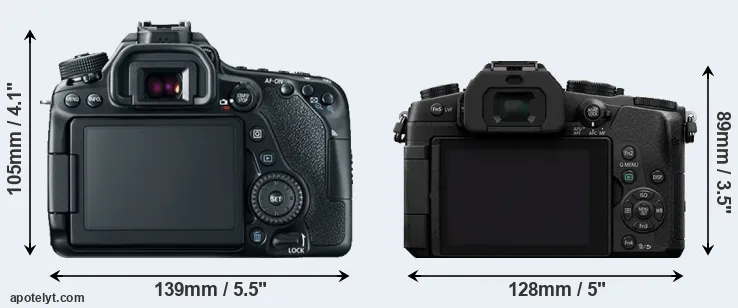

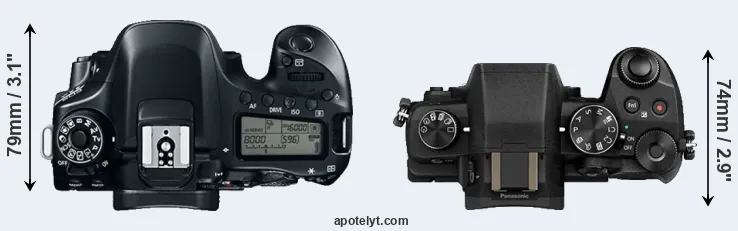

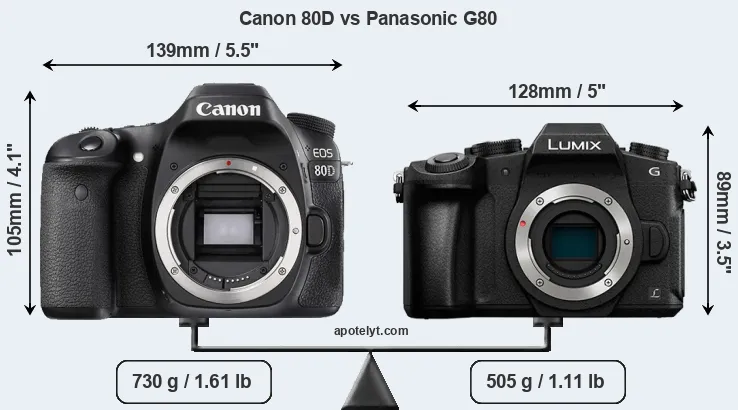

The side-by-side display below illustrates the physical size and weight of the Canon 80D and the Panasonic G80. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G80 is notably smaller (22 percent) than the Canon 80D. Moreover, the G80 is markedly lighter (31 percent) than the 80D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (80D) and the Micro Four Thirds Lens Catalog (G80). Mirrorless cameras, such as the G80, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Panasonic G80||128 mm||89 mm||74 mm||505 g||330||Y||Sep 2016||899|
|Canon 90D||141 mm||105 mm||77 mm||701 g||1300||Y||Aug 2019||1,199|
|Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|Panasonic G90||130 mm||94 mm||77 mm||536 g||290||Y||Apr 2019||999|
|Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|Panasonic GX80||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799|
|Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|Sony RX10 II||129 mm||88 mm||102 mm||813 g||400||Y||Jun 2015||1,299|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G80 was launched at a somewhat lower price (by 25 percent) than the 80D, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

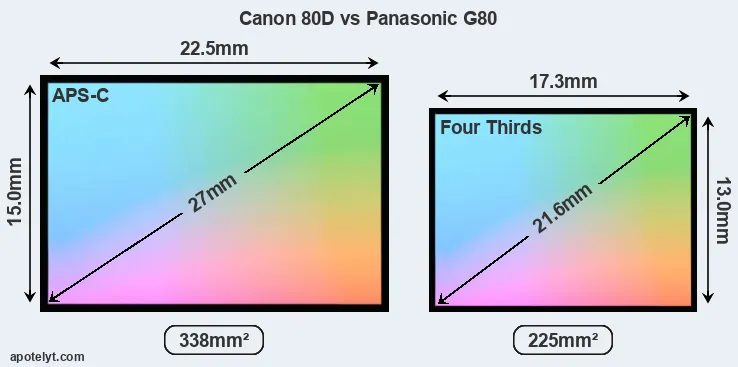

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 80D features an APS-C sensor and the Panasonic G80 a Four Thirds sensor. The sensor area in the G80 is 33 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 80D has a native 3:2 aspect ratio, while the one in the G80 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24MP, the 80D offers a higher resolution than the G80 (15.8MP), but the 80D has marginally smaller individual pixels (pixel pitch of 3.75μm versus 3.77μm for the G80). Moreover, the G80 is a somewhat more recent model (by 7 months) than the 80D, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the G80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 80D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 80D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic G80 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.
The 80D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-G80 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 80D has a notably higher overall DXO score than the G80 (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.8 bits higher color depth, 0.7 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Panasonic G80||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Panasonic G90||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|Sony RX10 II||1-inch||20.0||5472||3648||4K/30p||23.0||12.6||531||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the G80 provides a better video resolution than the 80D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the G80 has an electronic viewfinder (2360k dots), while the 80D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the G80 has a higher magnification than the one of the 80D (0.74x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 80D and Panasonic G80 along with similar information for a selection of comparators.
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|Sony RX10 II||2359||Y||3.0||1229||tilting||n||1/3200s||14.0||Y||Y|
One feature that is present on the 80D, but is missing on the G80 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the G80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon 80D and the Panasonic G80 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 80D and the G80 write their files to SDXC cards. The G80 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 80D can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Panasonic Lumix DMC-G80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|Sony RX10 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the 80D has a headphone jack, which is not present on the G80 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.
Both the 80D and the G80 have been discontinued, but can regularly be found used on eBay. The 80D was replaced by the Canon 90D, while the G80 was followed by the Panasonic G90. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon 80D and the Panasonic G80? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 80D:
- More detail: Offers more megapixels (24 vs 15.8MP) with a 26% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.8 stops ISO advantage).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (960 versus 330) on a single battery charge.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been on the market for longer (launched in February 2016).
Advantages of the Panasonic Lumix DMC-G80:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.59x).
- Faster burst: Shoots at higher frequency (9 vs 7 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (128x89mm vs 139x105mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 225g or 31 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More affordable: Was released into a lower priced segment (25 percent cheaper at launch).
- More modern: Was introduced somewhat (7 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (13 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 80D and the Panasonic G80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 80D or the G80 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Panasonic G80||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899|
|Canon 90D||+||85/100||4.5/5||4.5/5||4.5/5||Aug 2019||1,199|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon 77D||..||82/100||4.5/5||4.5/5||4/5||Feb 2017||899|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon G3 X||+||..||4.5/5||3.5/5||4/5||Jun 2015||999|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Nikon D7500||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299|
|Nikon D7200||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Panasonic G90||+||83/100||4.5/5||4.5/5||4.5/5||Apr 2019||999|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic GX80||+ +||82/100||5/5||4.5/5||5/5||Apr 2016||799|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Sony RX10 II||+ +||82/100||4.5/5||4.5/5||4/5||Jun 2015||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 80D vs Fujifilm X-E2
- Canon 80D vs Sony NEX-5
- Canon 80D vs Sony RX10 IV
- Canon G9 X vs Panasonic G80
- Leica V-LUX 1 vs Panasonic G80
- Leica V-LUX 3 vs Panasonic G80
- Nikon B700 vs Panasonic G80
- Nikon D300S vs Panasonic G80
- Panasonic FZ100 vs Panasonic G80
- Panasonic G80 vs Panasonic TZ90
- Panasonic G80 vs Samsung NX500
- Panasonic G80 vs Sony NEX-5N
Specifications: Canon 80D vs Panasonic G80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 80D||Panasonic G80|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2016||September 2016|
|Launch Price||USD 1,199||USD 899|
|Sensor Specs||Canon 80D||Panasonic G80|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.5 x 15.0 mm||17.3 x 13.0 mm|
|Sensor Area||337.5 mm2||224.9 mm2|
|Sensor Diagonal||27 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||15.8 Megapixels|
|Image Resolution||6000 x 4000 pixels||4592 x 3448 pixels|
|Pixel Pitch||3.75 μm||3.77 μm|
|Pixel Density||7.11 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 16,000 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 6||Venus|
|DXO Sensor Quality (score)||79||71|
|DXO Color Depth (bits)||23.6||22.8|
|DXO Dynamic Range (EV)||13.2||12.5|
|DXO Low Light (ISO)||1135||656|
|Screen Specs||Canon 80D||Panasonic G80|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon 80D||Panasonic G80|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||7 shutter flaps/s||9 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon 80D||Panasonic G80|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 80D||Panasonic G80|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||960 shots per charge||330 shots per charge|
139 x 105 x 79 mm
(5.5 x 4.1 x 3.1 in)
128 x 89 x 74 mm
(5.0 x 3.5 x 2.9 in)
|Camera Weight||730 g (25.8 oz)||505 g (17.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
