Canon 80D vs Nikon D2Xs
The Canon EOS 80D and the Nikon D2Xs are two digital cameras that were revealed to the public, respectively, in February 2016 and June 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Nikon D2Xs? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

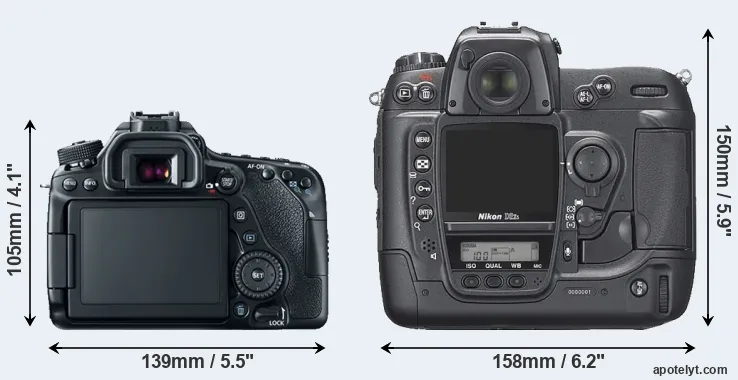

An illustration of the physical size and weight of the Canon 80D and the Nikon D2Xs is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D2Xs is considerably larger (62 percent) than the Canon 80D. Moreover, the D2Xs is substantially heavier (72 percent) than the 80D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (80D) and the Nikon Lens Catalog (D2Xs).
Concerning battery life, the 80D gets 960 shots out of its LP-E6N battery, while the D2Xs can take 3800 images on a single charge of its EN-EL4a power pack. As can be seen in the images above, the D2Xs has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 80D, Canon provides the BG-E14 vertical grip as an optional accessory (see here on eBay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|2.||Nikon D2Xs||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699|
|3.||Canon 90D||141 mm||105 mm||77 mm||701 g||1300||Y||Aug 2019||1,199|
|4.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|5.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|6.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|7.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|8.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|9.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|10.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|11.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|12.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|13.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799|
|14.||Nikon D3||160 mm||157 mm||88 mm||1300 g||4300||Y||Aug 2007||4,999|
|15.||Nikon D300||147 mm||114 mm||74 mm||925 g||1000||Y||Aug 2007||1,799|
|16.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699|
|17.||Nikon D2X||158 mm||150 mm||86 mm||1252 g||3800||Y||Sep 2004||4,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 80D was launched at a markedly lower price (by 74 percent) than the D2Xs, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

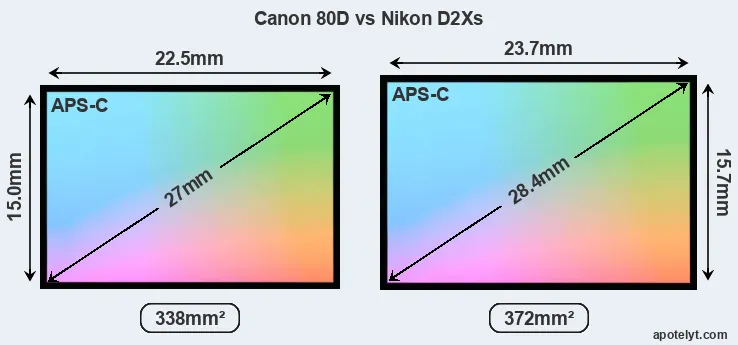

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D2Xs is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (80D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the Canon 80D offers a higher resolution of 24 megapixels, compared with 12.2 MP of the Nikon D2Xs. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.75μm versus 5.52μm for the D2Xs). However, it should be noted that the 80D is much more recent (by 9 years and 8 months) than the D2Xs, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 80D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 80D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D2Xs are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.
The 80D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D2Xs are ISO 100 to ISO 800, with the possibility to increase the ISO range to 800-3200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 80D provides substantially higher image quality than the D2Xs, with an overall score that is 20 points higher. This advantage is based on 1.4 bits higher color depth, 2.3 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|4.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|5.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|8.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|14.||Nikon D3||Full Frame||12.1||4256||2832||none||23.5||12.2||2290||81|
Many modern cameras are not only capable of taking still images, but can also record movies. The 80D indeed provides movie recording capabilities, while the D2Xs does not. The highest resolution format that the 80D can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The 80D and the D2Xs are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 80D has a higher magnification than the one of the D2Xs (0.59x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 80D and Nikon D2Xs in connection with corresponding information for a sample of similar cameras.
|4.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|5.||Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|8.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The 80D has one, while the D2Xs does not. While the built-in flash of the 80D is not very powerful, it can at times be useful as a fill-in light.The 80D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D2Xs does not have a selfie-screen.
The Canon 80D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 80D writes its imaging data to SDXC cards, while the D2Xs uses Compact Flash cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Nikon D2Xs and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|8.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
It is notable that the 80D offers wifi support, while the D2Xs does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D2Xs (unlike the 80D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 80D and the D2Xs have been discontinued, but can regularly be found used on eBay. The D2Xs was replaced by the Nikon D3X, while the 80D was followed by the Canon 90D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Which of the two cameras – the Canon 80D or the Nikon D2Xs – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 80D:
- More detail: Offers more megapixels (24 vs 12.2MP) with a 40% higher linear resolution.
- Better image quality: Scores substantially higher (20 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.4 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.2 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.57x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (139x105mm vs 158x150mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 522g or 42 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More modern: Reflects 9 years and 8 months of technical progress since the D2Xs launch.
Advantages of the Nikon D2Xs:
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (3800 versus 960) out of a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been around for much longer (launched in June 2006).
If the count of relative strengths (bullet points above) is taken as a measure, the 80D is the clear winner of the match-up (22 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 80D and the Nikon D2Xs place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 80D and the D2Xs in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|2.||Nikon D2Xs||..||..||..||..||..||Jun 2006||4,699|
|3.||Canon 90D||4/5||+||85/100||4.5/5||4.5/5||Aug 2019||1,199|
|4.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|5.||Canon G3 X||3.5/5||+||..||4.5/5||4/5||Jun 2015||999|
|6.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|7.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|8.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|9.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|10.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|11.||Nikon D7500||4.5/5||+ +||86/100||5/5||4.5/5||Apr 2017||1,299|
|12.||Nikon D7200||4/5||+ +||84/100||4.5/5||4.5/5||Mar 2015||1,199|
|13.||Nikon D300S||5/5||+ +||82/100||4/5||4.5/5||Jul 2009||1,799|
|14.||Nikon D3||..||..||+ +||5/5||4.5/5||Aug 2007||4,999|
|15.||Nikon D300||..||+ +||+ +||5/5||4.5/5||Aug 2007||1,799|
|16.||Nikon D200||..||+ +||+ +||o||..||Nov 2005||1,699|
|17.||Nikon D2X||..||..||+ +||..||..||Sep 2004||4,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 80D vs Nikon D2Xs
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 80D||Nikon D2Xs|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||February 2016||June 2006|
|Launch Price||USD 1,199||USD 4,699|
|Sensor Specs||Canon 80D||Nikon D2Xs|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.5 x 15.0 mm||23.7 x 15.7 mm|
|Sensor Area||337.5 mm2||372.09 mm2|
|Sensor Diagonal||27 mm||28.4 mm|
|Sensor Resolution||24 Megapixels||12.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||4288 x 2848 pixels|
|Pixel Pitch||3.75 μm||5.52 μm|
|Pixel Density||7.11 MP/cm2||3.28 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100 - 16,000 ISO||100 - 800 ISO|
|ISO Boost||100 - 25,600 ISO||800 - 3,200 ISO|
|DXO Sensor Quality (score)||79||59|
|DXO Color Depth (bits)||23.6||22.2|
|DXO Dynamic Range (EV)||13.2||10.9|
|DXO Low Light (ISO)||1135||489|
|Screen Specs||Canon 80D||Nikon D2Xs|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||2.5inch|
|LCD Resolution||1040k dots||230k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 80D||Nikon D2Xs|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||7 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 80D||Nikon D2Xs|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 80D||Nikon D2Xs|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||960 shots per charge||3800 shots per charge|
139 x 105 x 79 mm
(5.5 x 4.1 x 3.1 in)
158 x 150 x 86 mm
(6.2 x 5.9 x 3.4 in)
|Camera Weight||730 g (25.8 oz)||1252 g (44.2 oz)|
