Canon 800D vs Olympus TG-4

The Canon EOS 800D (called Canon T7i in some regions) and the Olympus Tough TG-4 are two digital cameras that were officially introduced, respectively, in February 2017 and April 2015. The 800D is a DSLR, while the TG-4 is a fixed lens compact. The cameras are based on an APS-C (800D) and a 1/2.3-inch (TG-4) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 800D		Olympus TG-4
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		25-100mm f/2.0-4.9
24 MP – APS-C sensor		15.9 MP – 1/2.3" sensor
1080/60p Video		1080/30p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-6,400
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 460k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
6 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Waterproof body (15m)
600 shots per battery charge		380 shots per battery charge
131 x 100 x 76 mm, 532 g		112 x 66 x 31 mm, 247 g

Check 800D offers at
ebay.com
Check TG-4 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Olympus Tough TG-4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

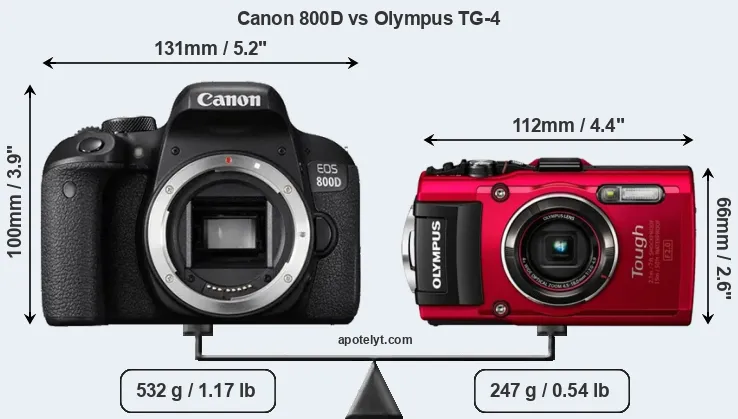

An illustration of the physical size and weight of the Canon 800D and the Olympus TG-4 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The TG-4 can be obtained in two different colors (black, red), while the 800D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-4 is considerably smaller (44 percent) than the Canon 800D. It is noteworthy in this context that the TG-4 is splash and dust-proof, while the 800D does not feature any corresponding weather-sealing. More than that, the TG-4 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-4 has a lens built in, whereas the 800D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 800D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 800D gets 600 shots out of its LP-E17 battery, while the TG-4 can take 380 images on a single charge of its LI-92B power pack. The power pack in the TG-4 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 800D	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	749	ebay.com
2.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	379	ebay.com
3.		Canon 850D	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	749	amazon.com
4.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
5.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
6.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
7.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
8.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
9.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
10.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
11.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
12.		Fujifilm XP140	110 mm	71 mm	28 mm	207 g	240	Y	Feb 2019	229	amazon.com
13.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	389	amazon.com
14.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	amazon.com
15.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	449	amazon.com
16.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	449	ebay.com
17.		Sony HX80	102 mm	58 mm	36 mm	245 g	390	n	Mar 2016	349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TG-4 was launched at a lower price than the 800D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 800D features an APS-C sensor and the Olympus TG-4 a 1/2.3-inch sensor. The sensor area in the TG-4 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 800D has a native 3:2 aspect ratio, while the one in the TG-4 offers a 4:3 aspect.

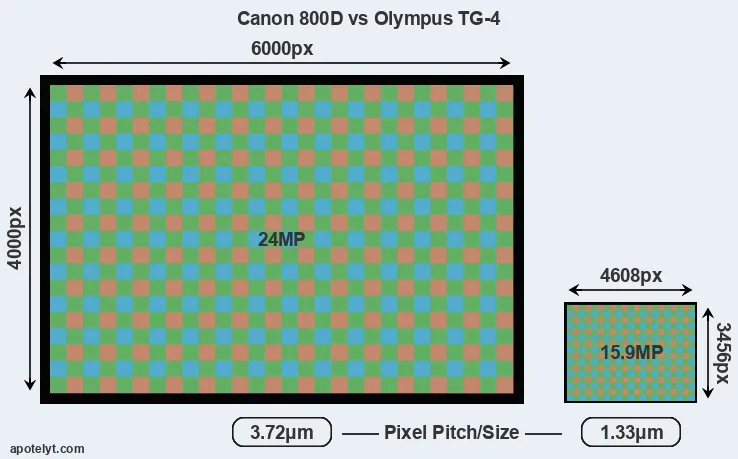

With 24MP, the 800D offers a higher resolution than the TG-4 (15.9MP), but the 800D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.33μm for the TG-4) due to its larger sensor. Moreover, the 800D is a somewhat more recent model (by 1 year and 10 months) than the TG-4, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 800D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 800D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus TG-4 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The 800D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus Tough TG-4 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the 800D is build around a CMOS sensor, while the TG-4 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 800D	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
2.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
3.		Canon 850D	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
4.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
5.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
6.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
8.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
9.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
10.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
11.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Fujifilm XP140	1/2.3	15.9	4608	3456	4K/15p	20.7	12.2	1102	52
13.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
14.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
15.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
16.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
17.		Sony HX80	1/2.3	18.0	4896	3672	1080/60p	20.4	11.8	822	48
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 800D provides a higher frame rate than the TG-4. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 800D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-4 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 800D and Olympus TG-4 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 800D	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
2.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
3.		Canon 850D	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
4.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
10.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Fujifilm XP140	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
13.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
14.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
15.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
16.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
17.		Sony HX80	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 800D has a touchscreen, while the TG-4 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus TG-4 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 800D and the TG-4 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Olympus Tough TG-4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 800D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 850D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
4.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
9.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Fujifilm XP140	-	mono / mono	-	-	micro	2.0	Y	-	Y
13.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
15.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Sony HX80	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the 800D has a hotshoe, while the TG-4 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Travel and landscape photographers will find it useful that the TG-4 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the 800D and the TG-4 have been discontinued, but can regularly be found used on ebay. The TG-4 was replaced by the Olympus TG-5, while the 800D was followed by the Canon 850D. Further information on the features and operation of the 800D and TG-4 can be found, respectively, in the Canon 800D Manual (free pdf) or the online Olympus TG-4 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon 800D and the Olympus TG-4? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS 800D:

• More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (600 versus 380) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Is somewhat more recent (announced 1 year and 10 months after the TG-4).

Arguments in favor of the Olympus Tough TG-4:

• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the 800D requires a separate lens.
• More compact: Is smaller (112x66mm vs 131x100mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 800D).
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been on the market for longer (launched in April 2015).

If the number of relative strengths (bullet points above) is taken as a guide, the 800D is the clear winner of the match-up (21 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 800D and the Olympus TG-4 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 800D or the TG-4. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 800D	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	749	ebay.com
2.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	379	ebay.com
3.		Canon 850D	4/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	749	amazon.com
4.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
5.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
6.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
7.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
8.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
9.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
10.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
11.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
12.		Fujifilm XP140	..	+	..	..	3.5/5	4/5	Feb 2019	229	amazon.com
13.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	389	amazon.com
14.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	amazon.com
15.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	449	amazon.com
16.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	449	ebay.com
17.		Sony HX80	..	..	..	..	..	..	Mar 2016	349	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check 800D offers at
ebay.com
Check TG-4 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check 800D offers at
ebay.com
Check TG-4 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
