Canon 800D vs Olympus E-M10 II

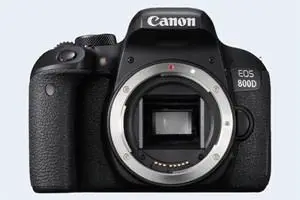

The Canon EOS 800D (called Canon T7i in some regions) and the Olympus OM-D E-M10 Mark II are two digital cameras that were announced, respectively, in February 2017 and August 2015. The 800D is a DSLR, while the E-M10 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (800D) and a Four Thirds (E-M10 II) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 800D||Olympus E-M10 II|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|24 MP, APS-C Sensor||15.9 MP, Four Thirds Sensor|
|1080/60p Video||1080/60p Video|
|ISO 100-25,600 (100 - 51,200)||ISO 200-25,600|
|Optical viewfinder||Electronic viewfinder (2360k dots)|
|3.0 LCD, 1040k dots||3.0 LCD, 1040k dots|
|Swivel touchscreen||Tilting touchscreen|
|6 shutter flaps per second||8 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|600 shots per battery charge||320 shots per battery charge|
|131 x 100 x 76 mm, 532 g||120 x 83 x 47 mm, 390 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

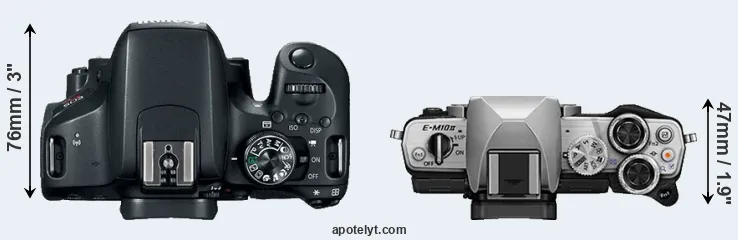

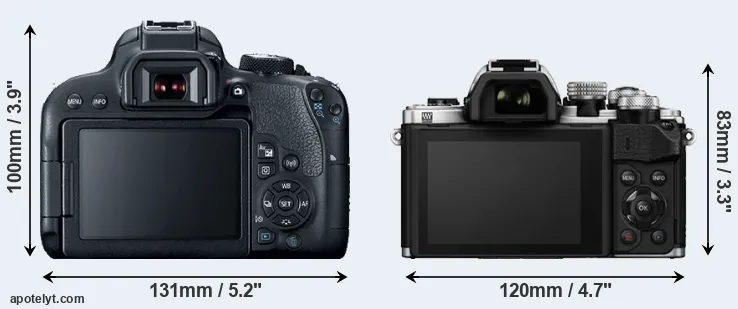

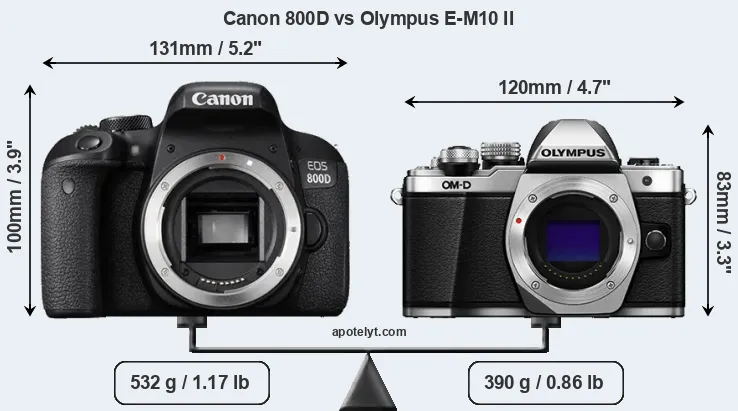

The physical size and weight of the Canon 800D and the Olympus E-M10 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

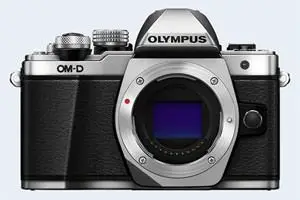

The E-M10 II can be obtained in three different colors (black, silver, brown), while the 800D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is notably smaller (24 percent) than the Canon 800D. Moreover, the E-M10 II is markedly lighter (27 percent) than the 800D. In this context, it is worth noting that neither the 800D nor the E-M10 II are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (800D) and the Micro Four Thirds Lens Catalog (E-M10 II). Mirrorless cameras, such as the E-M10 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 800D||5.2 in||3.9 in||3.0 in||18.8 oz||600||n||Feb 2017||749|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Canon 850D||5.2 in||4.1 in||3.0 in||18.2 oz||800||n||Feb 2020||749|
|Canon 2000D||5.1 in||4.0 in||3.1 in||16.8 oz||500||n||Feb 2018||449|
|Canon 77D||5.2 in||3.9 in||3.0 in||19.0 oz||600||n||Feb 2017||899|
|Canon 200D||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549|
|Canon M6||4.4 in||2.7 in||1.8 in||13.8 oz||295||n||Feb 2017||779|
|Canon 1300D||5.1 in||4.0 in||3.1 in||17.1 oz||500||n||Mar 2016||449|
|Canon G7 X Mark II||4.2 in||2.4 in||1.7 in||11.3 oz||265||n||Feb 2016||699|
|Canon 750D||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749|
|Canon 760D||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Olympus E-M10 III||4.8 in||3.3 in||2.0 in||14.5 oz||330||n||Aug 2017||649|
|Olympus E-PL8||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Sep 2016||549|
|Olympus E-M10||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699|
|Olympus E-P5||4.8 in||2.7 in||1.5 in||14.8 oz||330||n||May 2013||999|
|Olympus E-PL5||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-M10 II was launched at a somewhat lower price (by 13 percent) than the 800D, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

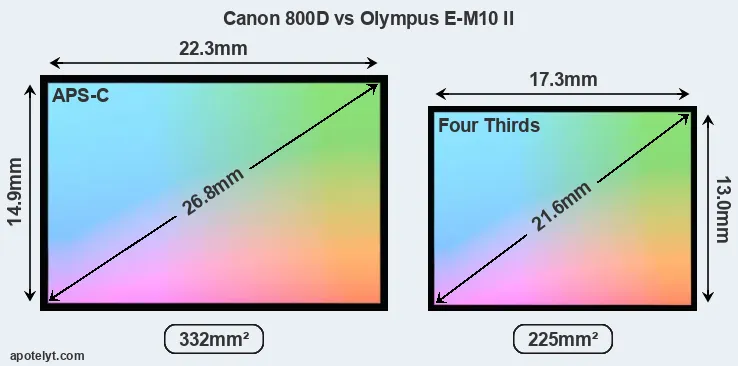

Of the two cameras under consideration, the Canon 800D features an APS-C sensor and the Olympus E-M10 II a Four Thirds sensor. The sensor area in the E-M10 II is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 800D has a native 3:2 aspect ratio, while the one in the E-M10 II offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.

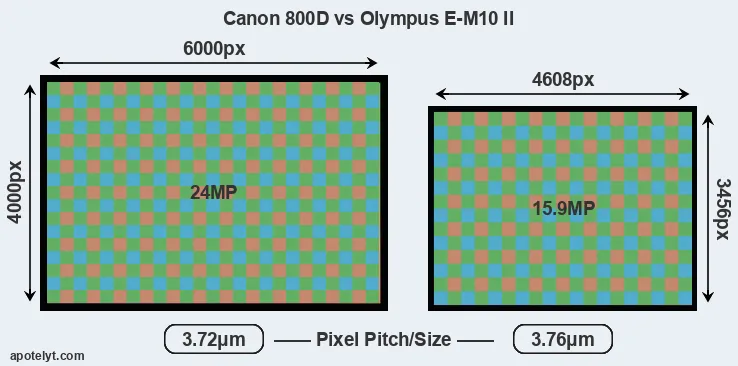

With 24MP, the 800D offers a higher resolution than the E-M10 II (15.9MP), but the 800D has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-M10 II). However, the 800D is a somewhat more recent model (by 1 year and 5 months) than the E-M10 II, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 800D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 800D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M10 II are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The 800D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), while the 800D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M10 II offers a wider field of view (100%) than the one in the 800D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M10 II has a higher magnification (0.62x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 800D and Olympus E-M10 II in connection with corresponding information for a sample of similar cameras.
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
One feature that differentiates the E-M10 II and the 800D is in-body image stabilization (IBIS). The E-M10 II reduces the risk of handshake-induced blur with all attached lenses, while the 800D offers no blur reduction with lenses that themselves do not provide optical image stabilization.The 800D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-M10 II does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M10 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 800D and the E-M10 II write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the 800D has a microphone port, which is missing on the E-M10 II. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 800D and the E-M10 II have been discontinued, but can regularly be found used on eBay. The E-M10 II was replaced by the Olympus E-M10 III, while the 800D was followed by the Canon 850D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 800D or the Olympus E-M10 II – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 800D:
- More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Longer lasting: Can take more shots (600 versus 320) on a single battery charge.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Is somewhat more recent (announced 1 year and 5 months after the E-M10 II).
Reasons to prefer the Olympus OM-D E-M10 Mark II:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.51x).
- Faster burst: Shoots at higher frequency (8 vs 6 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (120x83mm vs 131x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 142g or 27 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was released into a lower priced segment (13 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in August 2015).
If the number of relative strengths (bullet points above) is taken as a guide, the 800D emerges as the winner of the contest (15 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 800D and the Olympus E-M10 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 800D and the E-M10 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 800D||..||80/100||4.5/5||4/5||4/5||Feb 2017||749|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Canon 850D||+||..||..||..||3.5/5||Feb 2020||749|
|Canon 2000D||o||..||3.5/5||..||3.5/5||Feb 2018||449|
|Canon 77D||..||82/100||4.5/5||4.5/5||4/5||Feb 2017||899|
|Canon 200D||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549|
|Canon M6||..||80/100||4/5||4.5/5||4/5||Feb 2017||779|
|Canon 1300D||o||73/100||4/5||3.5/5||4/5||Mar 2016||449|
|Canon G7 X Mark II||+ +||81/100||4.5/5||4/5||4.5/5||Feb 2016||699|
|Canon 750D||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Canon 760D||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Olympus E-M10 III||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649|
|Olympus E-PL8||..||..||4.5/5||..||4/5||Sep 2016||549|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Olympus E-P5||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999|
|Olympus E-PL5||+ +||..||4.5/5||4.5/5||4.5/5||Sep 2012||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 800D vs Canon G3 X
- Canon 800D vs Canon T8i
- Canon 800D vs Fujifilm X20
- Canon 800D vs Leica D-LUX 6
- Canon 800D vs Nikon D3S
- Canon 800D vs Olympus E-M1
- Canon 800D vs Panasonic GH4
- Canon 800D vs Sony A7 III
- Canon 800D vs Sony A99 II
- Fujifilm X70 vs Olympus E-M10 II
- Leica V-LUX 4 vs Olympus E-M10 II
- Olympus E-5 vs Olympus E-M10 II
Specifications: Canon 800D vs Olympus E-M10 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 800D||Olympus E-M10 II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2017||August 2015|
|Launch Price||USD 749||USD 649|
|Sensor Specs||Canon 800D||Olympus E-M10 II|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||15.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.72 μm||3.76 μm|
|Pixel Density||7.22 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||100 - 25,600 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 51,200 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 7||TruePic VII|
|DXO Sensor Quality (score)||..||73|
|DXO Color Depth (bits)||..||23.1|
|DXO Dynamic Range (EV)||..||12.5|
|DXO Low Light (ISO)||..||842|
|Screen Specs||Canon 800D||Olympus E-M10 II|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon 800D||Olympus E-M10 II|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||6 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 800D||Olympus E-M10 II|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon 800D||Olympus E-M10 II|
|Battery Life (CIPA)||600 shots per charge||320 shots per charge|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
120 x 83 x 47 mm
(4.7 x 3.3 x 1.9 in)
|Camera Weight||532 g (18.8 oz)||390 g (13.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
