Canon 800D vs Leica Q Typ 116

The Canon EOS 800D (called Canon T7i in some regions) and the Leica Q (Typ 116) are two digital cameras that were announced, respectively, in February 2017 and June 2015. The 800D is a DSLR, while the Q Typ 116 is a fixed lens compact. The cameras are based on an APS-C (800D) and a full frame (Q Typ 116) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 800D		Leica Q Typ 116
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		28mm f/1.7
24 MP – APS-C sensor		24 MP – Full Frame sensor
1080/60p Video		1080/60p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-50,000
Optical viewfinder		Electronic viewfinder (3680k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Fixed touchscreen
6 shutter flaps per second		10 shutter flaps per second
600 shots per battery charge		300 shots per battery charge
131 x 100 x 76 mm, 532 g		130 x 80 x 93 mm, 640 g

Check 800D offers at
ebay.com
Check Q Typ 116 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Leica Q (Typ 116)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

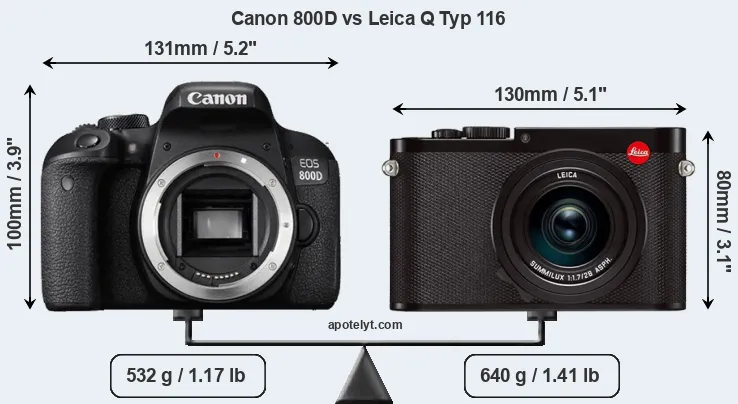

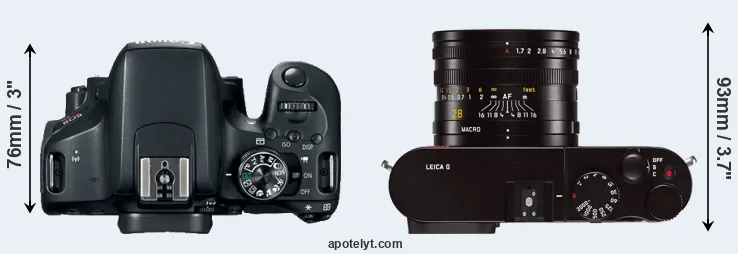

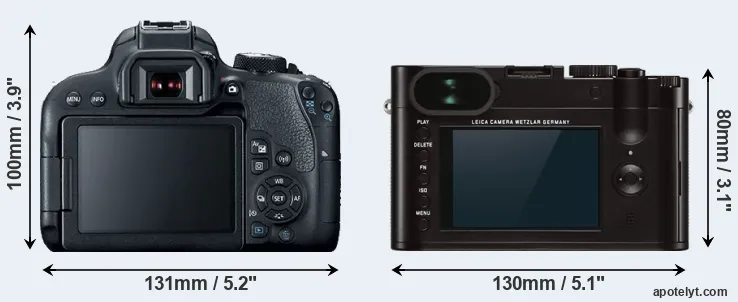

The physical size and weight of the Canon 800D and the Leica Q Typ 116 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The Q Typ 116 can be obtained in two different colors (black, silver), while the 800D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica Q Typ 116 is notably smaller (21 percent) than the Canon 800D. In this context, it is worth noting that neither the 800D nor the Q Typ 116 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the Q Typ 116 has a lens built in, whereas the 800D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 800D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 800D gets 600 shots out of its Canon LP-E17 battery, while the Q Typ 116 can take 300 images on a single charge of its Leica BP-DC12 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 800D	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	US$ 749	ebay.com
2.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
5.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
6.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
7.		Canon 850D	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	US$ 749	ebay.com
8.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
9.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
10.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
11.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
12.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
13.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
14.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
15.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
16.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
17.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 800D features an APS-C sensor and the Leica Q Typ 116 a full frame sensor. The sensor area in the Q Typ 116 is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the Q Typ 116 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the Q Typ 116 has a lower pixel density and larger individual pixels (with a pixel pitch of 6.00μm versus 3.72μm for the 800D), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the 800D is a somewhat more recent model (by 1 year and 8 months) than the Q Typ 116, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.

The 800D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Leica Q (Typ 116) are ISO 100 to ISO 50000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 800D	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
2.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
6.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
7.		Canon 850D	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
8.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
9.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
10.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
11.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
12.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
13.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
14.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
15.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
16.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
17.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Q Typ 116 has an electronic viewfinder (3680k dots), while the 800D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon 800D, the Leica Q Typ 116, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 800D	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
2.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 850D	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
8.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
11.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
12.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
13.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
15.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
16.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
17.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 800D has one, while the Q Typ 116 does not. While the built-in flash of the 800D is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Q Typ 116 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica Q Typ 116 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 800D and the Q Typ 116 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Leica Q (Typ 116) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 800D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon 850D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
8.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
9.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
16.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
17.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the 800D has a microphone port, which is missing on the Q Typ 116. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the 800D and the Q Typ 116 have been discontinued, but can regularly be found used on ebay. The Q Typ 116 was replaced by the Leica Q2, while the 800D was followed by the Canon 850D. Further information on the features and operation of the 800D and Q Typ 116 can be found, respectively, in the Canon 800D Manual (free pdf) or the online Leica Q Typ 116 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 800D and the Leica Q Typ 116? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS 800D:

• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (600 versus 300) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Is somewhat more recent (announced 1 year and 8 months after the Q Typ 116).

Arguments in favor of the Leica Q (Typ 116):

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the 800D requires a separate lens.
• More compact: Is smaller (130x80mm vs 131x100mm) and will fit more readily into a bag.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been on the market for longer (launched in June 2015).

If the count of individual advantages (bullet points above) is taken as a guide, the Q Typ 116 emerges as the winner of the match-up (13 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 800D and the Leica Q Typ 116 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 800D and the Q Typ 116 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 800D	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	US$ 749	ebay.com
2.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
5.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
6.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
7.		Canon 850D	4/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	US$ 749	ebay.com
8.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
9.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
10.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
11.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
12.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
13.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
14.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
15.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
16.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
17.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
