Leica Q Typ 116 PDF User Manual

Did you lose or misplace the instruction manual that came with your Leica Q (Typ 116)? It happens all too easily, but fortunately Leica makes a soft copy available that you can browse through online, print out, or download (see the pdf file below). It is certainly good practice to carefully familiarize oneself with the many different functionalities and options that the Q Typ 116 offers, and the official user manual is without doubt an authoritative and comprehensive source of respective information.

That said, the instruction booklet can be a dry read, so that a dedicated camera guide book from a professional photographer that illustrates the camera's core functions in a real life photography context can be a very helpful complement. Yes, getting one of these camera guides (see here at amazon) would involve an additional expense, but if that book helps to exploit the camera's potential to the full, the (small) additional investment may well be worth it.

Also, you might want to check out the video tutorial on the Leica Q (Typ 116) below.

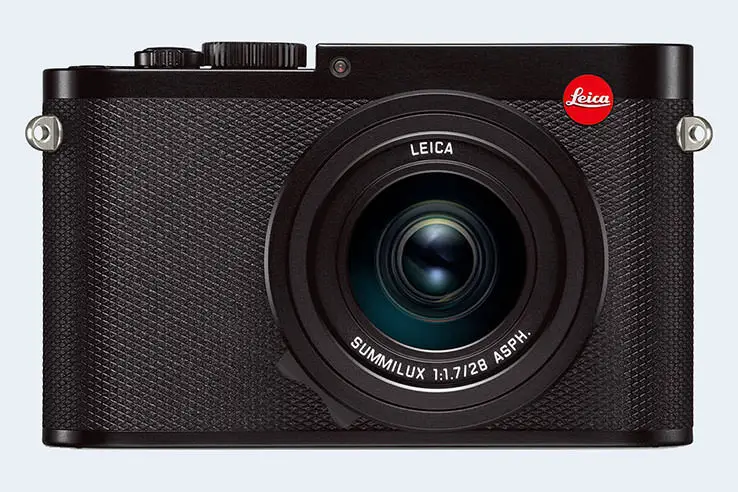

camera

In any case, the Q Typ 116 is an advanced imaging tool, whose many features merit serious attention. This fixed lens compact camera was announced on June 10th, 2015, which means that, as of today, the camera is 3200 days old (young?). The camera has meanwhile been discontinued and was succeeded by the Leica Q2 as a replacement in the same line of cameras.

ad

Leica's instruction manual for the Q Typ 116

The camera's instruction manual is 258 pages long. The pdf version is embedded below. As you browse through, you will hopefully find the information you are looking for. You can also print out a hard copy by right clicking on the manual and then choosing the respective menu option. For convenience, a summary of the key specs of the Q Typ 116 is included towards the bottom of this webpage.

Don't forget to bookmark this page for future reference (Ctrl-Shift-D on a Windows PC; Cmd-Shift-D on a Mac). Happy browsing!

Click on the button below to download the pdf version of the Leica Q (Typ 116) manual to your computer. The file will open in a new browser window.

Download the Manual

If you prefer to read the user guide in another language, please check the respective availability on Leica's support site. That site also provides complementary online resources, such as information on the compatibility of various camera accessories or the availability of firmware updates that are not necessarily comprehensively covered in the instruction manual.

Printed, hardcopy versions of the Leica Q Typ 116 manual can sometimes be found online. You can check the availability on amazon and ebay via the buttons below.

amazon.com ebay.com

ad

Video tutorial for the Leica Q (Typ 116)

Perhaps instead of reading through a manual or operations guide, you might prefer to better familiarize yourself with your Q Typ 116 by watching a video tutorial. It can notably help to quickly get to know the key functions and to set up your camera according to your particular preferences and needs.

Once again, the Leica Q Typ 116 is a sophisticated imaging tool and not exploiting its capabilities to the full would be a pity. Hence, taking the time to study online information material or to read through a well-written camera guide book is highly recommended to make the most of your purchase.

Find Q Typ 116 guide book at
amazon.com

Leica Q Typ 116 FAQ

Below are some additional questions and answers concerning some particular features of the Q Typ 116.

What technology is the imaging sensor in the Leica Q Typ 116 based on?

The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.

Which image processing chip is used in the Leica Q Typ 116 to convert the raw signal into an image file and perform noise reduction and image sharpening?

Leica equipped the Q Typ 116 with the Maestro II image processor.

What is the ISO sensitivity range of the Leica Q Typ 116?

The camera has a native sensitivity range from ISO 100 to ISO 50000.

Is completely silent shooting possible with the Leica Q Typ 116?

The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.

Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Leica Q Typ 116?

No, the Leica Q (Typ 116) has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Is it difficult to use manual focus lenses with the Leica Q Typ 116?

The Q Typ 116 offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.

What is the fastest shutter speed that can be used with the Leica Q Typ 116 for flash photography?

The Q Typ 116's flash sync speed is 1/500 sec.

Does the Leica Q Typ 116 support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the Leica Q Typ 116 use?

The camera gets its power from the BP-DC12 (here at amazon), which is a rechargeable Lithium-Ion power pack.

ad

Further reading

How does the Q Typ 116 stack up against available alternatives? In case you are interested in seeing how this camera compares to another one, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Core camera specifications

    Here is a list of the main features and technical characteristics of the Leica Q (Typ 116).

    Specifications Summary
    Camera Model Leica Q Typ 116
    Camera Type Fixed lens compact camera
    Camera Lens 28mm f/1.7
    Launch Date June 2015
    Launch Price USD 4 249
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format Full Frame Sensor
    Sensor Size 36.0 x 24.0 mm
    Sensor Area 864 mm2
    Sensor Diagonal 43.3 mm
    Crop Factor 1.0x
    Sensor Resolution 24 Megapixels
    Image Resolution 6 000 x 4 000 pixels
    Pixel Pitch 6.00 μm
    Pixel Density 2.78 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/60p Video
    ISO Setting 100 - 50 000 ISO
    Image Processor Maestro II
    DXO Sensor Quality (score) 85
    DXO Color Depth (bits) 24.3
    DXO Dynamic Range (EV) 12.7
    DXO Low Light (ISO) 2221
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Resolution 3680k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Fixed screen
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/2000s
    Continuous Shooting 10 shutter flaps/s
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash no On-Board Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Wifi Support Wifi built-in
    Near-Field Communication NFC built-in
    Body Specs
    Battery Type BP-DC12 power pack
    Battery Life (CIPA)300 shots per charge
    Body Dimensions 130 x 80 x 93 mm
    (5.1 x 3.1 x 3.7 in)
    Camera Weight 640 g (22.6 oz)
