Canon 800D vs Leica M Typ 240
The Canon EOS 800D (called Canon T7i in some regions) and the Leica M (Typ 240) are two digital cameras that were revealed to the public, respectively, in February 2017 and September 2012. The 800D is a DSLR, while the M Typ 240 is a rangefinder-style mirrorless camera. The cameras are based on an APS-C (800D) and a full frame (M Typ 240) sensor. The Canon has a resolution of 24 megapixels, whereas the Leica provides 23.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 800D||Leica M Typ 240|
|Digital single lens reflex||Rangefinder camera|
|Canon EF mount lenses||Leica M mount lenses|
|24 MP, APS-C Sensor||23.7 MP, Full Frame Sensor|
|1080/60p Video||1080/25p Video|
|ISO 100-25600 (100-51200)||ISO 200-6400|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 1040k dots||3.0" LCD, 920k dots|
|Swivel touchscreen||Fixed screen (not touch-sensitive)|
|6 shutter flaps per second||3 shutter flaps per second|
|Not weather sealed||Weathersealed body|
|131 x 100 x 76 mm, 532 g||139 x 80 x 42 mm, 680 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Leica M (Typ 240)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

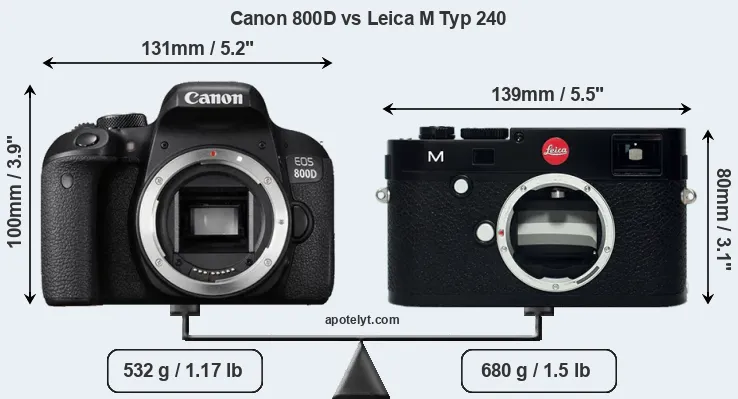

An illustration of the physical size and weight of the Canon 800D and the Leica M Typ 240 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M Typ 240 can be obtained in two different colors (black, silver), while the 800D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M Typ 240 is notably smaller (15 percent) than the Canon 800D. However, the M Typ 240 is markedly heavier (28 percent) than the 800D. It is noteworthy in this context that the M Typ 240 is splash and dust-proof, while the 800D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (800D) and the Leica M Lens Catalog (M Typ 240).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 800D»||5.2 in||3.9 in||3.0 in||18.8 oz||600||n||Feb 2017||749||Canon 800D|
|Leica M Typ 240«||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Sep 2012||6,950||Leica M Typ 240|
|Canon 850D« »||5.2 in||4.1 in||3.0 in||18.2 oz||800||n||Feb 2020||749||Canon 850D|
|Canon 2000D« »||5.1 in||4.0 in||3.1 in||16.8 oz||500||n||Feb 2018||449||Canon 2000D|
|Canon 77D« »||5.2 in||3.9 in||3.0 in||19.0 oz||600||n||Feb 2017||899||Canon 77D|
|Canon 200D« »||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549||Canon 200D|
|Canon M6« »||4.4 in||2.7 in||1.8 in||13.8 oz||295||n||Feb 2017||779||Canon M6|
|Canon 1300D« »||5.1 in||4.0 in||3.1 in||17.1 oz||500||n||Mar 2016||449||Canon 1300D|
|Canon G7 X Mark II« »||4.2 in||2.4 in||1.7 in||11.3 oz||265||n||Feb 2016||699||Canon G7 X Mark II|
|Canon 750D« »||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749||Canon 750D|
|Canon 760D« »||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649||Canon 760D|
|Canon 6D« »||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099||Canon 6D|
|Leica M10-P« »||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Aug 2018||7,995||Leica M10-P|
|Leica M10« »||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Jan 2017||6,595||Leica M10|
|Leica M Typ 262« »||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Nov 2015||5,195||Leica M Typ 262|
|Leica M9« »||5.5 in||3.1 in||1.5 in||20.6 oz||..||n||Sep 2009||7,999||Leica M9|
|Nikon D5600« »||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699||Nikon D5600|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 800D was launched at a markedly lower price (by 89 percent) than the M Typ 240, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 800D features an APS-C sensor and the Leica M Typ 240 a full frame sensor. The sensor area in the M Typ 240 is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

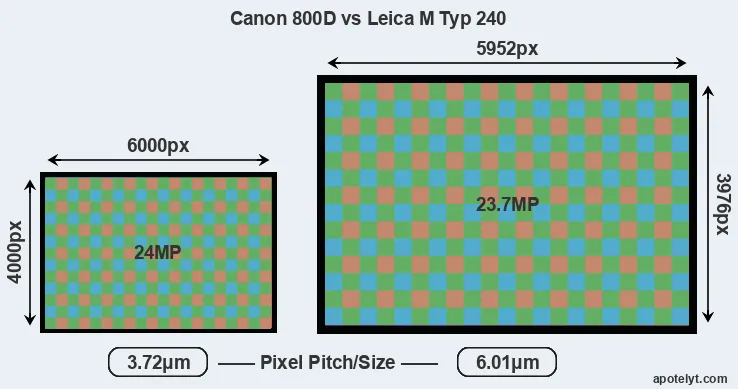

Despite having a smaller sensor, the Canon 800D offers a higher resolution of 24 megapixels, compared with 23.7 MP of the Leica M Typ 240. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.01μm for the M Typ 240). However, it should be noted that the 800D is much more recent (by 4 years and 4 months) than the M Typ 240, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The 800D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Leica M (Typ 240) are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-6400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 800D||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Canon 800D|
|Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84||Leica M Typ 240|
|Canon 850D||APS-C||24.0||6000||4000||4K/24p||..||..||..||..||Canon 850D|
|Canon 2000D||APS-C||24.0||6000||4000||1080/30p||22.6||11.9||1009||71||Canon 2000D|
|Canon 77D||APS-C||24.0||6000||4000||1080/60p||23.6||13.3||971||78||Canon 77D|
|Canon 200D||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon 200D|
|Canon M6||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Canon M6|
|Canon 1300D||APS-C||17.9||5184||3456||1080/30p||..||..||..||..||Canon 1300D|
|Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..||Canon G7 X Mark II|
|Canon 750D||APS-C||24.0||6000||4000||1080/30p||22.7||12.0||919||71||Canon 750D|
|Canon 760D||APS-C||24.0||6000||4000||1080/30p||22.6||12.0||915||70||Canon 760D|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Leica M10-P||Full Frame||23.8||5952||3992||none||..||..||..||..||Leica M10-P|
|Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86||Leica M10|
|Leica M Typ 262||Full Frame||23.7||5952||3976||none||..||..||..||..||Leica M Typ 262|
|Leica M9||Full Frame||18.1||5212||3472||none||22.5||11.7||884||69||Leica M9|
|Nikon D5600||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1306||84||Nikon D5600|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 800D provides a higher frame rate than the M Typ 240. It can shoot video footage at 1080/60p, while the Leica is limited to 1080/25p.
Apart from body and sensor, cameras can and do differ across a range of features. The 800D and the M Typ 240 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M Typ 240 offers a wider field of view (100%) than the one in the 800D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M Typ 240 has a higher magnification (0.68x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 800D and Leica M Typ 240 in connection with corresponding information for a sample of similar cameras.
|Canon 800D||optical||n||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon 800D|
|Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n||Leica M Typ 240|
|Canon 850D||optical||n||3.0||1040||swivel||Y||1/4000s||7.5||Y||n||Canon 850D|
|Canon 2000D||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon 2000D|
|Canon 77D||optical||Y||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon 77D|
|Canon 200D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 200D|
|Canon M6||optional||n||3.0||1040||tilting||Y||1/4000s||9.0||Y||n||Canon M6|
|Canon 1300D||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon 1300D|
|Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y||Canon G7 X Mark II|
|Canon 750D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 750D|
|Canon 760D||optical||Y||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 760D|
|Canon 6D||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Leica M10-P||optical||n||3.0||1037||fixed||Y||1/4000s||5.0||n||n||Leica M10-P|
|Leica M10||optical||n||3.0||1037||fixed||n||1/4000s||5.0||n||n||Leica M10|
|Leica M Typ 262||optical||n||3.0||921||fixed||n||1/4000s||3.0||n||n||Leica M Typ 262|
|Leica M9||optical||n||2.5||230||fixed||n||1/4000s||2.0||n||n||Leica M9|
|Nikon D5600||optical||n||3.2||1037||swivel||Y||1/4000s||5.0||Y||n||Nikon D5600|
One difference between the cameras concerns the presence of an on-board flash. The 800D has one, while the M Typ 240 does not. While the built-in flash of the 800D is not very powerful, it can at times be useful as a fill-in light.The 800D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the M Typ 240 does not have a selfie-screen.
Concerning the storage of imaging data, both the 800D and the M Typ 240 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Leica M (Typ 240) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 800D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 800D|
|Leica M Typ 240||Y||stereo||mono||-||-||none||2.0||-||-||-||Leica M Typ 240|
|Canon 850D||Y||stereo||mono||Y||-||mini||2.0||Y||-||Y||Canon 850D|
|Canon 2000D||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon 2000D|
|Canon 77D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 77D|
|Canon 200D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 200D|
|Canon M6||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon M6|
|Canon 1300D||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon 1300D|
|Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Canon G7 X Mark II|
|Canon 750D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 750D|
|Canon 760D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 760D|
|Canon 6D||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Leica M10-P||Y||none||none||-||-||none||none||Y||-||-||Leica M10-P|
|Leica M10||Y||none||none||-||-||none||none||Y||-||-||Leica M10|
|Leica M Typ 262||Y||none||none||-||-||none||2.0||-||-||-||Leica M Typ 262|
|Leica M9||Y||none||none||-||-||none||2.0||-||-||-||Leica M9|
|Nikon D5600||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Nikon D5600|
It is notable that the 800D has a microphone port, which is missing on the M Typ 240. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 800D and the M Typ 240 have been discontinued, but can regularly be found used on eBay. The M Typ 240 was replaced by the Leica M Typ 262, while the 800D was followed by the Canon 850D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So how do things add up? Is the Canon 800D better than the Leica M Typ 240 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 800D:
- Better video: Provides higher movie framerates (1080/60p versus 1080/25p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
- Less heavy: Is lighter (by 148g or 22 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (89 percent cheaper at launch).
- More modern: Reflects 4 years and 4 months of technical progress since the M Typ 240 launch.
Reasons to prefer the Leica M (Typ 240):
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.68x vs 0.51x).
- More compact: Is smaller (139x80mm vs 131x100mm) and will fit more readily into a bag.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More heavily discounted: Has been around for much longer (launched in September 2012).
If the number of relative strengths (bullet points above) is taken as a guide, the 800D is the clear winner of the match-up (15 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 800D or the M Typ 240. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 800D vs Fujifilm X-A5
- Canon 800D vs Fujifilm X-T30
- Canon 800D vs Nikon D600
- Canon 800D vs Nikon P950
- Canon 800D vs Panasonic FZ150
- Canon 800D vs Sony A6300
- Canon G7 X Mark III vs Leica M Typ 240
- Leica M Typ 240 vs Olympus E-PL1
- Leica M Typ 240 vs Olympus E-PL8
- Leica M Typ 240 vs Panasonic FZ200
- Leica M Typ 240 vs Panasonic G1
- Leica M Typ 240 vs Sony A900
Specifications: Canon 800D vs Leica M Typ 240
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 800D||Leica M Typ 240|
|Camera Type||Digital single lens reflex||Rangefinder camera|
|Camera Lens||Canon EF mount lenses||Leica M mount lenses|
|Launch Date||February 2017||September 2012|
|Launch Price||USD 749||USD 6950|
|Sensor Specs||Canon 800D||Leica M Typ 240|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||35.8 x 23.9 mm|
|Sensor Area||332.27 mm2||855.62 mm2|
|Sensor Diagonal||26.8 mm||43 mm|
|Sensor Resolution||24 Megapixels||23.7 Megapixels|
|Image Resolution||6000 x 4000 pixels||5952 x 3976 pixels|
|Pixel Pitch||3.72 μm||6.01 μm|
|Pixel Density||7.22 MP/cm2||2.77 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/25p Video|
|ISO Setting||100-25600 ISO||200-6400 ISO|
|ISO Boost||100-51200 ISO||100-6400 ISO|
|DXO Sensor Quality (score)||..||84|
|DXO Color Depth (bits)||..||24.0|
|DXO Dynamic Range (EV)||..||13.3|
|DXO Low Light (ISO)||..||1860|
|Screen Specs||Canon 800D||Leica M Typ 240|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 800D||Leica M Typ 240|
|Focus System||Phase-detect AF||Manual Focus|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000/s||1/4000/s|
|Continuous Shooting||6 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 800D||Leica M Typ 240|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon 800D||Leica M Typ 240|
|Environmental Sealing||Not weather sealed||Weathersealed body|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
139 x 80 x 42 mm
(5.5 x 3.1 x 1.7 in)
|Camera Weight||532 g (18.8 oz)||680 g (24.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
