Canon 77D vs XTi

The Canon EOS 77D and the Canon EOS Rebel XTi (labelled Canon 400D in some countries) are two digital cameras that were officially introduced, respectively, in February 2017 and August 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 77D has a resolution of 24 megapixels, whereas the XTi provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 77D		Canon XTi
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
24 MP – APS-C sensor		10.1 MP – APS-C sensor
1080/60p Video		no Video
ISO 100-25,600 (100 - 51,200)		ISO 100-1,600
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		2.5" LCD – 230k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
6 shutter flaps per second		3 shutter flaps per second
600 shots per battery charge		370 shots per battery charge
131 x 100 x 76 mm, 540 g		127 x 84 x 65 mm, 556 g

Check 77D offers at
ebay.com
Check XTi offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Canon EOS Rebel XTi? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon 77D and the Canon XTi are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XTi is notably smaller (19 percent) than the Canon 77D. However, the XTi is slightly heavier (3 percent) than the 77D. In this context, it is worth noting that neither the 77D nor the XTi are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 77D gets 600 shots out of its Canon LP-E17 battery, while the XTi can take 370 images on a single charge of its Canon NB-2LH power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
2.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
4.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
6.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
7.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
8.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
9.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
10.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
11.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
12.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
13.		Canon T7i	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	749	ebay.com
14.		Canon T8i	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	749	ebay.com
15.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
16.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XTi was launched at a somewhat lower price (by 11 percent) than the 77D, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

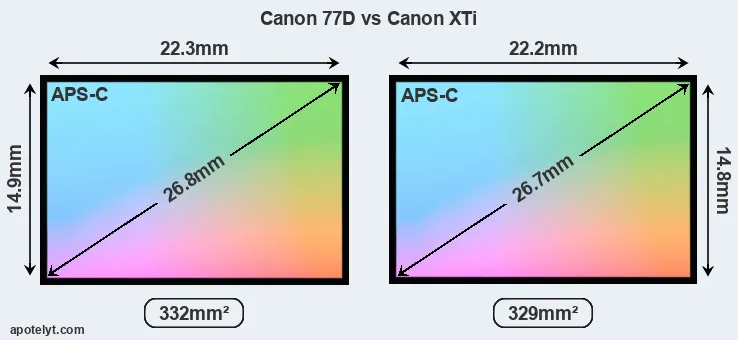

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the XTi is 1 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the 77D uses a more advanced image processing engine (DIGIC 7) than the XTi (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.

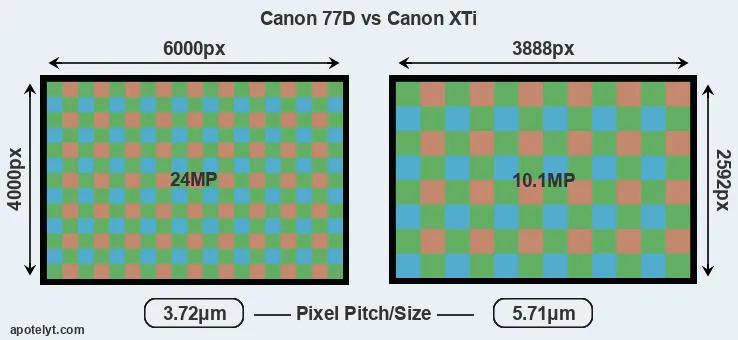

With 24MP, the 77D offers a higher resolution than the XTi (10.1MP), but the 77D has smaller individual pixels (pixel pitch of 3.72μm versus 5.71μm for the XTi). However, the 77D is a much more recent model (by 10 years and 5 months) than the XTi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS Rebel XTi are ISO 100 to ISO 1600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 77D provides substantially higher image quality than the XTi, with an overall score that is 16 points higher. This advantage is based on 1.5 bits higher color depth, 2.3 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
2.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
8.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
9.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
10.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
11.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
13.		Canon T7i	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
14.		Canon T8i	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
15.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
16.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The 77D indeed provides movie recording capabilities, while the XTi does not. The highest resolution format that the 77D can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The 77D and the XTi are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 77D has a higher magnification than the one of the XTi (0.51x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 77D, the Canon XTi, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
2.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
8.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
13.		Canon T7i	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
14.		Canon T8i	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
15.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 77D, but is missing on the XTi is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 77D writes its imaging data to SDXC cards, while the XTi uses Compact Flash cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Canon EOS Rebel XTi and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Canon T7i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
14.		Canon T8i	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
15.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
16.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the 77D offers wifi support, while the XTi does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the 77D and the XTi have been discontinued, but can regularly be found used on ebay. The XTi was replaced by the Canon Xsi, while the 77D does not have a direct successor. Further information on the features and operation of the 77D and XTi can be found, respectively, in the Canon 77D Manual (free pdf) or the online Canon XTi Manual.

Review summary

So what is the bottom line? Is the Canon 77D better than the Canon XTi or vice versa? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS 77D:

• More detail: Offers more megapixels (24 vs 10.1MP) with a 54% higher linear resolution.
• Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.5 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (2.3 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC II).
• Broader imaging potential: Can record not only still images but also 1080/60p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.51x vs 0.49x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Can take more shots (600 versus 370) on a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 10 years and 5 months of technical progress since the XTi launch.

Reasons to prefer the Canon EOS Rebel XTi:

• More compact: Is smaller (127x84mm vs 131x100mm) and will fit more readily into a bag.
• More affordable: Was released into a lower priced segment (11 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in August 2006).

If the count of individual advantages (bullet points above) is taken as a guide, the 77D is the clear winner of the match-up (22 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 77D and the Canon XTi place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 77D and the XTi in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
2.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
4.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
6.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
7.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
8.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
9.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
10.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
11.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
12.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
13.		Canon T7i	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	749	ebay.com
14.		Canon T8i	4.5/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	749	ebay.com
15.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
16.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
