Canon 760D vs M6 Mark II
The Canon EOS 760D (called Canon T6s in some regions) and the Canon EOS M6 Mark II are two digital cameras that were officially introduced, respectively, in February 2015 and August 2019. The 760D is a DSLR, while the M6 Mark II is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The 760D has a resolution of 24 megapixels, whereas the M6 Mark II provides 32.3 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 760D and the Canon EOS M6 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

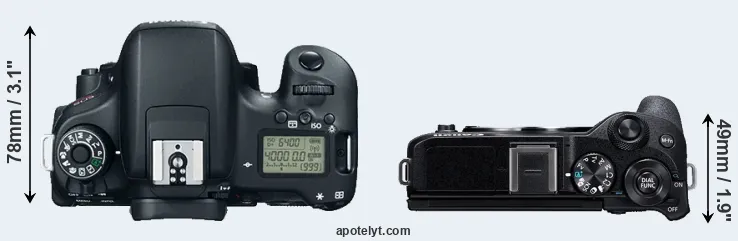

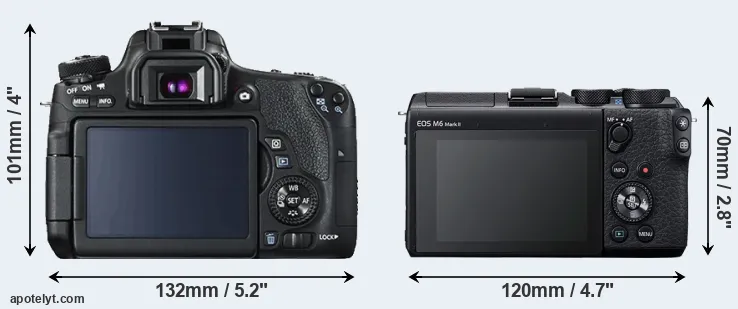

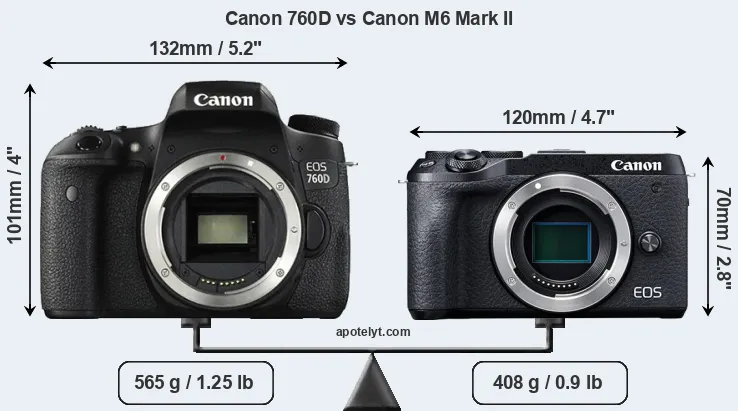

The side-by-side display below illustrates the physical size and weight of the Canon 760D and the Canon M6 Mark II. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M6 Mark II is considerably smaller (37 percent) than the Canon 760D. Moreover, the M6 Mark II is markedly lighter (28 percent) than the 760D. In this context, it is worth noting that neither the 760D nor the M6 Mark II are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the M6 Mark II can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|2.||Canon M6 Mark II||120 mm||70 mm||49 mm||408 g||305||n||Aug 2019||849||amazon.com|
|3.||Canon M50 Mark II||116 mm||88 mm||59 mm||387 g||305||n||Oct 2020||599||amazon.com|
|4.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|5.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779||ebay.com|
|6.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|7.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|8.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779||ebay.com|
|9.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|10.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|11.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|12.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|13.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799||ebay.com|
|14.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|15.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|16.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 760D was launched at a somewhat lower price (by 24 percent) than the M6 Mark II, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

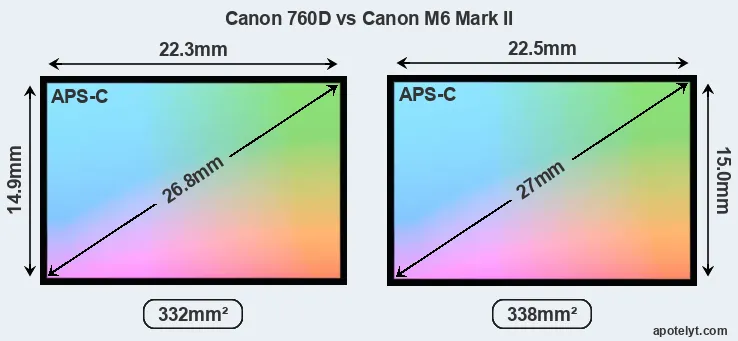

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the M6 Mark II is 2 percent bigger. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the M6 Mark II uses a more advanced image processing engine (DIGIC 8) than the 760D (DIGIC 6), with benefits for noise reduction, color accuracy, and processing speed.

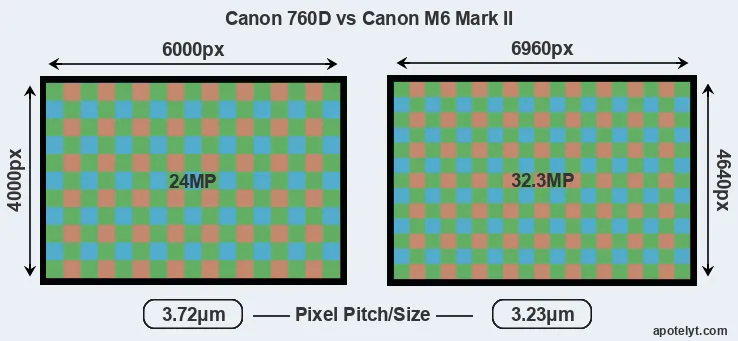

With 32.3MP, the M6 Mark II offers a higher resolution than the 760D (24MP), but the M6 Mark II has smaller individual pixels (pixel pitch of 3.23μm versus 3.72μm for the 760D). Yet, the M6 Mark II is a much more recent model (by 4 years and 6 months) than the 760D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon M6 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 Mark II for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Canon 760D are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.
The Canon EOS 760D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS M6 Mark II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Canon M6 Mark II||APS-C||32.3||6960||4640||4K/30p||24.0||13.5||1848||83|
|3.||Canon M50 Mark II||APS-C||24.0||6000||4000||4K/24p||24.0||13.6||1939||83|
|13.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|14.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M6 Mark II provides a better video resolution than the 760D. It can shoot movie footage at 4K/30p, while the 760D is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 760D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M6 Mark II relies on live view and the rear LCD for framing. That said, the M6 Mark II can be equipped with an optional viewfinder – the EVF-DC2. The adjacent table lists some of the other core features of the Canon 760D and Canon M6 Mark II along with similar information for a selection of comparators.
|1.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Canon M6 Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||14.0/s||Y||n|
|3.||Canon M50 Mark II||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|4.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|5.||Canon M50||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|6.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|7.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|8.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|9.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|10.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|12.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|13.||Canon G1 X Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||5.2/s||Y||Y|
|14.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|15.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|16.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the 760D, but is missing on the M6 Mark II is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the M6 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon M6 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 760D and the M6 Mark II write their files to SDXC cards. The M6 Mark II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 760D can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 760D and Canon EOS M6 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Canon M6 Mark II||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|3.||Canon M50 Mark II||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon M50||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|6.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|9.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|10.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|12.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Canon G1 X Mark II||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|14.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|15.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|16.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
The M6 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the 760D has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 760D was succeeded by the Canon 77D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So how do things add up? Is there a clear favorite between the Canon 760D and the Canon M6 Mark II? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 760D:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Longer lasting: Can take more shots (440 versus 305) on a single battery charge.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced segment (24 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in February 2015).
Arguments in favor of the Canon EOS M6 Mark II:
- More detail: Has more megapixels (32.3 vs 24MP), which boosts linear resolution by 16%.
- Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 6).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Faster burst: Shoots at higher frequency (14 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (120x70mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 157g or 28 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 4 years and 6 months of technical progress since the 760D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the M6 Mark II is the clear winner of the contest (13 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 760D and the Canon M6 Mark II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 760D or the M6 Mark II. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|2.||Canon M6 Mark II||..||+||4.5/5||85/100||4/5||4/5||Aug 2019||849||amazon.com|
|3.||Canon M50 Mark II||4/5||..||4/5||..||4.5/5||3.5/5||Oct 2020||599||amazon.com|
|4.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|5.||Canon M50||..||+||4/5||79/100||..||3.5/5||Feb 2018||779||ebay.com|
|6.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|7.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|8.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779||ebay.com|
|9.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|10.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|11.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|12.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|13.||Canon G1 X Mark II||3/5||+||..||77/100||4/5||4.5/5||Feb 2014||799||ebay.com|
|14.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|15.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|16.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark II vs Canon 760D
- Canon 1Ds Mark III vs Canon 760D
- Canon 250D vs Canon 760D
- Canon 450D vs Canon M6 Mark II
- Canon 760D vs Panasonic G2
- Canon 760D vs Panasonic G9
- Canon 760D vs Sony A5000
- Canon G7 X vs Canon M6 Mark II
- Canon M6 Mark II vs Nikon D1
- Canon M6 Mark II vs Nikon D300S
- Canon M6 Mark II vs Panasonic GF1
- Canon M6 Mark II vs Pentax K-500
Specifications: Canon 760D vs Canon M6 Mark II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 760D||Canon M6 Mark II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon EF-M mount lenses|
|Launch Date||February 2015||August 2019|
|Launch Price||USD 649||USD 849|
|Sensor Specs||Canon 760D||Canon M6 Mark II|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.5 x 15.0 mm|
|Sensor Area||332.27 mm2||337.5 mm2|
|Sensor Diagonal||26.8 mm||27 mm|
|Sensor Resolution||24 Megapixels||32.3 Megapixels|
|Image Resolution||6000 x 4000 pixels||6960 x 4640 pixels|
|Pixel Pitch||3.72 μm||3.23 μm|
|Pixel Density||7.22 MP/cm2||9.57 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 6||DIGIC 8|
|DXO Sensor Quality (score)||70||..|
|DXO Color Depth (bits)||22.6||..|
|DXO Dynamic Range (EV)||12.0||..|
|DXO Low Light (ISO)||915||..|
|Screen Specs||Canon 760D||Canon M6 Mark II|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon 760D||Canon M6 Mark II|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||5 shutter flaps/s||14 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon 760D||Canon M6 Mark II|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 760D||Canon M6 Mark II|
|Battery Life (CIPA)||440 shots per charge||305 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
120 x 70 x 49 mm
(4.7 x 2.8 x 1.9 in)
|Camera Weight||565 g (19.9 oz)||408 g (14.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
