Canon 700D vs Olympus E-PL3
The Canon EOS 700D (called Canon T5i in some regions) and the Olympus PEN E-PL3 are two digital cameras that were announced, respectively, in March 2013 and June 2011. The 700D is a DSLR, while the E-PL3 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (700D) and a Four Thirds (E-PL3) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 700D and the Olympus PEN E-PL3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

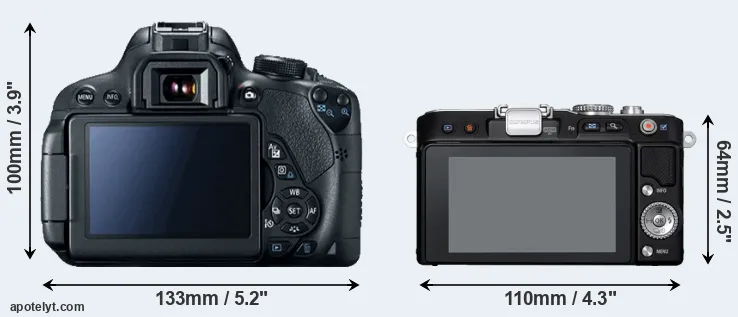

The side-by-side display below illustrates the physical size and weight of the Canon 700D and the Olympus E-PL3. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL3 can be obtained in four different colors (black, silver, red, white), while the 700D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL3 is considerably smaller (47 percent) than the Canon 700D. Moreover, the E-PL3 is substantially lighter (46 percent) than the 700D. In this context, it is worth noting that neither the 700D nor the E-PL3 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (700D) and the Micro Four Thirds Lens Catalog (E-PL3). Mirrorless cameras, such as the E-PL3, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|2.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599||ebay.com|
|3.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|4.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|5.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|6.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|7.||Canon 100D||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|8.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|9.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|10.||Canon 600D||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|11.||Canon 550D||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|12.||Canon 500D||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|13.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599||ebay.com|
|14.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799||ebay.com|
|15.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599||ebay.com|
|16.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499||ebay.com|
|17.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL3 was somewhat cheaper (by 8 percent) than the 700D at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

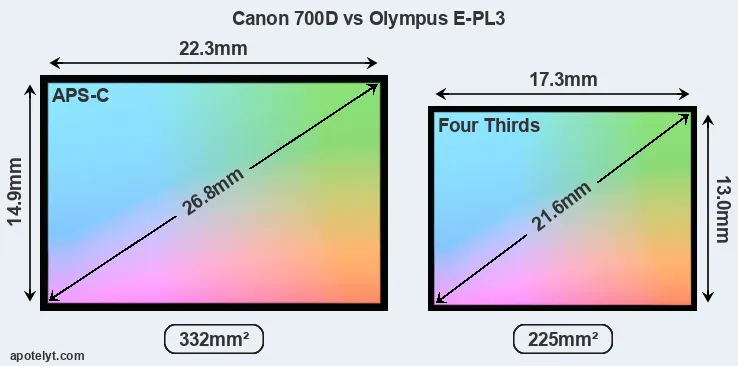

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 700D features an APS-C sensor and the Olympus E-PL3 a Four Thirds sensor. The sensor area in the E-PL3 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 700D has a native 3:2 aspect ratio, while the one in the E-PL3 offers a 4:3 aspect.
With 17.9MP, the 700D offers a higher resolution than the E-PL3 (12.2MP), but the 700D nevertheless has marginally larger individual pixels (pixel pitch of 4.31μm versus 4.29μm for the E-PL3) due to its larger sensor. Moreover, the 700D is a somewhat more recent model (by 1 year and 8 months) than the E-PL3, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 700D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 700D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-PL3 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The 700D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 700D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PL3 are ISO 200 to ISO 12800 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 700D has a notably higher overall DXO score than the E-PL3 (overall score 9 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.8 bits higher color depth, 0.9 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|6.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|14.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|15.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|16.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|17.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-PL3 provides a faster frame rate than the 700D. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 700D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL3 relies on live view and the rear LCD for framing. That said, the E-PL3 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Canon 700D, the Olympus E-PL3, and comparable cameras.
|1.||Canon 700D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5/s||n||Y|
|3.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|4.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|7.||Canon 100D||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|8.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|10.||Canon 600D||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|11.||Canon 550D||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|12.||Canon 500D||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|13.||Olympus E-PL5||optional||n||3.0 / 460||tilting||Y||1/4000s||8.0/s||n||Y|
|14.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0/s||Y||Y|
|15.||Olympus E-PL2||optional||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||Y|
|16.||Olympus E-PM1||optional||n||3.0 / 460||fixed||n||1/4000s||5.5/s||n||Y|
|17.||Olympus E-PL1||optional||n||2.7 / 230||fixed||n||1/2000s||3.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The 700D has one, while the E-PL3 does not. While the built-in flash of the 700D is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
Concerning the storage of imaging data, both the 700D and the E-PL3 write their files to SDXC cards. The 700D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL3 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 700D and Olympus PEN E-PL3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 700D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon 100D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon 600D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 550D||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|12.||Canon 500D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Olympus E-PL5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|14.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Olympus E-PL2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|16.||Olympus E-PM1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Olympus E-PL1||Y||stereo / -||-||-||mini||2.0||-||-||-|
It is notable that the 700D has a microphone port, which is missing on the E-PL3. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 700D and the E-PL3 have been discontinued, but can regularly be found used on ebay. The E-PL3 was replaced by the Olympus E-PL5, while the 700D was followed by the Canon 750D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is the Canon 700D better than the Olympus E-PL3 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 700D:
- More detail: Offers more megapixels (17.9 vs 12.2MP) with a 24% higher linear resolution.
- Better image quality: Scores markedly higher (9 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.9 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Longer lasting: Can take more shots (440 versus 300) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Is somewhat more recent (announced 1 year and 8 months after the E-PL3).
Reasons to prefer the Olympus PEN E-PL3:
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- More compact: Is smaller (110x64mm vs 133x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 267g or 46 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More heavily discounted: Has been on the market for longer (launched in June 2011).
If the number of relative strengths (bullet points above) is taken as a guide, the 700D is the clear winner of the match-up (14 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 700D and the Olympus E-PL3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 700D or the E-PL3 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 700D||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|2.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599||ebay.com|
|3.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|4.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|5.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|6.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|7.||Canon 100D||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|8.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|9.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|10.||Canon 600D||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|11.||Canon 550D||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|12.||Canon 500D||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|13.||Olympus E-PL5||3/5||+ +||..||..||4.5/5||4.5/5||Sep 2012||599||ebay.com|
|14.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799||ebay.com|
|15.||Olympus E-PL2||3/5||83/100||..||71/100||4.5/5||4.5/5||Jan 2011||599||ebay.com|
|16.||Olympus E-PM1||..||86/100||..||71/100||4.5/5||4.5/5||Jun 2011||499||ebay.com|
|17.||Olympus E-PL1||..||86/100||..||69/100||4/5||4.5/5||Feb 2010||599||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 60D vs Canon 700D
- Canon 700D vs Canon 7D
- Canon 700D vs Nikon A1000
- Canon 700D vs Olympus E-30
- Canon 700D vs Panasonic TZ90
- Canon 700D vs Sony A6000
- Hasselblad X1D II vs Olympus E-PL3
- Nikon L840 vs Olympus E-PL3
- Olympus E-M10 II vs Olympus E-PL3
- Olympus E-PL3 vs Panasonic LX100
- Olympus E-PL3 vs Pentax K-3 II
- Olympus E-PL3 vs Sony A9
Specifications: Canon 700D vs Olympus E-PL3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 700D||Olympus E-PL3|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||March 2013||June 2011|
|Launch Price||USD 649||USD 599|
|Sensor Specs||Canon 700D||Olympus E-PL3|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||12.2 Megapixels|
|Image Resolution||5184 x 3456 pixels||4032 x 3024 pixels|
|Pixel Pitch||4.31 μm||4.29 μm|
|Pixel Density||5.39 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 12,800 ISO||200 - 12,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 5||Truepic VI|
|DXO Sensor Quality (score)||61||52|
|DXO Color Depth (bits)||21.7||20.9|
|DXO Dynamic Range (EV)||11.2||10.3|
|DXO Low Light (ISO)||681||499|
|Screen Specs||Canon 700D||Olympus E-PL3|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 700D||Olympus E-PL3|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5 shutter flaps/s||5.5 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 700D||Olympus E-PL3|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 700D||Olympus E-PL3|
|Battery Life (CIPA)||440 shots per charge||300 shots per charge|
133 x 100 x 79 mm
(5.2 x 3.9 x 3.1 in)
110 x 64 x 37 mm
(4.3 x 2.5 x 1.5 in)
|Camera Weight||580 g (20.5 oz)||313 g (11.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
