Canon 6D Mark II vs R100

The Canon EOS 6D Mark II and the Canon EOS R100 are two digital cameras that were revealed to the public, respectively, in June 2017 and May 2023. The 6D Mark II is a DSLR, while the R100 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (6D Mark II) and an APS-C (R100) sensor. The 6D Mark II has a resolution of 26 megapixels, whereas the R100 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 6D Mark II		Canon R100
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses
26 MP – Full Frame sensor		24 MP – APS-C sensor
1080/60p Video		4k/24p Video
ISO 100-40,000 (50 - 102,400)		ISO 100-25,600
Optical viewfinder		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
6.5 shutter flaps per second		6.5 shutter flaps per second
Weathersealed body		not weather sealed
1200 shots per battery charge		400 shots per battery charge
144 x 111 x 75 mm, 765 g		116 x 86 x 69 mm, 356 g

Check 6D Mark II price at
amazon.com
Check R100 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 6D Mark II and the Canon EOS R100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

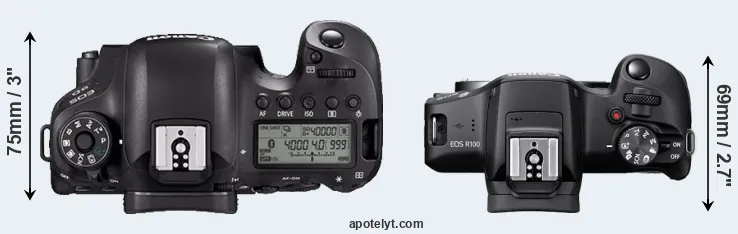

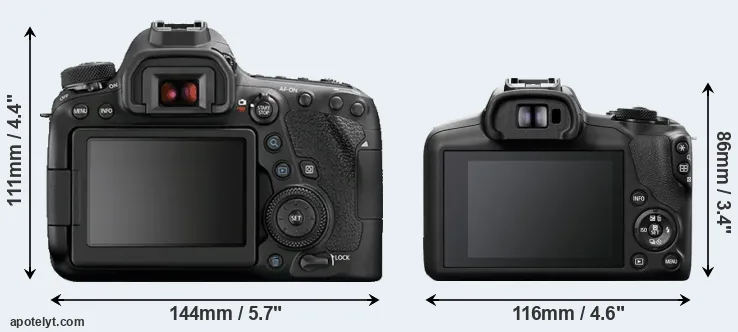

An illustration of the physical size and weight of the Canon 6D Mark II and the Canon R100 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R100 is considerably smaller (38 percent) than the Canon 6D Mark II. Moreover, the R100 is substantially lighter (53 percent) than the 6D Mark II. It is worth mentioning in this context that the 6D Mark II is splash and dust resistant, while the R100 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 6D Mark II gets 1200 shots out of its Canon LP-E6N battery, while the R100 can take 400 images on a single charge of its Canon LP-E17 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
2.		Canon R100	116 mm	86 mm	69 mm	356 g	400	n	May 2023	US$ 479	amazon.com
3.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
4.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	US$ 3 499	ebay.com
5.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
6.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
7.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
8.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
9.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	US$ 549	ebay.com
10.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	US$ 2 299	ebay.com
11.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
12.		Canon R50	116 mm	86 mm	69 mm	375 g	230	n	Feb 2023	US$ 679	amazon.com
13.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
14.		Nikon D600	141 mm	113 mm	82 mm	850 g	900	Y	Sep 2012	US$ 2 099	ebay.com
15.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
16.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	US$ 2 299	ebay.com
17.		Sony A7 III	127 mm	96 mm	74 mm	650 g	610	Y	Feb 2018	US$ 1 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The R100 was launched at a markedly lower price (by 76 percent) than the 6D Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

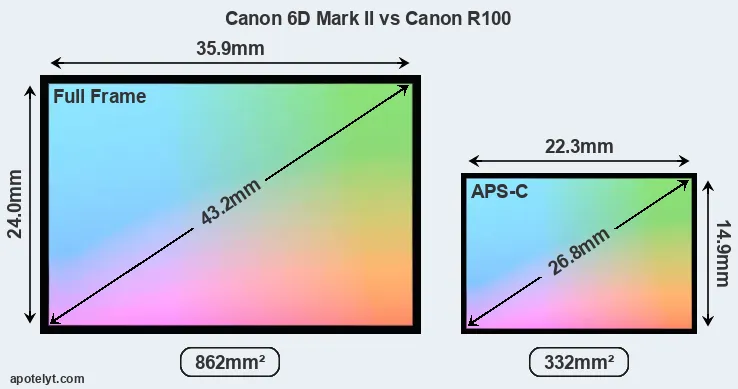

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 6D Mark II features a full frame sensor and the Canon R100 an APS-C sensor. The sensor area in the R100 is 61 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the R100 uses a more advanced image processing engine (DIGIC 8) than the 6D Mark II (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.

With 26MP, the 6D Mark II offers a slightly higher resolution than the R100 (24MP), but the 6D Mark II nevertheless has larger individual pixels (pixel pitch of 5.76μm versus 3.72μm for the R100) due to its larger sensor. However, the R100 is a much more recent model (by 5 years and 10 months) than the 6D Mark II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the R100 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS 6D Mark II has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS R100 are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
2.		Canon R100	APS-C	24.0	6000	4000	4k/24p	24.1	13.9	2197	84
3.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
4.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
5.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
6.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
7.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
8.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
9.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
10.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
11.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
12.		Canon R50	APS-C	24.0	6000	4000	4K/30p	24.1	13.9	2168	84
13.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
14.		Nikon D600	Full Frame	24.2	6016	4016	1080/30p	25.1	14.2	2980	94
15.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
16.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
17.		Sony A7 III	Full Frame	24.0	6000	4000	4K/30p	25.0	14.7	3730	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the R100 provides a better video resolution than the 6D Mark II. It can shoot movie footage at 4k/24p, while the 6D Mark II is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the R100 has an electronic viewfinder (2360k dots), while the 6D Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the R100 offers a wider field of view (100%) than the one in the 6D Mark II (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 6D Mark II has a higher magnification (0.72x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 6D Mark II and Canon R100 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
2.		Canon R100	2360	n	3.0 / 1040	fixed	n	1/4000s	6.5/s	Y	n
3.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
4.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
5.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
6.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
7.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
8.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
9.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
11.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
12.		Canon R50	2360	n	3.0 / 1620	swivel	Y	1/4000s	12.0/s	Y	n
13.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Nikon D600	optical	Y	3.0 / 921	fixed	n	1/4000s	5.5/s	Y	n
15.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
16.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
17.		Sony A7 III	2359	n	3.0 / 922	tilting	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 6D Mark II, but is missing on the R100 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R100 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 6D Mark II and the Canon R100 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 6D Mark II and the R100 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 6D Mark II and Canon EOS R100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Canon R100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
5.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
6.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
7.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
8.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
11.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
12.		Canon R50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
13.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
14.		Nikon D600	Y	mono / mono	Y	Y	mini	2.0	-	-	-
15.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
16.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
17.		Sony A7 III	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y

Travel and landscape photographers will find it useful that the 6D Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the 6D Mark II and the R100 are recent models that are part of the current product line-up. The 6D Mark II replaced the earlier Canon 6D, while the R100 does not have a direct predecessor. Further information on the features and operation of the 6D Mark II and R100 can be found, respectively, in the Canon 6D Mark II Manual (free pdf) or the online Canon R100 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 6D Mark II or the Canon R100 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS 6D Mark II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.58x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Longer lasting: Can take more shots (1200 versus 400) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been available for much longer (launched in June 2017).

Arguments in favor of the Canon EOS R100:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 7).
• Better video: Provides higher definition movie capture (4k/24p vs 1080/60p).
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (116x86mm vs 144x111mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 409g or 53 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (76 percent cheaper at launch).
• More modern: Reflects 5 years and 10 months of technical progress since the 6D Mark II launch.

If the number of relative strengths (bullet points above) is taken as a guide, the match-up finishes in a tie (12 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 6D Mark II and the Canon R100 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 6D Mark II and the R100 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
2.		Canon R100	3/5	o	4.5/5	79/100	..	3.5/5	May 2023	US$ 479	amazon.com
3.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
4.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	US$ 3 499	ebay.com
5.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
6.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
7.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
8.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
9.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	US$ 549	ebay.com
10.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	US$ 2 299	ebay.com
11.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
12.		Canon R50	4/5	+ +	4.5/5	84/100	..	4.5/5	Feb 2023	US$ 679	amazon.com
13.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
14.		Nikon D600	4/5	+ +	..	87/100	5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
15.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
16.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	US$ 2 299	ebay.com
17.		Sony A7 III	..	+ +	4.5/5	89/100	5/5	5/5	Feb 2018	US$ 1 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
