Canon 60D vs Sony NEX-3
The Canon EOS 60D and the Sony Alpha NEX-3 are two digital cameras that were revealed to the public, respectively, in August 2010 and May 2010. The 60D is a DSLR, while the NEX-3 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Sony provides 14 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Sony Alpha NEX-3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

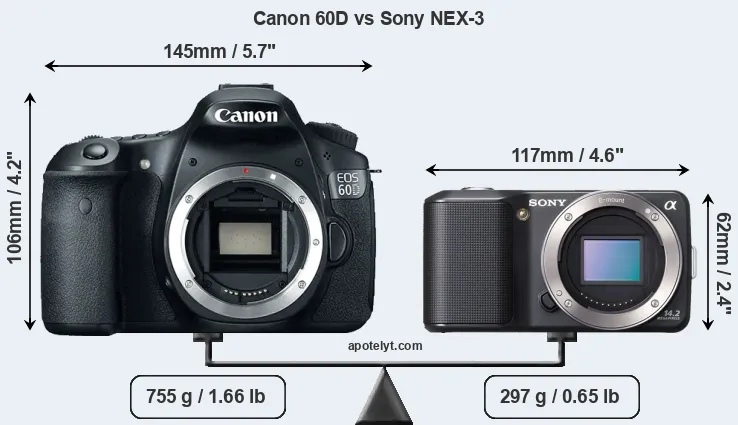

An illustration of the physical size and weight of the Canon 60D and the Sony NEX-3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The NEX-3 can be obtained in three different colors (black, silver, red), while the 60D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-3 is considerably smaller (53 percent) than the Canon 60D. Moreover, the NEX-3 is substantially lighter (61 percent) than the 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the NEX-3 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (60D) and the Sony E-Mount Lens Catalog (NEX-3). Mirrorless cameras, such as the NEX-3, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|2.||Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599|
|3.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|4.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|5.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|6.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|9.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|10.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|11.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|12.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|13.||Sony A5100||110 mm||63 mm||36 mm||283 g||400||n||Aug 2014||549|
|14.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|15.||Sony NEX-5R||111 mm||59 mm||39 mm||276 g||330||n||Aug 2012||749|
|16.||Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699|
|17.||Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NEX-3 was launched at a markedly lower price (by 57 percent) than the 60D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-3 is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (60D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

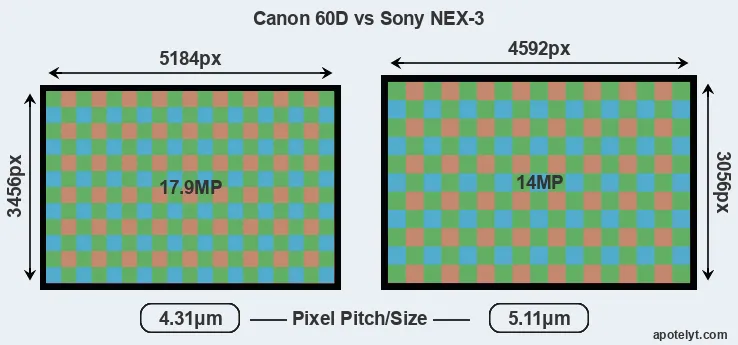

Despite having a smaller sensor, the Canon 60D offers a higher resolution of 17.9 megapixels, compared with 14 MP of the Sony NEX-3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 5.11μm for the NEX-3). However, it should be noted that the 60D is a somewhat more recent model (by 3 months) than the NEX-3, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.
The resolution advantage of the Canon 60D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 60D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Sony NEX-3 are 23 x 15.3 inches or 58.3 x 38.8 cm for good quality, 18.4 x 12.2 inches or 46.7 x 31 cm for very good quality, and 15.3 x 10.2 inches or 38.9 x 25.9 cm for excellent quality prints.
The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Sony Alpha NEX-3 are ISO 200 to ISO 12800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|4.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 60D provides a higher video resolution than the NEX-3. It can shoot video footage at 1080/30p, while the Sony is limited to 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 60D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-3 relies on live view and the rear LCD for framing. That said, the NEX-3 can be equipped with an optional viewfinder – the FDA-SV1. The adjacent table lists some of the other core features of the Canon 60D and Sony NEX-3 along with similar information for a selection of comparators.
|4.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The 60D has one, while the NEX-3 does not. While the built-in flash of the 60D is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The 60D writes its imaging data to SDXC cards, while the NEX-3 uses SDXC or Memory Stick PRO Duo cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Sony Alpha NEX-3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
It is notable that the 60D has a microphone port, which is missing on the NEX-3. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 60D (unlike the NEX-3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 60D and the NEX-3 have been discontinued, but can regularly be found used on eBay. The NEX-3 was replaced by the Sony NEX-3N, while the 60D was followed by the Canon 70D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So how do things add up? Which of the two cameras – the Canon 60D or the Sony NEX-3 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 60D:
- More detail: Offers more megapixels (17.9 vs 14MP) with a 13% higher linear resolution.
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (1100 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Is somewhat more recent (announced 3 months after the NEX-3).
Arguments in favor of the Sony Alpha NEX-3:
- Faster burst: Shoots at higher frequency (7 vs 5.3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (117x62mm vs 145x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 458g or 61 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (57 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in May 2010).
If the number of relative strengths (bullet points above) is taken as a guide, the 60D is the clear winner of the match-up (13 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 60D and the Sony NEX-3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 60D and the NEX-3 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|2.||Sony NEX-3||..||..||70/100||4.5/5||4/5||May 2010||599|
|3.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|4.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|5.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|6.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|7.||Canon T2i||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|9.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|10.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|11.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|12.||Nikon D7000||4/5||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|13.||Sony A5100||4.5/5||+||..||4.5/5||5/5||Aug 2014||549|
|14.||Sony NEX-3N||3/5||..||..||4.5/5||4.5/5||Feb 2013||499|
|15.||Sony NEX-5R||..||..||..||4.5/5||4.5/5||Aug 2012||749|
|16.||Sony NEX-5N||3/5||+ +||79/100||4.5/5||4.5/5||Aug 2011||699|
|17.||Sony NEX-5||3/5||+ +||71/100||4.5/5||4/5||May 2010||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 60D vs Sony NEX-3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 60D||Sony NEX-3|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2010||May 2010|
|Launch Price||USD 1,399||USD 599|
|Sensor Specs||Canon 60D||Sony NEX-3|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.4 x 15.6 mm|
|Sensor Area||332.27 mm2||365.04 mm2|
|Sensor Diagonal||26.8 mm||28.1 mm|
|Sensor Resolution||17.9 Megapixels||14 Megapixels|
|Image Resolution||5184 x 3456 pixels||4592 x 3056 pixels|
|Pixel Pitch||4.31 μm||5.11 μm|
|Pixel Density||5.39 MP/cm2||3.84 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||720/30p Video|
|ISO Setting||100 - 6,400 ISO||200 - 12,800 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4||BIONZ|
|DXO Sensor Quality (score)||66||68|
|DXO Color Depth (bits)||22.2||22.1|
|DXO Dynamic Range (EV)||11.5||12.0|
|DXO Low Light (ISO)||813||830|
|Screen Specs||Canon 60D||Sony NEX-3|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||96%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon 60D||Sony NEX-3|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5.3 shutter flaps/s||7 shutter flaps/s|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Canon 60D||Sony NEX-3|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 60D||Sony NEX-3|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1100 shots per charge||330 shots per charge|
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
117 x 62 x 33 mm
(4.6 x 2.4 x 1.3 in)
|Camera Weight||755 g (26.6 oz)||297 g (10.5 oz)|
