Canon 60D vs Panasonic G80
The Canon EOS 60D and the Panasonic Lumix DMC-G80 (labelled Panasonic G85 in some countries) are two digital cameras that were officially introduced, respectively, in August 2010 and September 2016. The 60D is a DSLR, while the G80 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (60D) and a Four Thirds (G80) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Panasonic Lumix DMC-G80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

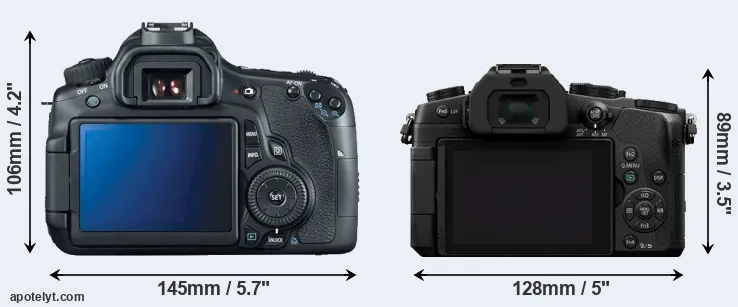

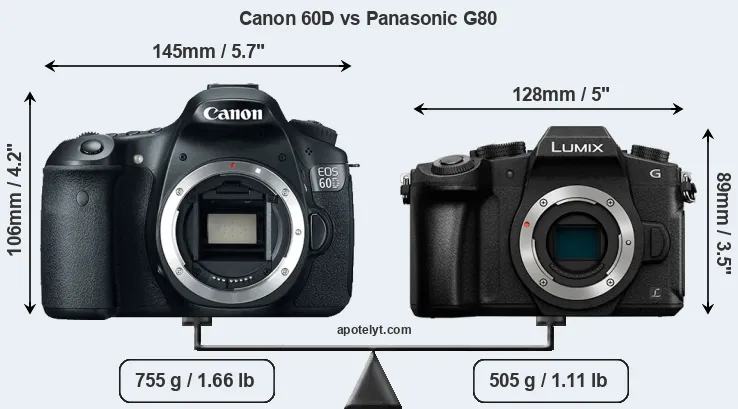

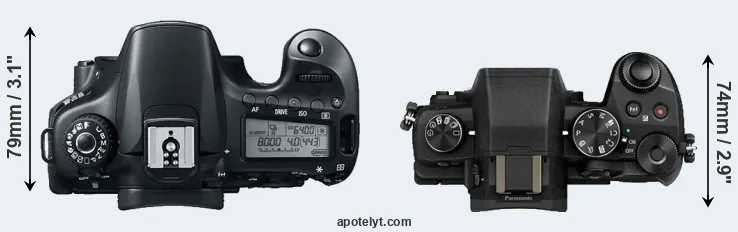

An illustration of the physical size and weight of the Canon 60D and the Panasonic G80 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G80 is notably smaller (26 percent) than the Canon 60D. Moreover, the G80 is markedly lighter (33 percent) than the 60D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (60D) and the Micro Four Thirds Lens Catalog (G80). Mirrorless cameras, such as the G80, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|2.||Panasonic G80||128 mm||89 mm||74 mm||505 g||330||Y||Sep 2016||899|
|3.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|4.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|5.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|6.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|9.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|10.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|11.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|12.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|13.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|14.||Panasonic G90||130 mm||94 mm||77 mm||536 g||290||Y||Apr 2019||999|
|15.||Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|16.||Panasonic GX80||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799|
|17.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G80 was launched at a markedly lower price (by 36 percent) than the 60D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 60D features an APS-C sensor and the Panasonic G80 a Four Thirds sensor. The sensor area in the G80 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 60D has a native 3:2 aspect ratio, while the one in the G80 offers a 4:3 aspect.
With 17.9MP, the 60D offers a higher resolution than the G80 (15.8MP), but the 60D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 3.77μm for the G80) due to its larger sensor. However, the G80 is a much more recent model (by 6 years) than the 60D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the G80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 60D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 60D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Panasonic G80 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.
The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Panasonic Lumix DMC-G80 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the G80 has a markedly higher DXO score than the 60D (overall score 5 points higher), which will translate into better image quality. The advantage is based on 0.6 bits higher color depth, 1 EV in additional dynamic range, and 0.3 stops of reduced low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Panasonic G80||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|4.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|13.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|14.||Panasonic G90||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|15.||Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|16.||Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|17.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G80 provides a better video resolution than the 60D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the G80 has an electronic viewfinder (2360k dots), while the 60D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the G80 offers a wider field of view (100%) than the one in the 60D (96%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the G80 has a higher magnification (0.74x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 60D, the Panasonic G80, and comparable cameras.
|4.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|13.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One feature that is present on the 60D, but is missing on the G80 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the G80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic G80 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 60D and the G80 write their files to SDXC cards. The G80 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 60D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Panasonic Lumix DMC-G80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|13.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
It is notable that the G80 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 60D does not provide wifi capability.
Studio photographers will appreciate that the Canon 60D (unlike the G80) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 60D and the G80 have been discontinued, but can regularly be found used on eBay. The 60D was replaced by the Canon 70D, while the G80 was followed by the Panasonic G90. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Is there a clear favorite between the Canon 60D and the Panasonic G80? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 60D:
- More detail: Offers more megapixels (17.9 vs 15.8MP) with a 8% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (1100 versus 330) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2010).
Arguments in favor of the Panasonic Lumix DMC-G80:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores markedly higher (5 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1 EV of extra DR).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.59x).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (9 vs 5.3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (128x89mm vs 145x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 250g or 33 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
- More affordable: Was introduced into a lower priced category (36 percent cheaper at launch).
- More modern: Reflects 6 years of technical progress since the 60D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the G80 is the clear winner of the contest (19 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 60D and the Panasonic G80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 60D and the G80 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|2.||Panasonic G80||..||+ +||84/100||5/5||4.5/5||Sep 2016||899|
|3.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|4.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|5.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|6.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|7.||Canon T2i||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|9.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|10.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|11.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|12.||Nikon D7000||4/5||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|13.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|14.||Panasonic G90||4.5/5||+||83/100||4.5/5||4.5/5||Apr 2019||999|
|15.||Panasonic GH5||4.5/5||+ +||85/100||4.5/5||5/5||Jan 2017||1,999|
|16.||Panasonic GX80||4.5/5||+ +||82/100||5/5||5/5||Apr 2016||799|
|17.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 60D vs Panasonic G80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 60D||Panasonic G80|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2010||September 2016|
|Launch Price||USD 1,399||USD 899|
|Sensor Specs||Canon 60D||Panasonic G80|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||15.8 Megapixels|
|Image Resolution||5184 x 3456 pixels||4592 x 3448 pixels|
|Pixel Pitch||4.31 μm||3.77 μm|
|Pixel Density||5.39 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 12,800 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 4||Venus|
|DXO Sensor Quality (score)||66||71|
|DXO Color Depth (bits)||22.2||22.8|
|DXO Dynamic Range (EV)||11.5||12.5|
|DXO Low Light (ISO)||813||656|
|Screen Specs||Canon 60D||Panasonic G80|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||96%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 60D||Panasonic G80|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||5.3 shutter flaps/s||9 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-II|
|Connectivity Specs||Canon 60D||Panasonic G80|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 60D||Panasonic G80|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1100 shots per charge||330 shots per charge|
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
128 x 89 x 74 mm
(5.0 x 3.5 x 2.9 in)
|Camera Weight||755 g (26.6 oz)||505 g (17.8 oz)|
