Canon 60D vs Panasonic FZ80
The Canon EOS 60D and the Panasonic Lumix DC-FZ80 (labelled Panasonic FZ82 in some countries) are two digital cameras that were announced, respectively, in August 2010 and January 2017. The 60D is a DSLR, while the FZ80 is a fixed lens compact. The cameras are based on an APS-C (60D) and a 1/2.3-inch (FZ80) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Panasonic provides 18 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Panasonic Lumix DC-FZ80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 60D and the Panasonic FZ80 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic FZ80 is notably smaller (20 percent) than the Canon 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the FZ80 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the FZ80 has a lens built in, whereas the 60D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 60D and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 60D gets 1100 shots out of its LP-E6 battery, while the FZ80 can take 330 images on a single charge of its DMW-BMB9 power pack. The power pack in the FZ80 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|2.||Panasonic FZ80||130 mm||94 mm||119 mm||616 g||330||n||Jan 2017||399|
|3.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|4.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|5.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|6.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|7.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|8.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|9.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|10.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|11.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|12.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|13.||Panasonic TS7||117 mm||76 mm||37 mm||319 g||300||Y||May 2018||449|
|14.||Panasonic ZS70||112 mm||67 mm||41 mm||322 g||380||n||Apr 2017||449|
|15.||Sony HX350||130 mm||93 mm||103 mm||652 g||300||n||Dec 2016||449|
|16.||Sony RX10 II||129 mm||88 mm||102 mm||813 g||400||Y||Jun 2015||1,299|
|17.||Sony RX10||129 mm||88 mm||102 mm||813 g||420||Y||Oct 2013||1,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The FZ80 was launched at a lower price than the 60D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

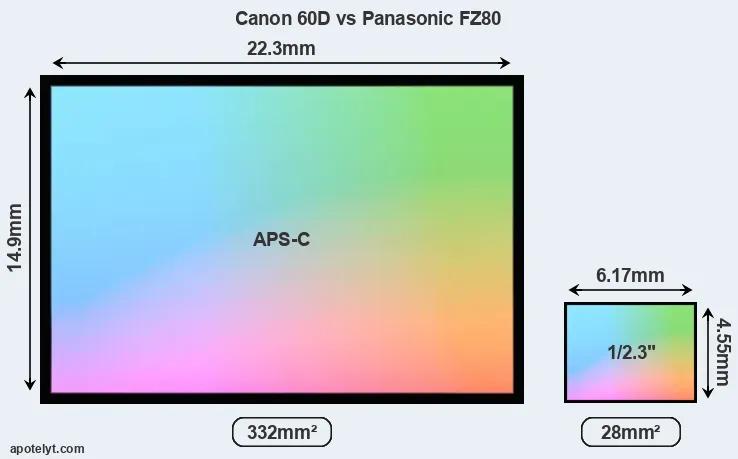

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 60D features an APS-C sensor and the Panasonic FZ80 a 1/2.3-inch sensor. The sensor area in the FZ80 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 60D has a native 3:2 aspect ratio, while the one in the FZ80 offers a 4:3 aspect.
Despite having a smaller sensor, the FZ80 offers a slightly higher resolution of 18 megapixels, compared with 17.9 MP of the 60D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.25μm versus 4.31μm for the 60D). However, it should be noted that the FZ80 is much more recent (by 6 years and 4 months) than the 60D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the FZ80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Panasonic Lumix DC-FZ80 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|6.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|7.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|9.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|16.||Sony RX10 II||1-inch||20.0||5472||3648||4K/30p||23.0||12.6||531||70|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the FZ80 provides a better video resolution than the 60D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the FZ80 has an electronic viewfinder (1166k dots), while the 60D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the FZ80 offers a wider field of view (100%) than the one in the 60D (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 60D has a higher magnification (0.59x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 60D and Panasonic FZ80 along with similar information for a selection of comparators.
|6.||Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|7.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|9.||Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|16.||Sony RX10 II||2359||Y||3.0||1229||tilting||n||1/3200s||14.0||Y||Y|
One feature that is present on the 60D, but is missing on the FZ80 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 60D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the FZ80 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the FZ80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
Concerning the storage of imaging data, both the 60D and the FZ80 write their files to SDXC cards. The FZ80 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 60D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Panasonic Lumix DC-FZ80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|6.||Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|7.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|9.||Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|16.||Sony RX10 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the 60D has a microphone port, which is missing on the FZ80. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 60D (unlike the FZ80) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The FZ80 is a recent model that features in the current product line-up of Panasonic. In contrast, the 60D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 60D was succeeded by the Canon 70D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Is the Canon 60D better than the Panasonic FZ80 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 60D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (1100 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2010).
Arguments in favor of the Panasonic Lumix DC-FZ80:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (10 vs 5.3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Ready to shoot: Comes with an integrated lens, while the 60D requires a separate lens.
- More compact: Is smaller (130x94mm vs 145x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 60D).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years and 4 months of technical progress since the 60D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 60D comes out slightly ahead of the FZ80 (17 : 16 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 60D and the Panasonic FZ80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 60D or the FZ80. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|2.||Panasonic FZ80||..||+ +||..||4.5/5||4.5/5||Jan 2017||399|
|3.||Canon SX740||..||+||..||4/5||4/5||Jul 2018||399|
|4.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|5.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|6.||Canon G3 X||3.5/5||+||..||4.5/5||4/5||Jun 2015||999|
|7.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|8.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|9.||Canon 1D Mark IV||5/5||..||89/100||..||..||Oct 2009||4,999|
|10.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|11.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|12.||Nikon D7000||4/5||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|13.||Panasonic TS7||..||+||..||..||3.5/5||May 2018||449|
|14.||Panasonic ZS70||..||+ +||..||4/5||4/5||Apr 2017||449|
|15.||Sony HX350||..||..||..||..||4/5||Dec 2016||449|
|16.||Sony RX10 II||5/5||+ +||82/100||4.5/5||4/5||Jun 2015||1,299|
|17.||Sony RX10||5/5||+||80/100||4.5/5||4.5/5||Oct 2013||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 60D vs Panasonic FZ80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 60D||Panasonic FZ80|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||20-1200mm f/2.8-5.9|
|Launch Date||August 2010||January 2017|
|Launch Price||USD 1,399||USD 399|
|Sensor Specs||Canon 60D||Panasonic FZ80|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||22.3 x 14.9 mm||6.17 x 4.55 mm|
|Sensor Area||332.27 mm2||28.0735 mm2|
|Sensor Diagonal||26.8 mm||7.7 mm|
|Sensor Resolution||17.9 Megapixels||18 Megapixels|
|Image Resolution||5184 x 3456 pixels||4896 x 3672 pixels|
|Pixel Pitch||4.31 μm||1.25 μm|
|Pixel Density||5.39 MP/cm2||64.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||80 - 3,200 ISO|
|ISO Boost||100 - 12,800 ISO||80 - 6,400 ISO|
|Image Processor||DIGIC 4||Venus|
|DXO Sensor Quality (score)||66||..|
|DXO Color Depth (bits)||22.2||..|
|DXO Dynamic Range (EV)||11.5||..|
|DXO Low Light (ISO)||813||..|
|Screen Specs||Canon 60D||Panasonic FZ80|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||96%||100%|
|Viewfinder Resolution||1166k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 60D||Panasonic FZ80|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/2000s|
|Continuous Shooting||5.3 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 60D||Panasonic FZ80|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 60D||Panasonic FZ80|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1100 shots per charge||330 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
130 x 94 x 119 mm
(5.1 x 3.7 x 4.7 in)
|Camera Weight||755 g (26.6 oz)||616 g (21.7 oz)|
