Canon 60D vs Olympus E-PM2
The Canon EOS 60D and the Olympus PEN E-PM2 are two digital cameras that were revealed to the public, respectively, in August 2010 and September 2012. The 60D is a DSLR, while the E-PM2 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (60D) and a Four Thirds (E-PM2) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 60D||Olympus E-PM2|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|17.9 MP, APS-C Sensor||15.9 MP, Four Thirds Sensor|
|1080/30p Video||1080/30p Video|
|ISO 100-6,400 (100 - 12,800)||ISO 100-25,600|
|Optical viewfinder||Viewfinder optional|
|3.0 LCD, 1040k dots||3.0 LCD, 460k dots|
|Swivel screen (not touch-sensitive)||Fixed touchscreen|
|5.3 shutter flaps per second||8 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||not weather sealed|
|1100 shots per battery charge||360 shots per battery charge|
|145 x 106 x 79 mm, 755 g||110 x 64 x 34 mm, 269 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Olympus PEN E-PM2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

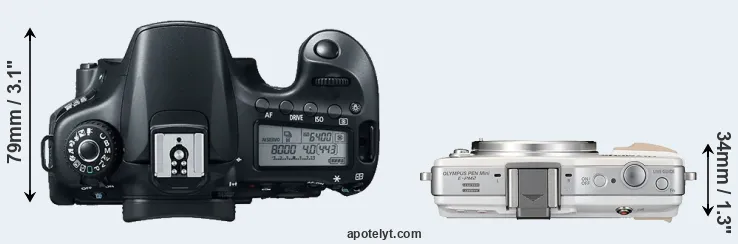

The side-by-side display below illustrates the physical size and weight of the Canon 60D and the Olympus E-PM2. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PM2 can be obtained in four different colors (black, silver, red, white), while the 60D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PM2 is considerably smaller (54 percent) than the Canon 60D. Moreover, the E-PM2 is substantially lighter (64 percent) than the 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the E-PM2 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (60D) and the Micro Four Thirds Lens Catalog (E-PM2). Mirrorless cameras, such as the E-PM2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 60D||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399|
|Olympus E-PM2||4.3 in||2.5 in||1.3 in||9.5 oz||360||n||Sep 2012||499|
|Canon 80D||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199|
|Canon 7D II||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799|
|Canon 70D||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199|
|Canon T3i||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599|
|Canon T2i||5.1 in||3.9 in||2.4 in||18.7 oz||440||n||Feb 2010||699|
|Canon 7D||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699|
|Canon T1i||5.1 in||3.9 in||2.4 in||18.3 oz||400||n||Mar 2009||799|
|Canon 50D||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299|
|Canon 40D||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299|
|Nikon D7000||5.2 in||4.1 in||3.0 in||27.5 oz||1050||Y||Sep 2010||1,499|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Olympus E-P5||4.8 in||2.7 in||1.5 in||14.8 oz||330||n||May 2013||999|
|Olympus E-PL6||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||May 2013||599|
|Olympus E-PL5||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599|
|Olympus E-PM1||4.3 in||2.5 in||1.3 in||9.3 oz||330||n||Jun 2011||499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PM2 was launched at a markedly lower price (by 64 percent) than the 60D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 60D features an APS-C sensor and the Olympus E-PM2 a Four Thirds sensor. The sensor area in the E-PM2 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 60D has a native 3:2 aspect ratio, while the one in the E-PM2 offers a 4:3 aspect.

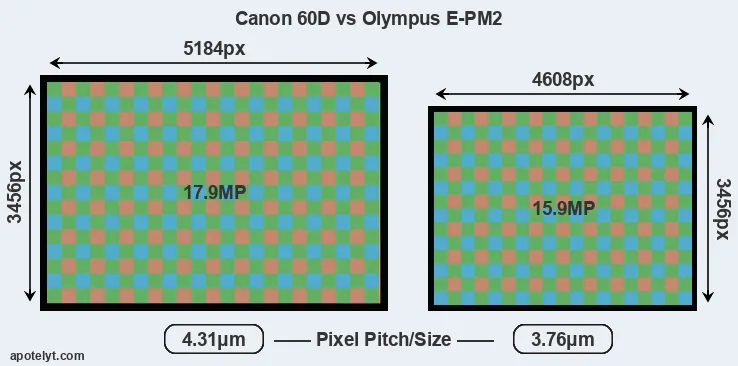

With 17.9MP, the 60D offers a higher resolution than the E-PM2 (15.9MP), but the 60D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 3.76μm for the E-PM2) due to its larger sensor. However, the E-PM2 is a much more recent model (by 2 years) than the 60D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 60D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 60D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-PM2 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus PEN E-PM2 are ISO 100 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the E-PM2 has a markedly higher DXO score than the 60D (overall score 6 points higher), which will translate into better image quality. The advantage is based on 0.5 bits higher color depth, 0.7 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 60D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PM2 relies on live view and the rear LCD for framing. That said, the E-PM2 can be equipped with an optional viewfinder – the VF-4. The following table reports on some other key feature differences and similarities of the Canon 60D, the Olympus E-PM2, and comparable cameras.
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The 60D has one, while the E-PM2 does not. While the built-in flash of the 60D is not very powerful, it can at times be useful as a fill-in light.The 60D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-PM2 does not have a selfie-screen.
Concerning the storage of imaging data, both the 60D and the E-PM2 write their files to SDXC cards. The E-PM2 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 60D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Olympus PEN E-PM2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the 60D has a microphone port, which is missing on the E-PM2. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 60D (unlike the E-PM2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 60D and the E-PM2 have been discontinued, but can regularly be found used on eBay. The 60D was replaced by the Canon 70D, while the E-PM2 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is the Canon 60D better than the Olympus E-PM2 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 60D:
- More detail: Offers more megapixels (17.9 vs 15.9MP) with a 8% higher linear resolution.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (1100 versus 360) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2010).
Arguments in favor of the Olympus PEN E-PM2:
- Better image quality: Scores markedly higher (6 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (0.7 EV of extra DR).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 5.3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (110x64mm vs 145x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 486g or 64 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (64 percent cheaper at launch).
- More modern: Reflects 2 years of technical progress since the 60D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 60D emerges as the winner of the contest (13 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 60D and the Olympus E-PM2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 60D and the E-PM2 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Olympus E-PM2||..||77/100||5/5||4.5/5||4.5/5||Sep 2012||499|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon 7D II||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Canon T3i||o||77/100||4.5/5||5/5||4.5/5||Feb 2011||599|
|Canon T2i||+ +||77/100||4/5||5/5||4.5/5||Feb 2010||699|
|Canon 7D||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699|
|Canon T1i||+ +||74/100||4.5/5||5/5||4.5/5||Mar 2009||799|
|Canon 50D||+ +||+ +||4.5/5||5/5||4.5/5||Aug 2008||1,299|
|Canon 40D||+ +||+ +||4.5/5||o||4.5/5||Aug 2007||1,299|
|Nikon D7000||..||80/100||4.5/5||5/5||4.5/5||Sep 2010||1,499|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-P5||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999|
|Olympus E-PL6||..||..||..||..||..||May 2013||599|
|Olympus E-PL5||+ +||..||4.5/5||4.5/5||4.5/5||Sep 2012||599|
|Olympus E-PM1||86/100||71/100||4.5/5||..||4.5/5||Jun 2011||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 60D vs Canon SX520
- Canon 60D vs Leica SL
- Canon 60D vs Sony A5100
- Canon 60D vs Sony NEX-3
- Canon 60D vs Sony NEX-6
- Canon 60D vs Sony RX100 VII
- Canon 60D vs Sony RX1R
- Canon T2i vs Olympus E-PM2
- Leica Q2 vs Olympus E-PM2
- Nikon D5000 vs Olympus E-PM2
- Olympus E-M10 IV vs Olympus E-PM2
- Olympus E-PM2 vs Sony RX10
Specifications: Canon 60D vs Olympus E-PM2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 60D||Olympus E-PM2|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2010||September 2012|
|Launch Price||USD 1,399||USD 499|
|Sensor Specs||Canon 60D||Olympus E-PM2|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||15.9 Megapixels|
|Image Resolution||5184 x 3456 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.31 μm||3.76 μm|
|Pixel Density||5.39 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 6,400 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4||TruePic VI|
|DXO Sensor Quality (score)||66||72|
|DXO Color Depth (bits)||22.2||22.7|
|DXO Dynamic Range (EV)||11.5||12.2|
|DXO Low Light (ISO)||813||932|
|Screen Specs||Canon 60D||Olympus E-PM2|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||96%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 60D||Olympus E-PM2|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5.3 shutter flaps/s||8 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 60D||Olympus E-PM2|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 60D||Olympus E-PM2|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1100 shots per charge||360 shots per charge|
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
110 x 64 x 34 mm
(4.3 x 2.5 x 1.3 in)
|Camera Weight||755 g (26.6 oz)||269 g (9.5 oz)|
