Canon 5DS vs M6 Mark II

The Canon EOS 5DS and the Canon EOS M6 Mark II are two digital cameras that were announced, respectively, in February 2015 and August 2019. The 5DS is a DSLR, while the M6 Mark II is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5DS) and an APS-C (M6 Mark II) sensor. The 5DS has a resolution of 50.3 megapixels, whereas the M6 Mark II provides 32.3 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 5DS   VS Canon M6 Mark II
Canon 5DS Canon M6 Mark II
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Canon EF-M mount lenses
50.3 MP, Full Frame Sensor 32.3 MP, APS-C Sensor
1080/30p Video 4K/30p Video
ISO 100-6400 (50-12800) ISO 100-25600 (100-51200)
Optical viewfinder Viewfinder optional
3.2" LCD, 1040k dots 3.0" LCD, 1040k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
5 shutter flaps per second 14 shutter flaps per second
Weathersealed bodyNot weather sealed
700 shots per battery charge305 shots per battery charge
152 x 116 x 76 mm, 930 g 120 x 70 x 49 mm, 408 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS and the Canon EOS M6 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 5DS and the Canon M6 Mark II. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

Size Canon 5DS vs Canon M6 Mark II
Compare 5DS versus M6 Mark II top
Comparison 5DS or M6 Mark II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M6 Mark II is considerably smaller (52 percent) than the Canon 5DS. Moreover, the M6 Mark II is substantially lighter (56 percent) than the 5DS. It is worth mentioning in this context that the 5DS is splash and dust resistant, while the M6 Mark II does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 5DS gets 700 shots out of its LP-E6 battery, while the M6 Mark II can take 305 images on a single charge of its LP-E17 power pack. The power pack in the M6 Mark II can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Camera
Model

Canon 5DS» 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 iCanon 5DS

Canon M6 Mark II« 120 mm 70 mm 49 mm 408 g 305 n Aug 2019 849 iCanon M6 Mark II

Canon G5 X Mark II« » 111 mm 61 mm 46 mm 340 g 230 n Jul 2019 899 iCanon G5 X Mark II

Canon 2000D« » 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 iCanon 2000D

Canon M50« » 116 mm 88 mm 59 mm 390 g 235 n Feb 2018 779 iCanon M50

Canon 6D Mark II« » 144 mm 111 mm 75 mm 765 g 1200 Y Jun 2017 1,999 iCanon 6D Mark II

Canon M6« » 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 779iCanon M6

Canon 1D X Mark II« » 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999iCanon 1D X Mark II

Canon 5D Mark IV« » 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 iCanon 5D Mark IV

Canon M5« » 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 979 iCanon M5

Canon 5DS R« » 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 iCanon 5DS R

Canon 5D Mark III« » 152 mm 116 mm 76 mm 950 g 950 Y Mar 2012 3,499iCanon 5D Mark III

Canon 6D« » 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099iCanon 6D

Canon 5D Mark II« » 152 mm 114 mm 75 mm 850 g 850 Y Sep 2008 3,499iCanon 5D Mark II

Nikon D850« » 146 mm 124 mm 79 mm 1005 g 1840 Y Jul 2017 3,299 iNikon D850

Nikon D810« » 146 mm 123 mm 82 mm 980 g 1200 Y Jun 2014 3,299iNikon D810

Sony A99 II« » 143 mm 104 mm 76 mm 849 g 490 Y Sep 2016 3,199 iSony A99 II
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M6 Mark II was launched at a markedly lower price (by 77 percent) than the 5DS, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5DS features a full frame sensor and the Canon M6 Mark II an APS-C sensor. The sensor area in the M6 Mark II is 61 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of underlying technology, both cameras are build around CMOS sensors.

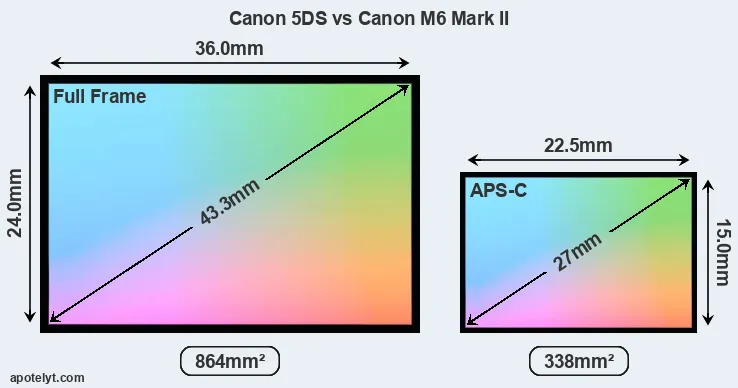

Canon 5DS and Canon M6 Mark II sensor measures

With 50.3MP, the 5DS offers a higher resolution than the M6 Mark II (32.3MP), but the 5DS nevertheless has larger individual pixels (pixel pitch of 4.14μm versus 3.23μm for the M6 Mark II) due to its larger sensor. However, the M6 Mark II is a much more recent model (by 4 years and 6 months) than the 5DS, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 5DS implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS for good quality output (200 dots per inch) amounts to 43.4 x 29 inch or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inch or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inch or 73.6 x 49 cm. The corresponding values for the Canon M6 Mark II are 34.8 x 23.2 inch or 88.4 x 58.9 cm for good quality, 27.8 x 18.6 inch or 70.7 x 47.1 cm for very good quality, and 23.2 x 15.5 inch or 58.9 x 39.3 cm for excellent quality prints.

The M6 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 5DS has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Canon EOS M6 Mark II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

5DS versus M6 Mark II MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon 5DS Full Frame 50.3 8688 57921080/30p24.712.4238187Canon 5DS

Canon M6 Mark II APS-C 32.3 6960 46404K/30p........Canon M6 Mark II

Canon G5 X Mark II 1-inch 20.0 5472 36484K/30p........Canon G5 X Mark II

Canon 2000D APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D

Canon M50 APS-C 24.0 6000 40004K/24p........Canon M50

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II

Canon M6 APS-C 24.0 6000 40001080/60p........Canon M6

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II

Canon 5D Mark IV Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5

Canon 5DS R Full Frame 50.3 8688 57921080/30p24.612.4230886Canon 5DS R

Canon 5D Mark III Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D

Canon 5D Mark II Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II

Nikon D850 Full Frame 45.4 8256 55044K/30p26.414.82660100Nikon D850

Nikon D810 Full Frame 36.2 7360 49121080/60p25.714.8285397Nikon D810

Sony A99 II Full Frame 42.2 7952 53044K/30p25.413.4231792Sony A99 II

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M6 Mark II provides a better video resolution than the 5DS. It can shoot movie footage at 4K/30p, while the 5DS is limited to 1080/30p.



Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 5DS has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M6 Mark II relies on live view and the rear LCD for framing. That said, the M6 Mark II can be equipped with an optional viewfinder – the EVF-DC2. The adjacent table lists some of the other core features of the Canon 5DS and Canon M6 Mark II along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon 5DSoptical Y 3.2 1040 fixed n 1/8000s 5.0 n n Canon 5DS

Canon M6 Mark IIoptional n 3.0 1040 tilting Y 1/4000s 14.0 Y n Canon M6 Mark II

Canon G5 X Mark II2360 n 3.0 1040 tilting Y 1/2000s 30 Y Y Canon G5 X Mark II

Canon 2000Doptical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon 2000D

Canon M502360 n 3.0 1040 swivel Y 1/4000s 10.0 Y n Canon M50

Canon 6D Mark IIoptical Y 3.0 1040 swivel Y 1/4000s 6.5 n n Canon 6D Mark II

Canon M6optional n 3.0 1040 tilting Y 1/4000s 9.0 Y n Canon M6

Canon 1D X Mark IIoptical Y 3.2 1620 fixed Y 1/8000s 16.0 n n Canon 1D X Mark II

Canon 5D Mark IVoptical Y 3.2 1620 fixed Y 1/8000s 7.0 n n Canon 5D Mark IV

Canon M52360 n 3.2 1620 tilting Y 1/4000s 9.0 Y n Canon M5

Canon 5DS Roptical Y 3.2 1040 fixed n 1/8000s 5.0 n n Canon 5DS R

Canon 5D Mark IIIoptical Y 3.2 1040 fixed n 1/8000s 6.0 n n Canon 5D Mark III

Canon 6Doptical Y 3.0 1040 fixed n 1/4000s 4.5 n n Canon 6D

Canon 5D Mark IIoptical Y 3.0 920 fixed n 1/8000s 3.9 n n Canon 5D Mark II

Nikon D850optical Y 3.2 2359 tilting Y 1/8000s 9.0 n n Nikon D850

Nikon D810optical Y 3.2 1229 fixed n 1/8000s 5.0 Y n Nikon D810

Sony A99 II2400 Y 3.0 1229 full-flex n 1/8000s 12.0 n Y Sony A99 II

One feature that is present on the 5DS, but is missing on the M6 Mark II is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The M6 Mark II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5DS does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the M6 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 5DS and the Canon M6 Mark II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5DS writes its imaging data to Compact Flash or SDXC cards, while the M6 Mark II uses SDXC cards. The 5DS features dual card slots, which can be very useful in case a memory card fails. In contrast, the M6 Mark II only has one slot. The M6 Mark II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 5DS can use UHS-I cards (up to 104 MB/s).



Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS and Canon EOS M6 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon 5DSYmonomonoY-mini3.0---Canon 5DS

Canon M6 Mark IIYstereomonoY-micro2.0Y-YCanon M6 Mark II

Canon G5 X Mark II-stereomono--micro3.1Y-YCanon G5 X Mark II

Canon 2000DYmonomono--mini2.0YY-Canon 2000D

Canon M50YstereomonoY-micro2.0YYYCanon M50

Canon 6D Mark IIYstereomonoY-mini2.0YYYCanon 6D Mark II

Canon M6YstereomonoY-mini2.0YYYCanon M6

Canon 1D X Mark IIYmonomonoYYmini3.0---Canon 1D X Mark II

Canon 5D Mark IVYmonomonoYYmini3.0YY-Canon 5D Mark IV

Canon M5YstereomonoY-mini2.0YYYCanon M5

Canon 5DS RYmonomonoY-mini3.0---Canon 5DS R

Canon 5D Mark IIIYmonomonoYYmini2.0---Canon 5D Mark III

Canon 6DYmonomonoY-mini2.0Y--Canon 6D

Canon 5D Mark IIYmonomonoY-mini2.0---Canon 5D Mark II

Nikon D850YstereomonoYYmini3.0YYYNikon D850

Nikon D810YstereomonoYYmini3.0Y--Nikon D810

Sony A99 IIYstereomonoYYmicro2.0YYYSony A99 II

It is notable that the M6 Mark II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5DS does not offer wifi capability.

Studio photographers will appreciate that the Canon 5DS (unlike the M6 Mark II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 5DS and the M6 Mark II are recent models that are part of the current product line-up. The M6 Mark II replaced the earlier Canon M6, while the 5DS does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So how do things add up? Which of the two cameras – the Canon 5DS or the Canon M6 Mark II – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.


Arguments in favor of the Canon EOS 5DS:

  • More detail: Offers more megapixels (50.3 vs 32.3MP) with a 25% higher linear resolution.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Longer lasting: Can take more shots (700 versus 305) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been available for much longer (launched in February 2015).


Advantages of the Canon EOS M6 Mark II:

  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (14 vs 5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (120x70mm vs 152x116mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 522g or 56 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More affordable: Was introduced into a lower priced category (77 percent cheaper at launch).
  • More modern: Reflects 4 years and 6 months of technical progress since the 5DS launch.

If the count of individual advantages (bullet points above) is taken as a guide, the M6 Mark II is the clear winner of the contest (16 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

5DS 11:16 M6 Mark II

How about other alternatives? Do the specifications of the Canon 5DS and the Canon M6 Mark II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5DS or the M6 Mark II. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cam
era
  labs
dp
re
  view
e
  zine
ima
ging
resource
graphy
  blog
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Camera
Model

Canon 5DS+83/1004.5/55/54.5/5 Feb 2015 3,699 iCanon 5DS

Canon M6 Mark II+85/1004/5..4/5 Aug 2019 849 iCanon M6 Mark II

Canon G5 X Mark II+82/100....4/5 Jul 2019 899 iCanon G5 X Mark II

Canon 2000Do..3.5/5..3.5/5 Feb 2018 449 iCanon 2000D

Canon M50+79/100..4/53.5/5 Feb 2018 779 iCanon M50

Canon 6D Mark II+80/1004.5/54/54/5 Jun 2017 1,999 iCanon 6D Mark II

Canon M6..80/1004/54.5/54/5 Feb 2017 779iCanon M6

Canon 1D X Mark II..89/1004.5/55/54.5/5 Feb 2016 5,999iCanon 1D X Mark II

Canon 5D Mark IV+ +87/1004.5/55/54.5/5 Aug 2016 3,499 iCanon 5D Mark IV

Canon M5+82/1004/54.5/54/5 Sep 2016 979 iCanon M5

Canon 5DS R+83/1005/55/54.5/5 Feb 2015 3,699 iCanon 5DS R

Canon 5D Mark III+ +82/1004.5/55/54.5/5 Mar 2012 3,499iCanon 5D Mark III

Canon 6D+ +83/1004.5/54.5/54.5/5 Sep 2012 2,099iCanon 6D

Canon 5D Mark II91/10079/1004/55/5.. Sep 2008 3,499iCanon 5D Mark II

Nikon D850+ +89/1004.5/55/55/5 Jul 2017 3,299 iNikon D850

Nikon D810..86/1005/54.5/54.5/5 Jun 2014 3,299iNikon D810

Sony A99 II..85/1004.5/54.5/54.5/5 Sep 2016 3,199 iSony A99 II
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Canon 5DS:
Check Amazon price
Canon M6 Mark II:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Canon 5DS vs Canon M6 Mark II

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 5DS Canon M6 Mark II
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Canon EF-M mount lenses
    Launch Date February 2015 August 2019
    Launch Price USD 3699 USD 849
    Sensor Specs Canon 5DS Canon M6 Mark II
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor APS-C Sensor
    Sensor Size 36.0 x 24.0 mm 22.5 x 15.0 mm
    Sensor Area 864 mm2 337.5 mm2
    Sensor Diagonal 43.3 mm 27 mm
    Crop Factor 1.0x 1.6x
    Sensor Resolution 50.3 Megapixels 32.3 Megapixels
    Image Resolution 8688 x 5792 pixels 6960 x 4640 pixels
    Pixel Pitch 4.14 μm 3.23 μm
    Pixel Density 5.82 MP/cm2 9.57 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 4K/30p Video
    ISO Setting 100-6400 ISO 100-25600 ISO
    ISO Boost 50-12800 ISO 100-51200 ISO
    Image Processor DIGIC 6 (Dual) DIGIC 8
    DXO Sensor Quality (score) 87 ..
    DXO Color Depth (bits) 24.7 ..
    DXO Dynamic Range (EV) 12.4 ..
    DXO Low Light (ISO) 2381 ..
    Screen Specs Canon 5DS Canon M6 Mark II
    Viewfinder Type Optical viewfinder Viewfinder optional
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.71x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2 inch 3.0 inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon 5DS Canon M6 Mark II
    Autofocus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing AidNo Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000/s 1/4000/s
    Continuous Shooting 5 shutter flaps/s 14 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/16000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Fill Flash no On-Board Flash Build-in Flash
    Storage Medium CF or SDXC cards SDXC cards
    Second Storage Option Dual card slots Single card slot
    UHS card support UHS-I UHS-II
    Connectivity Specs Canon 5DS Canon M6 Mark II
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support no Wifi Wifi built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon 5DS Canon M6 Mark II
    Environmental SealingWeathersealed bodyNot weather sealed
    Battery Type LP-E6 LP-E17
    Battery Life (CIPA)700 shots per charge305 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 152 x 116 x 76 mm
    (6.0 x 4.6 x 3.0 in)
    120 x 70 x 49 mm
    (4.7 x 2.8 x 1.9 in)
    Camera Weight 930 g (32.8 oz) 408 g (14.4 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 5DS vs Canon M6 Mark II
