Canon 5DS R vs SL1

The Canon EOS 5DS R and the Canon EOS Rebel SL1 (labelled Canon 100D in some countries) are two digital cameras that were officially introduced, respectively, in February 2015 and March 2013. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5DS R) and an APS-C (SL1) sensor. The 5DS R has a resolution of 50.3 megapixels, whereas the SL1 provides 17.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 5DS R   Canon SL1
Canon 5DS R Canon SL1
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
50.3 MP, Full Frame Sensor 17.9 MP, APS-C Sensor
1080/30p Video 1080/30p Video
ISO 100-6400 (50-12800) ISO 100-12800 (100-25600)
Optical viewfinder Optical viewfinder
3.2" LCD, 1040k dots 3.0" LCD, 1040k dots
Fixed screen (not touch-sensitive) Fixed touchscreen
5 shutter flaps per second 4.9 shutter flaps per second
Weathersealed bodyNot weather sealed
700 shots per battery charge380 shots per battery charge
152 x 116 x 76 mm, 930 g 117 x 91 x 69 mm, 407 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS R and the Canon EOS Rebel SL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Canon 5DS R vs SL1

The side-by-side display below illustrates the physical size and weight of the Canon 5DS R and the Canon SL1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The SL1 can be obtained in two different colors (black, white), while the 5DS R is only available in black.

Size Canon 5DS R vs Canon SL1
Compare 5DS R versus SL1 top
Comparison 5DS R or SL1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SL1 is considerably smaller (40 percent) than the Canon 5DS R. Moreover, the SL1 is substantially lighter (56 percent) than the 5DS R. It is worth mentioning in this context that the 5DS R is splash and dust resistant, while the SL1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5DS R) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (SL1). You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 5DS R gets 700 shots out of its LP-E6 battery, while the SL1 can take 380 images on a single charge of its LP-E12 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 5DS R» 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS R

Canon SL1« 4.6 in 3.6 in 2.7 in 14.4 oz 380 n Mar 2013 549- i Canon SL1

Canon SL2« » 4.8 in 3.7 in 2.8 in 16.0 oz 650 n Jun 2017 549- i Canon SL2

Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II

Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV

Canon T6« » 5.1 in 4.0 in 3.1 in 17.1 oz 500 n Mar 2016 449- i Canon T6

Canon 5DS« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS

Canon M10« » 4.3 in 2.6 in 1.4 in 10.6 oz 255 n Oct 2015 499- i Canon M10

Canon T5« » 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449- i Canon T5

Canon T5i« » 5.2 in 3.9 in 3.1 in 20.5 oz 440 n Mar 2013 649- i Canon T5i

Canon 5D Mark III« » 6.0 in 4.6 in 3.0 in 33.5 oz 950 Y Mar 2012 3,499- i Canon 5D Mark III

Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D

Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II

Canon 5D« » 6.0 in 4.4 in 3.0 in 31.6 oz 400 Y Aug 2005 3,299- i Canon 5D

Nikon D850« » 5.7 in 4.9 in 3.1 in 35.5 oz 1840 Y Jul 2017 3,299 i i Nikon D850

Nikon D810« » 5.7 in 4.8 in 3.2 in 34.6 oz 1200 Y Jun 2014 3,299- i Nikon D810

Sony A99 II« » 5.6 in 4.1 in 3.0 in 29.9 oz 490 Y Sep 2016 3,199 i i Sony A99 II
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SL1 was launched at a markedly lower price (by 85 percent) than the 5DS R, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 5DS R vs SL1

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5DS R features a full frame sensor and the Canon SL1 an APS-C sensor. The sensor area in the SL1 is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of underlying technology, both cameras are build around CMOS sensors.

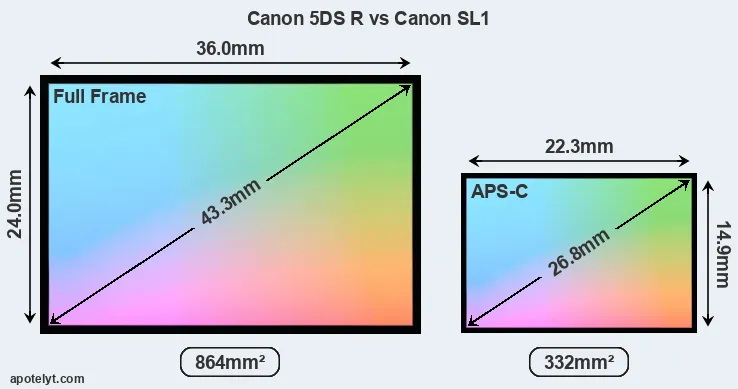

Canon 5DS R and Canon SL1 sensor measures

With 50.3MP, the 5DS R offers a higher resolution than the SL1 (17.9MP), but the 5DS R has smaller individual pixels (pixel pitch of 4.14μm versus 4.31μm for the SL1). However, the 5DS R is a somewhat more recent model (by 1 year and 10 months) than the SL1, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the 5DS R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 5DS R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS R for good quality output (200 dots per inch) amounts to 43.4 x 29 inch or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inch or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inch or 73.6 x 49 cm. The corresponding values for the Canon SL1 are 25.9 x 17.3 inch or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inch or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inch or 43.9 x 29.3 cm for excellent quality prints.

The SL1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 5DS R has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Canon EOS Rebel SL1 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

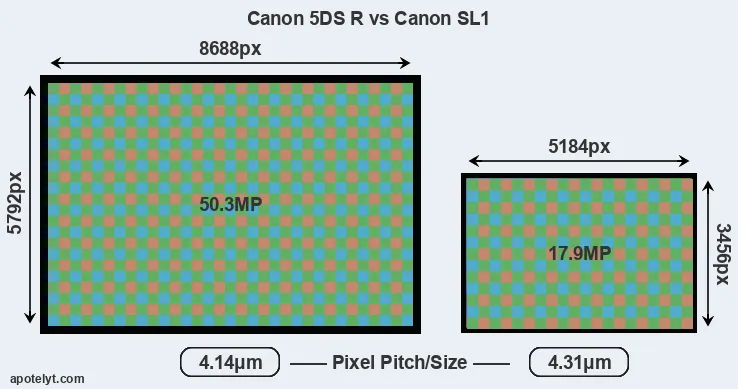

5DS R versus SL1 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5DS R provides substantially higher image quality than the SL1, with an overall score that is 23 points higher. This advantage is based on 2.8 bits higher color depth, 1.1 EV in additional dynamic range, and 1.5 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon 5DS R» Full Frame 50.3 8688 57921080/30p24.612.4230886Canon 5DS R

Canon SL1« APS-C 17.9 5184 34561080/30p21.811.384363Canon SL1

Canon SL2« » APS-C 24.0 6000 40001080/60p23.613.4104179Canon SL2

Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II

Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV

Canon T6« » APS-C 17.9 5184 34561080/30p----Canon T6

Canon 5DS« » Full Frame 50.3 8688 57921080/30p24.712.4238187Canon 5DS

Canon M10« » APS-C 17.9 5184 34561080/30p22.211.475365Canon M10

Canon T5« » APS-C 17.9 5184 34561080/30p21.911.372463Canon T5

Canon T5i« » APS-C 17.9 5184 34561080/30p21.711.268161Canon T5i

Canon 5D Mark III« » Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III

Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D

Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II

Canon 5D« » Full Frame 12.7 4368 2912-22.911.1136871Canon 5D

Nikon D850« » Full Frame 45.4 8256 55044K/30p26.414.82660100Nikon D850

Nikon D810« » Full Frame 36.2 7360 49121080/60p25.714.8285397Nikon D810

Sony A99 II« » Full Frame 42.2 7952 53044K/30p25.413.4231792Sony A99 II

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).



Feature comparison: Canon 5DS R vs SL1

Apart from body and sensor, cameras can and do differ across a range of features. The 5DS R and the SL1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5DS R offers a wider field of view (100%) than the one in the SL1 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5DS R has a higher magnification (0.71x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5DS R and Canon SL1 along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon 5DS R»optical Y 3.2 1040 fixed n 1/8000s 5.0 n n Canon 5DS R

Canon SL1«optical n 3.0 1040 fixed Y 1/4000s 4.9 Y n Canon SL1

Canon SL2« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon SL2

Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 1/8000s 16.0 n n Canon 1D X Mark II

Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 1/8000s 7.0 n n Canon 5D Mark IV

Canon T6« »optical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon T6

Canon 5DS« »optical Y 3.2 1040 fixed n 1/8000s 5.0 n n Canon 5DS

Canon M10« »- n 3.0 1040 tilting Y 1/4000s 4.6 Y n Canon M10

Canon T5« »optical n 3.0 460 fixed n 1/4000s 3.0 Y n Canon T5

Canon T5i« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon T5i

Canon 5D Mark III« »optical Y 3.2 1040 fixed n 1/8000s 6.0 n n Canon 5D Mark III

Canon 6D« »optical Y 3.0 1040 fixed n 1/4000s 4.5 n n Canon 6D

Canon 5D Mark II« »optical Y 3.0 920 fixed n 1/8000s 3.9 n n Canon 5D Mark II

Canon 5D« »optical Y 2.5 230 fixed n 1/8000s 3.0 n n Canon 5D

Nikon D850« »optical Y 3.2 2359 tilting Y 1/8000s 9.0 n n Nikon D850

Nikon D810« »optical Y 3.2 1229 fixed n 1/8000s 5.0 Y n Nikon D810

Sony A99 II« »2400 Y 3.0 1229 full-flex n 1/8000s 12.0 n Y Sony A99 II

One feature that is present on the 5DS R, but is missing on the SL1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 5DS R has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5DS R writes its imaging data to Compact Flash or SDXC cards, while the SL1 uses SDXC cards. The 5DS R features dual card slots, which can be very useful in case a memory card fails. In contrast, the SL1 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.



Connectivity comparison: Canon 5DS R vs SL1

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS R and Canon EOS Rebel SL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon 5DS R»YmonomonoY-mini3.0---Canon 5DS R

Canon SL1«YmonomonoY-mini2.0---Canon SL1

Canon SL2« »YstereomonoY-mini2.0YYYCanon SL2

Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II

Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV

Canon T6« »Ymonomono--mini2.0YY-Canon T6

Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS

Canon M10« »-stereomono--mini2.0YY-Canon M10

Canon T5« »Ymonomono--mini2.0---Canon T5

Canon T5i« »YstereomonoY-mini2.0---Canon T5i

Canon 5D Mark III« »YmonomonoYYmini2.0---Canon 5D Mark III

Canon 6D« »YmonomonoY-mini2.0Y--Canon 6D

Canon 5D Mark II« »YmonomonoY-mini2.0---Canon 5D Mark II

Canon 5D« »Y-----2.0---Canon 5D

Nikon D850« »YstereomonoYYmini3.0YYYNikon D850

Nikon D810« »YstereomonoYYmini3.0Y--Nikon D810

Sony A99 II« »YstereomonoYYmicro2.0YYYSony A99 II

Studio photographers will appreciate that the Canon 5DS R (unlike the SL1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The 5DS R is a recent model that features in the current product line-up of Canon. In contrast, the SL1 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the SL1 was succeeded by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.


Review summary: Canon 5DS R vs SL1

So how do things add up? Is there a clear favorite between the Canon 5DS R and the Canon SL1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.


Advantages of the Canon EOS 5DS R:

  • More detail: Offers more megapixels (50.3 vs 17.9MP) with a 68% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (23 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2.8 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (1.1 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (1.5 stops ISO advantage).
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.54x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Can take more shots (700 versus 380) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More modern: Is somewhat more recent (announced 1 year and 10 months after the SL1).


Arguments in favor of the Canon EOS Rebel SL1:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better live-view autofocus: Features on-sensor phase-detection for quicker and more confident autofocus.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More compact: Is smaller (117x91mm vs 152x116mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 523g or 56 percent) and is thus easier to take along.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More affordable: Was introduced into a lower priced category (85 percent cheaper at launch).
  • More heavily discounted: Has been on the market for longer (launched in March 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the 5DS R is the clear winner of the match-up (18 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

5DS R 18:08 SL1

How about other alternatives? Do the specifications of the Canon 5DS R and the Canon SL1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5DS R and the SL1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews: Canon 5DS R vs SL1

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 5DS R»+83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R

Canon SL1«+78/1004/54/54/5 Mar 2013 549- i Canon SL1

Canon SL2« »+ +78/1004.5/54.5/54.5/5 Jun 2017 549- i Canon SL2

Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II

Canon 5D Mark IV« »+ +87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV

Canon T6« »o73/1004/53.5/54/5 Mar 2016 449- i Canon T6

Canon 5DS« »+83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS

Canon M10« »---o4/5 Oct 2015 499- i Canon M10

Canon T5« »+-4/54/54.5/5 Feb 2014 449- i Canon T5

Canon T5i« »-76/1004.5/54.5/54.5/5 Mar 2013 649- i Canon T5i

Canon 5D Mark III« »+ +82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III

Canon 6D« »+ +83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D

Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II

Canon 5D« »88/100+ +oo- Aug 2005 3,299- i Canon 5D

Nikon D850« »+ +89/1004.5/55/55/5 Jul 2017 3,299 i i Nikon D850

Nikon D810« »-86/1005/54.5/54.5/5 Jun 2014 3,299- i Nikon D810

Sony A99 II« »-85/1004.5/54.5/54.5/5 Sep 2016 3,199 i i Sony A99 II
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon 5DS R:
Check Amazon price
Canon SL1:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon 5DS R vs Canon SL1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 5DS R Canon SL1
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date February 2015 March 2013
    Launch Price USD 3699 USD 549
    Sensor Specs Canon 5DS R Canon SL1
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor APS-C Sensor
    Sensor Size 36.0 x 24.0 mm 22.3 x 14.9 mm
    Sensor Area 864 mm2 332.27 mm2
    Sensor Diagonal 43.3 mm 26.8 mm
    Crop Factor 1.0x 1.6x
    Sensor Resolution 50.3 Megapixels 17.9 Megapixels
    Image Resolution 8688 x 5792 pixels 5184 x 3456 pixels
    Pixel Pitch 4.14 μm 4.31 μm
    Pixel Density 5.82 MP/cm2 5.39 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 1080/30p Video 1080/30p Video
    ISO Setting 100-6400 ISO 100-12800 ISO
    ISO Boost 50-12800 ISO 100-25600 ISO
    Image Processor DIGIC 6 (Dual) DIGIC 5
    DXO Sensor Quality (score) 86 63
    DXO Color Depth (bits) 24.6 21.8
    DXO Dynamic Range (EV) 12.4 11.3
    DXO Low Light (ISO) 2308 843
    Screen Specs Canon 5DS R Canon SL1
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 95%
    Viewfinder Magnification 0.71x 0.54x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2 inch 3.0 inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon 5DS R Canon SL1
    Autofocus System Phase-detect AF Phase-detect AF
    Continuous Shooting 5 shutter flaps/s 4.9 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash no On-Board Flash Build-in Flash
    Storage Medium CF or SDXC cards SDXC cards
    Second Storage Option Dual card slots Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Canon 5DS R Canon SL1
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support no Wifi no Wifi
    Body Specs Canon 5DS R Canon SL1
    Environmental SealingWeathersealed bodyNot weather sealed
    Battery Type LP-E6 power pack LP-E12 power pack
    Battery Life (CIPA)700 shots per charge380 shots per charge
    Body Dimensions 152 x 116 x 76 mm
    (6.0 x 4.6 x 3.0 in)
    117 x 91 x 69 mm
    (4.6 x 3.6 x 2.7 in)
    Camera Weight 930 g (32.8 oz) 407 g (14.4 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
