Canon 5DS R vs D30
The Canon EOS 5DS R and the Canon EOS-D30 are two digital cameras that were revealed to the public, respectively, in February 2015 and May 2000. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5DS R) and an APS-C (D30) sensor. The 5DS R has a resolution of 50.3 megapixels, whereas the D30 provides 3.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5DS R||Canon D30|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|50.3 MP, Full Frame Sensor||3.1 MP, APS-C Sensor|
|1080/30p Video||no Video|
|ISO 100-6400 (50-12800)||ISO 100-1600|
|Optical viewfinder||Optical viewfinder|
|3.2" LCD, 1040k dots||1.8" LCD, 114k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|5 shutter flaps per second||3 shutter flaps per second|
|Weathersealed body||Not weather sealed|
|700 shots per battery charge||540 shots per battery charge|
|152 x 116 x 76 mm, 930 g||150 x 107 x 75 mm, 750 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS R and the Canon EOS-D30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

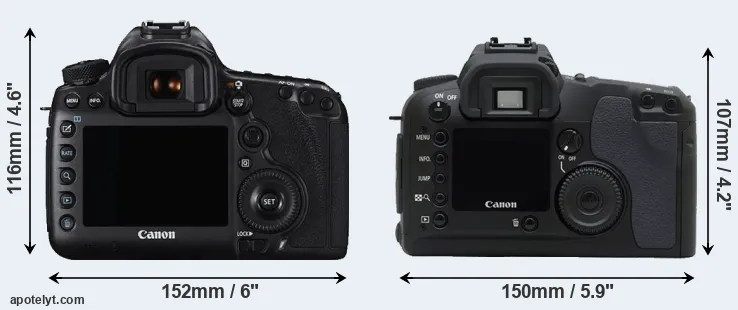

The physical size and weight of the Canon 5DS R and the Canon D30 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon D30 is notably smaller (9 percent) than the Canon 5DS R. Moreover, the D30 is markedly lighter (19 percent) than the 5DS R. It is worth mentioning in this context that the 5DS R is splash and dust resistant, while the D30 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5DS R) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (D30). You can compare the optics available in the Canon EF Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 5DS R»||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon D30«||5.9 in||4.2 in||3.0 in||26.5 oz||540||n||May 2000||2,999||Canon D30|
|Canon SL2« »||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549||Canon SL2|
|Canon T7i« »||5.2 in||3.9 in||3.0 in||18.8 oz||600||n||Feb 2017||749||Canon T7i|
|Canon 1D X Mark II« »||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 5D Mark IV« »||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 80D« »||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199||Canon 80D|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5D Mark III« »||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499||Canon 5D Mark III|
|Canon 6D« »||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099||Canon 6D|
|Canon 5D Mark II« »||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499||Canon 5D Mark II|
|Canon 40D« »||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Canon 5D« »||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299||Canon 5D|
|Canon D60« »||5.9 in||4.2 in||3.0 in||30.2 oz||620||n||Feb 2002||2,999||Canon D60|
|Nikon D850« »||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299||Nikon D850|
|Nikon D810« »||5.7 in||4.8 in||3.2 in||34.6 oz||1200||Y||Jun 2014||3,299||Nikon D810|
|Sony A99 II« »||5.6 in||4.1 in||3.0 in||29.9 oz||490||Y||Sep 2016||3,199||Sony A99 II|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D30 was launched at a somewhat lower price (by 19 percent) than the 5DS R, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5DS R features a full frame sensor and the Canon D30 an APS-C sensor. The sensor area in the D30 is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 50.3MP, the 5DS R offers a higher resolution than the D30 (3.1MP), but the 5DS R has smaller individual pixels (pixel pitch of 4.14μm versus 10.29μm for the D30). However, the 5DS R is a much more recent model (by 14 years and 8 months) than the D30, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the 5DS R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 5DS R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS R for good quality output (200 dots per inch) amounts to 43.4 x 29 inch or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inch or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inch or 73.6 x 49 cm. The corresponding values for the Canon D30 are 10.8 x 7.2 inch or 27.4 x 18.3 cm for good quality, 8.6 x 5.8 inch or 21.9 x 14.6 cm for very good quality, and 7.2 x 4.8 inch or 18.3 x 12.2 cm for excellent quality prints.
The Canon EOS 5DS R has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Canon EOS-D30 are ISO 100 to ISO 1600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon D30||APS-C||3.1||2160||1440||none||..||..||..||..||Canon D30|
|Canon SL2||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon SL2|
|Canon T7i||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Canon T7i|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon 80D||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71||Canon 5D|
|Canon D60||APS-C||6.3||3072||2048||none||..||..||..||..||Canon D60|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100||Nikon D850|
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97||Nikon D810|
|Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92||Sony A99 II|
Many modern cameras are not only capable of taking still images, but can also record movies. The 5DS R indeed provides movie recording capabilities, while the D30 does not. The highest resolution format that the 5DS R can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 5DS R and the D30 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5DS R offers a wider field of view (100%) than the one in the D30 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5DS R has a higher magnification (0.71x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5DS R, the Canon D30, and comparable cameras.
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon D30||optical||Y||1.8||114||fixed||n||1/4000s||3.0||Y||n||Canon D30|
|Canon SL2||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon SL2|
|Canon T7i||optical||n||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon T7i|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n||Canon 5D Mark IV|
|Canon 80D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Canon 5DS||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon 5D||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
|Canon D60||optical||Y||1.8||114||fixed||n||1/4000s||3.0||Y||n||Canon D60|
|Nikon D850||optical||Y||3.2||2359||tilting||Y||1/8000s||9.0||n||n||Nikon D850|
|Nikon D810||optical||Y||3.2||1229||fixed||n||1/8000s||5.0||Y||n||Nikon D810|
|Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y||Sony A99 II|
One difference between the cameras concerns the presence of an on-board flash. The D30 has one, while the 5DS R does not. While the built-in flash of the D30 is not very powerful, it can at times be useful as a fill-in light.
The Canon 5DS R has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5DS R writes its imaging data to Compact Flash or SDXC cards, while the D30 uses Compact Flash cards. The 5DS R features dual card slots, which can be very useful in case a memory card fails. In contrast, the D30 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS R and Canon EOS-D30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon D30||Y||none||none||-||-||none||1.0||-||-||-||Canon D30|
|Canon SL2||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon SL2|
|Canon T7i||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon T7i|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon 80D||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Canon 5DS||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Canon 5D||Y||none||none||-||-||none||2.0||-||-||-||Canon 5D|
|Canon D60||Y||none||none||-||-||none||1.1||-||-||-||Canon D60|
|Nikon D850||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D850|
|Nikon D810||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-||Nikon D810|
|Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y||Sony A99 II|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
The 5DS R is a recent model that features in the current product line-up of Canon. In contrast, the D30 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the D30 was succeeded by the Canon D60. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is there a clear favorite between the Canon 5DS R and the Canon D30? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 5DS R:
- More detail: Offers more megapixels (50.3 vs 3.1MP) with a 302% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.54x).
- Larger screen: Has a bigger rear LCD (3.2" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 114k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (700 versus 540) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 1.0).
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 14 years and 8 months of technical progress since the D30 launch.
Advantages of the Canon EOS-D30:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Less heavy: Has a lower weight (by 180g or 19 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was released into a lower priced segment (19 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in May 2000).
If the number of relative strengths (bullet points above) is taken as a guide, the 5DS R is the clear winner of the match-up (19 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5DS R and the Canon D30 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5DS R and the D30 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 5DS R vs Canon D30
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5DS R||Canon D30|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||February 2015||May 2000|
|Launch Price||USD 3699||USD 2999|
|Sensor Specs||Canon 5DS R||Canon D30|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.0 x 14.9 mm|
|Sensor Area||864 mm2||327.8 mm2|
|Sensor Diagonal||43.3 mm||26.6 mm|
|Sensor Resolution||50.3 Megapixels||3.1 Megapixels|
|Image Resolution||8688 x 5792 pixels||2160 x 1440 pixels|
|Pixel Pitch||4.14 μm||10.29 μm|
|Pixel Density||5.82 MP/cm2||0.95 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100-6400 ISO||100-1600 ISO|
|ISO Boost||50-12800 ISO||no Enhancement|
|DXO Sensor Quality (score)||86||..|
|DXO Color Depth (bits)||24.6||..|
|DXO Dynamic Range (EV)||12.4||..|
|DXO Low Light (ISO)||2308||..|
|Screen Specs||Canon 5DS R||Canon D30|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.2 inch||1.8 inch|
|LCD Resolution||1040k dots||114k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5DS R||Canon D30|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||CF cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Canon 5DS R||Canon D30|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 1.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5DS R||Canon D30|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||700 shots per charge||540 shots per charge|
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
150 x 107 x 75 mm
(5.9 x 4.2 x 3.0 in)
|Camera Weight||930 g (32.8 oz)||750 g (26.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
