Canon 5D vs Canon M
The Canon EOS 5D and the Canon EOS M are two digital cameras that were announced, respectively, in August 2005 and July 2012. The 5D is a DSLR, while the Canon M is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D) and an APS-C (Canon M) sensor. The 5D has a resolution of 12.7 megapixels, whereas the Canon M provides 17.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D||Canon M|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Canon EF-M mount lenses|
|12.7 MP, Full Frame Sensor||17.9 MP, APS-C Sensor|
|no Video||1080/30p Video|
|ISO 100-1600 (50-3200)||ISO 100-12800 (100-25600)|
|Optical viewfinder||No viewfinder, LCD framing|
|2.5" LCD, 230k dots||3.0" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Fixed touchscreen|
|3 shutter flaps per second||4.3 shutter flaps per second|
|Weathersealed body||Not weather sealed|
|400 shots per battery charge||230 shots per battery charge|
|152 x 113 x 75 mm, 895 g||109 x 66 x 32 mm, 298 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Canon EOS M? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

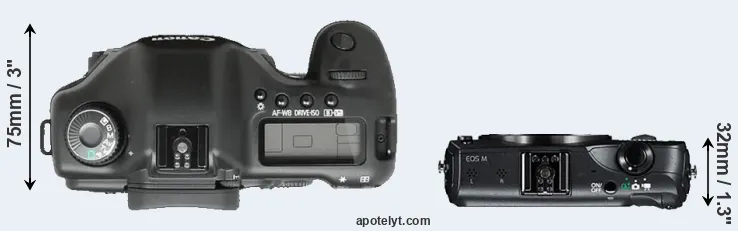

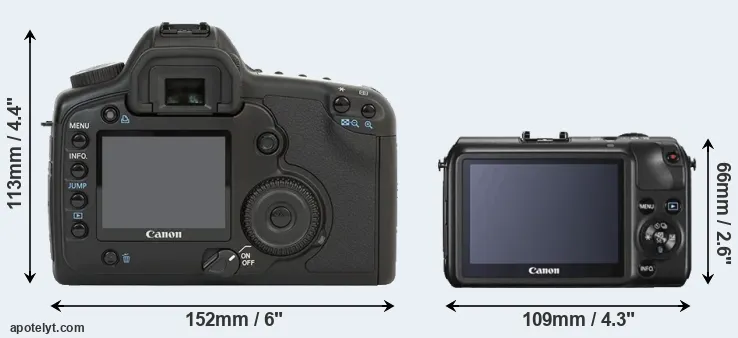

An illustration of the physical size and weight of the Canon 5D and the Canon M is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The Canon M can be obtained in two different colors (black, white), while the 5D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M is considerably smaller (58 percent) than the Canon 5D. Moreover, the Canon M is substantially lighter (67 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the Canon M does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 5D»||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299||Canon 5D|
|Canon M«||4.3 in||2.6 in||1.3 in||10.5 oz||230||n||Jul 2012||599||Canon M|
|Canon 6D Mark II« »||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon M100« »||4.3 in||2.6 in||1.4 in||10.7 oz||295||n||Aug 2017||499||Canon M100|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon M10« »||4.3 in||2.6 in||1.4 in||10.6 oz||255||n||Oct 2015||499||Canon M10|
|Canon SL1« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||Canon SL1|
|Canon T5i« »||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649||Canon T5i|
|Canon 5D Mark III« »||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499||Canon 5D Mark III|
|Canon 6D« »||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099||Canon 6D|
|Canon T3i« »||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599||Canon T3i|
|Canon 5D Mark II« »||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499||Canon 5D Mark II|
|Canon 1D Mark II N« »||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999||Canon 1D Mark II N|
|Canon 1Ds Mark II« »||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999||Canon 1Ds Mark II|
|Canon 1Ds« »||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999||Canon 1Ds|
|Nikon D700« »||5.8 in||4.8 in||3.0 in||37.9 oz||1000||Y||Jul 2008||2,999||Nikon D700|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon M was launched at a markedly lower price (by 82 percent) than the 5D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

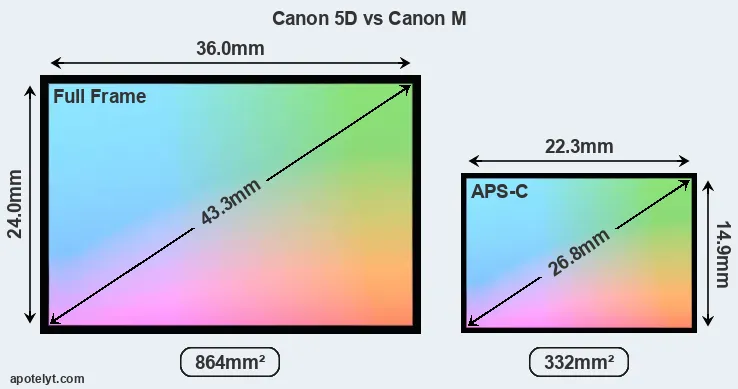

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Canon M an APS-C sensor. The sensor area in the Canon M is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the Canon M uses a more advanced image processing engine (DIGIC V) than the 5D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a smaller sensor, the Canon M offers a higher resolution of 17.9 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 8.25μm for the 5D). However, it should be noted that the Canon M is much more recent (by 6 years and 11 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon M for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inch or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inch or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inch or 43.9 x 29.3 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inch or 55.5 x 37 cm for good quality, 17.5 x 11.6 inch or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inch or 37 x 24.7 cm for excellent quality prints.
The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS M are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 5D has a notably higher overall DXO score than the Canon M (overall score 6 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.8 bits higher color depth, 0.1 EV of lower dynamic range, and 0.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71||Canon 5D|
|Canon M||APS-C||17.9||5184||3456||1080/30p||22.1||11.2||827||65||Canon M|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon M100||APS-C||24.0||6000||4000||1080/60p||23.5||12.9||1272||78||Canon M100|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon M10||APS-C||17.9||5184||3456||1080/30p||22.2||11.4||753||65||Canon M10|
|Canon SL1||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon SL1|
|Canon T5i||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||681||61||Canon T5i|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon T3i||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||793||65||Canon T3i|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66||Canon 1D Mark II N|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74||Canon 1Ds Mark II|
|Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63||Canon 1Ds|
|Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80||Nikon D700|
Many modern cameras cannot only take still pictures, but also record videos. The Canon M indeed provides for movie recording, while the 5D does not. The highest resolution format that the Canon M can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 5D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 5D and Canon M along with similar information for a selection of comparators.
|Canon 5D||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
|Canon M||none||n||3.0||1040||fixed||Y||1/4000s||4.3||n||n||Canon M|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon M100||none||n||3.0||1040||tilting||Y||1/4000s||6.1||Y||n||Canon M100|
|Canon 5DS||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon M10||none||n||3.0||1040||tilting||Y||1/4000s||4.6||Y||n||Canon M10|
|Canon SL1||optical||n||3.0||1040||fixed||Y||1/4000s||4.9||Y||n||Canon SL1|
|Canon T5i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T5i|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon T3i||optical||n||3.0||1040||swivel||n||1/4000s||3.7||Y||n||Canon T3i|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n||Canon 1D Mark II N|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n||Canon 1Ds Mark II|
|Canon 1Ds||optical||Y||2.0||120||fixed||n||1/8000s||3.0||n||n||Canon 1Ds|
|Nikon D700||optical||Y||3.0||922||fixed||n||1/8000s||8.0||Y||n||Nikon D700|
One feature that is present on the 5D, but is missing on the Canon M is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 5D writes its imaging data to Compact Flash cards, while the Canon M uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Canon EOS M and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 5D||Y||none||none||-||-||none||2.0||-||-||-||Canon 5D|
|Canon M||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon M|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon M100||-||stereo||mono||-||-||mini||2.0||Y||Y||Y||Canon M100|
|Canon 5DS||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon M10||-||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon M10|
|Canon SL1||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon SL1|
|Canon T5i||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T5i|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon T3i||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon T3i|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 1D Mark II N||Y||none||none||-||-||none||1.1||-||-||-||Canon 1D Mark II N|
|Canon 1Ds Mark II||Y||none||none||-||-||none||2.0||-||-||-||Canon 1Ds Mark II|
|Canon 1Ds||Y||none||none||-||-||none||FW||-||-||-||Canon 1Ds|
|Nikon D700||Y||none||none||-||-||mini||2.0||-||-||-||Nikon D700|
Studio photographers will appreciate that the Canon 5D (unlike the Canon M) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D and the Canon M have been discontinued, but can regularly be found used on eBay. The 5D was replaced by the Canon 5D Mark II, while the Canon M was followed by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is there a clear favorite between the Canon 5D and the Canon M? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 5D:
- Better image quality: Scores markedly higher (6 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (400 versus 230) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Arguments in favor of the Canon EOS M:
- More detail: Has more megapixels (17.9 vs 12.7MP), which boosts linear resolution by 19%.
- Better jpgs: Has a more modern image processing engine (DIGIC V vs DIGIC 2).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (4.3 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (109x66mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 597g or 67 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
- More modern: Reflects 6 years and 11 months of technical progress since the 5D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the Canon M is the clear winner of the contest (13 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Canon M place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D or the Canon M. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 5D Mark II vs Canon M10
- Canon 5D Mark II vs Panasonic ZS100
- Canon 5D Mark III vs Panasonic TS7
- Canon 5D Mark IV vs Panasonic LX10
- Canon 5D Mark IV vs Sony NEX-5N
- Canon 5D vs Fujifilm XP140
- Canon 5D vs Nikon D610
- Canon 5D vs Panasonic GF5
- Canon 5D vs Panasonic GX85
- Canon M vs Canon SX720
- Canon M vs Nikon D7100
- Canon M vs Olympus PEN-F
Specifications: Canon 5D vs Canon M
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Canon M|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon EF-M mount lenses|
|Launch Date||August 2005||July 2012|
|Launch Price||USD 3299||USD 599|
|Sensor Specs||Canon 5D||Canon M|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||12.7 Megapixels||17.9 Megapixels|
|Image Resolution||4368 x 2912 pixels||5184 x 3456 pixels|
|Pixel Pitch||8.25 μm||4.31 μm|
|Pixel Density||1.47 MP/cm2||5.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100-1600 ISO||100-12800 ISO|
|ISO Boost||50-3200 ISO||100-25600 ISO|
|Image Processor||DIGIC 2||DIGIC V|
|DXO Sensor Quality (score)||71||65|
|DXO Color Depth (bits)||22.9||22.1|
|DXO Dynamic Range (EV)||11.1||11.2|
|DXO Low Light (ISO)||1368||827|
|Screen Specs||Canon 5D||Canon M|
|Viewfinder Type||Optical viewfinder||No viewfinder|
|Viewfinder Field of View||96%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5 inch||3.0 inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D||Canon M|
|Autofocus System||Phase-detect AF||On-Sensor Phase-detect|
|Continuous Shooting||3 shutter flaps/s||4.3 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D||Canon M|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D||Canon M|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||400 shots per charge||230 shots per charge|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
|Camera Weight||895 g (31.6 oz)||298 g (10.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
