Canon 5D Mark IV versus Sony RX100 V

The Canon EOS 5D Mark IV and the Sony Cyber-shot DSC-RX100 V are two digital cameras that were officially introduced, respectively, in August 2016 and October 2016. The 5D Mark IV is a DSLR, while the RX100 V is a fixed lens compact. The cameras are based on a full frame (5D Mark IV) and an one-inch (RX100 V) sensor. The Canon has a resolution of 30.1 megapixel, whereas the Sony provides 20 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 5D Mark IV vs Sony RX100 V

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark IV and the Sony RX100 V. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left – the 5D Mark IV – represents 100 percent across all the size and weight measures).

Compare Canon 5D Mark IV vs Sony RX100 V

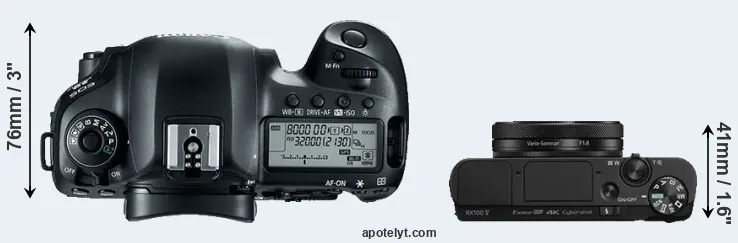

Compare 5D Mark IV versus RX100 V top
Compare 5D Mark IV and RX100 V rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX100 V is considerably smaller (66 percent) than the Canon 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the RX100 V does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the RX100 V has a lens build in, whereas the 5D Mark IV is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can find an overview of optics for the 5D Mark IV and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 5D Mark IV gets 900 shots out of its LP-E6N battery, while the RX100 V can take 220 images on a single charge of its NP-BX1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 5D Mark IV» 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Sony RX100 V« 4.0 in 2.3 in 1.6 in 10.5 oz 220 n Oct 2016 999 i i Sony RX100 V
Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon G7 X Mark II« » 4.2 in 2.4 in 1.7 in 11.3 oz 265 n Feb 2016 699 i i Canon G7 X Mark II
Canon 5DS« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS R
Canon G3 X« » 4.8 in 3.0 in 4.1 in 25.9 oz 300 Y Jun 2015 999 i i Canon G3 X
Canon G5 X« » 4.4 in 3.0 in 1.7 in 12.5 oz 210 n Oct 2015 799 i i Canon G5 X
Canon 5D Mark III« » 6.0 in 4.6 in 3.0 in 33.5 oz 950 Y Mar 2012 3,499- i Canon 5D Mark III
Canon 5D Mark II« » 6.0 in 4.5 in 3.0 in 30.0 oz 850 Y Sep 2008 3,499- i Canon 5D Mark II
Canon 5D« » 6.0 in 4.4 in 3.0 in 31.6 oz 400 Y Aug 2005 3,299- i Canon 5D
Nikon D850« » 5.7 in 4.9 in 3.1 in 35.5 oz 1840 Y Jul 2017 3,299 i i Nikon D850
Nikon D800« » 5.7 in 4.8 in 3.2 in 35.3 oz 900 Y Feb 2012 2,999- i Nikon D800
Nikon D800E« » 5.7 in 4.8 in 3.2 in 35.3 oz 900 Y Feb 2012 3,299- i Nikon D800E
Panasonic FZ2500« » 5.4 in 4.0 in 5.3 in 32.3 oz 350 n Sep 2016 1,199 i i Panasonic FZ2500
Sony RX100 IV« » 4.0 in 2.3 in 1.6 in 10.5 oz 280 n Jun 2015 999- i Sony RX100 IV

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The RX100 V was launched at a lower price than the 5D Mark IV, despite having a lens build in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 5D Mark IV vs Sony RX100 V

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Sony RX100 V an one-inch sensor. The sensor area in the RX100 V is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

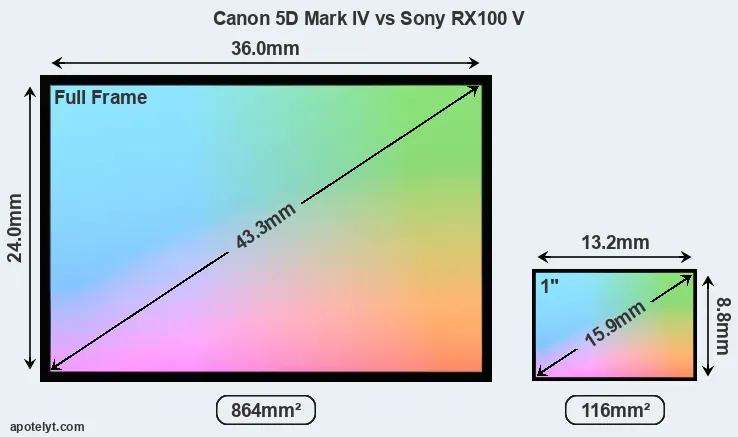

Canon 5D Mark IV and Sony RX100 V sensor measures

With 30.1MP, the 5D Mark IV offers a higher resolution than the RX100 V (20MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 2.41μm for the RX100 V) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.

5D Mark IV versus RX100 V MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 5D Mark IV provides substantially higher image quality than the RX100 V, with an overall score that is 21 points higher. This advantage is based on 2 bits higher color depth, 1.2 EV in additional dynamic range, and 2.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 5D Mark IV» Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Sony RX100 V« 1-inch 20.0 5472 36484K/30p22.812.458670Sony RX100 V
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon G7 X Mark II« » 1-inch 20.0 5472 36481080/60p----Canon G7 X Mark II
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 5DS R« » Full Frame 50.3 8688 57921080/60p24.612.4230886Canon 5DS R
Canon G3 X« » 1-inch 20.0 5472 36481080/60p21.412.352163Canon G3 X
Canon G5 X« » 1-inch 20.0 5472 36481080/60p----Canon G5 X
Canon 5D Mark III« » Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III
Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II
Canon 5D« » Full Frame 12.7 4368 2912-22.911.1136871Canon 5D
Nikon D850« » Full Frame 45.4 8256 55044K/30p26.414.82660100Nikon D850
Nikon D800« » Full Frame 36.2 7360 49121080/30p25.314.4285395Nikon D800
Nikon D800E« » Full Frame 36.2 7360 49121080/30p25.614.3297996Nikon D800E
Panasonic FZ2500« » 1-inch 20.0 5472 36484K/30p----Panasonic FZ2500
Sony RX100 IV« » 1-inch 20.0 5472 36484K/30p22.812.659170Sony RX100 IV

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).



Feature comparison: Canon 5D Mark IV vs Sony RX100 V

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the RX100 V has an electronic viewfinder (2359k dots), while the 5D Mark IV has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon 5D Mark IV, the Sony RX100 V, and comparable cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 5D Mark IV»optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Sony RX100 V«2359 n 3.0 1229 tilting n 2000 24.0 Y Y Sony RX100 V
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon G7 X Mark II« »- n 3.0 1040 tilting Y 2000 8.0 Y Y Canon G7 X Mark II
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 5DS R« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS R
Canon G3 X« »- n 3.2 1620 tilting Y 2000 5.9 Y Y Canon G3 X
Canon G5 X« »2360 n 3.0 1040 swivel Y 2000 5.9 Y Y Canon G5 X
Canon 5D Mark III« »optical Y 3.2 1040 fixed n 8000 6.0 n n Canon 5D Mark III
Canon 5D Mark II« »optical Y 3.0 920 fixed n 8000 3.9 n n Canon 5D Mark II
Canon 5D« »optical Y 2.5 230 fixed n 8000 3.0 n n Canon 5D
Nikon D850« »optical Y 3.2 2359 tilting Y 8000 9.0 n n Nikon D850
Nikon D800« »optical Y 3.2 921 fixed n 8000 4.0 Y n Nikon D800
Nikon D800E« »optical Y 3.2 921 fixed n 8000 4.0 Y n Nikon D800E
Panasonic FZ2500« »2360 n 3.0 1040 swivel Y 4000 12.0 Y Y Panasonic FZ2500
Sony RX100 IV« »2359 n 3.0 1228 tilting n 2000 16.0 Y Y Sony RX100 IV

One feature that is present on the 5D Mark IV, but is missing on the RX100 V is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the RX100 V features an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (rolling shutter) or shooting under artificial light sources (flickering).

The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the RX100 V uses SDXC or Memory Stick PRO Duo cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the RX100 V only has one slot.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 5D Mark IV»YmonomonoYYmini3.0YY-Canon 5D Mark IV
Sony RX100 V«-stereomono--micro2.0YY-Sony RX100 V
Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II
Canon G7 X Mark II« »-stereomono--micro2.0YY-Canon G7 X Mark II
Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS
Canon 5DS R« »YmonomonoY-mini3.0---Canon 5DS R
Canon G3 X« »YstereomonoYYmini2.0YY-Canon G3 X
Canon G5 X« »YstereomonoYYmini2.0YY-Canon G5 X
Canon 5D Mark III« »YmonomonoYYmini2.0---Canon 5D Mark III
Canon 5D Mark II« »YmonomonoY-mini2.0---Canon 5D Mark II
Canon 5D« »Y-----2.0---Canon 5D
Nikon D850« »YstereomonoYYmini3.0YYYNikon D850
Nikon D800« »YmonomonoYYmini3.0---Nikon D800
Nikon D800E« »YmonomonoYYmini3.0---Nikon D800E
Panasonic FZ2500« »YstereomonoYYmicro2.0Y--Panasonic FZ2500
Sony RX100 IV« »-stereomono--micro2.0YY-Sony RX100 IV

Both the 5D Mark IV and the RX100 V are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The 5D Mark IV replaced the earlier Canon 5D Mark III, while the RX100 V followed on from the Sony RX100 IV.

Review summary: Canon 5D Mark IV vs Sony RX100 V

So what conclusions can be drawn? Which of the two cameras – the Canon 5D Mark IV or the Sony RX100 V – has the upper hand? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Canon EOS 5D Mark IV:

  • More detail: Offers more megapixels (30.1 vs 20MP) with a 23% higher linear resolution.
  • Better image quality: Scores substantially higher (21 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (1.2 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (2.4 stops ISO advantage).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1229k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 2000/sec) to freeze action.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (900 versus 220) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.

ilogo

Reasons to prefer the Sony Cyber-shot DSC-RX100 V:

  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Faster burst: Shoots at higher frequency (24 vs 7 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Ready to shoot: Comes with an integrated lens, while the 5D Mark IV requires a separate lens.
  • More compact: Is smaller (102x58mm vs 151x116mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens build in (unlike the 5D Mark IV).
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More affordable: Was introduced at a lower price, despite coming with a build-in lens.

If the count of individual advantages (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (19 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

5D Mark IV 19:10 RX100 V

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 5D Mark IV or the RX100 V handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why expert reviews are important. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The detailed reviews can be accessed by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 5D Mark IV»HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Sony RX100 V«HiRec83/1004/55/54.5/5 Oct 2016 999 i i Sony RX100 V
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon G7 X Mark II« »HiRec81/1004.5/54/54.5/5 Feb 2016 699 i i Canon G7 X Mark II
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« »Rec83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R
Canon G3 X« »Rec-4.5/53.5/54/5 Jun 2015 999 i i Canon G3 X
Canon G5 X« »HiRec78/1004.5/54/54.5/5 Oct 2015 799 i i Canon G5 X
Canon 5D Mark III« »HiRec82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III
Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II
Canon 5D« »88/100HiRecrevrev- Aug 2005 3,299- i Canon 5D
Nikon D850« »HiRec89/1004.5/55/55/5 Jul 2017 3,299 i i Nikon D850
Nikon D800« »HiRec82/1005/55/55/5 Feb 2012 2,999- i Nikon D800
Nikon D800E« »-84/1005/54.5/55/5 Feb 2012 3,299- i Nikon D800E
Panasonic FZ2500« »Rec82/1004.5/54.5/55/5 Sep 2016 1,199 i i Panasonic FZ2500
Sony RX100 IV« »HiRec85/1004/54.5/54.5/5 Jun 2015 999- i Sony RX100 IV

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
