Canon 5D Mark IV vs Sony NEX-3
The Canon EOS 5D Mark IV and the Sony Alpha NEX-3 are two digital cameras that were revealed to the public, respectively, in August 2016 and May 2010. The 5D Mark IV is a DSLR, while the NEX-3 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark IV) and an APS-C (NEX-3) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Sony provides 14 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Sony Alpha NEX-3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

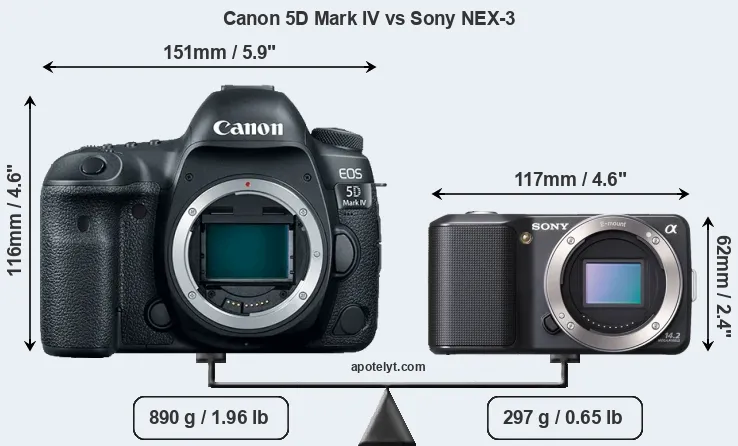

The physical size and weight of the Canon 5D Mark IV and the Sony NEX-3 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The NEX-3 can be obtained in three different colors (black, silver, red), while the 5D Mark IV is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-3 is considerably smaller (59 percent) than the Canon 5D Mark IV. Moreover, the NEX-3 is substantially lighter (67 percent) than the 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the NEX-3 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Sony E-Mount Lens Catalog (NEX-3). Mirrorless cameras, such as the NEX-3, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599|
|Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599|
|Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699|
|Sony NEX-C3||110 mm||60 mm||33 mm||225 g||400||n||Jun 2011||599|
|Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NEX-3 was launched at a markedly lower price (by 83 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

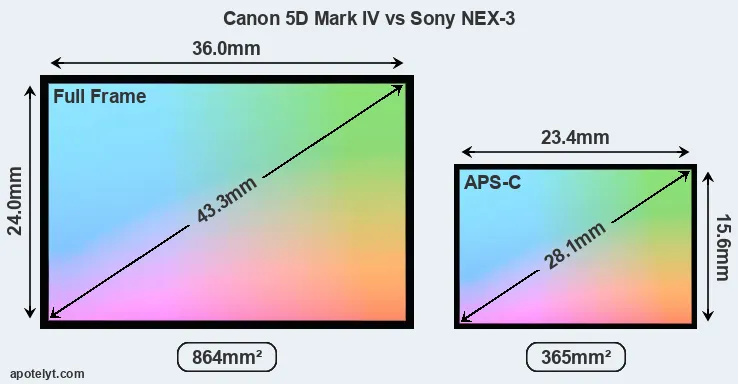

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Sony NEX-3 an APS-C sensor. The sensor area in the NEX-3 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 30.1MP, the 5D Mark IV offers a higher resolution than the NEX-3 (14MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 5.11μm for the NEX-3) due to its larger sensor. Moreover, the 5D Mark IV is a much more recent model (by 6 years and 3 months) than the NEX-3, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Sony NEX-3 are 23 x 15.3 inches or 58.3 x 38.8 cm for good quality, 18.4 x 12.2 inches or 46.7 x 31 cm for very good quality, and 15.3 x 10.2 inches or 38.9 x 25.9 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Sony Alpha NEX-3 are ISO 200 to ISO 12800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 5D Mark IV provides substantially higher image quality than the NEX-3, with an overall score that is 23 points higher. This advantage is based on 2.7 bits higher color depth, 1.6 EV in additional dynamic range, and 1.9 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 5D Mark IV provides a higher video resolution than the NEX-3. It can shoot video footage at 4K/30p, while the Sony is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 5D Mark IV has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-3 relies on live view and the rear LCD for framing. That said, the NEX-3 can be equipped with an optional viewfinder – the FDA-SV1. The adjacent table lists some of the other core features of the Canon 5D Mark IV and Sony NEX-3 along with similar information for a selection of comparators.
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One feature that is present on the 5D Mark IV, but is missing on the NEX-3 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The NEX-3 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark IV does not have a selfie-screen.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the NEX-3 uses SDXC or Memory Stick PRO Duo cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the NEX-3 only has one slot. The 5D Mark IV supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-3 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Sony Alpha NEX-3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
It is notable that the 5D Mark IV has a microphone port, which is missing on the NEX-3. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 5D Mark IV (unlike the NEX-3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the NEX-3 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the NEX-3 was succeeded by the Sony NEX-3N. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So how do things add up? Is there a clear favorite between the Canon 5D Mark IV and the Sony NEX-3? Which camera is better? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 14MP) with a 46% higher linear resolution.
- Better image quality: Scores substantially higher (23 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.7 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.6 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.9 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 920k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (900 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 6 years and 3 months of technical progress since the NEX-3 launch.
Arguments in favor of the Sony Alpha NEX-3:
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (117x62mm vs 151x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 593g or 67 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (83 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in May 2010).
If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (26 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Sony NEX-3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark IV or the NEX-3. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Sony NEX-3||..||70/100||4.5/5||5/5||4/5||May 2010||599|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D810||..||86/100||5/5||4.5/5||4.5/5||Jun 2014||3,299|
|Sony NEX-3N||..||..||4.5/5||4/5||4.5/5||Feb 2013||499|
|Sony NEX-F3||..||74/100||4.5/5||4.5/5||4.5/5||May 2012||599|
|Sony NEX-5N||+ +||79/100||4.5/5||5/5||4.5/5||Aug 2011||699|
|Sony NEX-C3||+ +||74/100||4.5/5||4.5/5||4/5||Jun 2011||599|
|Sony NEX-5||+ +||71/100||4.5/5||4/5||4/5||May 2010||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 400D vs Sony NEX-3
- Canon 550D vs Canon 5D Mark IV
- Canon 5D Mark IV vs Canon SX520
- Canon 5D Mark IV vs Leica S3
- Canon 5D Mark IV vs Leica X Typ 113
- Canon 5D Mark IV vs Pentax MX-1
- Canon 5D Mark IV vs Sony RX100 IV
- Fujifilm X100F vs Sony NEX-3
- Nikon D5300 vs Sony NEX-3
- Olympus E-520 vs Sony NEX-3
- Panasonic G85 vs Sony NEX-3
- Samsung NX500 vs Sony NEX-3
Specifications: Canon 5D Mark IV vs Sony NEX-3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark IV||Sony NEX-3|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2016||May 2010|
|Launch Price||USD 3,499||USD 599|
|Sensor Specs||Canon 5D Mark IV||Sony NEX-3|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.4 x 15.6 mm|
|Sensor Area||864 mm2||365.04 mm2|
|Sensor Diagonal||43.3 mm||28.1 mm|
|Sensor Resolution||30.1 Megapixels||14 Megapixels|
|Image Resolution||6720 x 4480 pixels||4592 x 3056 pixels|
|Pixel Pitch||5.36 μm||5.11 μm|
|Pixel Density||3.48 MP/cm2||3.84 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||720/30p Video|
|ISO Setting||100 - 32,000 ISO||200 - 12,800 ISO|
|ISO Boost||50 - 102,400 ISO||no Enhancement|
|Image Processor||DIGIC 6+||BIONZ|
|DXO Sensor Quality (score)||91||68|
|DXO Color Depth (bits)||24.8||22.1|
|DXO Dynamic Range (EV)||13.6||12.0|
|DXO Low Light (ISO)||2995||830|
|Screen Specs||Canon 5D Mark IV||Sony NEX-3|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 5D Mark IV||Sony NEX-3|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||7 shutter flaps/s||7 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDXC cards||MS or SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 5D Mark IV||Sony NEX-3|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 5D Mark IV||Sony NEX-3|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||900 shots per charge||330 shots per charge|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
117 x 62 x 33 mm
(4.6 x 2.4 x 1.3 in)
|Camera Weight||890 g (31.4 oz)||297 g (10.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
