Canon 5D Mark II vs Leica D-LUX Typ 109
The Canon EOS 5D Mark II and the Leica D-LUX (Typ 109) are two digital cameras that were officially introduced, respectively, in September 2008 and September 2014. The 5D Mark II is a DSLR, while the D-LUX Typ 109 is a fixed lens compact. The cameras are based on a full frame (5D Mark II) and a Four Thirds (D-LUX Typ 109) sensor. The Canon has a resolution of 21 megapixels, whereas the Leica provides 12.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Leica D-LUX (Typ 109)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

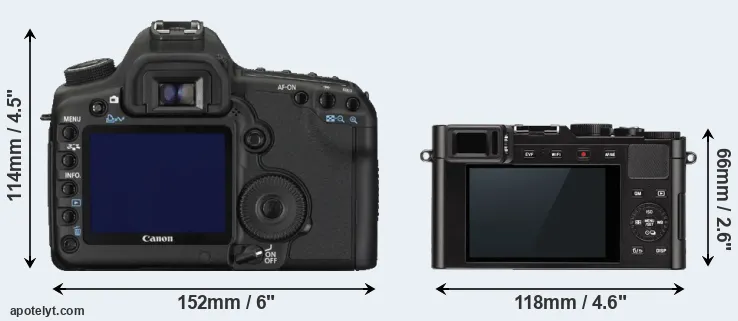

An illustration of the physical size and weight of the Canon 5D Mark II and the Leica D-LUX Typ 109 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The D-LUX Typ 109 can be obtained in two different colors (black, grey), while the 5D Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica D-LUX Typ 109 is considerably smaller (55 percent) than the Canon 5D Mark II. It is worth mentioning in this context that the 5D Mark II is splash and dust resistant, while the D-LUX Typ 109 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX Typ 109 has a lens built in, whereas the 5D Mark II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5D Mark II and their specifications in the Canon EF Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|2.||Leica D-LUX Typ 109||118 mm||66 mm||55 mm||405 g||300||n||Sep 2014||1,195|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|4.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|8.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|9.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|10.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|11.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|12.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|13.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|14.||Fujifilm X100T||127 mm||74 mm||52 mm||440 g||330||n||Sep 2014||1,299|
|15.||Fujifilm X100S||127 mm||74 mm||54 mm||445 g||330||n||Jan 2013||1,299|
|16.||Leica D-LUX 7||115 mm||66 mm||65 mm||392 g||300||n||Nov 2018||1,195|
|17.||Leica X Typ 113||133 mm||73 mm||78 mm||486 g||350||n||Sep 2014||2,295|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D-LUX Typ 109 was launched at a lower price than the 5D Mark II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Leica D-LUX Typ 109 a Four Thirds sensor. The sensor area in the D-LUX Typ 109 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D Mark II has a native 3:2 aspect ratio, while the one in the D-LUX Typ 109 offers a 4:3 aspect. The D-LUX Typ 109 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.
With 21MP, the 5D Mark II offers a higher resolution than the D-LUX Typ 109 (12.7MP), but the 5D Mark II nevertheless has larger individual pixels (pixel pitch of 6.41μm versus 4.21μm for the D-LUX Typ 109) due to its larger sensor. However, the D-LUX Typ 109 is a much more recent model (by 5 years and 11 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark II for good quality output (200 dots per inch) amounts to 28.1 x 18.7 inches or 71.3 x 47.5 cm, for very good quality (250 dpi) 22.5 x 15 inches or 57.1 x 38 cm, and for excellent quality (300 dpi) 18.7 x 12.5 inches or 47.5 x 31.7 cm. The corresponding values for the Leica D-LUX Typ 109 are 20.6 x 15.4 inches or 52.2 x 39.2 cm for good quality, 16.4 x 12.4 inches or 41.8 x 31.4 cm for very good quality, and 13.7 x 10.3 inches or 34.8 x 26.1 cm for excellent quality prints.
The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Leica D-LUX (Typ 109) are ISO 200 to ISO 12500, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|2.||Leica D-LUX Typ 109||Four Thirds||12.7||4112||3088||4K/30p||..||..||..||..|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|4.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|8.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|9.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|10.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|12.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|13.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|16.||Leica D-LUX 7||Four Thirds||16.8||4736||3552||4K/30p||..||..||..||..|
|17.||Leica X Typ 113||APS-C||16.1||4928||3264||1080/30p||..||..||..||..|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D-LUX Typ 109 provides a better video resolution than the 5D Mark II. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D-LUX Typ 109 has an electronic viewfinder (2764k dots), while the 5D Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the D-LUX Typ 109 offers a wider field of view (100%) than the one in the 5D Mark II (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 5D Mark II has a higher magnification (0.71x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5D Mark II and Leica D-LUX Typ 109 along with similar information for a selection of comparators.
|1.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|2.||Leica D-LUX Typ 109||2764||n||3.0||921||fixed||n||1/4000s||11.0||n||Y|
|3.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|4.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|6.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|8.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|10.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|12.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|16.||Leica D-LUX 7||2764||n||3.0||1240||fixed||Y||1/4000s||11.0||n||Y|
|17.||Leica X Typ 113||optional||n||3.0||920||fixed||n||1/2000s||5.0||Y||n|
One feature that is present on the 5D Mark II, but is missing on the D-LUX Typ 109 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the D-LUX Typ 109 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Leica D-LUX Typ 109 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark II writes its imaging data to Compact Flash cards, while the D-LUX Typ 109 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Leica D-LUX (Typ 109) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|2.||Leica D-LUX Typ 109||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|4.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|8.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|10.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|12.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|16.||Leica D-LUX 7||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|17.||Leica X Typ 113||Y||stereo||mono||-||-||mini||2.0||-||-||-|
It is notable that the 5D Mark II has a microphone port, which is missing on the D-LUX Typ 109. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 5D Mark II (unlike the D-LUX Typ 109) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D Mark II and the D-LUX Typ 109 have been discontinued, but can regularly be found used on eBay. The 5D Mark II was replaced by the Canon 5D Mark III, while the D-LUX Typ 109 was followed by the Leica D-LUX 7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what is the bottom line? Is the Canon 5D Mark II better than the Leica D-LUX Typ 109 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 5D Mark II:
- More detail: Offers more megapixels (21 vs 12.7MP) with a 31% higher linear resolution.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.70x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (850 versus 300) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Advantages of the Leica D-LUX (Typ 109):
- Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
- Faster burst: Shoots at higher frequency (11 vs 3.9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Comes with an integrated lens, while the 5D Mark II requires a separate lens.
- More compact: Is smaller (118x66mm vs 152x114mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 5D Mark II).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 5 years and 11 months of technical progress since the 5D Mark II launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D-LUX Typ 109 is the clear winner of the contest (16 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark II and the Leica D-LUX Typ 109 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 5D Mark II or the D-LUX Typ 109 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|2.||Leica D-LUX Typ 109||..||..||..||4.5/5||4.5/5||Sep 2014||1,195|
|3.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|4.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|5.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|7.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|8.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|9.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|10.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|11.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|12.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|13.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|14.||Fujifilm X100T||5/5||+||81/100||4.5/5||5/5||Sep 2014||1,299|
|15.||Fujifilm X100S||5/5||+ +||81/100||4.5/5||5/5||Jan 2013||1,299|
|16.||Leica D-LUX 7||..||..||..||..||4.5/5||Nov 2018||1,195|
|17.||Leica X Typ 113||3.5/5||..||..||3.5/5||4/5||Sep 2014||2,295|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 5D Mark II vs Leica D-LUX Typ 109
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark II||Leica D-LUX Typ 109|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-75mm f/1.7-2.8|
|Launch Date||September 2008||September 2014|
|Launch Price||USD 3,499||USD 1,195|
|Sensor Specs||Canon 5D Mark II||Leica D-LUX Typ 109|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||36.0 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||864 mm2||224.9 mm2|
|Sensor Diagonal||43.3 mm||21.6 mm|
|Sensor Resolution||21 Megapixels||12.7 Megapixels|
|Image Resolution||5616 x 3744 pixels||4112 x 3088 pixels|
|Pixel Pitch||6.41 μm||4.21 μm|
|Pixel Density||2.43 MP/cm2||5.65 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||200 - 12,500 ISO|
|ISO Boost||50 - 25,600 ISO||100 - 25,600 ISO|
|DXO Sensor Quality (score)||79||..|
|DXO Color Depth (bits)||23.7||..|
|DXO Dynamic Range (EV)||11.9||..|
|DXO Low Light (ISO)||1815||..|
|Screen Specs||Canon 5D Mark II||Leica D-LUX Typ 109|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||98%||100%|
|Viewfinder Resolution||2764k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D Mark II||Leica D-LUX Typ 109|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||3.9 shutter flaps/s||11 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D Mark II||Leica D-LUX Typ 109|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 5D Mark II||Leica D-LUX Typ 109|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||850 shots per charge||300 shots per charge|
152 x 114 x 75 mm
(6.0 x 4.5 x 3.0 in)
118 x 66 x 55 mm
(4.6 x 2.6 x 2.2 in)
|Camera Weight||850 g (30.0 oz)||405 g (14.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
