Canon 5D Mark II vs Fujifilm X-T4
The Canon EOS 5D Mark II and the Fujifilm X-T4 are two digital cameras that were revealed to the public, respectively, in September 2008 and February 2020. The 5D Mark II is a DSLR, while the X-T4 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark II) and an APS-C (X-T4) sensor. The Canon has a resolution of 21 megapixels, whereas the Fujifilm provides 26 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Fujifilm X-T4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

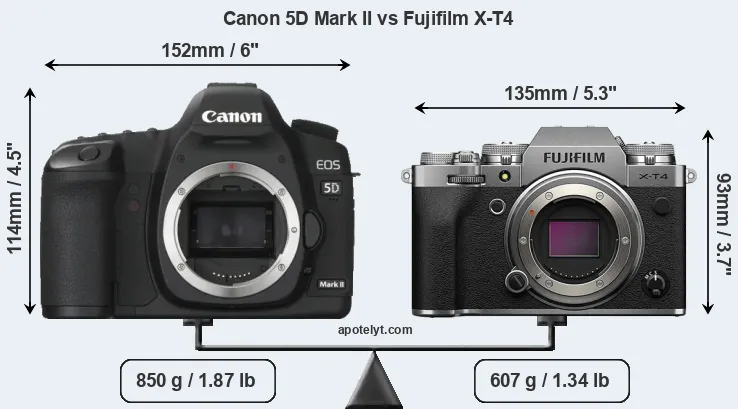

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark II and the Fujifilm X-T4. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The X-T4 can be obtained in two different colors (black, silver), while the 5D Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T4 is notably smaller (28 percent) than the Canon 5D Mark II. Moreover, the X-T4 is markedly lighter (29 percent) than the 5D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark II) and the Fujinon X Lens Catalog (X-T4). Mirrorless cameras, such as the X-T4, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 5D Mark II gets 850 shots out of its LP-E6 battery, while the X-T4 can take 500 images on a single charge of its NP-W235 power pack. The power pack in the X-T4 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|2.||Fujifilm X-T4||135 mm||93 mm||64 mm||607 g||500||Y||Feb 2020||1,699|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|4.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|9.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|10.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|11.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|12.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|13.||Fujifilm X-Pro3||141 mm||83 mm||46 mm||497 g||440||Y||Oct 2019||1,799|
|14.||Fujifilm X-T3||133 mm||93 mm||59 mm||539 g||390||Y||Sep 2018||1,499|
|15.||Fujifilm X-H1||140 mm||97 mm||86 mm||673 g||310||Y||Feb 2018||1,899|
|16.||Fujifilm X-T2||133 mm||92 mm||49 mm||507 g||340||Y||Jul 2016||1,599|
|17.||Sony A6600||120 mm||67 mm||69 mm||503 g||810||Y||Aug 2019||1,399|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-T4 was launched at a markedly lower price (by 51 percent) than the 5D Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

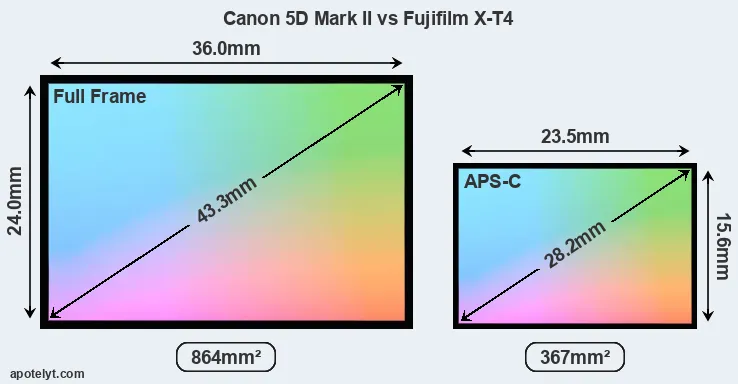

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Fujifilm X-T4 an APS-C sensor. The sensor area in the X-T4 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the X-T4 offers a higher resolution of 26 megapixels, compared with 21 MP of the 5D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 6.41μm for the 5D Mark II). However, it should be noted that the X-T4 is much more recent (by 11 years and 5 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the X-T4 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-T4 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T4 for good quality output (200 dots per inch) amounts to 31.2 x 20.8 inches or 79.2 x 52.8 cm, for very good quality (250 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm, and for excellent quality (300 dpi) 20.8 x 13.9 inches or 52.8 x 35.2 cm. The corresponding values for the Canon 5D Mark II are 28.1 x 18.7 inches or 71.3 x 47.5 cm for good quality, 22.5 x 15 inches or 57.1 x 38 cm for very good quality, and 18.7 x 12.5 inches or 47.5 x 31.7 cm for excellent quality prints.
The X-T4 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Fujifilm X-T4 are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|4.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|9.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|11.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|12.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-T4 provides a better video resolution than the 5D Mark II. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the X-T4 has an electronic viewfinder (3690k dots), while the 5D Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-T4 offers a wider field of view (100%) than the one in the 5D Mark II (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the X-T4 has a higher magnification (0.75x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5D Mark II, the Fujifilm X-T4, and comparable cameras.
|1.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|3.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|4.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|6.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|9.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|11.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
One feature that is present on the 5D Mark II, but is missing on the X-T4 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The X-T4 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark II does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T4 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T4 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark II writes its imaging data to Compact Flash cards, while the X-T4 uses SDXC cards. The X-T4 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 5D Mark II only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Fujifilm X-T4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|3.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|4.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|9.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|11.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
It is notable that the X-T4 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D Mark II does not provide wifi capability.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
The X-T4 is a recent model that features in the current product line-up of Fujifilm. In contrast, the 5D Mark II has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 5D Mark II was succeeded by the Canon 5D Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So what is the bottom line? Is there a clear favorite between the Canon 5D Mark II and the Fujifilm X-T4? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 5D Mark II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Longer lasting: Can take more shots (850 versus 500) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Reasons to prefer the Fujifilm X-T4:
- More detail: Has more megapixels (26 vs 21MP), which boosts linear resolution by 11%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.75x vs 0.71x).
- More detailed LCD: Has a higher resolution rear screen (1620k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (15 vs 3.9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (135x93mm vs 152x114mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 243g or 29 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (51 percent cheaper at launch).
- More modern: Reflects 11 years and 5 months of technical progress since the 5D Mark II launch.
If the number of relative strengths (bullet points above) is taken as a guide, the X-T4 is the clear winner of the contest (25 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark II and the Fujifilm X-T4 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark II or the X-T4. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|2.||Fujifilm X-T4||5/5||+ +||..||5/5||5/5||Feb 2020||1,699|
|3.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|4.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|5.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|9.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|10.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|11.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|12.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|13.||Fujifilm X-Pro3||4/5||+||85/100||4/5||..||Oct 2019||1,799|
|14.||Fujifilm X-T3||5/5||+ +||88/100||5/5||5/5||Sep 2018||1,499|
|15.||Fujifilm X-H1||..||+||86/100||4.5/5||4.5/5||Feb 2018||1,899|
|16.||Fujifilm X-T2||5/5||+ +||86/100||4.5/5||5/5||Jul 2016||1,599|
|17.||Sony A6600||4/5||+||83/100||4.5/5||4/5||Aug 2019||1,399|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 5D Mark II vs Fujifilm X-T4
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark II||Fujifilm X-T4|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||September 2008||February 2020|
|Launch Price||USD 3,499||USD 1,699|
|Sensor Specs||Canon 5D Mark II||Fujifilm X-T4|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.5 x 15.6 mm|
|Sensor Area||864 mm2||366.6 mm2|
|Sensor Diagonal||43.3 mm||28.2 mm|
|Sensor Resolution||21 Megapixels||26 Megapixels|
|Image Resolution||5616 x 3744 pixels||6240 x 4160 pixels|
|Pixel Pitch||6.41 μm||3.76 μm|
|Pixel Density||2.43 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/60p Video|
|ISO Setting||100 - 6,400 ISO||160 - 12,800 ISO|
|ISO Boost||50 - 25,600 ISO||80 - 51,200 ISO|
|Image Processor||DIGIC 4||X-Processor 4|
|DXO Sensor Quality (score)||79||..|
|DXO Color Depth (bits)||23.7||..|
|DXO Dynamic Range (EV)||11.9||..|
|DXO Low Light (ISO)||1815||..|
|Screen Specs||Canon 5D Mark II||Fujifilm X-T4|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||98%||100%|
|Viewfinder Resolution||3690k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1620k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D Mark II||Fujifilm X-T4|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||3.9 shutter flaps/s||15 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations||300 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 5D Mark II||Fujifilm X-T4|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 5D Mark II||Fujifilm X-T4|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||850 shots per charge||500 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
152 x 114 x 75 mm
(6.0 x 4.5 x 3.0 in)
135 x 93 x 64 mm
(5.3 x 3.7 x 2.5 in)
|Camera Weight||850 g (30.0 oz)||607 g (21.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
