Canon 5D Mark II vs M6

The Canon EOS 5D Mark II and the Canon EOS M6 are two digital cameras that were revealed to the public, respectively, in September 2008 and February 2017. The 5D Mark II is a DSLR, while the M6 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark II) and an APS-C (M6) sensor. The 5D Mark II has a resolution of 21 megapixels, whereas the M6 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D Mark II		Canon M6
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Canon EF-M mount lenses
21 MP – Full Frame sensor		24 MP – APS-C sensor
1080/30p Video		1080/60p Video
ISO 100-6,400 (50 - 25,600)		ISO 100-25,600
Optical viewfinder		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3.9 shutter flaps per second		9 shutter flaps per second
Weathersealed body		not weather sealed
850 shots per battery charge		295 shots per battery charge
152 x 114 x 75 mm, 850 g		112 x 68 x 45 mm, 390 g

Check 5D Mark II offers at
ebay.com
Check M6 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Canon EOS M6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

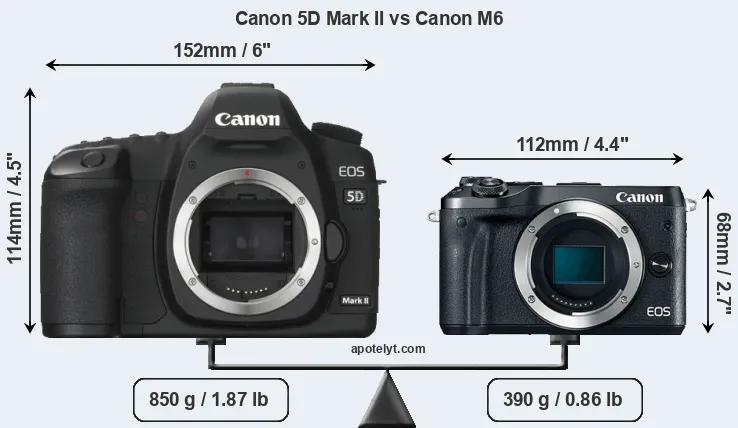

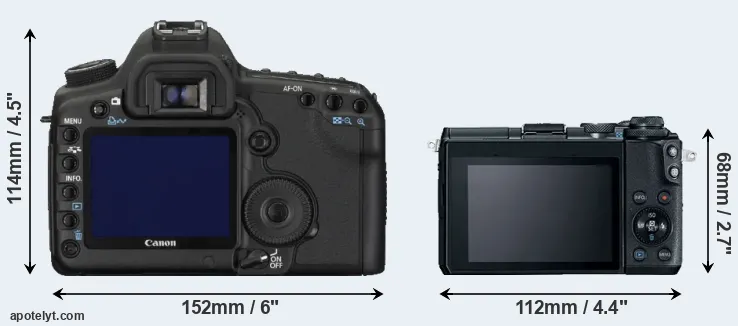

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark II and the Canon M6. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The M6 can be obtained in two different colors (black, silver), while the 5D Mark II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M6 is considerably smaller (56 percent) than the Canon 5D Mark II. Moreover, the M6 is substantially lighter (54 percent) than the 5D Mark II. It is worth mentioning in this context that the 5D Mark II is splash and dust resistant, while the M6 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 5D Mark II gets 850 shots out of its LP-E6 battery, while the M6 can take 295 images on a single charge of its LP-E17 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	3,499	ebay.com
2.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
3.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	849	amazon.com
4.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
5.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
6.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
7.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	5,999	ebay.com
8.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	3,499	amazon.com
9.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
10.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	amazon.com
11.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	amazon.com
12.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	3,499	ebay.com
13.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	2,099	ebay.com
14.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	6,799	ebay.com
15.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	1,699	ebay.com
16.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	7,999	ebay.com
17.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	3,299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M6 was launched at a markedly lower price (by 78 percent) than the 5D Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Canon M6 an APS-C sensor. The sensor area in the M6 is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the M6 uses a more advanced image processing engine (DIGIC 7) than the 5D Mark II (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the M6 offers a higher resolution of 24 megapixels, compared with 21 MP of the 5D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.41μm for the 5D Mark II). However, it should be noted that the M6 is much more recent (by 8 years and 5 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon M6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 5D Mark II are 28.1 x 18.7 inches or 71.3 x 47.5 cm for good quality, 22.5 x 15 inches or 57.1 x 38 cm for very good quality, and 18.7 x 12.5 inches or 47.5 x 31.7 cm for excellent quality prints.

The M6 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Canon EOS M6 are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
2.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
3.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
4.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
5.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
6.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
8.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
9.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
10.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
11.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
12.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
13.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
14.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
15.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
16.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
17.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M6 provides a faster frame rate than the 5D Mark II. It can shoot movie footage at 1080/60p, while the 5D Mark II is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 5D Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M6 relies on live view and the rear LCD for framing. That said, the M6 can be equipped with an optional viewfinder – the EVF-DC2. The table below summarizes some of the other core capabilities of the Canon 5D Mark II and Canon M6 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
2.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
3.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
4.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
5.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
6.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
8.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
9.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
11.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
12.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
13.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
14.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
15.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
16.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
17.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D Mark II, but is missing on the M6 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon M6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5D Mark II writes its imaging data to Compact Flash cards, while the M6 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Canon EOS M6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
3.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
8.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
9.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
11.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
12.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
13.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
14.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
15.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
16.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
17.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the M6 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D Mark II does not provide wifi capability.

Studio photographers will appreciate that the Canon 5D Mark II (unlike the M6) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 5D Mark II and the M6 have been discontinued, but can regularly be found used on ebay. The 5D Mark II was replaced by the Canon 5D Mark III, while the M6 was followed by the Canon M6 Mark II. Further information on the features and operation of the 5D Mark II and M6 can be found, respectively, in the Canon 5D Mark II Manual (free pdf) or the online Canon M6 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 5D Mark II or the Canon M6 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS 5D Mark II:

• Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Can take more shots (850 versus 295) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2008).

Reasons to prefer the Canon EOS M6:

• More detail: Has more megapixels (24 vs 21MP), which boosts linear resolution by 7%.
• More dynamic range: Captures a broader range of light and dark details (0.7 EV of extra DR).
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 4).
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (9 vs 3.9 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (112x68mm vs 152x114mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 460g or 54 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
• More modern: Reflects 8 years and 5 months of technical progress since the 5D Mark II launch.

If the number of relative strengths (bullet points above) is taken as a guide, the M6 is the clear winner of the contest (20 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D Mark II and the Canon M6 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5D Mark II and the M6 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	3,499	ebay.com
2.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
3.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	849	amazon.com
4.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
5.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
6.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
7.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	5,999	ebay.com
8.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	3,499	amazon.com
9.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
10.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	amazon.com
11.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	amazon.com
12.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	3,499	ebay.com
13.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	2,099	ebay.com
14.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	6,799	ebay.com
15.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	1,699	ebay.com
16.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	7,999	ebay.com
17.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	3,299	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check 5D Mark II offers at
ebay.com
Check M6 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check 5D Mark II offers at
ebay.com
Check M6 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
