Canon 5D Mark II vs 77D
The Canon EOS 5D Mark II and the Canon EOS 77D are two digital cameras that were revealed to the public, respectively, in September 2008 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark II) and an APS-C (77D) sensor. The 5D Mark II has a resolution of 21 megapixels, whereas the 77D provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D Mark II||Canon 77D|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|21 MP, Full Frame Sensor||24 MP, APS-C Sensor|
|1080/30p Video||1080/60p Video|
|ISO 100-6400 (50-25600)||ISO 100-25600 (100-51200)|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 920k dots||3.0" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Swivel touchscreen|
|3.9 shutter flaps per second||6 shutter flaps per second|
|Weathersealed body||Not weather sealed|
|850 shots per battery charge||600 shots per battery charge|
|152 x 114 x 75 mm, 850 g||131 x 100 x 76 mm, 540 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Canon EOS 77D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Canon 5D Mark II vs 77D
The physical size and weight of the Canon 5D Mark II and the Canon 77D are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 77D is notably smaller (24 percent) than the Canon 5D Mark II. Moreover, the 77D is substantially lighter (36 percent) than the 5D Mark II. It is worth mentioning in this context that the 5D Mark II is splash and dust resistant, while the 77D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D Mark II) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (77D). You can compare the optics available in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 5D Mark II»||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 77D«||5.2 in||3.9 in||3.0 in||19.0 oz||600||n||Feb 2017||899||Canon 77D|
|Canon SL2« »||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549||-||Canon SL2|
|Canon T7i« »||5.2 in||3.9 in||3.0 in||18.8 oz||600||n||Feb 2017||749||Canon T7i|
|Canon 1D X Mark II« »||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 5D Mark IV« »||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon M5« »||4.6 in||3.5 in||2.4 in||15.1 oz||295||n||Sep 2016||979||Canon M5|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon T6i« »||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749||-||Canon T6i|
|Canon T6s« »||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649||-||Canon T6s|
|Canon 5D Mark III« »||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099||-||Canon 6D|
|Canon 1D X« »||6.2 in||6.6 in||3.3 in||54.7 oz||1120||Y||Oct 2011||6,799||-||Canon 1D X|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||-||Canon 7D|
|Canon 1Ds Mark III« »||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 5D« »||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299||-||Canon 5D|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 77D was launched at a markedly lower price (by 74 percent) than the 5D Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Canon 5D Mark II vs 77D
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

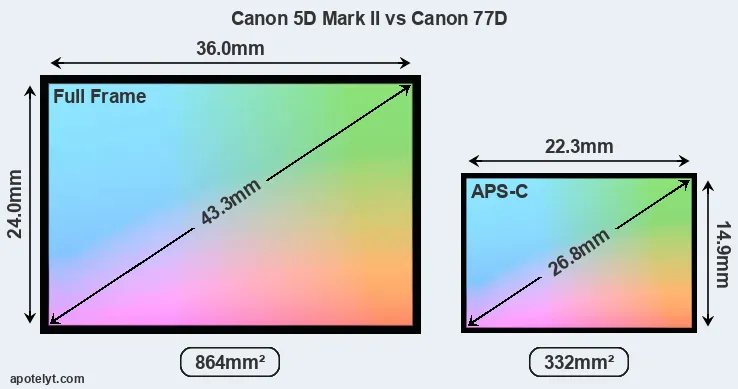

Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Canon 77D an APS-C sensor. The sensor area in the 77D is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 77D uses a more advanced image processing engine (DIGIC 7) than the 5D Mark II (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

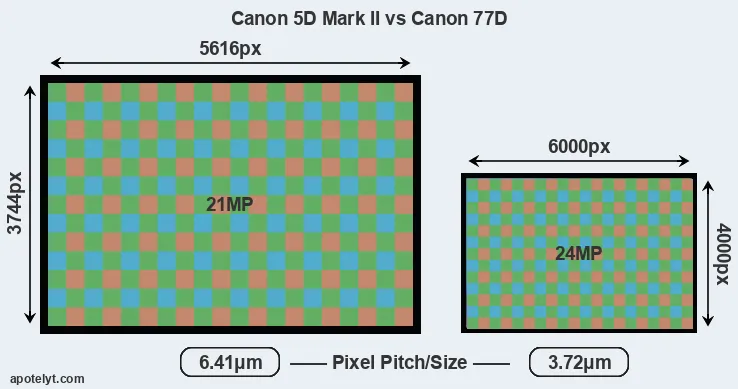

Despite having a smaller sensor, the 77D offers a higher resolution of 24 megapixels, compared with 21 MP of the 5D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.41μm for the 5D Mark II). However, it should be noted that the 77D is much more recent (by 8 years and 5 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Canon 5D Mark II are 28.1 x 18.7 inch or 71.3 x 47.5 cm for good quality, 22.5 x 15 inch or 57.1 x 38 cm for very good quality, and 18.7 x 12.5 inch or 47.5 x 31.7 cm for excellent quality prints.
The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Canon EOS 77D are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 5D Mark II»||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 77D«||APS-C||24.0||6000||4000||1080/60p||23.6||13.3||971||78||Canon 77D|
|Canon SL2« »||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon SL2|
|Canon T7i« »||APS-C||24.0||6000||4000||1080/60p||-||-||-||-||Canon T7i|
|Canon 1D X Mark II« »||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon 5D Mark IV« »||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon M5« »||APS-C||24.0||6000||4000||1080/60p||23.4||12.4||1262||77||Canon M5|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R« »||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon T6i« »||APS-C||24.0||6000||4000||1080/60p||22.7||12.0||919||71||Canon T6i|
|Canon T6s« »||APS-C||24.0||6000||4000||1080/30p||22.6||12.0||915||70||Canon T6s|
|Canon 5D Mark III« »||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D« »||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 1D X« »||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82||Canon 1D X|
|Canon 7D« »||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon 1Ds Mark III« »||Full Frame||21.0||5616||3744||-||24.0||12.0||1663||80||Canon 1Ds Mark III|
|Canon 5D« »||Full Frame||12.7||4368||2912||-||22.9||11.1||1368||71||Canon 5D|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 77D provides a faster frame rate than the 5D Mark II. It can shoot movie footage at 1080/60p, while the 5D Mark II is limited to 1080/30p.
Feature comparison: Canon 5D Mark II vs 77D
Apart from body and sensor, cameras can and do differ across a variety of features. The 5D Mark II and the 77D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark II offers a wider field of view (98%) than the one in the 77D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D Mark II has a higher magnification (0.71x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5D Mark II and Canon 77D along with similar information for a selection of comparators.
|Canon 5D Mark II»||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Canon 77D«||optical||Y||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon 77D|
|Canon SL2« »||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon SL2|
|Canon T7i« »||optical||n||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon T7i|
|Canon 1D X Mark II« »||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Canon 5D Mark IV« »||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n||Canon 5D Mark IV|
|Canon M5« »||2360||n||3.2||1620||tilting||Y||1/4000s||9.0||Y||n||Canon M5|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R« »||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon T6i« »||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T6i|
|Canon T6s« »||optical||Y||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T6s|
|Canon 5D Mark III« »||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D« »||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon 1D X« »||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n||Canon 1D X|
|Canon 7D« »||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon 1Ds Mark III« »||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n||Canon 1Ds Mark III|
|Canon 5D« »||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 77D has a touchscreen, while the 5D Mark II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 77D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark II does not have a selfie-screen.
The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark II writes its imaging data to Compact Flash cards, while the 77D uses SDXC cards.
Connectivity comparison: Canon 5D Mark II vs 77D
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Canon EOS 77D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 5D Mark II»||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 77D«||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 77D|
|Canon SL2« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon SL2|
|Canon T7i« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon T7i|
|Canon 1D X Mark II« »||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon 5D Mark IV« »||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon M5« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon M5|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon T6i« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon T6i|
|Canon T6s« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon T6s|
|Canon 5D Mark III« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D« »||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 1D X« »||Y||mono||-||Y||-||mini||2.0||-||-||-||Canon 1D X|
|Canon 7D« »||Y||mono||-||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon 1Ds Mark III« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 1Ds Mark III|
|Canon 5D« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 5D|
It is notable that the 77D offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D Mark II does not offer wifi capability.
Studio photographers will appreciate that the Canon 5D Mark II (unlike the 77D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The 77D is a recent model that features in the current product line-up of Canon. In contrast, the 5D Mark II has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 5D Mark II was succeeded by the Canon 5D Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
Review summary: Canon 5D Mark II vs 77D
So what conclusions can be drawn? Is there a clear favorite between the Canon 5D Mark II and the Canon 77D? Which camera is better? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 5D Mark II:
- Better low-light sensitivity: Requires less light for good images (0.9 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (98% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.51x).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (850 versus 600) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Arguments in favor of the Canon EOS 77D:
- More detail: Has more megapixels (24 vs 21MP), which boosts linear resolution by 7%.
- More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 4).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6 vs 3.9 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (131x100mm vs 152x114mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 310g or 36 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More modern: Reflects 8 years and 5 months of technical progress since the 5D Mark II launch.
If the number of relative strengths (bullet points above) is taken as a guide, the 77D is the clear winner of the contest (19 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark II and the Canon 77D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark II or the 77D. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews: Canon 5D Mark II vs 77D
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D Mark II»||91/100||79/100||4/5||5/5||-||Sep 2008||3,499||-||Canon 5D Mark II|
|Canon 77D«||-||82/100||4.5/5||4.5/5||4/5||Feb 2017||899||Canon 77D|
|Canon SL2« »||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549||-||Canon SL2|
|Canon T7i« »||-||80/100||4.5/5||4/5||4/5||Feb 2017||749||Canon T7i|
|Canon 1D X Mark II« »||-||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 5D Mark IV« »||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499||Canon 5D Mark IV|
|Canon M5« »||+||82/100||4/5||4.5/5||4/5||Sep 2016||979||Canon M5|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS R|
|Canon T6i« »||-||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749||-||Canon T6i|
|Canon T6s« »||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649||-||Canon T6s|
|Canon 5D Mark III« »||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499||-||Canon 5D Mark III|
|Canon 6D« »||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099||-||Canon 6D|
|Canon 1D X« »||-||-||4.5/5||4.5/5||4.5/5||Oct 2011||6,799||-||Canon 1D X|
|Canon 7D« »||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699||-||Canon 7D|
|Canon 1Ds Mark III« »||-||+ +||4.5/5||-||-||Aug 2007||7,999||-||Canon 1Ds Mark III|
|Canon 5D« »||88/100||+ +||o||o||-||Aug 2005||3,299||-||Canon 5D|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 10D vs Canon 77D
- Canon 5D Mark II vs Canon RP
- Canon 5D Mark II vs Canon T6
- Canon 5D Mark II vs Leica Digilux 3
- Canon 5D Mark II vs Olympus E-5
- Canon 5D Mark II vs Panasonic TZ100
- Canon 5D Mark II vs Sony A7 III
- Canon 77D vs Canon SL2
- Canon 77D vs Canon T2i
- Canon 77D vs Fujifilm X-E2S
- Canon 77D vs Nikon D610
- Canon 77D vs Sony A6500
Specifications: Canon 5D Mark II vs Canon 77D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark II||Canon 77D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||September 2008||February 2017|
|Launch Price||USD 3499||USD 899|
|Sensor Specs||Canon 5D Mark II||Canon 77D|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||21 Megapixels||24 Megapixels|
|Image Resolution||5616 x 3744 pixels||6000 x 4000 pixels|
|Pixel Pitch||6.41 μm||3.72 μm|
|Pixel Density||2.43 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100-6400 ISO||100-25600 ISO|
|ISO Boost||50-25600 ISO||100-51200 ISO|
|Image Processor||DIGIC 4||DIGIC 7|
|DXO Sensor Quality (score)||79||78|
|DXO Color Depth (bits)||23.7||23.6|
|DXO Dynamic Range (EV)||11.9||13.3|
|DXO Low Light (ISO)||1815||971|
|Screen Specs||Canon 5D Mark II||Canon 77D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||98%||95%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||920k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D Mark II||Canon 77D|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3.9 shutter flaps/s||6 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations||100 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D Mark II||Canon 77D|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 5D Mark II||Canon 77D|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Type||LP-E6 power pack||LP-E17 power pack|
|Battery Life (CIPA)||850 shots per charge||600 shots per charge|
152 x 114 x 75 mm
(6.0 x 4.5 x 3.0 in)
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
|Camera Weight||850 g (30.0 oz)||540 g (19.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
