Canon 550D vs 5D Mark IV

The Canon EOS 550D (called Canon T2i in some regions) and the Canon EOS 5D Mark IV are two digital cameras that were announced, respectively, in February 2010 and August 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (550D) and a full frame (5D Mark IV) sensor. The 550D has a resolution of 17.9 megapixels, whereas the 5D Mark IV provides 30.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 550D
versus
Canon 5D Mark IV
Canon 550D   Canon 5D Mark IV
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
17.9 MP – APS-C sensor 30.1 MP – Full Frame sensor
1080/30p Video 4K/30p Video
ISO 100-6,400 (100 - 12,800) ISO 100-32,000 (50 - 102,400)
Optical viewfinder Optical viewfinder
3.0" LCD – 1040k dots 3.2" LCD – 1620k dots
Fixed screen (not touch-sensitive) Fixed touchscreen
3.7 shutter flaps per second 7 shutter flaps per second
not weather sealedWeathersealed body
440 shots per battery charge900 shots per battery charge
129 x 98 x 62 mm, 530 g 151 x 116 x 76 mm, 890 g
logo
Check 550D offers at
ebay.com
logo
Check 5D Mark IV price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 550D and the Canon EOS 5D Mark IV? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 550D and the Canon 5D Mark IV. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

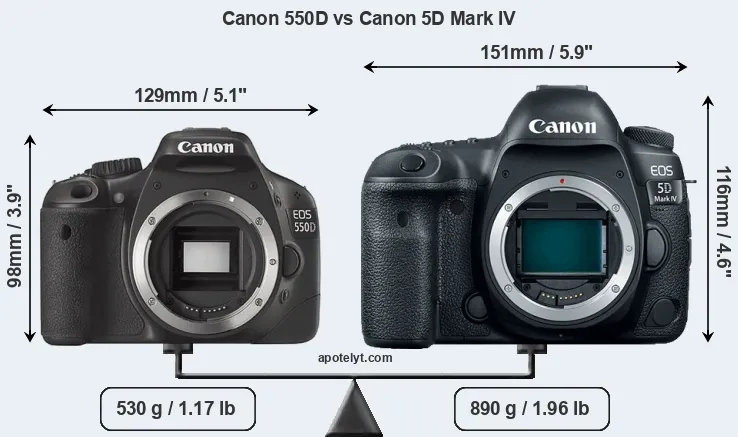

Size Canon 550D vs Canon 5D Mark IV

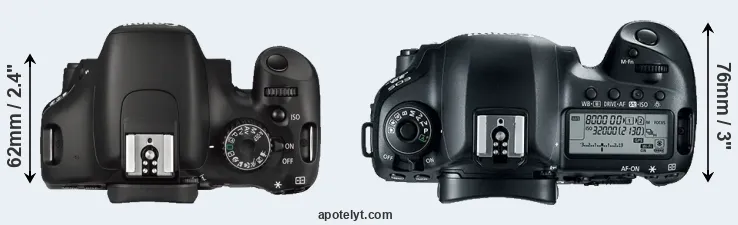

Compare 550D versus 5D Mark IV top

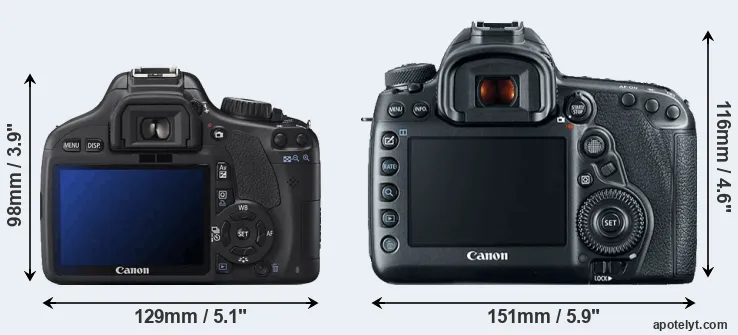

Comparison 550D or 5D Mark IV rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5D Mark IV is notably larger (39 percent) than the Canon 550D. Moreover, the 5D Mark IV is substantially heavier (68 percent) than the 550D. It is noteworthy in this context that the 5D Mark IV is splash and dust-proof, while the 550D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D Mark IV) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (550D). You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 550D gets 440 shots out of its LP-E8 battery, while the 5D Mark IV can take 900 images on a single charge of its LP-E6N power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 550D 129 mm 98 mm 62 mm 530 g 440 n Feb 2010 699ebay.com
2.

Canon 5D Mark IV 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 amazon.com
3.

Canon 4000D 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 amazon.com
4.

Canon 6D Mark II 144 mm 111 mm 75 mm 765 g 1200 Y Jun 2017 1,999 amazon.com
5.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
6.

Canon 5DS 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
7.

Canon 5DS R 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
8.

Canon 750D 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
9.

Canon 760D 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
10.

Canon 1200D 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449ebay.com
11.

Canon 700D 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 649ebay.com
12.

Canon 5D Mark III 152 mm 116 mm 76 mm 950 g 950 Y Mar 2012 3,499ebay.com
13.

Canon 650D 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849ebay.com
14.

Canon 600D 133 mm 100 mm 80 mm 570 g 440 n Feb 2011 599ebay.com
15.

Canon 1100D 130 mm 100 mm 78 mm 495 g 700 n Feb 2011 449ebay.com
16.

Canon 500D 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799ebay.com
17.

Nikon D5100 128 mm 97 mm 79 mm 560 g 660 n Apr 2011 749ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 550D was launched at a markedly lower price (by 80 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 550D features an APS-C sensor and the Canon 5D Mark IV a full frame sensor. The sensor area in the 5D Mark IV is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the 5D Mark IV uses a more advanced image processing engine (DIGIC 6+) than the 550D (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

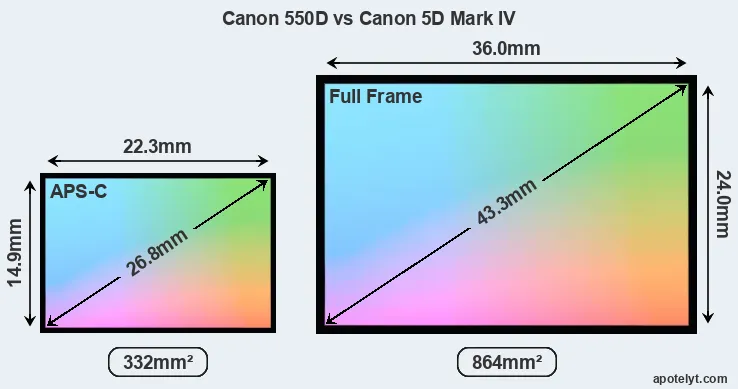

Canon 550D and Canon 5D Mark IV sensor measures

With 30.1MP, the 5D Mark IV offers a higher resolution than the 550D (17.9MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 4.31μm for the 550D) due to its larger sensor. Moreover, the 5D Mark IV is a much more recent model (by 6 years and 6 months) than the 550D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Canon 550D are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 550D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon EOS 5D Mark IV are ISO 100 to ISO 32000, with the possibility to increase the ISO range to 50-102400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

550D versus 5D Mark IV MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the 5D Mark IV offers substantially better image quality than the 550D (overall score 25 points higher). The advantage is based on 2.7 bits higher color depth, 2.1 EV in additional dynamic range, and 1.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 550D APS-C 17.9 5184 34561080/30p22.111.578466
2.

Canon 5D Mark IV Full Frame 30.1 6720 44804K/30p24.813.6299591
3.

Canon 4000D APS-C 17.9 5184 34561080/30p21.911.469563
4.

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285
5.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
6.

Canon 5DS Full Frame 50.3 8688 57921080/30p24.712.4238187
7.

Canon 5DS R Full Frame 50.3 8688 57921080/30p24.612.4230886
8.

Canon 750D APS-C 24.0 6000 40001080/30p22.712.091971
9.

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570
10.

Canon 1200D APS-C 17.9 5184 34561080/30p21.911.372463
11.

Canon 700D APS-C 17.9 5184 34561080/30p21.711.268161
12.

Canon 5D Mark III Full Frame 22.1 5760 38401080/30p24.011.7229381
13.

Canon 650D APS-C 17.9 5184 34561080/30p21.711.272262
14.

Canon 600D APS-C 17.9 5184 34561080/30p22.111.579365
15.

Canon 1100D APS-C 12.2 4272 2848720/30p21.911.075562
16.

Canon 500D APS-C 15.1 4752 31681080/20p21.711.566363
17.

Nikon D5100 APS-C 16.1 4928 32641080/30p23.513.6118380
padding

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 5D Mark IV provides a better video resolution than the 550D. It can shoot movie footage at 4K/30p, while the 550D is limited to 1080/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 550D and the 5D Mark IV are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark IV offers a wider field of view (100%) than the one in the 550D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D Mark IV has a higher magnification (0.71x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 550D, the Canon 5D Mark IV, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 550Doptical n3.0 / 1040 fixed n 1/4000s 3.7/s Y n
2.

Canon 5D Mark IVoptical Y3.2 / 1620 fixed Y 1/8000s 7.0/s n n
3.

Canon 4000Doptical n2.7 / 230 fixed n 1/4000s 3.0/s Y n
4.

Canon 6D Mark IIoptical Y3.0 / 1040 swivel Y 1/4000s 6.5/s n n
5.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
6.

Canon 5DSoptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
7.

Canon 5DS Roptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
8.

Canon 750Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
9.

Canon 760Doptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
10.

Canon 1200Doptical n3.0 / 460 fixed n 1/4000s 3.0/s Y n
11.

Canon 700Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
12.

Canon 5D Mark IIIoptical Y3.2 / 1040 fixed n 1/8000s 6.0/s n n
13.

Canon 650Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
14.

Canon 600Doptical n3.0 / 1040 swivel n 1/4000s 3.7/s Y n
15.

Canon 1100Doptical n2.7 / 230 fixed n 1/4000s 3.0/s Y n
16.

Canon 500Doptical n3.0 / 920 fixed n 1/4000s 3.4/s Y n
17.

Nikon D5100optical n3.0 / 921 swivel n 1/4000s 4.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The 550D has one, while the 5D Mark IV does not. While the built-in flash of the 550D is not very powerful, it can at times be useful as a fill-in light.

The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 550D writes its imaging data to SDXC cards, while the 5D Mark IV uses Compact Flash or SDXC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the 550D only has one slot. The 5D Mark IV supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 550D cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 550D and Canon EOS 5D Mark IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 550DYstereo / -Y-mini2.0---
2.

Canon 5D Mark IVYmono / monoYYmini3.0YY-
3.

Canon 4000DYmono / mono--mini2.0YY-
4.

Canon 6D Mark IIYstereo / monoY-mini2.0YYY
5.

Canon 1D X Mark IIYmono / monoYYmini3.0---
6.

Canon 5DSYmono / monoY-mini3.0---
7.

Canon 5DS RYmono / monoY-mini3.0---
8.

Canon 750DYstereo / monoY-mini2.0YY-
9.

Canon 760DYstereo / monoY-mini2.0YY-
10.

Canon 1200DYmono / mono--mini2.0---
11.

Canon 700DYstereo / monoY-mini2.0---
12.

Canon 5D Mark IIIYmono / monoYYmini2.0---
13.

Canon 650DYstereo / monoY-mini2.0---
14.

Canon 600DYmono / monoY-mini2.0---
15.

Canon 1100DYstereo / mono--mini2.0---
16.

Canon 500DYmono / mono--mini2.0---
17.

Nikon D5100Ymono / monoY-mini2.0---
padding

It is notable that the 5D Mark IV offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 550D does not provide wifi capability.

Studio photographers will appreciate that the Canon 5D Mark IV (unlike the 550D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the 550D has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 550D was succeeded by the Canon 600D. Further information on the features and operation of the 550D and 5D Mark IV can be found, respectively, in the Canon 550D Manual (free pdf) or the online Canon 5D Mark IV Manual.

ad

Review summary

So what is the bottom line? Is the Canon 550D better than the Canon 5D Mark IV or vice versa? Below is a summary of the relative strengths of each of the two contestants.


Arguments in favor of the Canon EOS 550D:

  • More compact: Is smaller (129x98mm vs 151x116mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 360g or 40 percent) and hence easier to carry around.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in February 2010).


Reasons to prefer the Canon EOS 5D Mark IV:

  • More detail: Has more megapixels (30.1 vs 17.9MP), which boosts linear resolution by 30%.
  • Better image quality: Scores substantially higher (25 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.7 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.1 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.9 stops ISO advantage).
  • Better jpgs: Has a more modern image processing engine (DIGIC 6+ vs DIGIC 4).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.54x).
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (7 vs 3.7 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (900 versus 440) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More modern: Reflects 6 years and 6 months of technical progress since the 550D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the contest (28 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

550D 05:28 5D Mark IV

How about other alternatives? Do the specifications of the Canon 550D and the Canon 5D Mark IV place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 550D or the 5D Mark IV perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 550D..+ +..77/1004/54.5/5 Feb 2010 699ebay.com
2.

Canon 5D Mark IV4.5/5+ +4/587/1004.5/54.5/5 Aug 2016 3,499 amazon.com
3.

Canon 4000D2.5/5o3/5..3.5/53.5/5 Feb 2018 399 amazon.com
4.

Canon 6D Mark II4/5+4/580/1004.5/54/5 Jun 2017 1,999 amazon.com
5.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
6.

Canon 5DS..+..83/1004.5/54.5/5 Feb 2015 3,699ebay.com
7.

Canon 5DS R5/5+..83/1005/54.5/5 Feb 2015 3,699ebay.com
8.

Canon 750D5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
9.

Canon 760D5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
10.

Canon 1200D3/5+....4/54.5/5 Feb 2014 449ebay.com
11.

Canon 700D......76/1004.5/54.5/5 Mar 2013 649ebay.com
12.

Canon 5D Mark III..+ +..82/1004.5/54.5/5 Mar 2012 3,499ebay.com
13.

Canon 650D4/5+ +..77/1004.5/54.5/5 Jun 2012 849ebay.com
14.

Canon 600D3/5o..77/1004.5/54.5/5 Feb 2011 599ebay.com
15.

Canon 1100D..80/100..69/1004/54.5/5 Feb 2011 449ebay.com
16.

Canon 500D..+ +..74/1004.5/54.5/5 Mar 2009 799ebay.com
17.

Nikon D51005/5+ +..76/1004.5/54.5/5 Apr 2011 749ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check 550D offers at
ebay.com
logo
Check 5D Mark IV price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

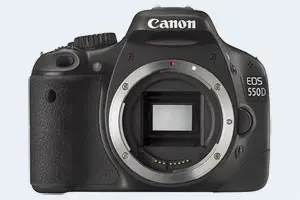

    Specifications: Canon 550D vs Canon 5D Mark IV

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 550D Canon 5D Mark IV
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date February 2010 August 2016
    Launch Price USD 699 USD 3,499
    Sensor Specs Canon 550D Canon 5D Mark IV
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Full Frame Sensor
    Sensor Size 22.3 x 14.9 mm 36.0 x 24.0 mm
    Sensor Area 332.27 mm2 864 mm2
    Sensor Diagonal 26.8 mm 43.3 mm
    Crop Factor 1.6x 1.0x
    Sensor Resolution 17.9 Megapixels 30.1 Megapixels
    Image Resolution 5184 x 3456 pixels 6720 x 4480 pixels
    Pixel Pitch 4.31 μm 5.36 μm
    Pixel Density 5.39 MP/cm2 3.48 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 4K/30p Video
    ISO Setting 100 - 6,400 ISO 100 - 32,000 ISO
    ISO Boost 100 - 12,800 ISO 50 - 102,400 ISO
    Image Processor DIGIC 4 DIGIC 6+
    DXO Sensor Quality (score) 66 91
    DXO Color Depth (bits) 22.1 24.8
    DXO Dynamic Range (EV) 11.5 13.6
    DXO Low Light (ISO) 784 2995
    Screen Specs Canon 550D Canon 5D Mark IV
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.54x 0.71x
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.2inch
    LCD Resolution 1040k dots 1620k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon 550D Canon 5D Mark IV
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 3.7 shutter flaps/s 7 shutter flaps/s
    Shutter Life Expectancy100 000 actuations150 000 actuations
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards CF or SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    UHS card support no UHS-I
    Connectivity Specs Canon 550D Canon 5D Mark IV
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 3.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Geotagging no internal GPS GPS built-in
    Body Specs Canon 550D Canon 5D Mark IV
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type LP-E8 LP-E6N
    Battery Life (CIPA)440 shots per charge900 shots per charge
    Body Dimensions 129 x 98 x 62 mm
    (5.1 x 3.9 x 2.4 in)
    151 x 116 x 76 mm
    (5.9 x 4.6 x 3.0 in)
    Camera Weight 530 g (18.7 oz) 890 g (31.4 oz)
    logo
    Check 550D offers at
    ebay.com
    logo
    Check 5D Mark IV price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 550D vs Canon 5D Mark IV
